8. REAR HYDRAULIC OUTLET

The rear hydraulic outlet is located at the right hand side of the hydraulic cylinder body.
This rear hydraulic outlet is provided to take power out from the tractor to operate the hydraulic cylinders on the
implement.
NOTE
• If the control valve of implement has the relief
valve, the tank port flow from implement should
be connected to the port C.

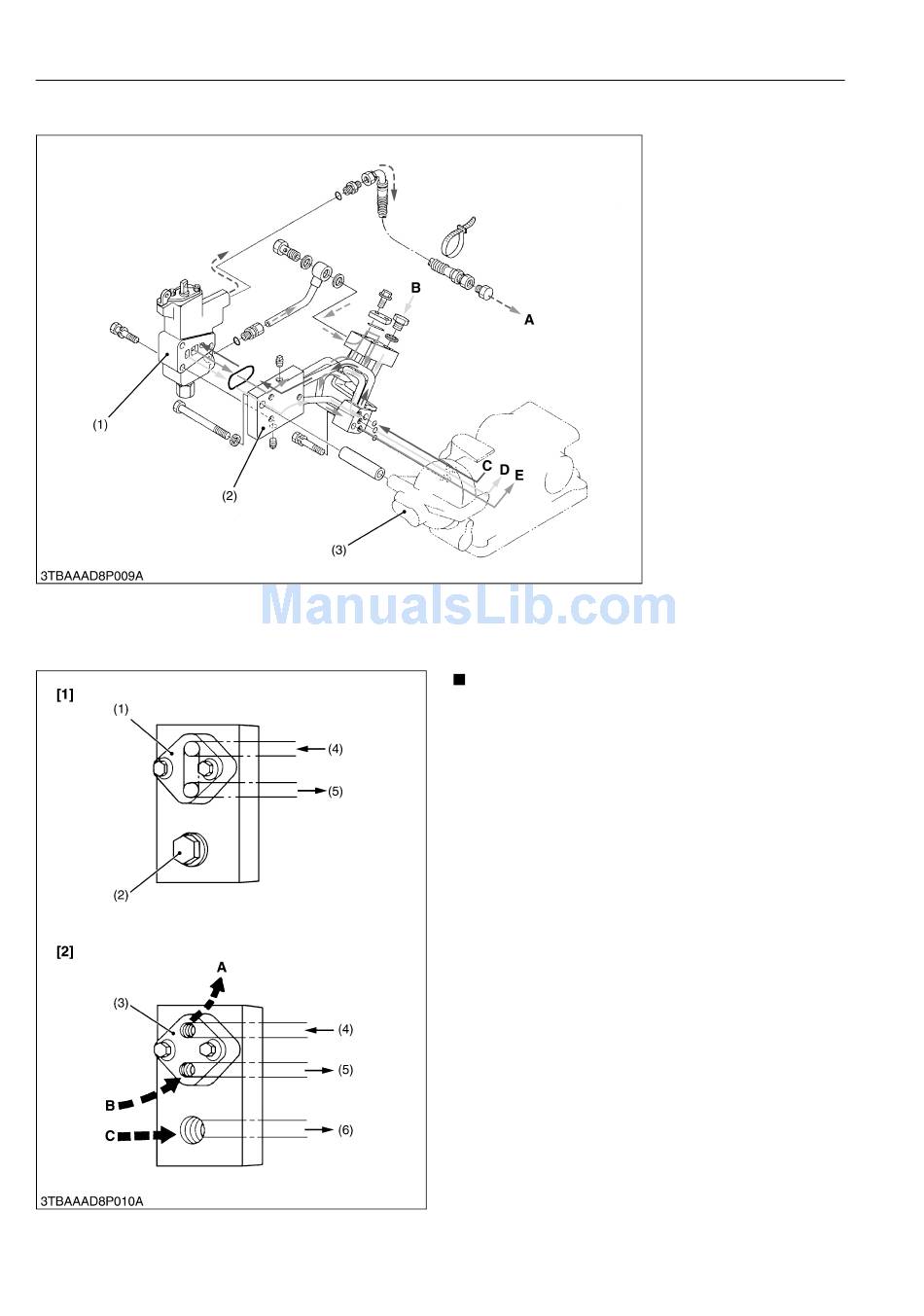

(1) Block Cover
(2) Plug
(3) Block Outlet Cover (Option)
(4) From Hydraulic Pump
(5) To Position Control Valve
(6) To Transmission Case
[1] When implement is not
attached
[2] When implement is
attached
8-M18
HYDRAULIC SYSTEM
(1) Auxiliary Control Valve
(2) Rear Hydraulic Outlet
(3) Hydraulic Cylinder Body
A: To Implement
B: From Implement (Drain)
C: From Hydraulic Pump
D: To Transmission Case
E: To Position Control Valve
9Y1210003HYM0023US0
A: To implement (Inlet) Max.
flow 17 L/min.
(4.5 U.S.gals/min.,
3.7 Imp.gals/min.)
Max. pressure
13.2 to 13.7 MPa
2
(135 to 140 kgf/cm ,
1920 to 1992 psi)
B: From Implement (Outlet)
C: From Implement (Drain)
9Y1210003HYM0024US0
