Dedicated iLO management port module

Observe the following rules and limitations when installing an dedicated iLO management port module:
• If a dedicated iLO management port module is installed in a node, the node can only connect to a network
through the dedicated iLO management port module.
• If a dedicated iLO management port module is installed in a node, the node cannot be accessed through
the RCM module.
• If using the RCM module iLO ports or the dedicated iLO management port module to connect to a
network, the network must operate at a speed of 1 Gb/s. The server cannot connect to the network if the
network is operating at a speed of 10/100 Mb/s or 10 Gb/s.
To remove the component:
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the server node from the chassis.
4. Place the node on a flat, level surface.
5. Remove any installed PCI riser cage assemblies.
6. Remove all rear I/O blanks.

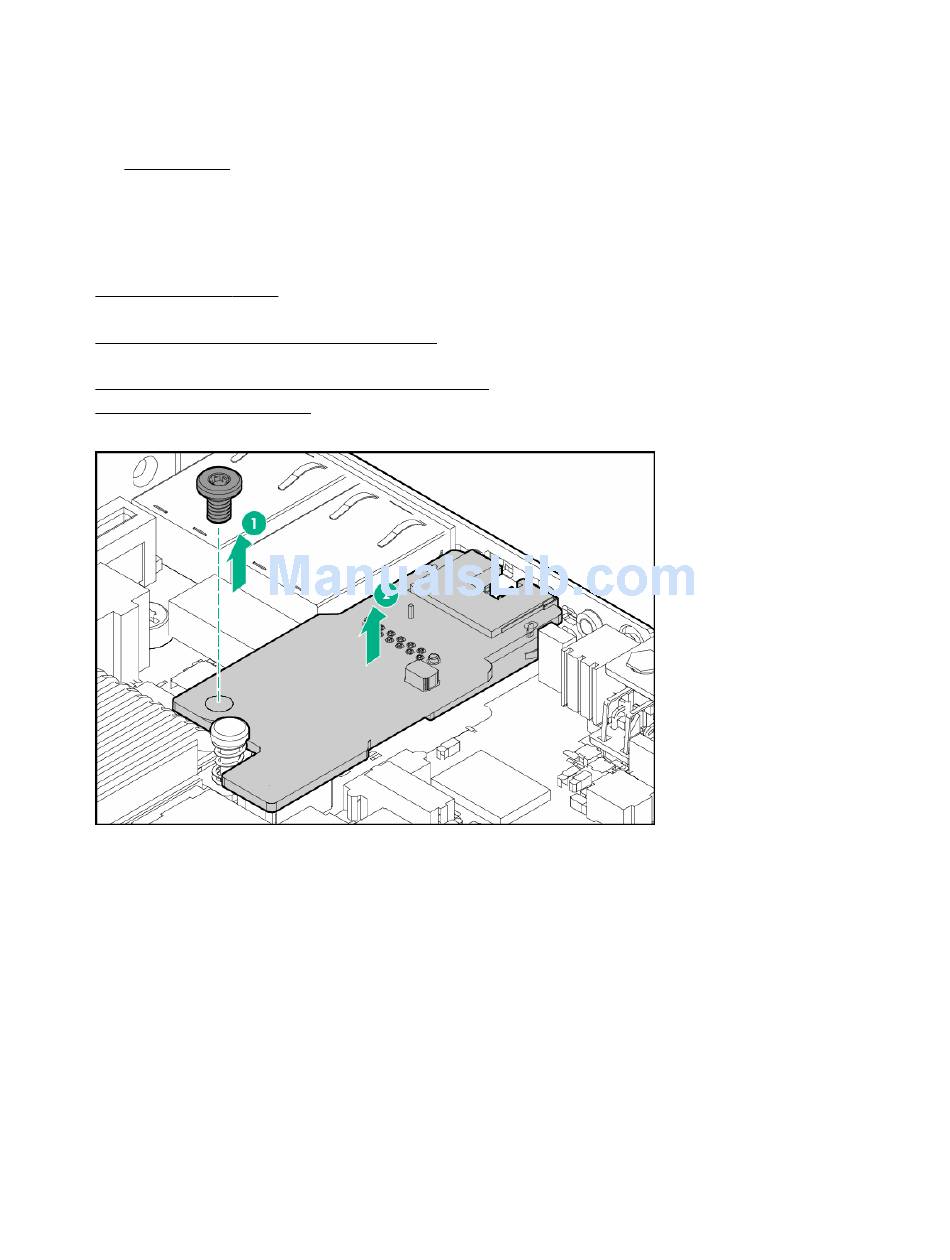

7. Remove the failed dedicated iLO management port card.
To replace the component, reverse the removal procedure.

Enabling the dedicated iLO management module

To enable the dedicated iLO management module:
1. During the server startup sequence after installing the module, press F9 in the POST screen.
The System Utilities screen appears.
2. Select System Configuration | iLO 4 Configuration Utility.
The iLO 4 Configuration Utility screen appears.
3. Select Network Options, and then press Enter.
The Network Options screen appears.
4. Set the Network Interface Adapter field to ON, and then press Enter.
5. Press F10 to save your changes.
82 Dedicated iLO management port module
