• 2U air baffle

Remove the bayonet board assembly

1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis.
4. Place the node on a flat, level surface.
5. If installed in a 2U node, remove the FlexibleLOM 2U node riser cage assembly.
6. If installed in a 2U node, remove the three-slot PCI riser cage assembly.
7. If an accelerator power cable is installed, disconnect it from the bayonet board.
8. If a B140i SATA cable is installed, disconnect it from the system board.
9. Remove the bayonet board assembly from the node.

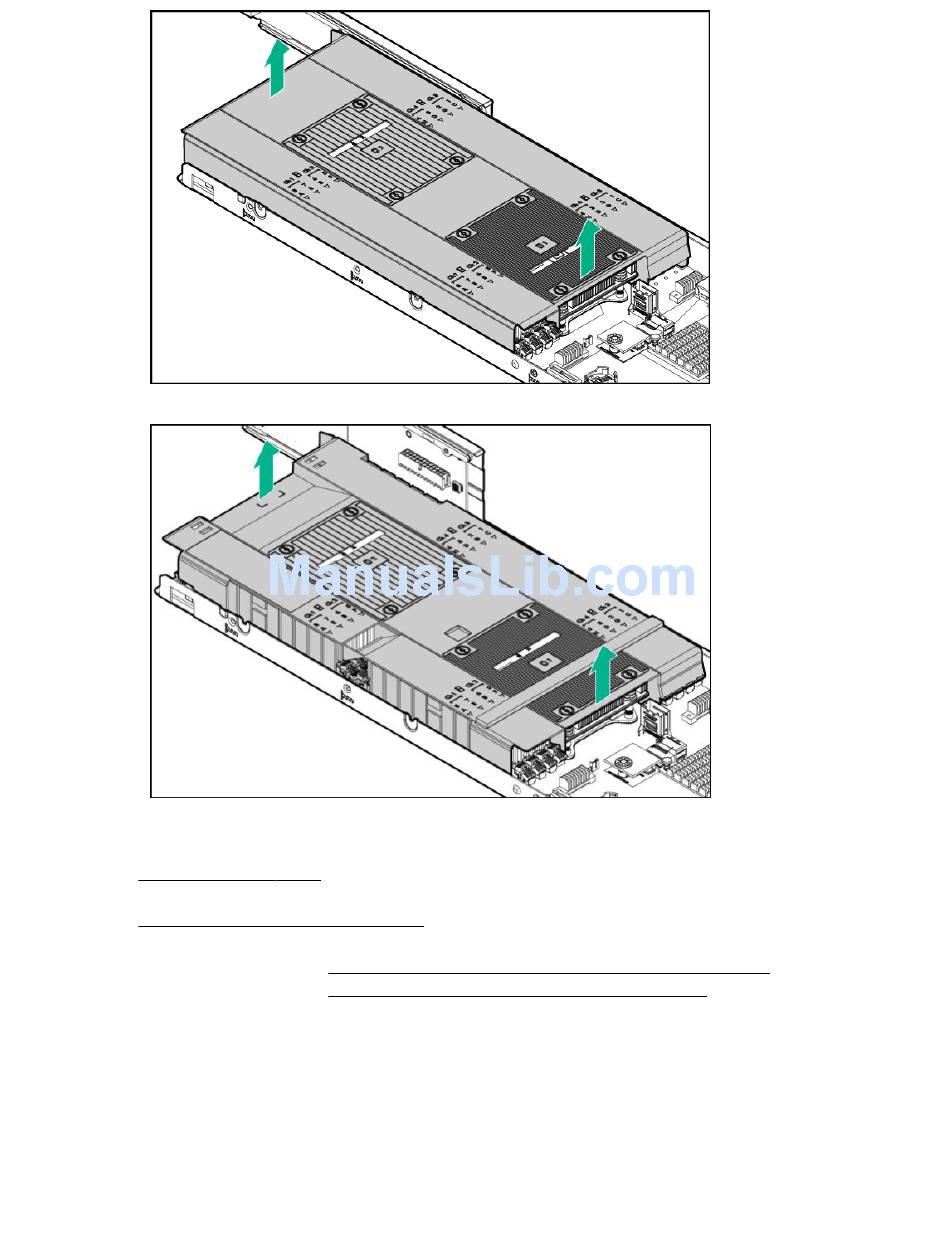

• 1U bayonet board assembly
Remove the bayonet board assembly 45
