CAUTION:
To prevent improper cooling and thermal damage, do not operate the node unless all PCI riser cages
or rear I/O blanks are installed, and do not operate the node unless all PCI slots have either an
expansion slot cover or an expansion board installed.

FlexibleLOM 2U node riser cage assembly

Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis .
4. Place the node on a flat, level surface.

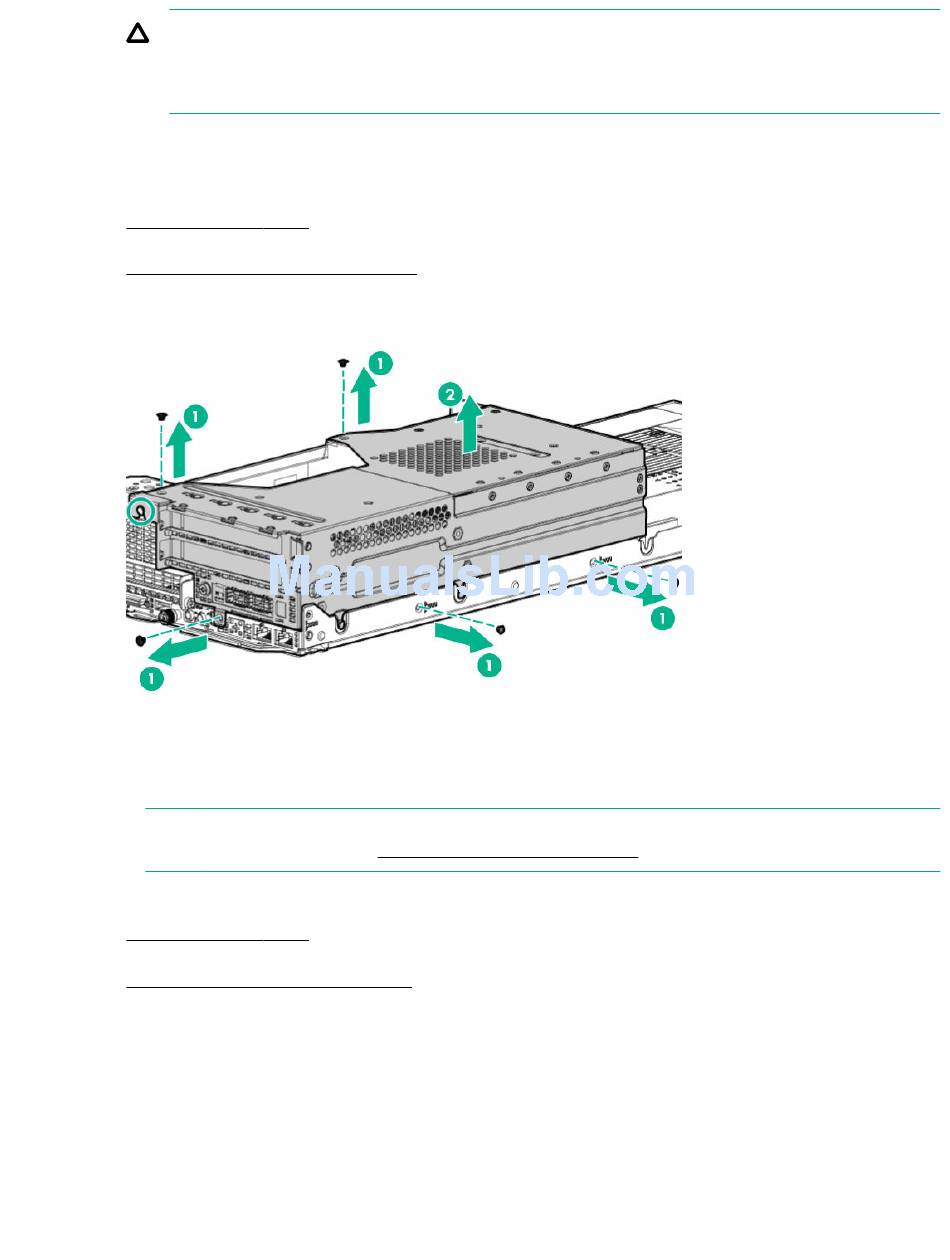

5. Remove the FlexibleLOM 2U node riser cage assembly.

Three-slot riser cage assemblies

About this task
NOTE: Three-slot riser cage assemblies feature different riser boards. For more information on the riser
board slot specifications, see "PCIe riser board slot definitions."
Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis.
4. Place the node on a flat, level surface.
5. Remove the three-slot riser cage assembly.
FlexibleLOM 2U node riser cage assembly
