Fbwc Module Cabling - HP Apollo 2000 System Maintenance And Service Manual

Item Description
1 Mini-SAS P440/P840 cable
2 Mini-SAS P440/P840 cable

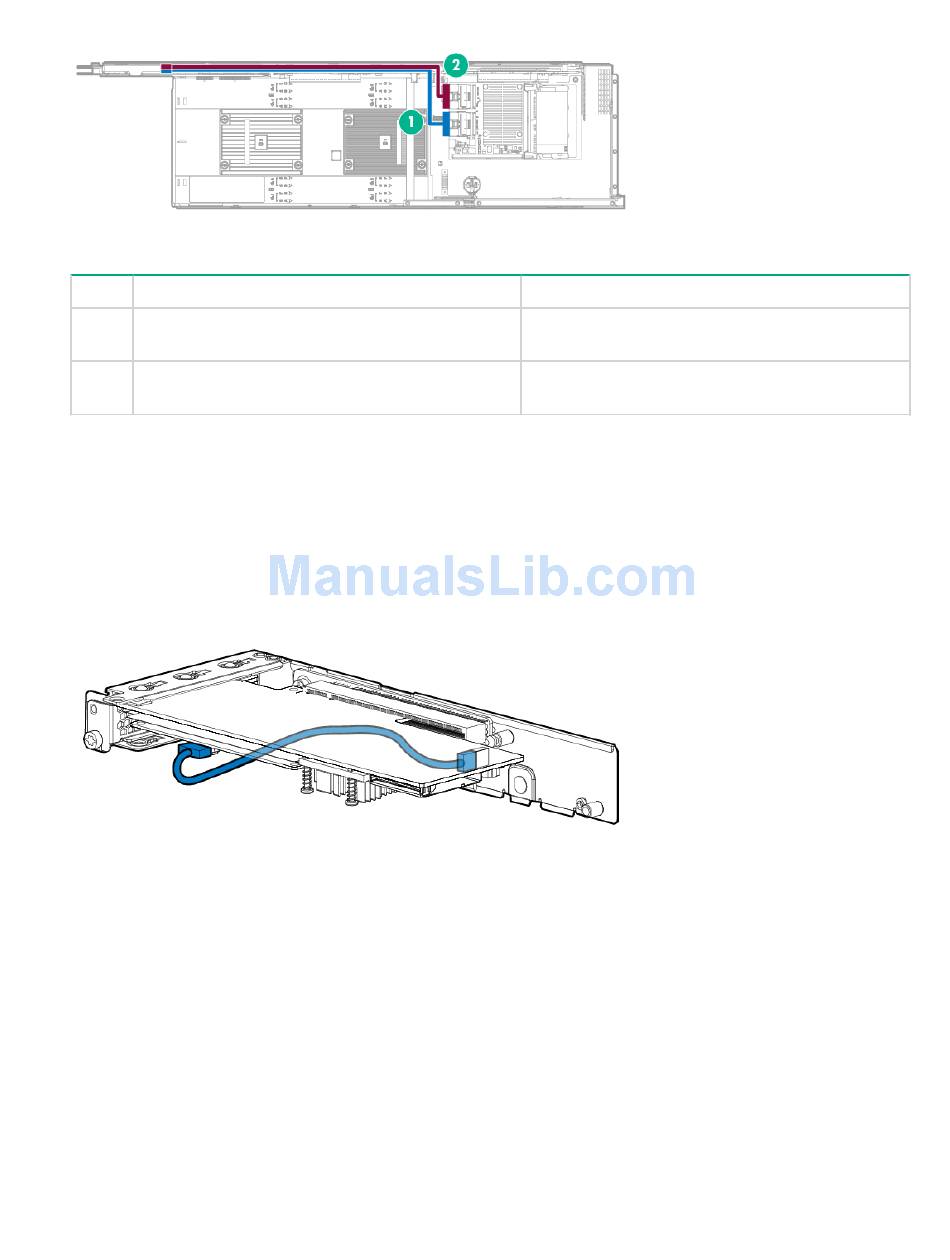

FBWC module cabling

The FBWC solution is a separately purchased option. This node only supports FBWC module installation
when a Smart Array P-Series controller is installed.
Depending on the controller option installed, the actual storage controller connectors might look different from
what is shown in this section.
HPE P440 Smart Array controller in a single-slot left PCI riser cage assembly
HPE P440 Smart Array controller in a single-slot 2U node PCI riser cage assembly
162 FBWC module cabling
Connection
Port 1 on P840 Smart Array controller to Port 1
on the bayonet board
Port 2 on P840 Smart Array controller to Port 2
on the bayonet board
