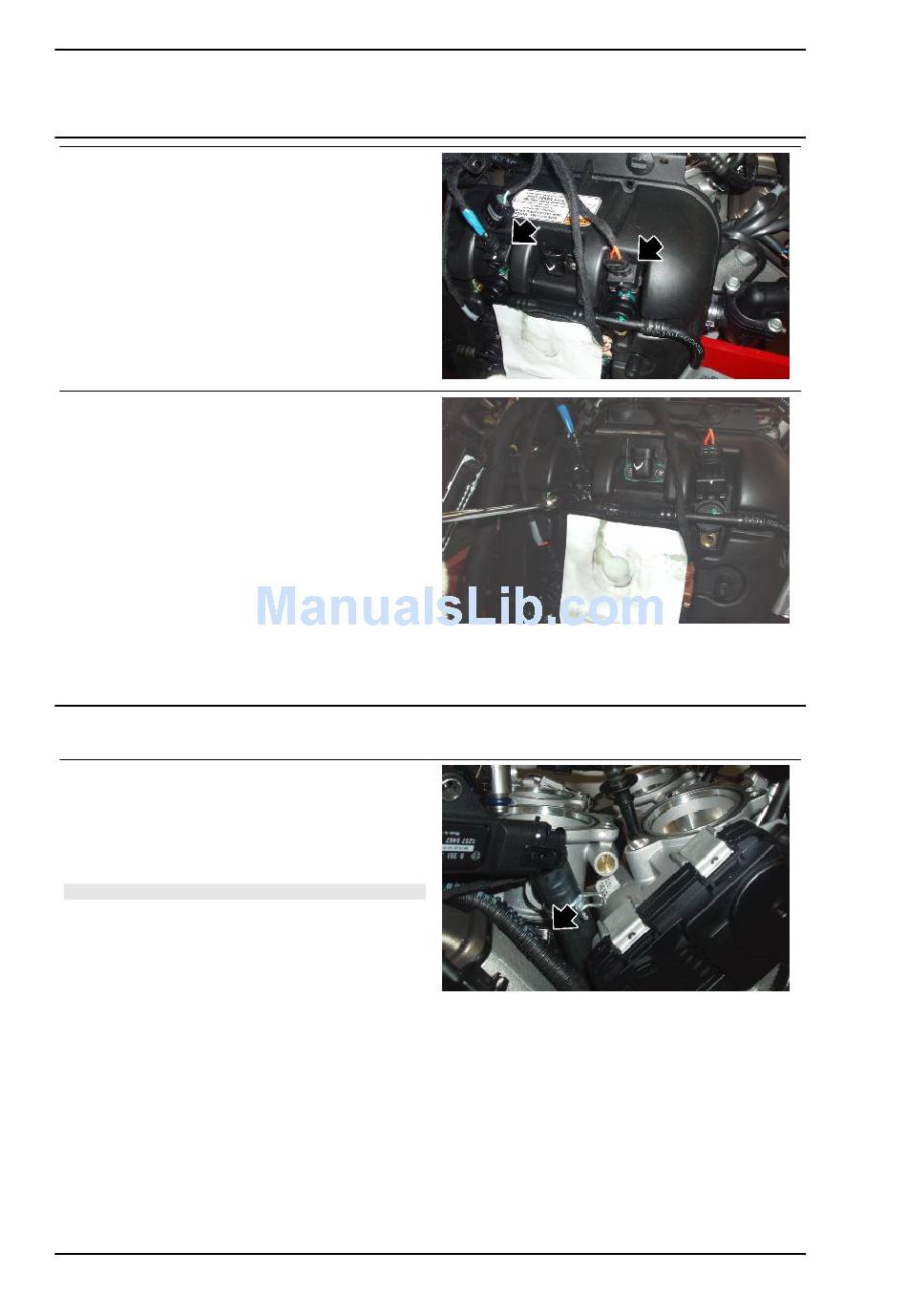

UPPER INJECTORS

•
Remove the control unit.
•
Disconnect the injector connectors.
•
Unscrew and remove the injector fixing
screws.
•
Remove the upper injectors, identified
by green collars.
See also
Control unit

Removing the throttle body

•
Completely remove the air filter box.
•
Disconnect the injector fuel pipe.
•
Release the snap fit clamp on the col-
lars from the engine.
NOTE
DO NOT RELEASE THE CLAMPS COMPLETELY. LEAVE
IN AN INTERMEDIATE POSITION TO FACILITATE REFIT-
TING.
