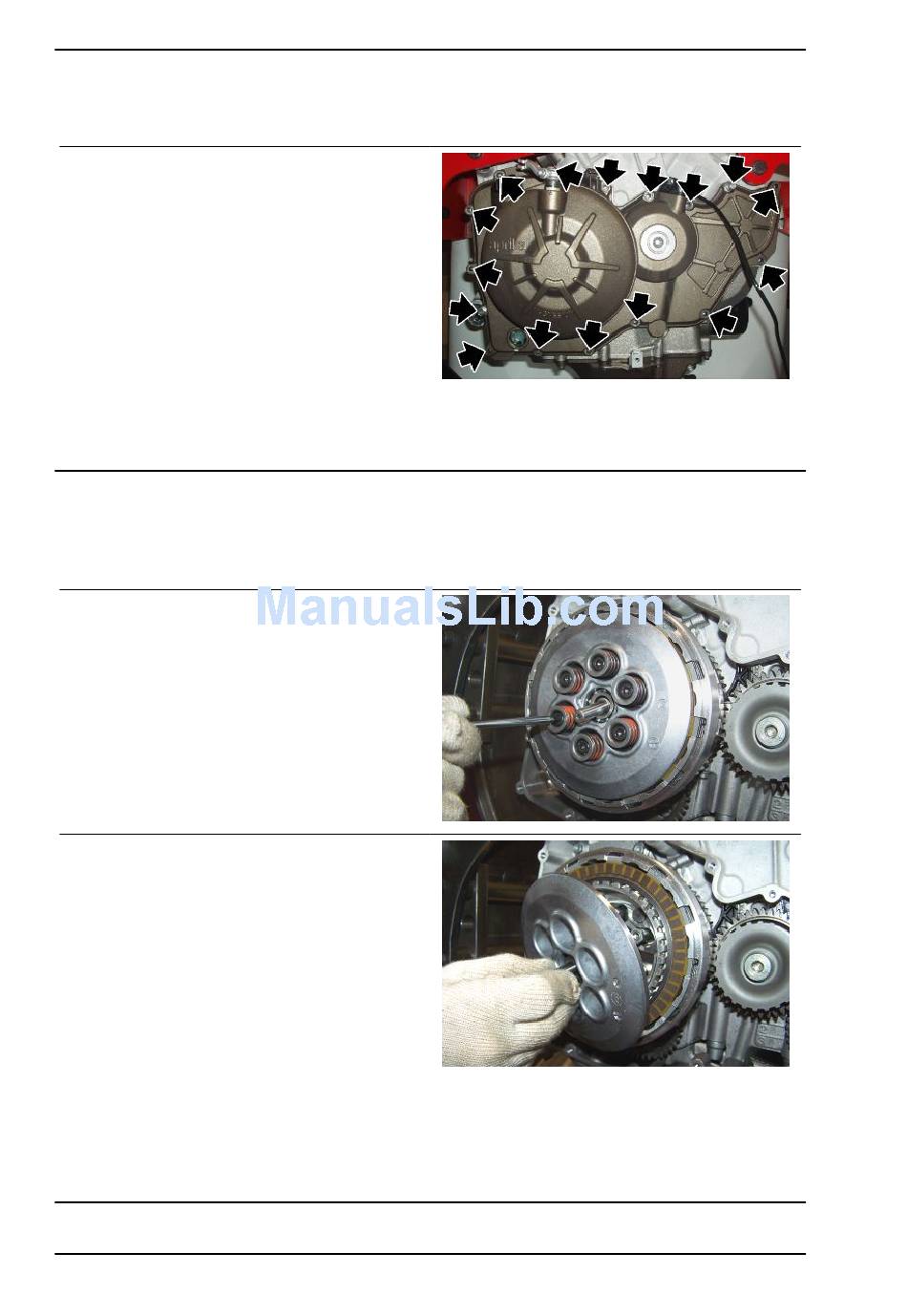

Removing the clutch cover

Drain the engine oil.

Unscrew and remove the sixteen peri-

metric fixing screws and retrieve the

Remove the clutch casing, retrieving the gasket, the two locator pins and the starter motor

transmission gear.

Unscrew and remove the tone wheel fixing screw.

Remove the tone wheel.

Remove the clutch cover.

Unscrew and remove the six screws by

loosening them 1/4 of a turn at a time;

operate in stages and diagonally, and

retrieve the washers and the clutch

Remove the pressure plate and the

complete control rod.

Remove the discs.
