Bodywork

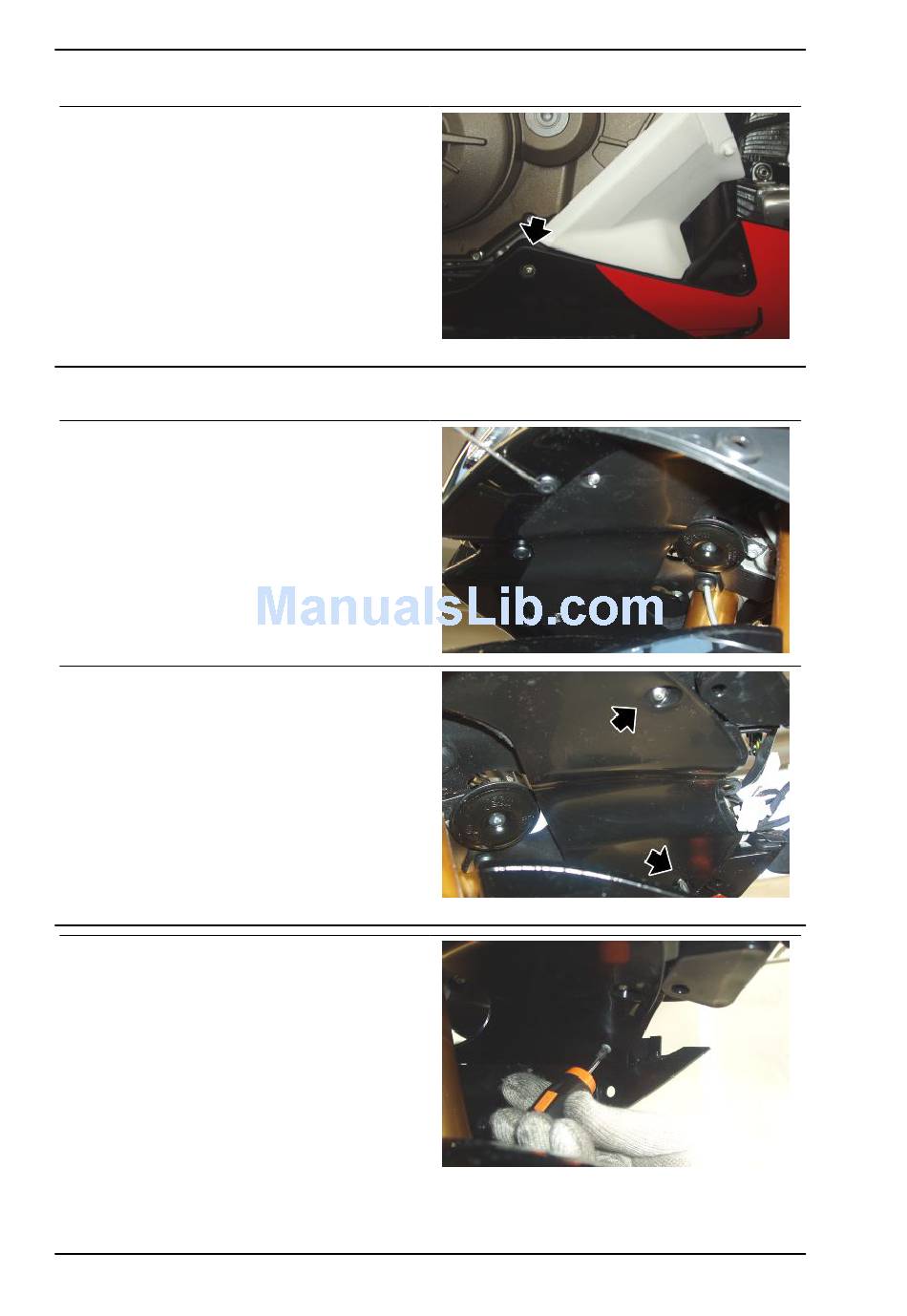

LOWER SIDE FAIRINGS

•
The operations described below are
valid for both lower side fairings.
•
Remove the side fairing.
•
Unscrew and remove the screw and
remove the lower side fairing.

Fairing mounting panels

CENTRAL UNDERFAIRING

•
Remove the three windshield fixing in-
serts.
•
Unscrew and remove the two screws.
•
Ease off the central underfairing, tak-
ing care not to damage the fittings with
the lateral underfairings and the wind-
shield.
•
Working from both sides, unscrew and
remove the lower screw.
BODYW - 456
RSV4 R
