Rear Mudguard; Lower Cowl - APRILIA RSV4 R Service Station Manual

Bodywork
•

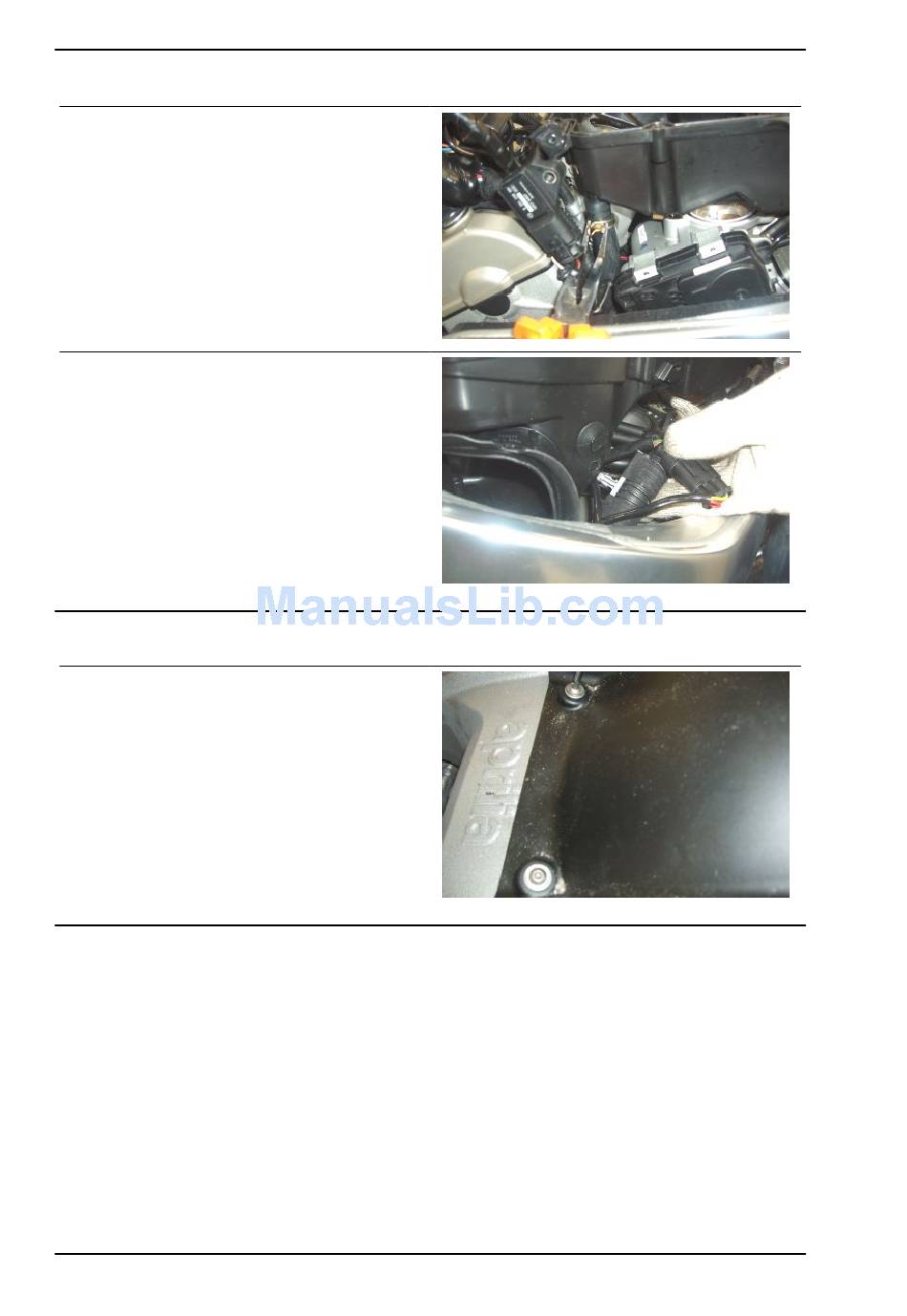

Working from both sides, disconnect
the Blow-by system intake pipes.
•
Release the cable harness from the
cable grommet on the filter box.
•
Remove the air filter box base.

Rear mudguard

•
Unscrew and remove the two screws.
•
Remove the rear mudguard.

Lower cowl

•
The following procedure is applicable to both parts of the fairing lug.
•
Remove the lower side fairing.
BODYW - 460
RSV4 R
