Crankshaft - APRILIA RSV4 R Service Station Manual

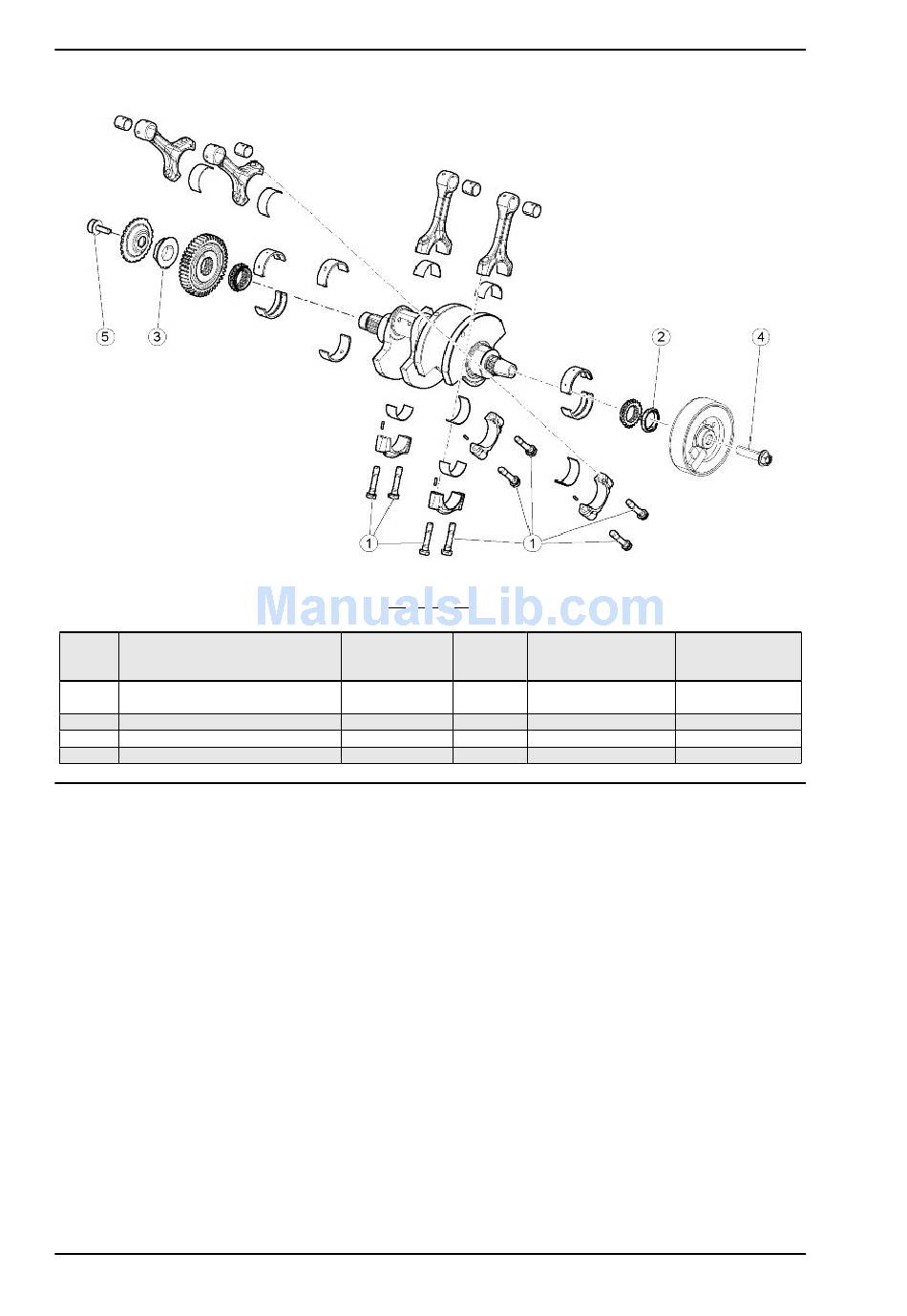

Characteristics
pos. Description
1 Connecting rod screws
2 Fastener ring nut for alternator side
timing sprocket
3 Primary sprocket fixing ring nut
4 Alternator fixing screw
5 Tone wheel fixing screw
CHAR - 44
C
RANKSHAFT
Type Quantity
- 8 15 Nm (11.06 lbf ft) +
- 1
- 1 200 Nm (147.51 lbf ft)
M12x1.25 1
M8x1.25 1
Torque
Lubricate the thread
40° + 60° and under the head
with Molykote
100 Nm (73.76 lbf ft) Loct. 243
Loct. 243
120 Nm (88.51 lbf ft)
30 Nm (22.13 lbf ft) Loct. 3M or 270
RSV4 R
Notes
-
