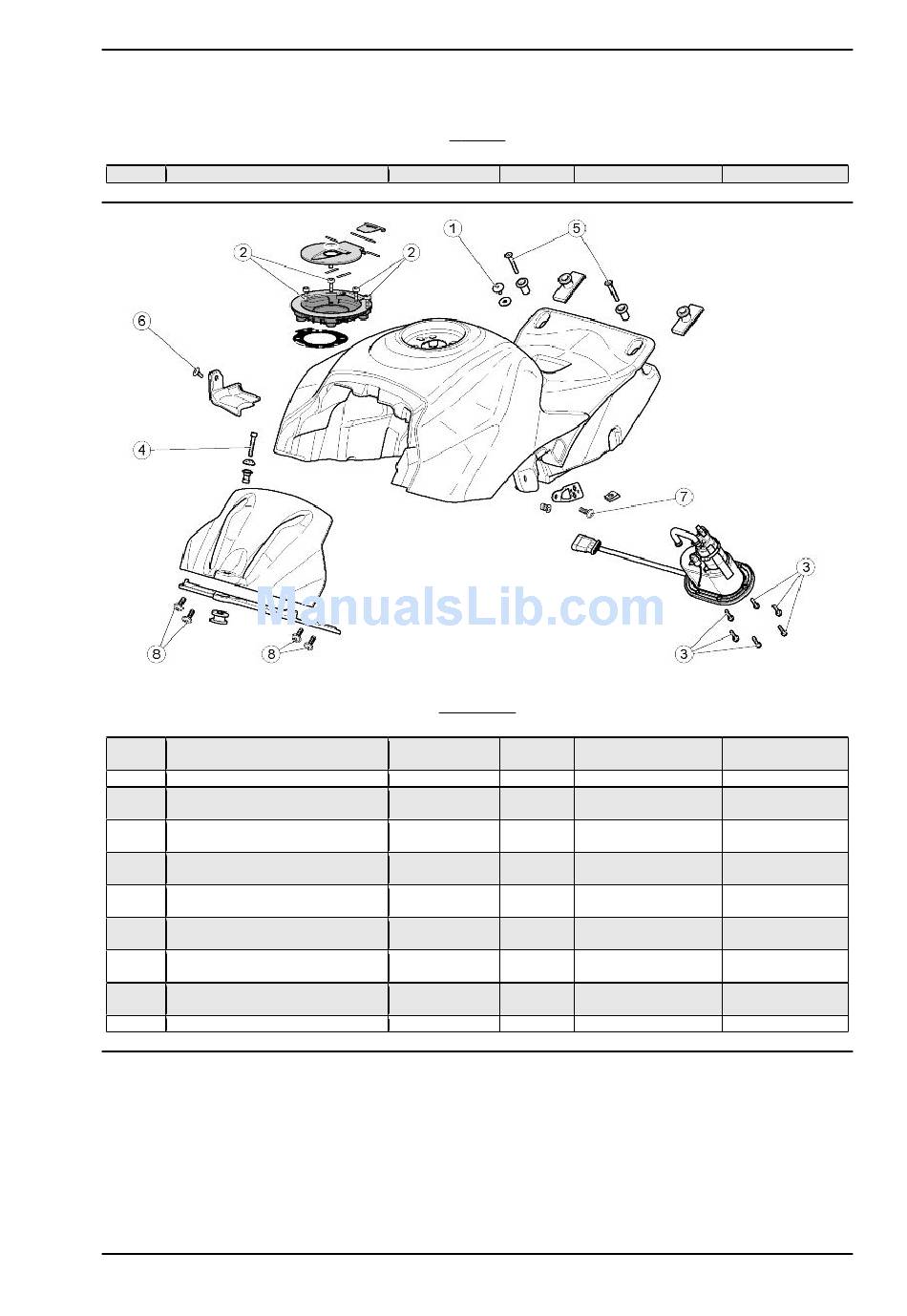

Saddle; Fuel Tank; Table Of Contents - APRILIA RSV4 R Service Station Manual

Hide thumbs Also See for RSV4 R:

Table of Contents

Rider saddle fixing screw

Special screw fastening rider saddle

Screws fixing the filler to the tank

Screws fixing the fuel pump flange to

Front screws fastening the tank to

Rear screws fastening the tank to the

rear chassis

Screws fastening plastic fuel pipe

Left fairing mounting bracket fixing

Screws fastening structural tank

mounting to tank

Central screw fastening the cover to

Fuel tank breather pipe unions

6 Nm (4.42 lbf ft)

4 Nm (2.95 lbf ft)

3 Nm (2.21 lbf ft)

7 Nm (5.16 lbf ft)

2.5 Nm (1.84 lbf ft)

3 Nm (2.21 lbf ft)

0.5 Nm (0.37 lbf ft)

3 Nm (2.21 lbf ft)

Characteristics

8 Nm (5.9 lbf ft)
