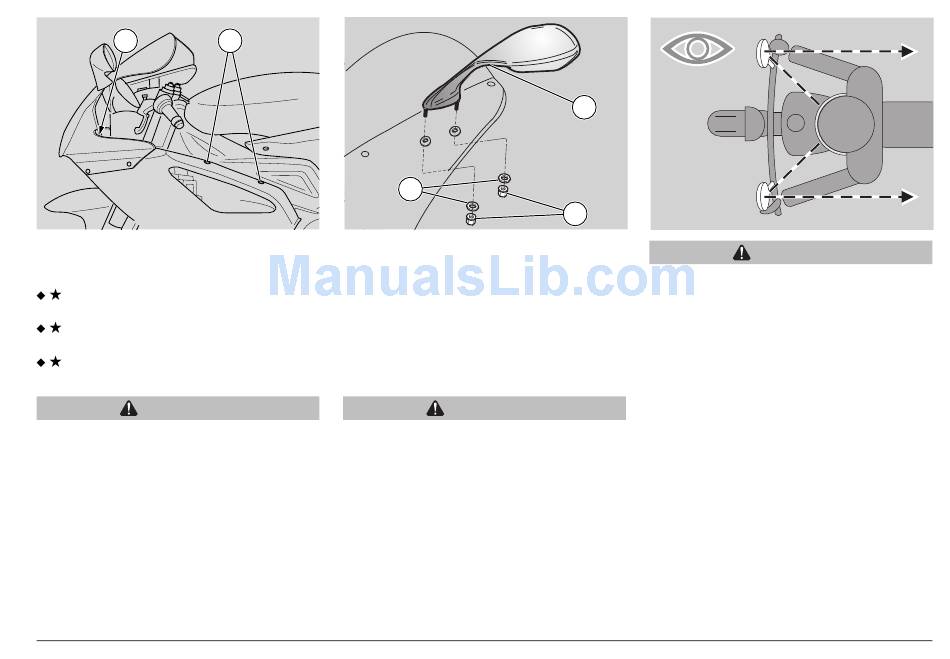

REMOVING THE FAIRING UPPER
FRONT COVERS
Release and remove the two screws
(1).
Release and remove the retaining
screw (2).
Pull the side fairing apart gently to
release the cover.
CAUTION
Handle plastic and paint-finished parts
w i t h c a r e t o a v o i d s c r a t c h i n g o r
damage.
1
REMOVING THE REAR-VIEW
MIRRORS
◆
Disconnect
cables.
◆
Release and remove the two nuts (3)
and collect the washers (4).
◆
Ease off the rear-view mirror (5) paying
attention to the electrical connector.
Handle plastic and paint-finished parts
w i t h c a r e t o a v o i d s c r a t c h i n g o r
damage.
◆
Remove the rear-view mirror (5).
NOTE
mirror.
5
4
3
the direction indicator
CAUTION
Repeat process for the other
CAUTION
On refitting, adjust the rear-view mirrors
and tighten the nuts to secure them
firmly in place.
After refitting:
◆
Set the rear-view mirrors at the correct
angle.
use and maintenance RSV 1000 R - RSV 1000 R FACTORY 83
