Motorcycle division

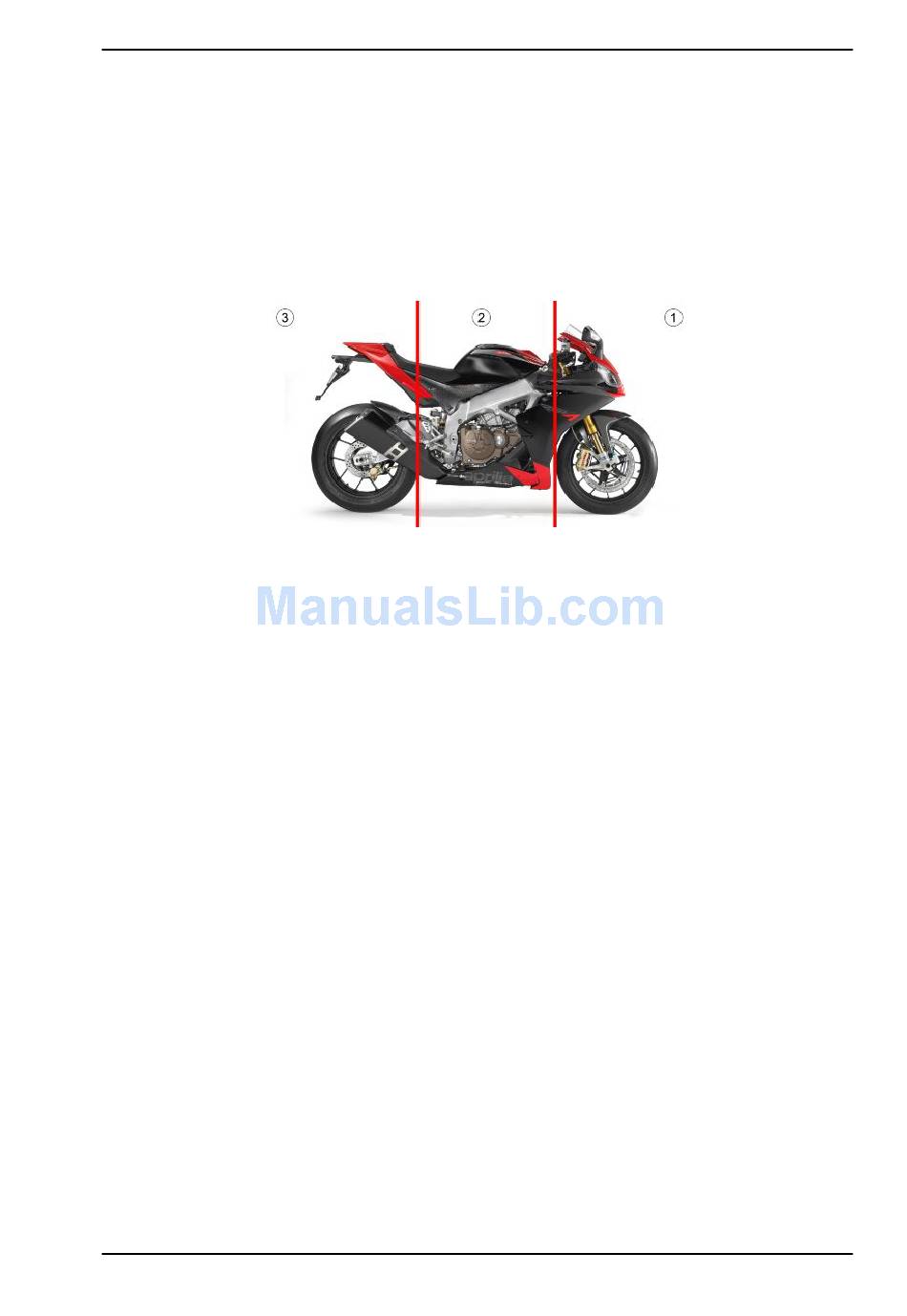

The wiring distribution is subdivided in three essential sections, as indicated in the figure.
1. Front section
2. Central section
3. Rear section

Special checks for the correct connection and laying of cables

It is extremely important that any security-locks for the following connectors are properly connected and
correctly tightened to ensure proper engine, and therefore proper vehicle, operation.
•
Instrument panel connector
•
Demand sensor connectors
•
Start-up relay connector
•
Speed sensor connector
•
Fall sensor connector
•
Safety relay connector
•
Protection relay connector
•
Injection relay connector
•
Taillight connector
•
Fuel pump connector
•
Exhaust valve actuator connector
•
Engine-vehicle interface connector
•
Flywheel connector
•
Regulator connector
•
Fan connectors
•
Starter motor eyelet
•
Stand switch connector
•
Right handlebar control connector
•
Left handlebar control connector
•
Clutch connector
