APRILIA RSV4 R Service Station Manual page 449

RSV4 R
pos. Description
1 Special screw fastening rider saddle
to the tank
2 Screws fixing the filler to the tank
3 Screws fixing the fuel pump flange to
the tank
4 Front screws fastening the tank to
the chassis
5 Rear screws fastening the tank to the
rear chassis
6 Screws fastening plastic fuel pipe
mounting
7 Left fairing mounting bracket fixing
screws
8 Screws fastening structural tank
mounting to tank
- Central screw fastening the cover to
the tank
- Fuel tank breather pipe unions

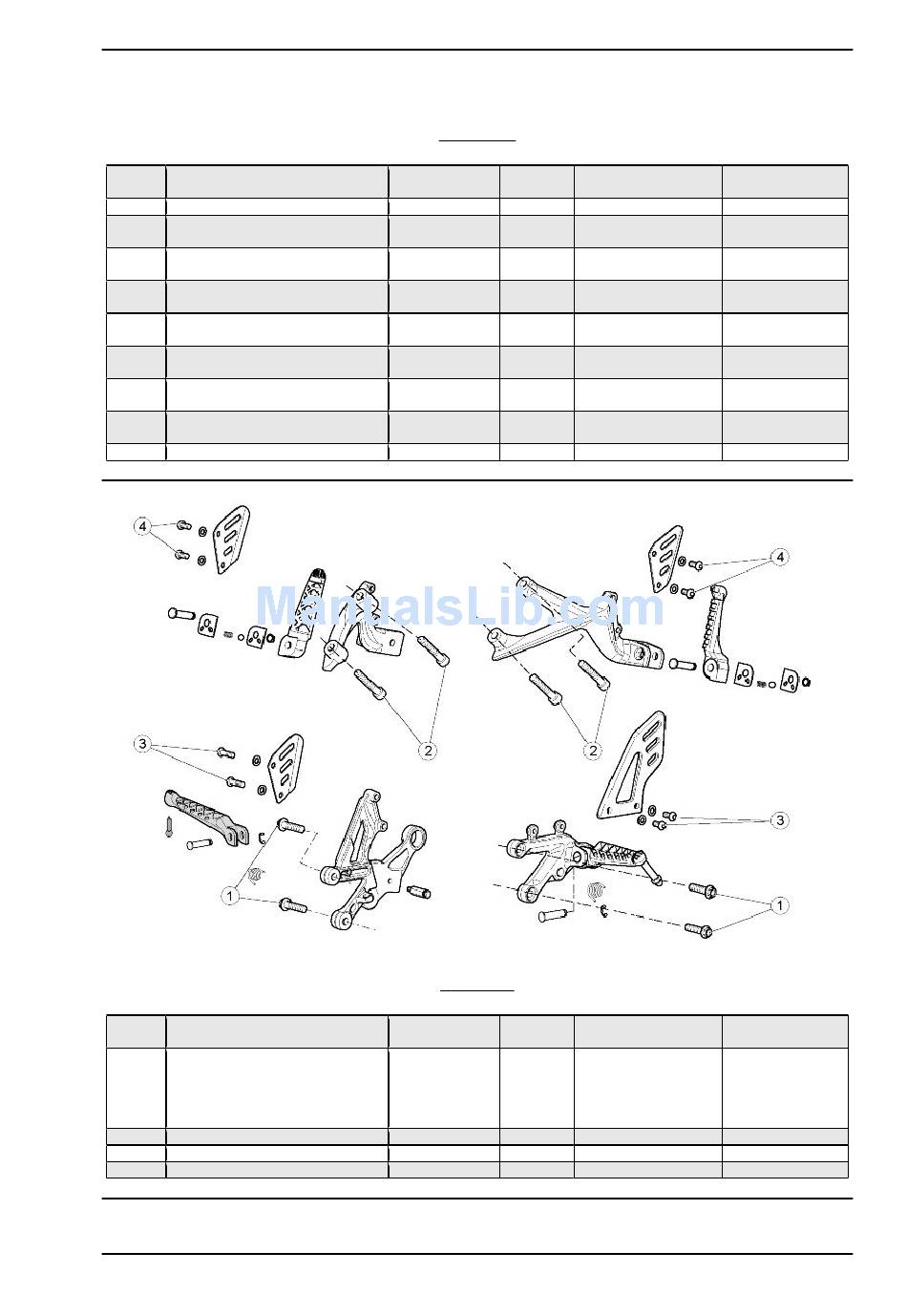

pos. Description
1 Screws fastening rider footpegs to
chassis
2 Screws fastening passenger foot-
pegs to chassis
3 Rider heelrest fixing screws
4 Passenger heelrest fixing screws
- Anti-slip pin
F
UEL TANK
Type Quantity
M6 1 4 Nm (2.95 lbf ft)
M5 4 4 Nm (2.95 lbf ft)
M5 8 3 Nm (2.21 lbf ft)
M6 1
M6 2 7 Nm (5.16 lbf ft)
M5 1 2.5 Nm (1.84 lbf ft)
M5 1 3 Nm (2.21 lbf ft)
M6 4 3 Nm (2.21 lbf ft)
M4 1 0.5 Nm (0.37 lbf ft)
M7 2 3 Nm (2.21 lbf ft)
F
OOTPEGS
Type Quantity
M8 2 + 2 25 Nm (18.44 lbf ft)
M8 2 + 2 18 Nm (13.28 lbf ft)
M6 2 + 2
M6 2 + 2
M6 1
Torque Notes
8 Nm (5.9 lbf ft)
Torques Notes
For countries in
which passenger
footpegs are man-
datory or for two
seat configuration
8 Nm (5.9 lbf ft)
8 Nm (5.9 lbf ft)
8 Nm (5.9 lbf ft)
BODYW - 449
Bodywork
-
-
-
-
-
-
-
-
-
-
-
-
-
-
