Removing The Flywheel Cover; Magneto Flywheel Removal - APRILIA RSV4 R Service Station Manual

Hide thumbs Also See for RSV4 R:

Table of Contents

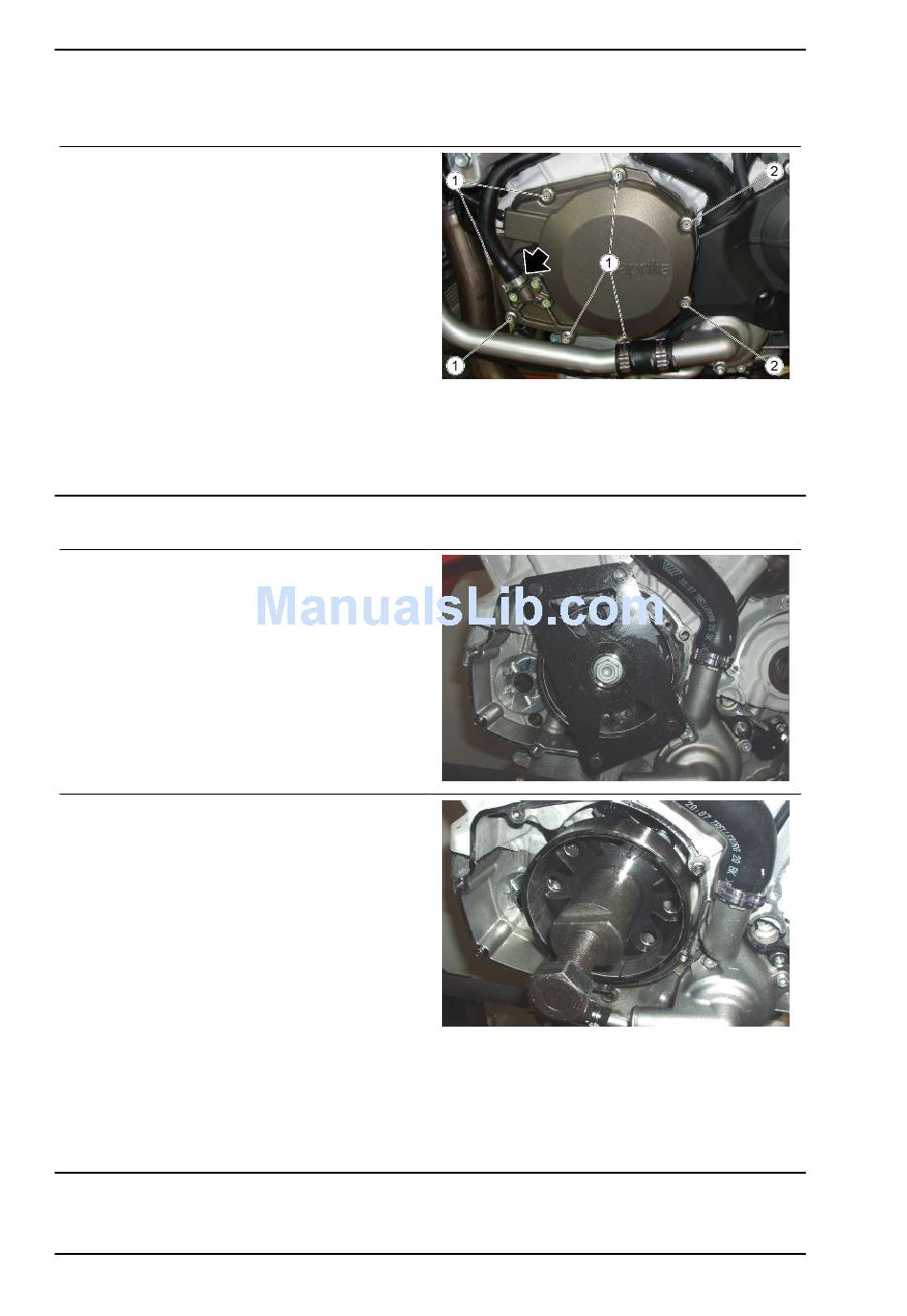

Removing the flywheel cover

Release the clamp and detach the

Blow-by pipe.

Unscrew and remove the five screws

Unscrew and remove the two screws

Mark the screws (1 - 2) that have dif-

ferent lengths.

Remove the cover together with the

stator and retrieve the two centring

Remove the flywheel cover.

Block flywheel rotation using the spe-

Unscrew and remove the screw.

Specific tooling

020848Y Flywheel retainer

Remove the tool for blocking flywheel

Insert a TCEI M10x20 screw into the

crankshaft hole, which will act as a

mounting base for flywheel extraction.

Remove the flywheel using the specific

Collect the TCEI M10x20 screw.

Specific tooling

020847Y Flywheel extractor
