RSV4 R
Gearbox

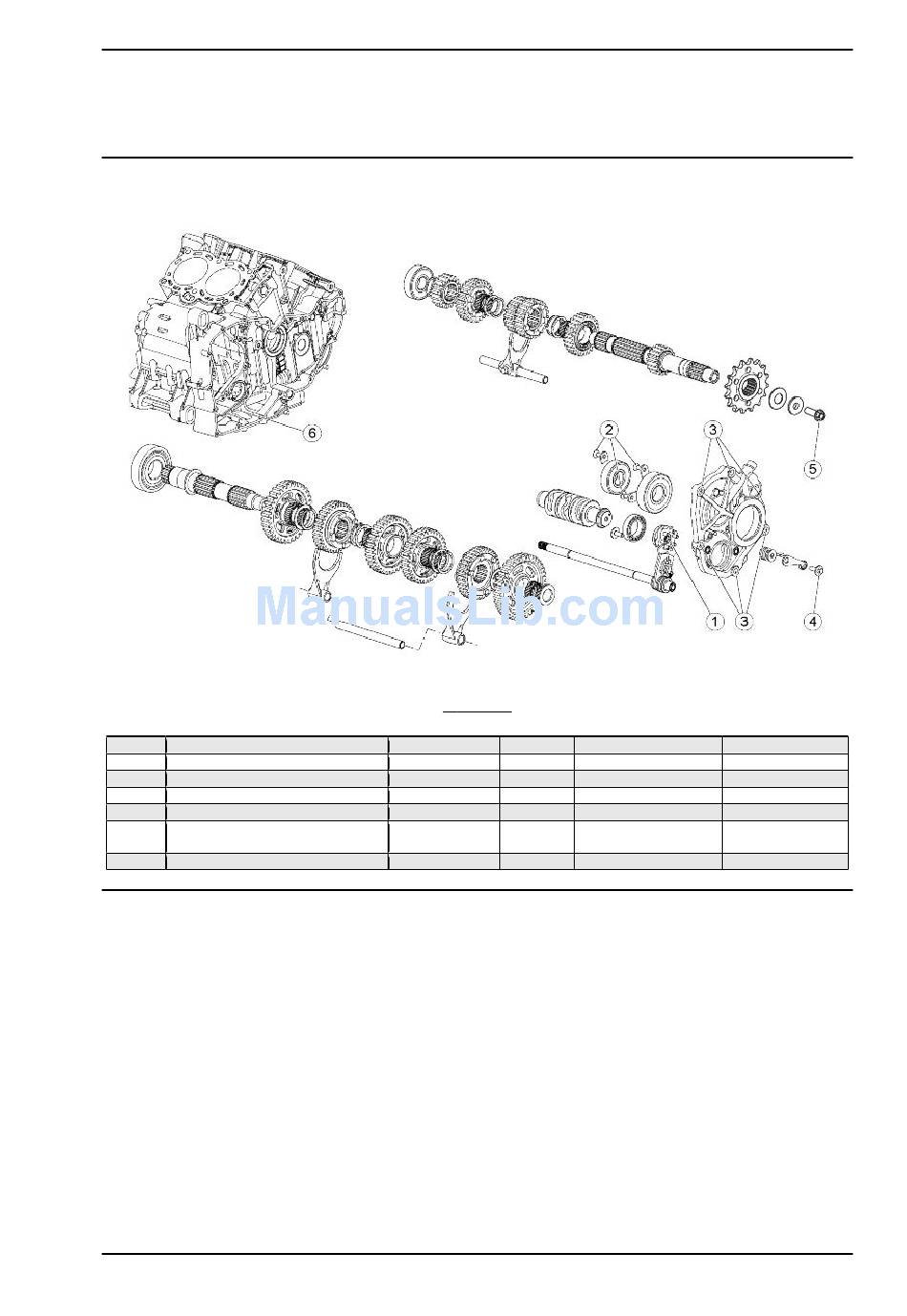

Diagram

pos. Description
1 Connector drum fastener screw
2 Bearing retainer plate fixing screw
3 Flange fixing screws
4 Index lever fixing screw
5 Pinion retainer
6 Screw retaining pre-selector on
crankcase
- Gear indicator fixing screw

Removing the gearbox

•
Remove the gearbox selector.
•
Remove the clutch bell.
•
Remove the gear sensor from the flywheel side.
G
EARBOX
Type Quantity
M6x20 1 10 Nm (7.37 lbf ft)
M6x16 3 10 Nm (7.37 lbf ft)
M8x25 6 25 Nm (18.44 lbf ft)
M6 1 10 Nm (7.37 lbf ft)
- 1 50 Nm (36.88 lbf ft)
- 1 25 Nm (18.44 lbf ft)
M5x15 2
Torque Notes
Loct. 243
Loct. 243
Loct. 243
Loct. 243
Loct. 270
6 Nm (4.42 lbf ft)
Engine
-
-
ENG - 245
