RSV4 R
•

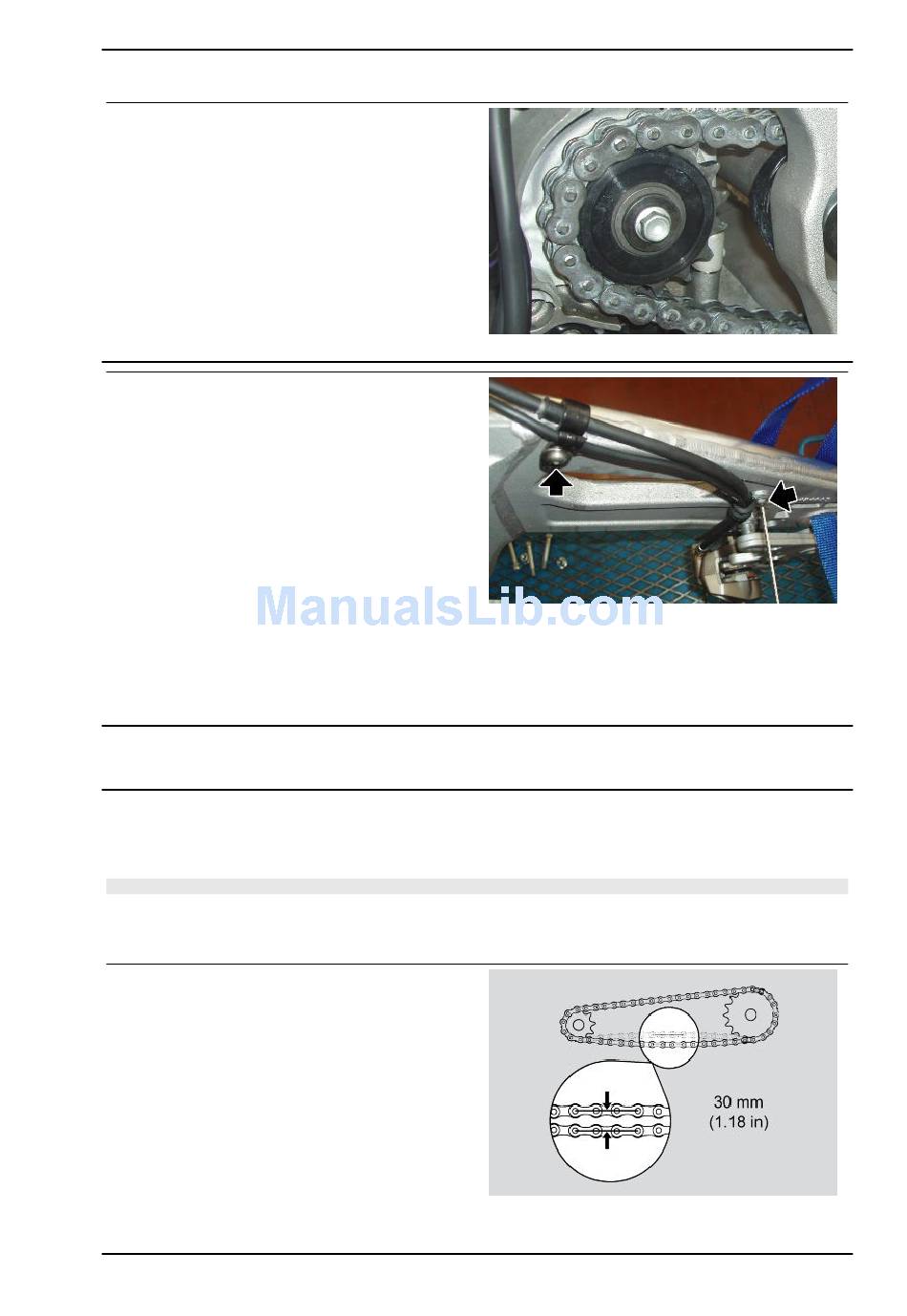

Fit the washer on the screw
•
Tighten the screw.
•
Install the rear shock absorber and the
linkages.
•
Fit the rear brake calliper plate.
•
Fasten the two pipe grommets on the
swingarm
•
Install the rear wheel and the exhaust system.
•
Fit the pinion casing.
•
Adjust the chain tension
Drive chain
Adjusting
The vehicle is fitted with an endless chain, without master link.
NOTE
CARRY OUT MAINTENANCE OPERATIONS AT HALF THE INTERVALS SPECIFIED IF THE VE-
HICLE IS USED IN PARTICULAR RAINY OR DUSTY CONDITIONS, OFF ROAD OR FOR TRACK
USE.
CLEARANCE CHECK

To check clearance:

•
Shut off the engine.
•
Rest the vehicle on its stand.
•
Engage neutral gear.
•
Check that the vertical oscillation at a
point between the pinion and the
sprocket on the lower branch of the
chain is around 30 mm (1,18 in).
Chassis
CHAS - 407
