Electrical system
•
Check the locking cause and restore.

level indicators

See also
Fuel pump

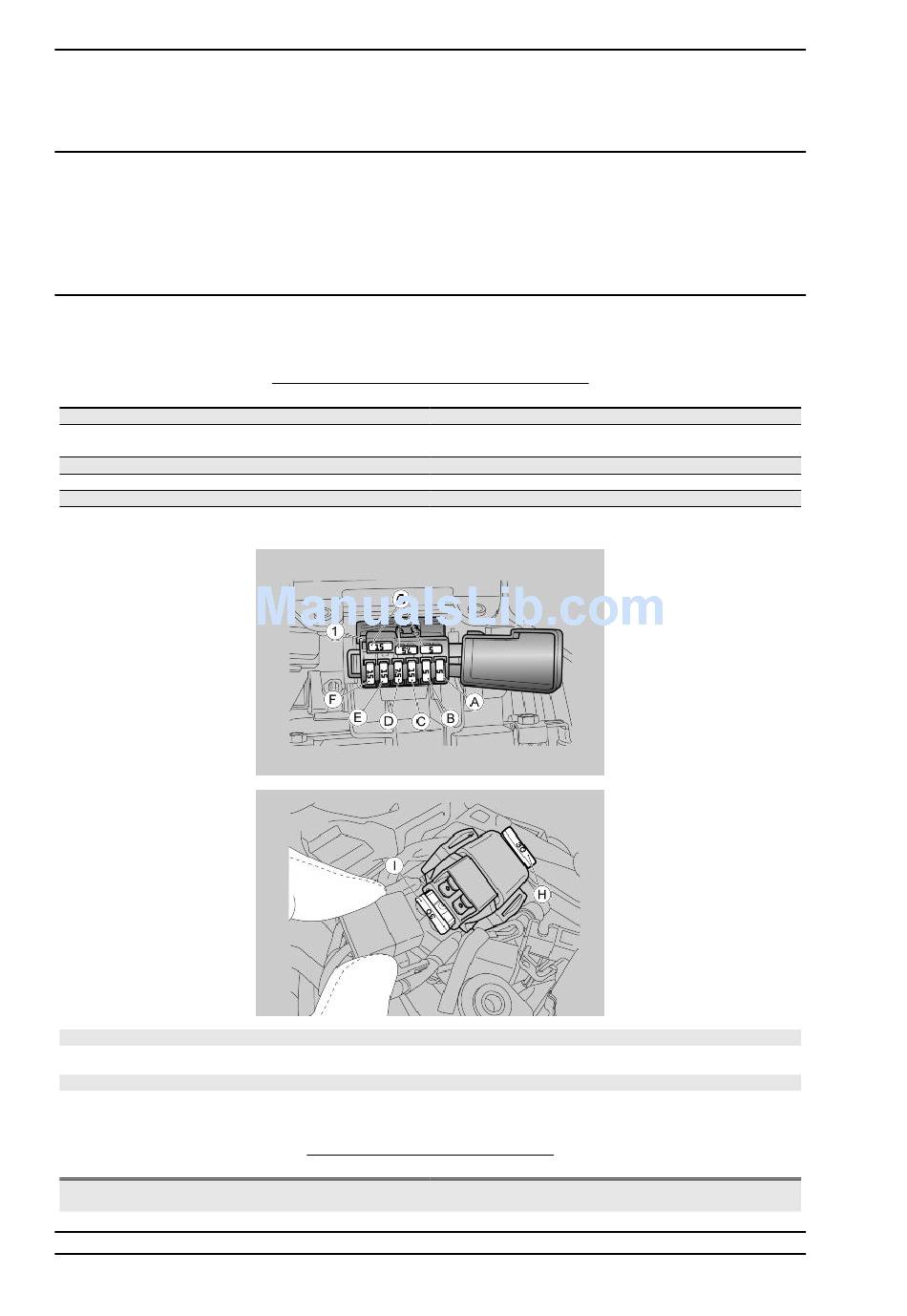

Fuses
Specification
A) 5A fuse
B) 5A fuse
C) 15A fuse
D) 7.5A fuse
E) 15A fuse
F) 15A fuse
CAUTION
THERE ARE THREE SPARE FUSES (G).
CAUTION
THERE IS ONE SPARE FUSE (H).
Specification
I) 30A fuse
ELE SYS - 142

SECONDARY FUSES DISTRIBUTION

Instrument panel, turn indicators, speed and instrument panel
Coils, injectors, fuel pump, oxygen sensor and secondary air

MAIN FUSES DISTRIBUTION

Battery recharge and vehicle current consumers, injection cur-
Desc./Quantity
Stop and running lights relay
diagnostics.
Control unit
Control unit
High-beam light/low-beam light, horn and fans
valve
Desc./Quantity
rent consumers (red and red/white cables).
RSV4 R
