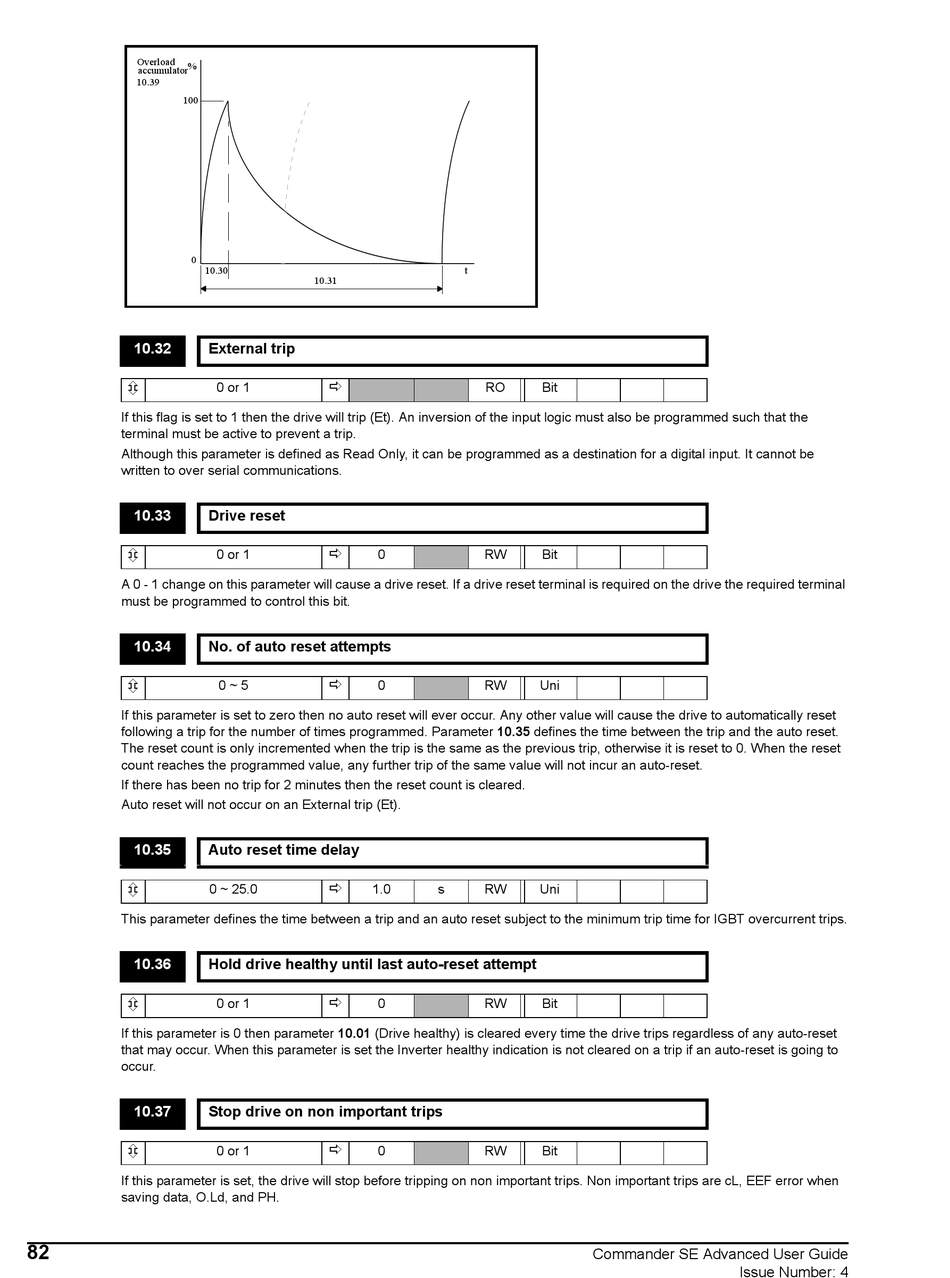

Control Techniques Commander SE Advanced User's Manual page 82

Overload
accumulator %
10.39
100
0
10.30
10.32
If this flag is set to 1 then the drive will trip (Et). An inversion of the input logic must also be programmed such that the
terminal must be active to prevent a trip.
Although this parameter is defined as Read Only, it can be programmed as a destination for a digital input. It cannot be
written to over serial communications.
10.33
A 0 - 1 change on this parameter will cause a drive reset. If a drive reset terminal is required on the drive the required terminal
must be programmed to control this bit.
10.34
If this parameter is set to zero then no auto reset will ever occur. Any other value will cause the drive to automatically reset
following a trip for the number of times programmed. Parameter 10.35 defines the time between the trip and the auto reset.
The reset count is only incremented when the trip is the same as the previous trip, otherwise it is reset to 0. When the reset
count reaches the programmed value, any further trip of the same value will not incur an auto-reset.
If there has been no trip for 2 minutes then the reset count is cleared.
Auto reset will not occur on an External trip (Et).
10.35
This parameter defines the time between a trip and an auto reset subject to the minimum trip time for IGBT overcurrent trips.
10.36
If this parameter is 0 then parameter 10.01 (Drive healthy) is cleared every time the drive trips regardless of any auto-reset
that may occur. When this parameter is set the Inverter healthy indication is not cleared on a trip if an auto-reset is going to
occur.
10.37
If this parameter is set, the drive will stop before tripping on non important trips. Non important trips are cL, EEF error when
saving data, O.Ld, and PH.
82
10.31
External trip
0 or 1
Drive reset
0 or 1 0
No. of auto reset attempts
0 ~ 5 0
Auto reset time delay
0 ~ 25.0 1.0
Hold drive healthy until last auto-reset attempt
0 or 1 0
Stop drive on non important trips
0 or 1 0
t
RO Bit
RW Bit
RW Uni
s RW Uni
RW Bit
RW Bit
Commander SE Advanced User Guide
Issue Number: 4
