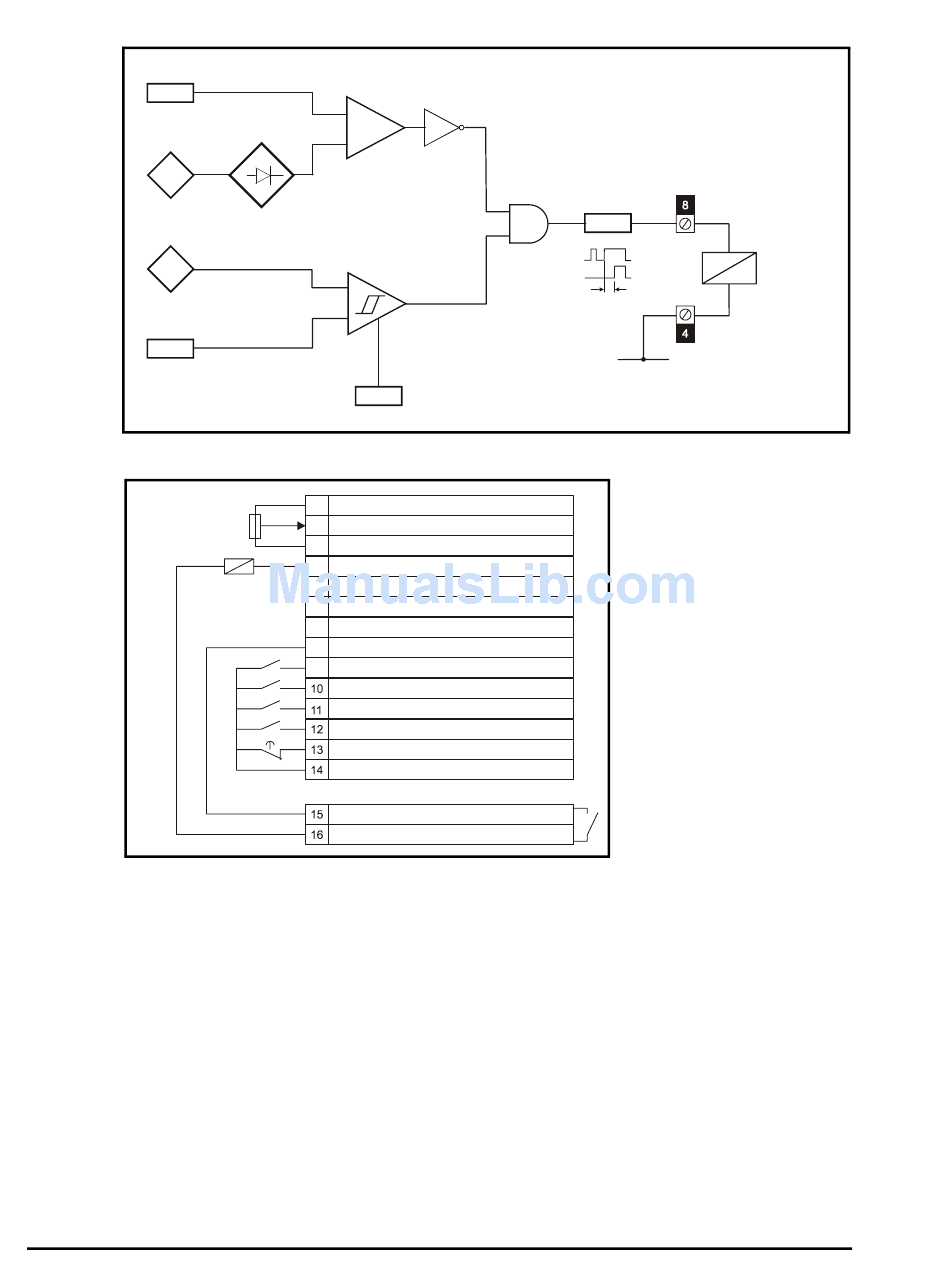

Logic diagram
Zero speed
threshold
3.05
Motor
speed
2.01
Motor
current
4.01
Motor current
threshold
12.04
Terminal Set-up (Positive Logic - as default)
Frequency reference
Brake relay coil
170
+
_
+
_
12.05
Hysteresis
1 0V common
2 Local voltage speed reference input (A1)
3 +10V reference output
0V common
4
5 Remote current speed reference input (A2)
6 Analog output (motor speed)
7 +24V output
8 Digital output
Q6
9 Digital enable / reset
K1
Run forward
K2
Run reverse
Local (A1) / Remote (A2) speed reference
T4
Jog
+24V output
Status relay (Drive healthy)
Status relay (Drive healthy)
Delay
9.09
Brake release
relay coil
0V
