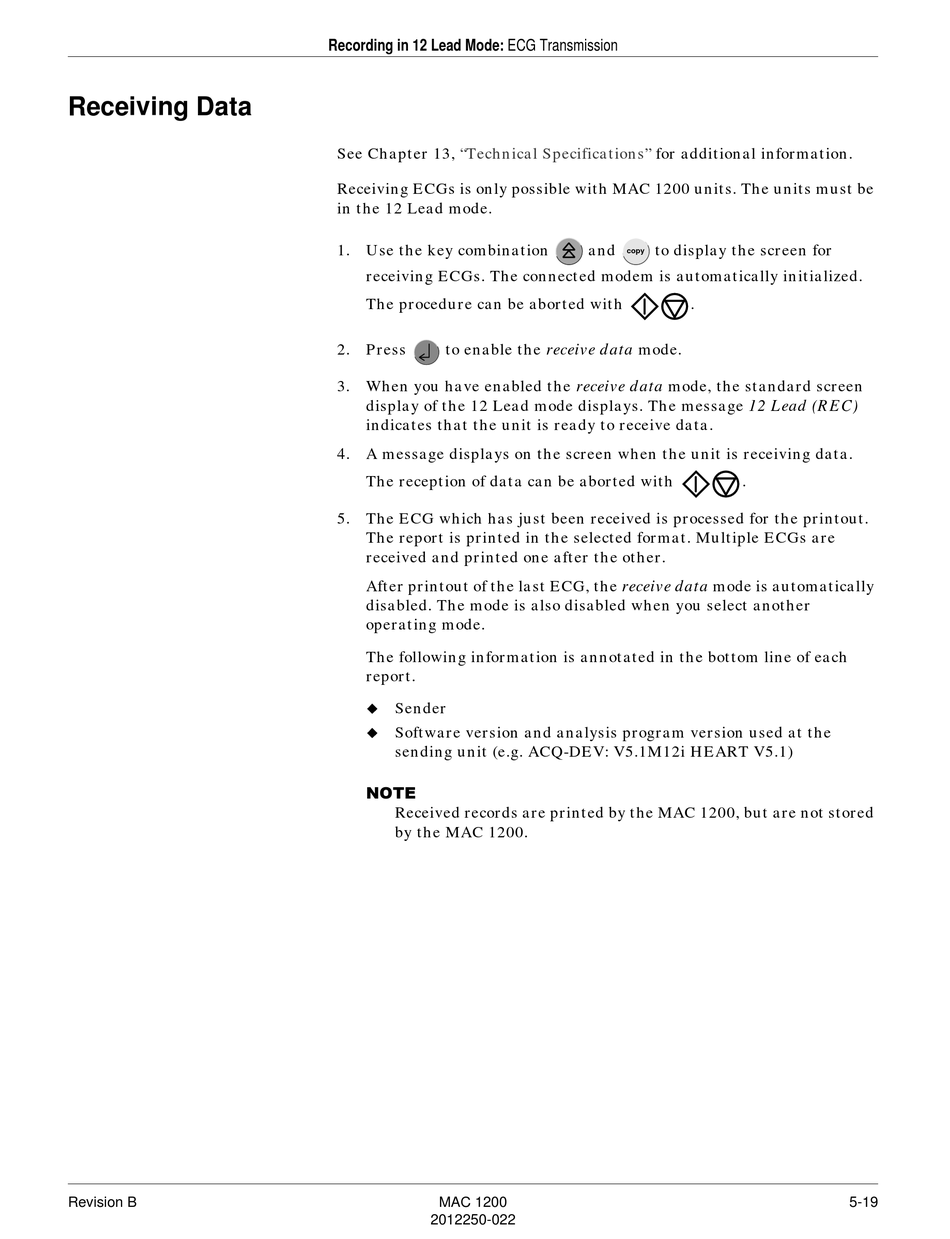

Receiving Data

Revision B
Recording in 12 Lead Mode: ECG Transmission
See Chapter 13, "Technical Specifications"
Receiving ECGs is only possible with MAC 1200 units. The units must be
in the 12 Lead mode.
1. Use the key combination
receiving ECGs. The connected modem is automatically initialized.
The procedure can be aborted with
2. Press to enable the receive data mode.
3. When you have enabled the receive data mode, the standard screen
display of the 12 Lead mode displays. The message 12 Lead (REC)
indicates that the unit is ready to receive data.
4. A message displays on the screen when the unit is receiving data.
The reception of data can be aborted with
5. The ECG which has just been received is processed for the printout.
The report is printed in the selected format. Multiple ECGs are
received and printed one after the other.
After printout of the last ECG, the receive data mode is automatically
disabled. The mode is also disabled when you select another
operating mode.
The following information is annotated in the bottom line of each
report.
Sender
Software version and analysis program version used at the
sending unit (e.g. ACQ-DEV: V5.1M12i HEART V5.1)
127(
Received records are printed by the MAC 1200, but are not stored
by the MAC 1200.
MAC 1200
2012250-022
for additional information.
and to display the screen for
copy
.
.
5-19
