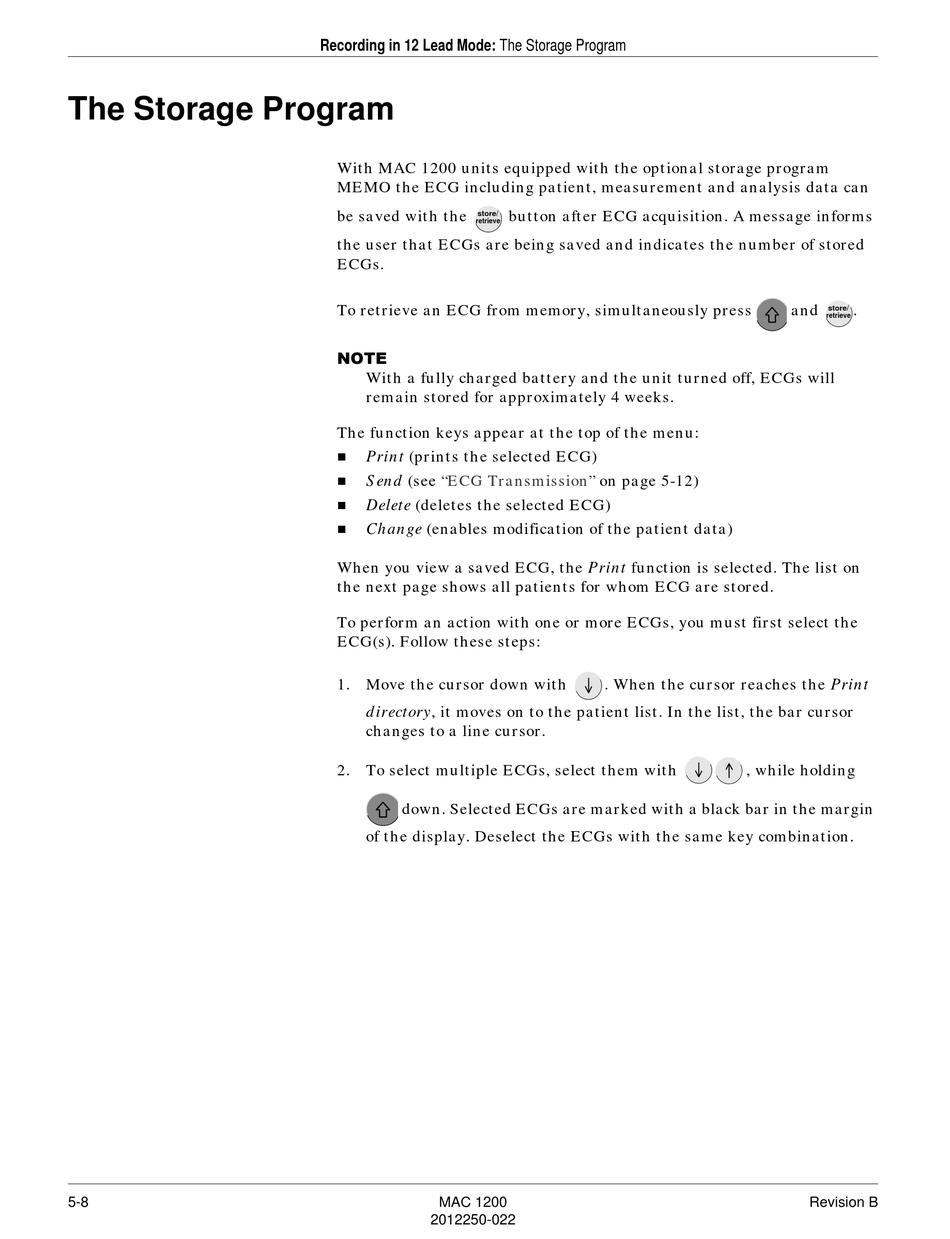

The Storage Program

5-8
Recording in 12 Lead Mode: The Storage Program
With MAC 1200 units equipped with the optional storage program
MEMO the ECG including patient, measurement and analysis data can
be saved with the
store/
retrieve
the user that ECGs are being saved and indicates the number of stored
ECGs.
To retrieve an ECG from memory, simultaneously press
127(
With a fully charged battery and the unit turned off, ECGs will
remain stored for approximately 4 weeks.
The function keys appear at the top of the menu:
„
Print (prints the selected ECG)
„
Send (see "ECG Transmission"
„
Delete (deletes the selected ECG)
„
Change (enables modification of the patient data)
When you view a saved ECG, the Print function is selected. The list on
the next page shows all patients for whom ECG are stored.
To perform an action with one or more ECGs, you must first select the
ECG(s). Follow these steps:
1. Move the cursor down with
directory, it moves on to the patient list. In the list, the bar cursor
changes to a line cursor.
2. To select multiple ECGs, select them with
down. Selected ECGs are marked with a black bar in the margin
of the display. Deselect the ECGs with the same key combination.
MAC 1200
2012250-022
button after ECG acquisition. A message informs
on page 5-12)
. When the cursor reaches the Print
and .
store/
retrieve
, while holding
Revision B
