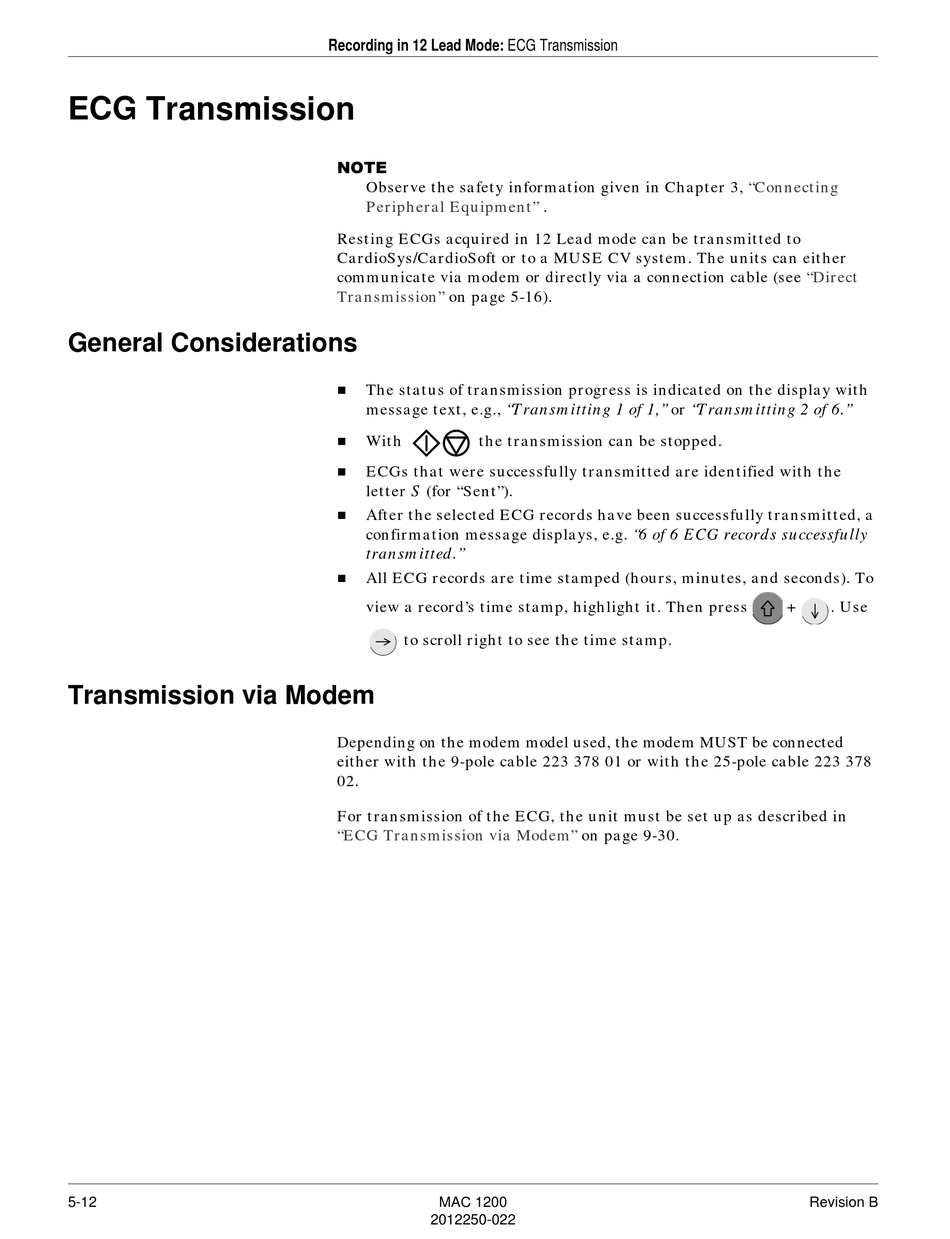

ECG Transmission

General Considerations

Transmission via Modem

5-12
Recording in 12 Lead Mode: ECG Transmission
127(
Observe the safety information given in Chapter 3,
Peripheral Equipment"
Resting ECGs acquired in 12 Lead mode can be transmitted to
CardioSys/CardioSoft or to a MUSE CV system. The units can either
communicate via modem or directly via a connection cable (see
Transmission" on page 5-16).
„
The status of transmission progress is indicated on the display with
message text, e.g., "Transmitting 1 of 1," or "Transmitting 2 of 6."
„
With the transmission can be stopped.
„
ECGs that were successfully transmitted are identified with the
letter S (for "Sent").
„
After the selected ECG records have been successfully transmitted, a
confirmation message displays, e.g. "6 of 6 ECG records successfully
transmitted."
„
All ECG records are time stamped (hours, minutes, and seconds). To
view a record's time stamp, highlight it. Then press
to scroll right to see the time stamp.
Depending on the modem model used, the modem MUST be connected
either with the 9-pole cable 223 378 01 or with the 25-pole cable 223 378
02.
For transmission of the ECG, the unit must be set up as described in
"ECG Transmission via Modem"
MAC 1200
2012250-022
.
on page 9-30.
