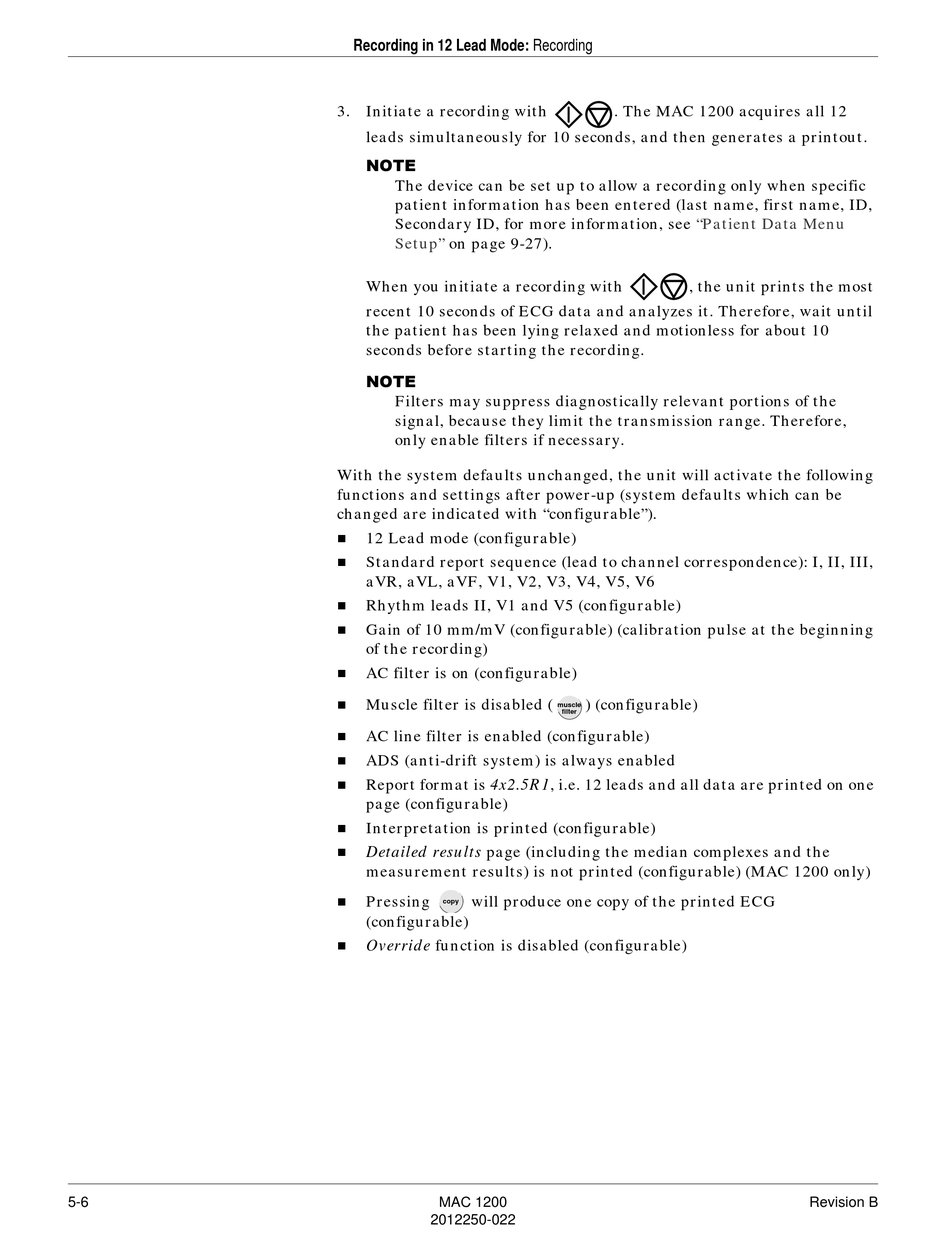

Recording in 12 Lead Mode: Recording
3. Initiate a recording with
leads simultaneously for 10 seconds, and then generates a printout.
127(
The device can be set up to allow a recording only when specific
patient information has been entered (last name, first name, ID,
Secondary ID, for more information, see
Setup" on page 9-27).
When you initiate a recording with
recent 10 seconds of ECG data and analyzes it. Therefore, wait until
the patient has been lying relaxed and motionless for about 10
seconds before starting the recording.
127(
Filters may suppress diagnostically relevant portions of the
signal, because they limit the transmission range. Therefore,
only enable filters if necessary.
With the system defaults unchanged, the unit will activate the following
functions and settings after power-up (system defaults which can be
changed are indicated with "configurable").
12 Lead mode (configurable)
Standard report sequence (lead to channel correspondence): I, II, III,
aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
Rhythm leads II, V1 and V5 (configurable)
Gain of 10 mm/mV (configurable) (calibration pulse at the beginning
of the recording)
AC filter is on (configurable)
Muscle filter is disabled (
AC line filter is enabled (configurable)
ADS (anti-drift system) is always enabled
Report format is 4x2.5R1, i.e. 12 leads and all data are printed on one
page (configurable)
Interpretation is printed (configurable)
Detailed results page (including the median complexes and the
measurement results) is not printed (configurable) (MAC 1200 only)
Pressing will produce one copy of the printed ECG
copy
(configurable)
Override function is disabled (configurable)
