Remote Start (Hardware)

Revision B
Technical Specifications: Recording
5

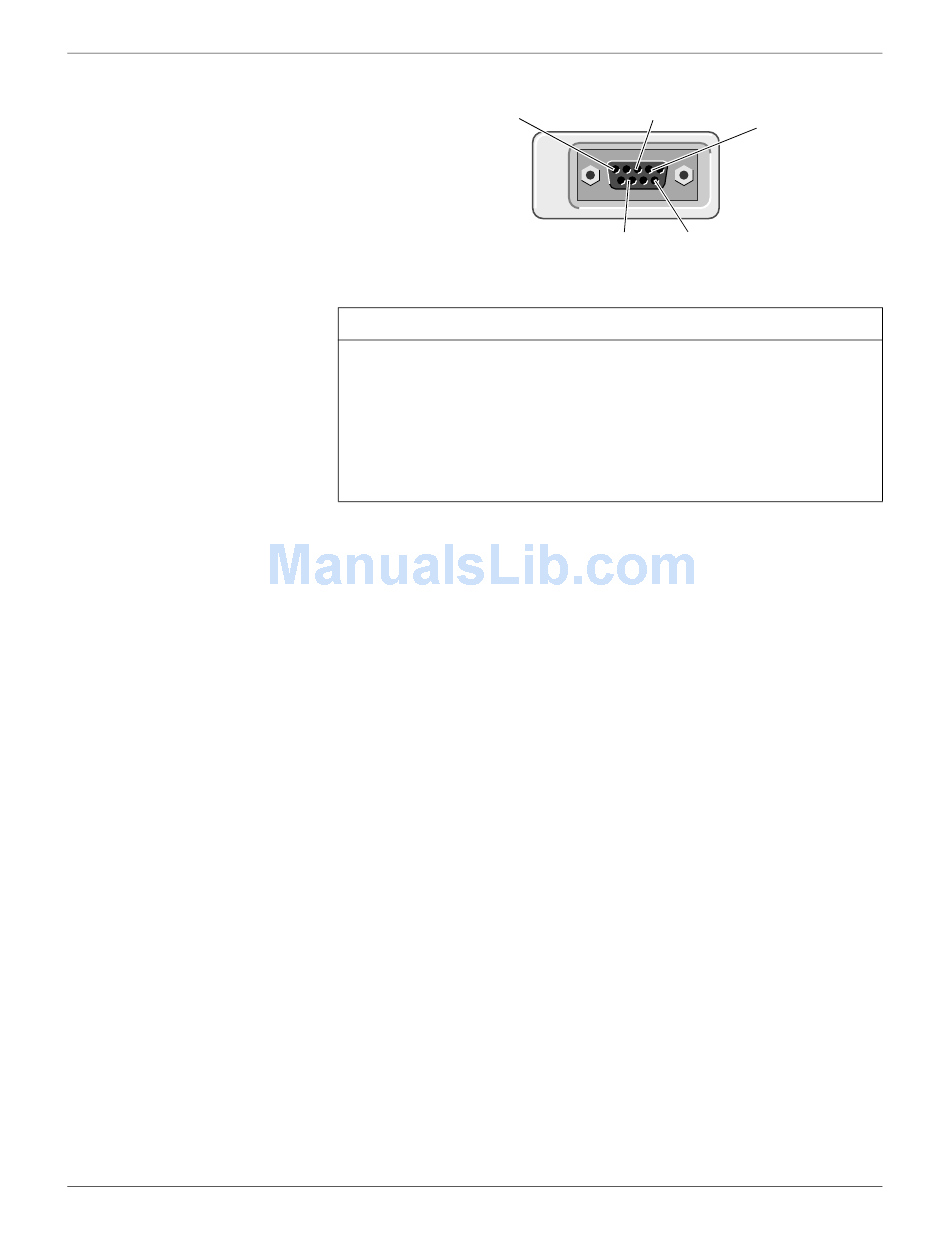

Pin Assignment Diagram
2
3
5
6
8
Paper feed via remote control connection (depending on selected
operating mode). External make contact referred to chassis via circuit
reference.
„
Source impedance Ri < 300 Ω
„
Contact dwell > 100 ms
„
Non-destructive load ± 10 V
„
ESD interface protection up to ± 10 kV
MAC 1200
2012250-022
3
8 6
Pin Assignment of Data Port
RDXE
TDXE
Circuit reference
Modem supply
RDXE
2
104A
13-7
