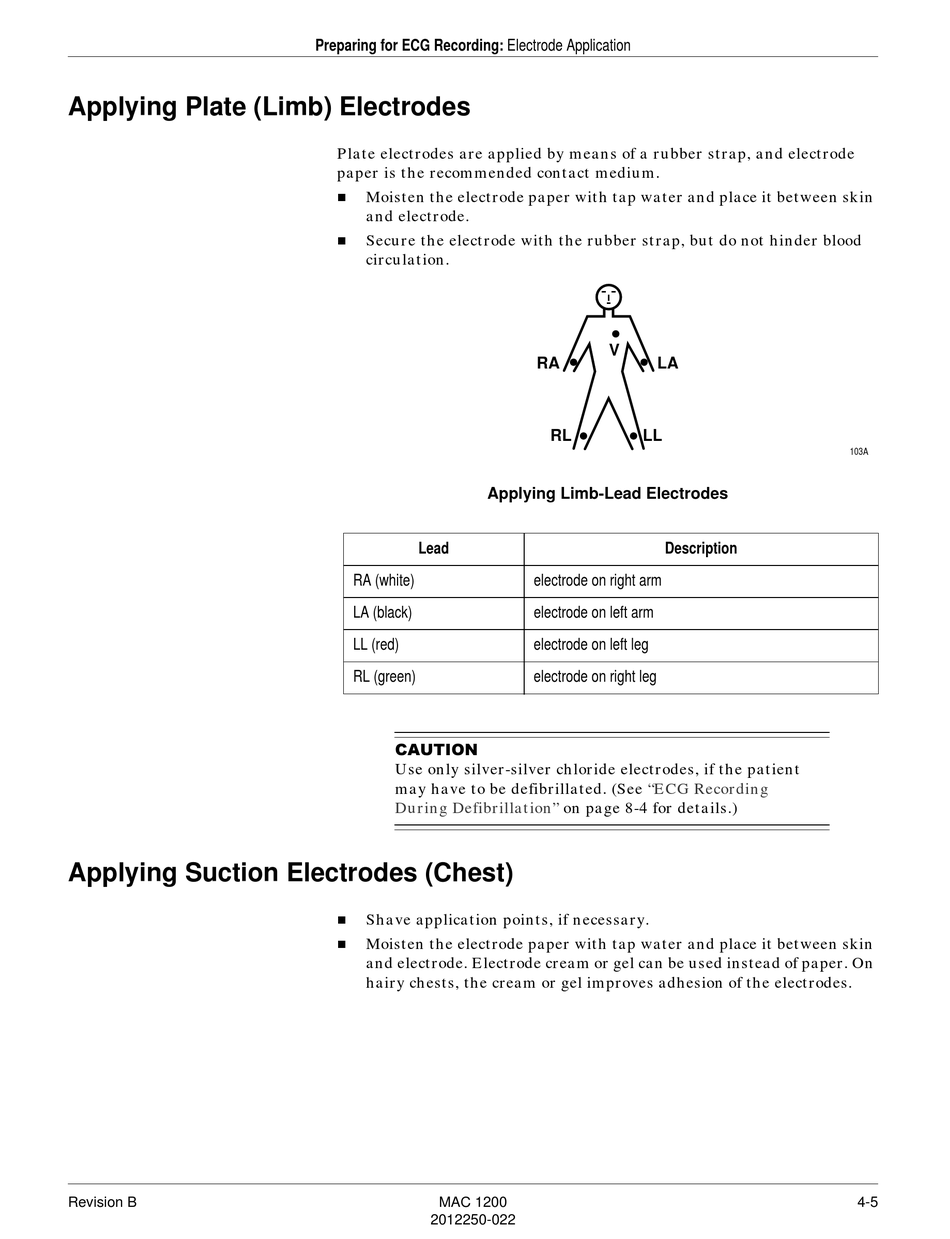

Applying Plate (Limb) Electrodes

Applying Suction Electrodes (Chest)

Revision B
Preparing for ECG Recording: Electrode Application
Plate electrodes are applied by means of a rubber strap, and electrode
paper is the recommended contact medium.
„
Moisten the electrode paper with tap water and place it between skin
and electrode.
„
Secure the electrode with the rubber strap, but do not hinder blood
circulation.
Applying Limb-Lead Electrodes
Lead
RA (white)
LA (black)
LL (red)
RL (green)
&$87,21
Use only silver-silver chloride electrodes, if the patient
may have to be defibrillated. (See
During Defibrillation"
„
Shave application points, if necessary.
„
Moisten the electrode paper with tap water and place it between skin
and electrode. Electrode cream or gel can be used instead of paper. On
hairy chests, the cream or gel improves adhesion of the electrodes.
MAC 1200
2012250-022
V
RA LA
RL LL
Description
electrode on right arm
electrode on left arm
electrode on left leg
electrode on right leg
"ECG Recording
on page 8-4 for details.)
103A
4-5
