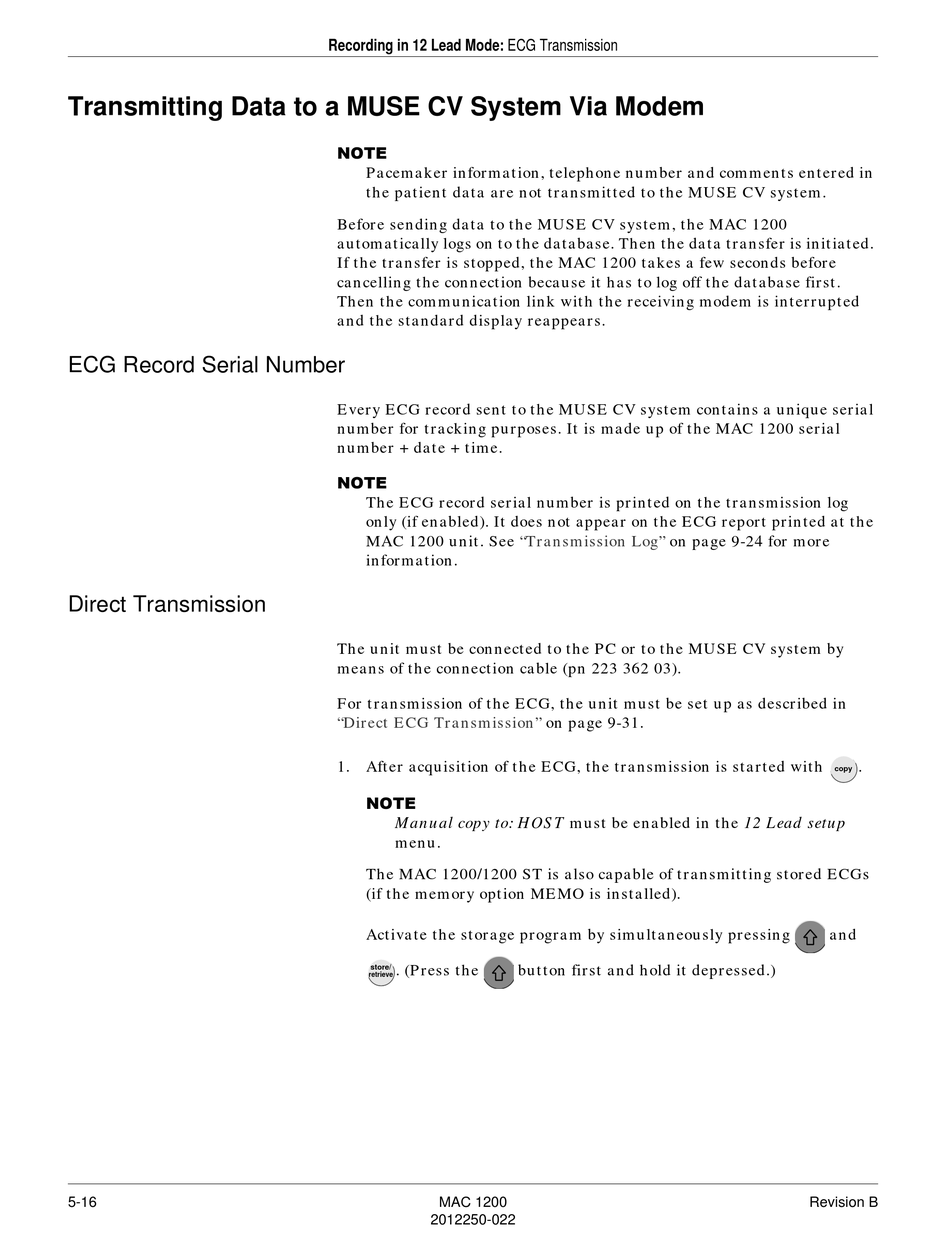

Transmitting Data to a MUSE CV System Via Modem

ECG Record Serial Number
Direct Transmission
5-16
Recording in 12 Lead Mode: ECG Transmission
127(
Pacemaker information, telephone number and comments entered in
the patient data are not transmitted to the MUSE CV system.
Before sending data to the MUSE CV system, the MAC 1200
automatically logs on to the database. Then the data transfer is initiated.
If the transfer is stopped, the MAC 1200 takes a few seconds before
cancelling the connection because it has to log off the database first.
Then the communication link with the receiving modem is interrupted
and the standard display reappears.
Every ECG record sent to the MUSE CV system contains a unique serial
number for tracking purposes. It is made up of the MAC 1200 serial
number + date + time.
127(
The ECG record serial number is printed on the transmission log
only (if enabled). It does not appear on the ECG report printed at the
MAC 1200 unit. See
information.
The unit must be connected to the PC or to the MUSE CV system by
means of the connection cable (pn 223 362 03).
For transmission of the ECG, the unit must be set up as described in
"Direct ECG Transmission"
1. After acquisition of the ECG, the transmission is started with
127(
Manual copy to: HOST must be enabled in the 12 Lead setup
menu.
The MAC 1200/1200 ST is also capable of transmitting stored ECGs
(if the memory option MEMO is installed).
Activate the storage program by simultaneously pressing
. (Press the
store/
retrieve
MAC 1200
2012250-022
"Transmission Log" on page 9-24 for more
on page 9-31.
button first and hold it depressed.)
.
copy
and
Revision B
