Error Messages

5-14

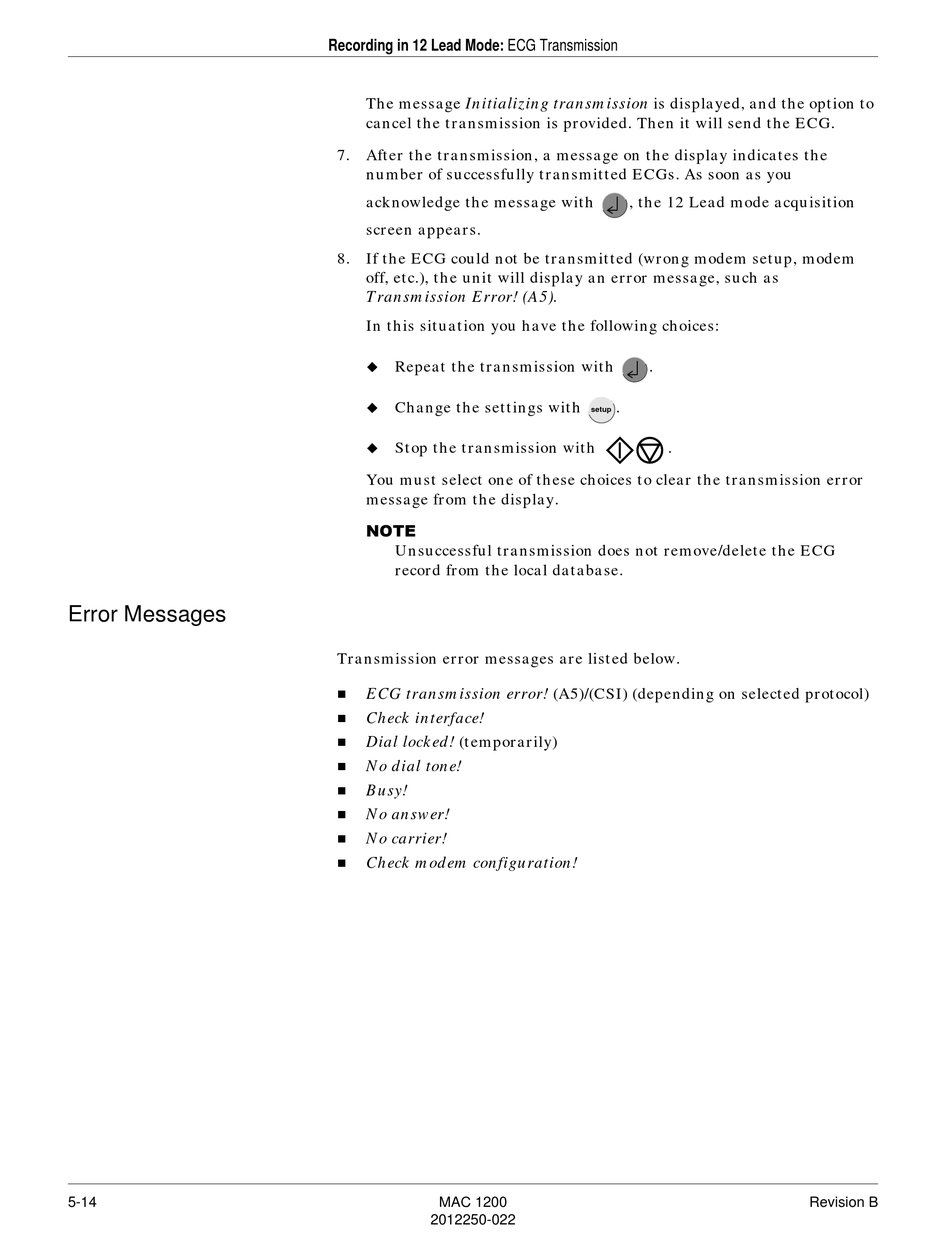

Recording in 12 Lead Mode: ECG Transmission
The message Initializing transmission is displayed, and the option to
cancel the transmission is provided. Then it will send the ECG.
7. After the transmission, a message on the display indicates the
number of successfully transmitted ECGs. As soon as you
acknowledge the message with
screen appears.
8. If the ECG could not be transmitted (wrong modem setup, modem
off, etc.), the unit will display an error message, such as
Transmission Error! (A5).
In this situation you have the following choices:
Repeat the transmission with
Change the settings with
Stop the transmission with
You must select one of these choices to clear the transmission error
message from the display.
127(
Unsuccessful transmission does not remove/delete the ECG
record from the local database.
Transmission error messages are listed below.
„
ECG transmission error! (A5)/(CSI) (depending on selected protocol)
„
Check interface!
„
Dial locked! (temporarily)
„
No dial tone!
„
Busy!
„
No answer!
„
No carrier!
„
Check modem configuration!
MAC 1200
2012250-022
, the 12 Lead mode acquisition
.
.
setup
.
Revision B
