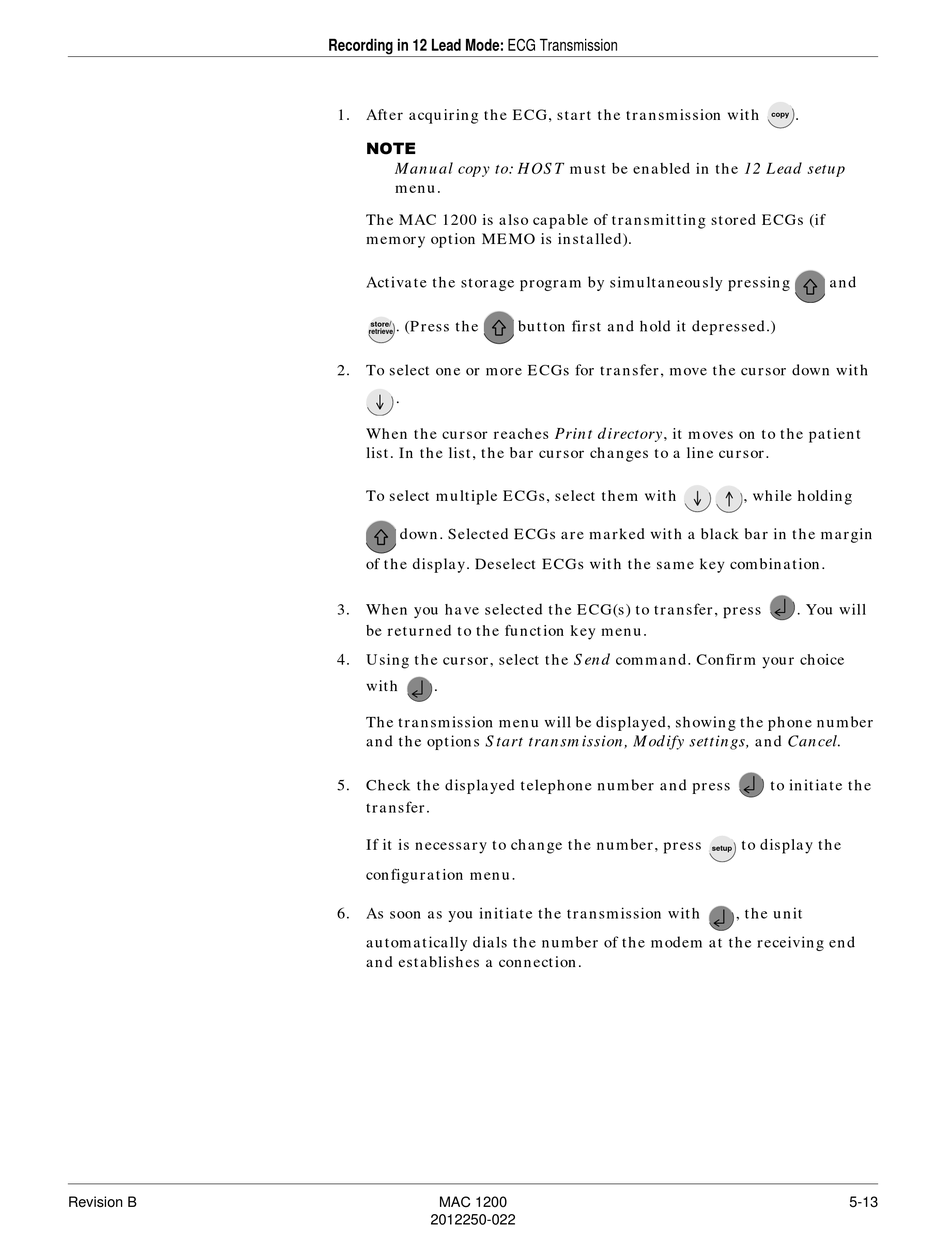

Recording in 12 Lead Mode: ECG Transmission
1. After acquiring the ECG, start the transmission with
127(
Manual copy to: HOST must be enabled in the 12 Lead setup
menu.
The MAC 1200 is also capable of transmitting stored ECGs (if
memory option MEMO is installed).
Activate the storage program by simultaneously pressing
. (Press the
store/
retrieve
2. To select one or more ECGs for transfer, move the cursor down with
.
When the cursor reaches Print directory, it moves on to the patient
list. In the list, the bar cursor changes to a line cursor.
To select multiple ECGs, select them with
down. Selected ECGs are marked with a black bar in the margin
of the display. Deselect ECGs with the same key combination.
3. When you have selected the ECG(s) to transfer, press
be returned to the function key menu.
4. Using the cursor, select the Send command. Confirm your choice
with .
The transmission menu will be displayed, showing the phone number
and the options Start transmission, Modify settings, and Cancel.
5. Check the displayed telephone number and press
transfer.
If it is necessary to change the number, press
configuration menu.
6. As soon as you initiate the transmission with
automatically dials the number of the modem at the receiving end
and establishes a connection.
MAC 1200
2012250-022
button first and hold it depressed.)
.
copy
and
, while holding
. You will
to initiate the
to display the
setup
, the unit
5-13
