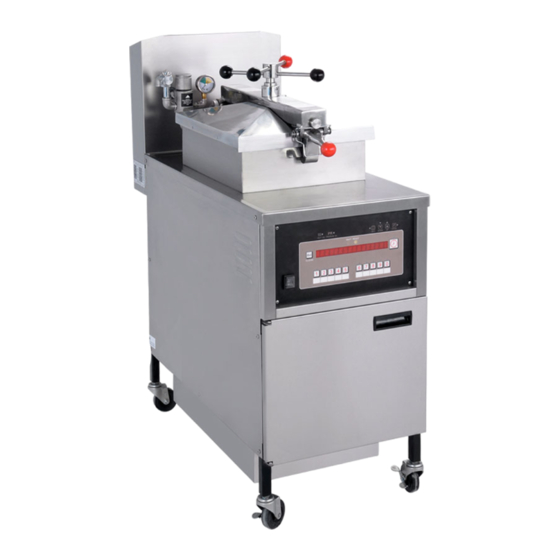

Henny Penny 500 Technical Manual

Electric/gas cfa pressure fryer.
Hide thumbs

Advertisement

Henny Penny
CFA Pressure Fryer
Electric Model 500
Gas Model 600
TECHNICAL MANUAL

Advertisement

   Related Manuals for Henny Penny 500

   Summary of Contents for Henny Penny 500

  • Page 1

    Henny Penny CFA Pressure Fryer Electric Model 500 Gas Model 600 TECHNICAL MANUAL...

  • Page 3

    Model 500/600 This manual should be retained in a convenient location for future reference. A wiring diagram for this appliance is located on the rear shroud cover of the control panel. Post in a prominent location, instructions to be followed if user smells gas. This information should be obtained by consulting the local gas supplier.

  • Page 4: Table Of Contents

    Model 500/600 TABLE OF CONTENTS Section Page Section 1. TROUBLESHOOTING ....................1-1 1-1. Introduction ......................1-1 1-2. Safety ........................1-1 1-3. Troubleshooting ....................1-2 1-4. Warnings and Error Messages ................1-13 1-5. Diagnostic Mode Details ..................1-16 1-6. Information Mode Details .................. 1-32 Section 2.

  • Page 5: Section 1. Troubleshooting

    If a problem occurs during the first operation of a new fryer, re- check the installation per Section 2 of the Operator’s Manual. Before troubleshooting, always recheck the operating procedure per Section 3 of the Operator’s Manual. The Henny Penny Pressure Fryer has many safety features incor- 1-2. SAFETY porated. However, the only way to ensure a safe operation is to fully understand e proper installation, operation, and maintenance procedures. The instructions in this manual have been prepared to aid you in learning the proper procedures.

  • Page 6: Troubleshooting

    Model 500/600 To isolate a malfunction, proceed as follows: 1-3. TROUBLESHOOTING 1. Clearly define the problem (or symptom) and when it occurs. 2. Locate the problem in the troubleshooting table. 3. Review all possible causes. Then, one-at-a-time work through the list of corrections until the problem is solved. Refer to the maintenance procedures in Section 2 of this manual to safely and properly make the checkout and repair needed.

  • Page 7

    Model 500/600 Problem Cause Correction COOKING SECTION Product Color Not Correct: A. Too Dark (some batches) • Temperature programmed too hot • See Diagnostic Mode D 10; if temperature settings have been changed, have the controls reintialized • • Breading product too far Bread product just before frying in advance • Done alarm ignored for more...

  • Page 8

    Model 500/600 Problem Cause Correction COOKING SECTION (Continued) • • C. Too Light (all batches) Temperature probe out of See Diagnostic Mode D 1 calibration to adjust color of product • Check temperature probe cali- bration; see Checking Tempera- ture Probe Calibration Section; if less than 15 degrees off, have probe calibrated;...

  • Page 9

    Model 500/600 Problem Cause Correction COOKING SECTION (Continued) D. Too Light (some batches) • Cook Cycle aborted before alarm • See Diagnostic Mode D 7 (Continued) and “DONE” flashes to see how many times the Cook Cycle was stopped before the end of the cycle • • Frozen product placed in Use fresh or thawed product;...

  • Page 10

    Model 500/600 Problem Cause Correction COOKING SECTION (Continued) Product not done • Cook Cycle aborted before alarm, • See Diagnostic Mode D 7 and “DONE” flashes to see how many times the Cook Cycle was stopped before the end of the cycle • Frozen product placed in • Use fresh or thawed product; peanut oil see Diagnostic Mode D 5 to see if the controls sensed frozen or overloaded batches.

  • Page 11

    Model 500/600 Problem Cause Correction POWER SECTION With COOK/PUMP Switch • Open circuit • Check to see if fryer is plugged in COOK position, fryer is completely without power • Check wall circuit breaker or fuse • Have a qualified service techni- cian check power supply and COOK/PUMP switch PRESSURE SECTION • • Pressure will not Exhaust line from solenoid Turn unit off and allow fryer to...

  • Page 12

    Model 500/600 Problem Cause Correction PRESSURE SECTION (Continued) • • Pressure does not Not enough product in fryer Place proper quantity of build or product not fresh fresh product within frypot to generate steam • • Metal shipping spacer not Remove shipping spacer;...

  • Page 13

    Model 500/600 Problem Cause Correction FILTER SYSTEM SECTION (Continued) Motor hums but • Clogged lines or pump • Have pump and lines will not pump removed and cleaned • Have pump seal, rotor and rollers replaced HEATING OF PEANUT OIL SECTION Peanut oil will not heat • Blown fuse or tripped circuit • Reset breaker or replace fuse breaker • Faulty cord and plug • Check cord and plug • Faulty PC board • Have control panel checked • Faulty or tripped high • Reset high limit per Operat...

  • Page 14

    Model 500/600 Problem Cause Correction HEATING OF PEANUT OIL SECTION (Continued) Peanut oil heating slowly • Low or improper amps • See Infomation Mode 16 for present amperage; or see Information Modes 4, 5, 6, 7, 8, 9, for more information on this problem; Diagnostic Mode D 4 gives present day’s heating performance • Low or improper voltage...

  • Page 15

    Model 500/600 1-3. TROUBLESHOOTING (Continued) PROBLEM CAUSE CORRECTION PEANUT OIL DRAINING Peanut oil will not • Drain valve clogged with crumbs • Open valve - force cleaning drain from frypot brush through drain opening (all models) • Drain valve will not open by • Replace cotter pins in valve coupling turning handle LID SECTION • Crumbs under gasket • Remove gasket and clean per Gasket coming out Pressure Regulation/Exhaust section of lid liner • Clean top rim of frypot...

  • Page 16

    Model 500/600 1-3. TROUBLESHOOTING (Continued) PROBLEM CAUSE CORRECTION LID SECTION (Continued) Lid will not unlatch • Lid gasket not seated properly • To check the problem, perform from closed position or idle nut not adjusted the following procedures: 1. Remove pressure from frypot. 2. Turn main switch to off position.

  • Page 17: Warnings And Error Messages

    Model 500/600 The controls monitor procedure problems and system failures with warn- 1-4. WARNINGS AND ings and error codes. The display shows the warning or error code, and ERROR MESSAGES an alarm sounds. Pressing cancels most warnings and pressing any control button stops most Error Code alarms.

  • Page 18

    Wrong or faulty elements or wiring Have electrical supply, wiring, and elements “HEAT AMPS problem. checked WERE TOO HIGH” (500 fryer only) Because of the seriousness of this error code, turn the COOK/PUMP switch OFF and back to COOK to cancel. “E-26” Faulty contactors or PC board Have the contactors and PC board checked “HEAT AMPS LOCKED ON”...

  • Page 19: Error Codes

    Model 500/600 1-4. WARNINGS AND ERROR MESSAGES (Continued) ERROR CODES DISPLAY CAUSE CORRECTION “ E-41” Memory scrambled; an individual Turn the COOK/PUMP switch OFF and back “SYSTEM product program may be scrambled; to COOK; if error code persists, have the PC DATA LOST” “E-41 -2- DATA LOST”; this board checked or re-initialized means product #2 program is scrambled “E-46”...

  • Page 20: Diagnostic Mode Details

    Model 500/600 The Chick-fil-A fryer controllers provide diagnostic functions that 1-5. DIAGNOSTIC MODE let an Operator review operating and performance data for the DETAILS fryer. The information provided by Diagnostic Mode can be used to monitor procedural errors, such as, not waiting for the READY light before starting a Cook Cycle, canceling cycles early, etc. In addition, Diagnostic Mode allows slight adjustment to product color, reports the age and accumulated wear of the oil, and reports information about the performance of the line voltage supply.

  • Page 21

    Model 500/600 1-5. DIAGNOSTIC MODE D 1: Color Adjustment This step lets the user make slight adjustments to the product color. DETAILS (Continued) The first step of this item asks “IS PRODUCT COLOR OK?” If product color is okay and no change is desired press or to move on to the next item, or press to exit Diagnostic Mode. If a change is desired, press (i.e. color is not okay). The controller shows “ADJUST...

  • Page 22

    Model 500/600 1-5. DIAGNOSTIC MODE D 2: Oil Wear Report This section displays information about the age of the present DETAILS (Continued) batch of peanut oil. The first step shows how many days of use this oil has: “D2: THIS OIL IS “ “D2: 4 DAYS OLD “ The controller only counts days in which the fryer is in use.

  • Page 23

    Model 500/600 1-5. DIAGNOSTIC MODE D 3: Line Voltage Performance Report This section displays information about how good the line voltage DETAILS (Continued) supply has been for the present day and for the present batch of oil. The controller continually monitors the line voltage supplied to the fryer (when the fryer is on).

  • Page 24

    Model 500/600 1-5. DIAGNOSTIC MODE “D3: ARE OTHER” DETAILS (Continued) “D3: FRYERS” “D3: HAVING THIS” “D3: PROBLEM” “D3: TODAY?” Press is pressed (other fryers are having this problem): “D3: FACILITY” “D3: OR UTILITY” “D3: PROBLEM” is pressed (other fryers are not having this problem): “D3: CHECK CORD,”...

  • Page 25

    Model 500/600 If one or more low voltage warnings have been detected before 1-5. DIAGNOSTIC MODE today, the following sequence is displayed: DETAILS (Continued) “D3: BEFORE TODAY” “D3: 27 LOW VOLT” “D3: WARNINGS” “D3: ON THIS OIL” (Press “D3: MIN VOLTAGE”...

  • Page 26

    Model 500/600 If the fryer has witnessed two or more low voltage warnings today, 1-5. DIAGNOSTIC MODE the following report is displayed: DETAILS (Continued) “D4: CAN’T TEST” “D4: HEAT CAPACITY” “D4: DUE TO” “D4: VOLTAGE” “D4: PROBLEMS” Otherwise, if the assessed heat capacity rating is presently “good”...

  • Page 27

    Model 500/600 Otherwise, the heating coils are presumed to be good and the 1-5. DIAGNOSTIC MODE following messages appear: DETAILS (Continued) “D4: HEATER COILS “ “D4: APPEAR OK “ (Press “D4: CHECK “ “D4: CONTACTORS, “ “D4: CONNECTIONS, “ “D4: AND WIRING “...

  • Page 28

    Model 500/600 Otherwise, if one or more cook products have generated a slow 1-5. DIAGNOSTIC MODE cook warning more than 5% of the time, but four or more low DETAILS (Continued) voltage or slow heat-up warnings (any combination) have been generated today, then the report is as follows: “D5: SOME SLOW” “D5: COOKS TODAY” “D5: MAYBE DUE TO” “D5: VOLTAGE OR” “D5: COIL PROBLEMS”...

  • Page 29

    Model 500/600 “D5: POSSIBLE” 1-5. DIAGNOSTIC MODE “D5: OVERSIZED” DETAILS (Continued) “D5: OR FROZEN” “D5: BATCH OF” “D5: “NUG-STRP” “ Product Name ) “D5: DETECTED” “D5: 3 TIMES” “D5: TODAY” (Press “D5: POSSIBLE” “D5: OVERSIZED” “D5: BATCH OF” “D5: “FRIES”...

  • Page 30

    Model 500/600 The number of “WAS NOT READY” warnings for this batch 1-5. DIAGNOSTIC MODE of peanut oil is also reported. Note that this value does not yet DETAILS (Continued) include the not ready warnings generated today. “D6: BEFORE TODAY,”...

  • Page 31

    Model 500/600 The number of Stopped Too Soon cycles for this batch of peanut 1-5. DIAGNOSTIC MODE oil is reported next. Note that this value does not yet include the DETAILS (Continued) Cook Cycles from today. “D7: BEFORE TODAY “ “D7: 3% OF LOADS”...

  • Page 32

    Model 500/600 The number of Beeped Done Too Long Cycles for this batch 1-5. DIAGNOSTIC MODE of peanut oil is reported next. Note that this value does not yet DETAILS (Continued) include the Cook Cycles from today. “D8: BEFORE TODAY “ “D8: 7% OF LOADS”...

  • Page 33

    Model 500/600 Loading Report for Today 1-5. DIAGNOSTIC MODE If no products have a failed to detect rate of more than 5%, the DETAILS (Continued) controller shows: “D9: LOADING” “D9: LOOKS OK” “D9: TODAY” Otherwise, for each product that has more than 5% of loads in...

  • Page 34

    Model 500/600 Loading Report for Previous Batch of Peanut oil 1-5. DIAGNOSTIC MODE If no products have a failed to detect rate of more than 5%, the DETAILS (Continued) controller shows: “D9: LOADING” “D9: LOOKED OK” “D9: PREVIOUS OIL” Otherwise, for each product that has more than 5% of loads in...

  • Page 35

    Model 500/600 If any of the product settings do not match original values, the 1-5. DIAGNOSTIC MODE following message is displayed (with one or more of the product DETAILS (Continued) numbers blinking): “10: PROD’S 123456” “10: DO NOT MATCH” “10: ORIG. VALUES” In this case, the blinking numbers indicate which products do not match original settings.

  • Page 36: Information Mode Details

    Model 500/600 The final item in D 10 identifies if any changes have been made to 1-5. DIAGNOSTIC MODE the heat control settings. These settings affect the fryer’s heating DETAILS (Continued) algorithms, and include the PC factors, rate-of-rise compensations, and heat pulse cycle time, etc. “10: ALL HC ITEMS” “10: 3 HC ITEMS” “10: MATCH” “10: DO NOT MATCH” “10: ORIG. VALUES”...

  • Page 37

    Model 500/600 Press and the next latest power-up date is shown. Up 1-6. INFORMATION MODE DETAILS to 10 power-ups (2B to 2K) can be stored in the P-LOG section. Press to continue onto the heat-up log. 3. HEAT-UP’S Press “3A. (date & time) *NOW* shows in display.

  • Page 38

    Model 500/600 5. TODAY’S DATA (automatically resets each day) 1-6. INFORMATION MODE Press to step through the following data: DETAILS FUNCTION DISPLAY EX: Today’s Date 5A. DATE APR-12 Time of day last heat-up was completed 5B. LAST HEAT 9:45A Peak heat-up rate (°F/Sec) for last heat-up 5C. LAST RATE 0.82 Was last heat-up acceptable? 5D.

  • Page 39

    Model 500/600 6. PREV DAY - SUN 1-6. INFORMATION MODE Press to step through following data. During each step, press DETAILS to choose the day of the week, of the past 7 days. FUNCTION DISPLAY EX: Day this data was recorded for 6A. DATE APR-8 Time of day last heat-up was completed 6B.

  • Page 40

    Model 500/600 7. 7-DAY TOTALS 1-6. INFORMATION MODE Press to step through the following data: DETAILS FUNCTION DISPLAY EX: Oldest day in the previous days history 7A. SINCE APR-5 Number of days with data included in totals 7B. DAYS CNT Number of monitored heat-ups 7C.

  • Page 41

    Model 500/600 8. OIL DATA (current batch; resets by Clean-Out Mode) 1-6. INFORMATION MODE Press to step through the following data: DETAILS FUNCTION DISPLAY EX: The day current batch of oil was started 8A. SINCE APR-1 Number of days with data included in totals 8B.

  • Page 42

    Model 500/600 9. PREV OIL DATA (moved here from Oil Data log; assumes new 1-6. INFORMATION MODE peanut oil) DETAILS Press to step through the following data: FUNCTION DISPLAY EX: The day previous batch of oil was started 9A. BEGAN...

  • Page 43

    Model 500/600 10. INP A_VHDSF_M 1-6. INFORMATION MODE This mode displays the status of components and inputs. If the DETAILS input signal is detected, an identifying letter is displayed (see below). If the signal is not detected, “_” is displayed.

  • Page 44

    Model 500/600 11. OUTP H* P_ 1-6. INFORMATION MODE This mode displays the status of components and outputs. If the DETAILS output signal is detected, an identifying letter is displayed (see below), followed by an “*”. If the output is off, “_”...

  • Page 45

    Model 500/600 14. ANALOG <1> 2344 1-6. INFORMATION MODE This step displays the present status of any channel of the DETAILS controller’s a to d converter. This feature may be useful to a technician troubleshooting a problem with the fryer or controller. Displayed value can be toggled between volts and bits by pressing .

  • Page 46

    Model 500/600...

  • Page 47: Section 2. Maintenance

    Model 500/600 SECTION 2. MAINTENANCE 2-1. INTRODUCTION This section provides procedures for the checkout and replacement of the various parts used within the fryer. Before replacing any parts, refer to Section 1, Troubleshooting. It will aid you in determining the cause of the malfunction. 1. You may use two test instruments to check the electric 2-2. MAINTENANCE components.

  • Page 48: Preventive Maintenance Schedule

    Model 500/600 2-3. PREVENTIVE To ensure a long life of the fryers and their components, regular MAINTENANCE maintenance should be performed. Refer to the chart below. SCHEDULE Frequency Action Daily (3-4 loads) Filter shortening Daily Clean deadweight valve cap, ...

  • Page 49: Transformer Replacement

    Model 500/600 2-5. TRANSFORMER The transformer reduces the voltage down to accommodate REPLACEMENT those components with low voltage. 1. Remove electrical power supplied to the unit. To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 50: Temperature Probe Replacement

    Model 500/600 2-6. TEMPERATURE PROBE The Temperature Probe relays the actual shortening temperatureto the REPLACEMENT control. If it becomes disabled, “E-6” shows in thedisplay. Also, if the temperature is out of calibration more than 10°F, or 10°C, the tempera- ture probe should be replaced. An Ohm check can be performed also.

  • Page 51

    Model 500/600 2-6. TEMPERATURE PROBE REPLACEMENT (Contin- ued) 7. Tighten the compression nut hand tight and then a half turn with wrench. Excess force will damage temperature probe. 8. Connect new temperature probe to PC board and replace control panel.

  • Page 52: High Temperature Limit Control (electric And Gas Models)

    Model 500/600 2-7. HIGH TEMPERATURE Description LIMIT CONTROL This high temperature control is a manual reset control which senses the temperature of the shortening. If the shortening (ELECTRIC AND GAS MODELS) temperature exceeds the safe operating limit, this control switch will open and shut off the heat to the frypot.

  • Page 53

    Model 500/600 2-7. HIGH TEMPERATURE 3. Remove the two electrical wires from the high LIMIT CONTROL temperature limit control. (ELECTRIC AND 4. Check for continuity between the two terminals after GAS MODELS) resetting the control. If the circuit is open, replace the (Continued) control, then continue with this procedure. (If the circuit is closed, high limit is not defective.

  • Page 54

    Model 500/600 2-7. HIGH TEMPERATURE LIMIT CONTROL (ELECTRIC AND GAS MODELS) (Continued) Electric 12. Carefully bend capillary bulb and tube toward bulb holders on heating elements on electric units, and toward the welded CENTER clips on gas units. Hang 2 high limit bulb holders, for capillary bulb of the 450 degree high limit (part no.

  • Page 55: Heating Elements (electric Models)

    Model 500/600 2-8. HEATING ELEMENTS Description (ELECTRIC MODELS) Each electric fryer uses three heating element assemblies. Heating elements are available for 208, 220/240, or 440/480 voltage. Check the data plate inside the door to determine the correct voltage. Maintenance Hint If the shortening’s temperature recovery is very slow, or at a slower rate than required, this may indicate defective heating element(s). An ohmmeter will quickly indicate if the elements are...

  • Page 56

    Model 500/600 2-8. HEATING ELEMENTS (ELECTRIC MODELS) (Continued) Replacement 1. Drain the shortening. 2. Remove the high limit bulb holder from the heating element inside the frypot. 3. Remove the heating element wires from the terminals by removing nuts (5) and washers (6 and 7). Label each so it can be replaced in the same position on the new element.

  • Page 57

    Model 500/600 2-8. HEATING ELEMENTS 10. Replace the brass nuts (4) and washers (3) on the (ELECTRIC MODELS) heating element terminals. Tighten the brass nuts to (Continued) 30 foot lbs of torque. 11. Move the element spreaders from the center of the element, into a position which will spread each element apart evenly on all four sides, and tighten.

  • Page 58: Heating Contactors (electric Models)

    Model 500/600 2-9. HEATING CONTACTORS (ELECTRIC MODELS) Description Each electric fryer requires two switching contactors. One is the primary contactor and the second in line is the heat contactor. When open, the primary contactor allows no power to flow to the heat contactor. When closed, the primary contactor completes the timer circuit and the high limit (heat) circuit. It also supplies power to the heat contactor which is controlled by the thermostat.

  • Page 59

    Model 500/600 2-9. HEATING Checkout (power suppled) CONTACTORS (ELECTRIC MODELS) (Continued) Heat Contactor 30 31 32 To avoid electrical shock, make connections before apply- ing power, take reading, and remove power before remov- ing meter leads. The following checks are performed with the wall circuit breaker closed and the main power switch in the ON position.

  • Page 60

    Model 500/600 2-9. HEATING Replacement CONTACTORS If either contactor is defective it must be replaced as follows: (ELECTRIC MODELS) (Continued) To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 61: Gas Burner Assembly (gas Models)

    Model 500/600 2-10. GAS BURNER ASSEMBLY (GAS MODELS) Description The gas model fryer has a gas burner assembly consisting of a MAIN GAS burner casting, orifices, thermocouple, pilot holder, and main CONTROL VALVE gas control valve. THERMOCOUPLE ORIFICE PILOT HOLDER BURNER CASTING Safety Precautions If converting from natural gas to propane gas or from propane gas to natural gas, conversion must be done by a qualified service technician.

  • Page 62

    Model 500/600 2-10. GAS BURNER ASSEMBLY (GAS MODELS) (Continued) 4. Remove wires from the gas control valve. 5. Disconnect gas supply line (28) from the connector (24) at control valve. (Refer to photo below.) Step 4 6. Loosen the two screws (13) on the heat shield deflector (9), on the firebox and flue assembly and raise the deflector to its highest position.

  • Page 63

    Model 500/600 2-10. GAS BURNER ASSEMBLY (GAS MODELS) (Continued) 10. Remove entire gas burner assembly, by lifting and pulling toward front of fryer. a. Replace thermocouple (19) as required, per paragraph 2-13. b. Repair or replace gas control valve (20) as required, per paragraph 2-14.

  • Page 64: Thermocouple (gas Models)

    Model 500/600 2-10. GAS BURNER 19. Remove control panel and install it in slot above the door. ASSEMBLY 20. Connect gas control valve wires to the thermostat and high (GAS MODELS) temperature limit control as labeled. (Continued) 21. Install control panel per paragraph 2-4.

  • Page 65

    Model 500/600 2-11. THERMOCOUPLE (GAS MODELS) (Continued) Replacement of Thermocouple GAS CONTROL Removal of the thermocouple is accomplished with the main gas VALVE (20) supply shut off. The main burner may remain inside the fryer, but the work is more easily performed with the burner removed. 1. Using a 3/8” wrench, remove nut securing the thermocouple (19) in the gas control valve (20).

  • Page 66: Gas Control Valve

    Model 500/600 2-12. GAS CONTROL VALVE Description The gas control valve regulates the flow of gas to the pilot and the main burner. The valve consists of: gas regulator, magnetic plug, pilot gas tube, gas valve knob, pilot adjustment cap and screw, gas outlet and inlet ports, thermocouple connector, and electrical connection. The gas control valve also has a dial reference point - OFF/PILOT/ON.

  • Page 67

    Model 500/600 2-12. GAS CONTROL Operator Replacement (continued) VALVE (Continued) 4. Using a T20 “star” screwdriver, remove 4 screws securing the operator and gasket. 5. Secure the new operator and gasket with the four screws provided. 6. Reconnect the gas control valve wires. 7. Install the control panel per paragraph 2-4. Step 5...

  • Page 68

    Model 500/600 2-12. GAS CONTROL Adjusting Pilot Burner VALVE (Continued) The following two procedures must be performed with the gas supply reconnected and turned on. The service cord must be plugged into the receptacle and the circuit breaker on. 1. The pilot burner is preset at the factory. It may require resetting at the time of installation.

  • Page 69: Electrical Components

    Model 500/600 2-13. ELECTRICAL Safety Precautions COMPONENTS Do not disconnect the ground (Earth) plug. This fryer MUST be adequately and safely grounded (Earthed) or electrical shock could result. Refer to local electrical codes for cor rect grounding (Earthing) procedures or in absence of local codes, with The National Electrical Code, ANSI/NFPA No.

  • Page 70

    Model 500/600 2-13. ELECTRICAL Drain Switch COMPONENTS All fryer models have a drain microswitch in line with the gas (Continued) control valve or heat contactor and the thermostat. When drain valve is opened to drain the shortening, this causes drain switch to open, shutting off electrical power to the heating elements.

  • Page 71

    Model 500/600 2-13. ELECTRICAL COMPONENTS Cook/Pump Switch (Continued) (all models) The Cook/Pump switch is a three way switch with a center OFF position. With the switch in the COOK position the fryer will operate. With the switch in the PUMP position the filter pump will operate but the heating unit will not. To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 72

    Model 500/600 2-13. ELECTRICAL Fuse Holder(s) COMPONENTS (electric models) (Continued) There are two fuse holders on each model of the electric fryers. There are no fuse holder assemblies for the gas models other than that at the main power source.

  • Page 73: Pressure Regulation/exhaust

    Model 500/600 2-14. PRESSURE Solenoid Valve REGULATION/ This is an electromechanical device that causes pressure to be EXHAUST held in the frypot. The solenoid valve closes at the beginning of the cook cycle and is opened automatically by the timer at the end of the cook cycle. If this valve should become dirty or the teflon seat nicked, pressure will not build up. The solenoid valve used on all models is the same with the exception of the coil. The gas model fryer uses a 120 volt, 60 Hz, coil.

  • Page 74

    Model 500/600 2-14. PRESSURE REGULATION/ EXHAUST (Continued) Replacement Solenoid Valve Assembly 1. Remove Tru-Arc retaining clip on top of the coil housing. 2. Remove the nameplate and cover. 3. If only the coil is replaced, disconnect two coil wires at the wire nuts in the coil housing, and remove the coil from the housing.

  • Page 75

    Model 500/600 2-14. PRESSURE REGULATION/ 5. If the core-disc assembly is sticking due to buildup of shortening, EXHAUST (Continued) breading and food particles proceed with the following steps. a. Unscrew the solenoid bonnet assembly from the solenoid valve body. Step 5a b. Remove the solenoid bonnet assembly and the bonnet gasket. Step 5b c. Remove the core-disc assembly, core spring retainer, and the core spring.

  • Page 76

    Model 500/600 2-14. PRESSURE d. Wash all parts in soap and hot water. REGULATION/ EXHAUST (Continued) If replacing Teflon seals, or complete valve, proceed to step 6, otherwise, assemble in reverse order of disassembly. Assemble valve core and blade (6), with the smooth side of the hole towards the disc spring guide (9).

  • Page 77

    Model 500/600 2-14. PRESSURE 7. To change seals: REGULATION/ EXHAUST (Continued) a. Remove the two adapter screws (22) which attach the pipe adapter (21) to the solenoid body (20). b. Remove disc spring (10), guide (9), and Teflon seat (8). c. Clean the valve body. d. Wet O-ring (12) around seat with water and insert O- r ing assembly (flat side first) in valve, through IN side of body. Use a pencil eraser, and press in Teflon seat until...

  • Page 78

    Model 500/600 2-14. PRESSURE Deadweight Valve REGULATION/ EXHAUST (Continued) DO NOT ATTEMPT TO REMOVE THE VALVE CAP WHILE THE FRYER IS OPERATING. SEVERE BURNS, OR OTHER INJURIES COULD RESULT. valve ring gauge The deadweight valve and safety relief valve are located side by side at the back of unit. The valve next to the pressure gauge...

  • Page 79

    Model 500/600 2-14. PRESSURE Removal and Cleaning REGULATION/ of Safety Relief Valve EXHAUST (Continued) The safety relief valve should be cleaned once a year. DO NOT ATTEMPT TO REMOVE VALVE WHILE FRYER IS OPERATING. SEVERE BURNS OR OTHER INJURIES COULD RESULT.

  • Page 80

    Condensation Box Bottom Removal Model 500-SN: KB021JB to HB013JB Model 600-SN: KA021JJ to GA085JB When cleaning the frypot, pour a cup of cleaning solution into the large exhaust hose at the top of the exhaust tank (see figure at left). This helps prevent the box from getting...

  • Page 81

    Model 500/600 2-14. PRESSURE Condensation Box Disassembly REGULATION/ Model 500-SN: HB014JB & Above EXHAUST (Continued) Model 600-SN: GA086JB & Above Should the condesation box become clogged on these fryers, disassem- ble the condesation box as follows: 1. Loosen fitting at the bottom of the box. 2. Remove the rear cover.

  • Page 82

    Model 500/600 2-14. PRESSURE Lid Cover Assembly REGULATION/ EXHAUST (Continued) Description Generally, the lid spindle, the limit stop, the cover, the hinge, the inner and the reversible gasket comprise the lid cover assembly. Lid Cover Removal The lid cover is easily removable for cleaning or service. 1. Close lid cover and turn the spindle counterclockwise until it stops. 2. Pull the lid release pin on front of crossbar, lift the latch, and raise the crossbar.

  • Page 83

    Lid Hinge Spring The hinge spring needs to be replaced if it is broken, cracked or otherwise loses its tension. A special spring installation tool greatly simplifies this procedure is available from the factory. (Henny Penny part number 21642) 1. Pull out on retaining pin knob on the front of the cross bar to release lid cover. (Refer to lid cover removal instructions.) 2. Lift the cross bar up and away from the lid.

  • Page 84

    Model 500/600 2-14. PRESSURE Lid Hinge Spring REGULATION/ (Continued) EXHAUST (Continued) 6. Tighten the handle on the tool as far as it will go. Step 6 7. Place the spring (loaded in the tool) into position so that the u-shaped center of tool is toward the front of the fryer and the tool handle is toward the top of the fryer.

  • Page 85

    Model 500/600 2-14. PRESSURE REGULATION/ Latch Spring EXHAUST (Continued) Installation The latch on the crossbar must have the external coil-type latch spring mounted on the latch pin. If a latch spring is weak or bro- ken, it must be replaced with a new spring, part number 33480. To avoid severe burns and injuries make sure the lid is secure during a cook cycle.

  • Page 86

    2. Use a thin blade screwdriver to pry lid liner from the cover. 3. Clean the liner and the inside of the cover. Replace the liner and screws. Reversing the Lid Gasket The gray rubber gasket surrounding the inside of lid is designed to be reversed. Henny Penny recommends that this be done on a quarterly basis. Purpose Because of heat expansion and the pressure used for the cooking process, the gasket is constantly under extreme stress. Reversing the lid gasket on a quarterly basis will help to assure that the fryer will not lose pressure through leakage.

  • Page 87

    Model 500/600 2-14. PRESSURE Reversing the Lid Gasket REGULATION/ (Continued) EXHAUST (Continued) 1. There are two lid liner screws on either side of the lid cover. Back these four screws out about 1/2 inch. Step 1 2. Open lid and, using a thin blade screwdriver, pry out the gasket at the corners. Remove the gasket.

  • Page 88

    Model 500/600 2-14. PRESSURE Reversing the Lid Gasket REGULATION/ (Continued) EXHAUST (Continued) Begin the installation by installing the four corners of the lid gasket. Lid Limit Stop Adjustment The lid limit stop, with proper adjustment, prevents unnecessary overtightening of the spindle, and as a result, extends the life of the lid gasket.

  • Page 89

    Model 500/600 2-14. PRESSURE Lid Limit Stop REGULATION/ Adjustment (Continued) EXHAUST (Continued) It may be necessary to remove knobs and change their position in order to align the red knob with the red knob on the lid cover lid latch. When in the normal operating position, both red knobs should be aligned. 6. Adjust the limit stop by turning it counterclockwise until it stops against the bottom hub of the spindle. 7. Tighten Allen set screws. 8. If the lid cover fails to seal properly, steam will escape around the gasket during the frying operation. The limit...

  • Page 90

    Model 500/600 2-14. PRESSURE REGULATION/ EXHAUST (Continued) 5. Remove the ball from the locking collar. This may be accomplished by lightly tapping steel ball with a hammer. Step 5 6. Remove and inspect the idle nut. Step 6 7. Thread the spindle out of the acme nut. 8. Loosen the Allen set screw in the outer ring of limit stop.

  • Page 91

    Model 500/600 2-14. PRESSURE REGULATION/ EXHAUST (Continued) The acme nut must be changed when there is excessive play and movement between the spindle and the acme nut. 9. Using a nylon tape type wrench unthread the limit stop collar from the acme nut.

  • Page 92

    Model 500/600 2-14. PRESSURE REGULATION/ EXHAUST (Continued) 12. Remove the locking pin and spring. Inspect and replace if necessary. When reinstalling the locking pin, be certain it is put back in Step 12 its original position. The angled side of the pin should be to the right. Step 13 13. Use a magnet to remove the ball seat. Inspect and replace if necessary.

  • Page 93: Filtering System

    Model 500/600 2-14. PRESSURE 17. Slip spindle through limit stop, hold idle nut against acme REGULATION/ nut, and thread spindle through both. There should be 20 to EXHAUST (Continued) 60 thousandths between acme nut and idle nut. To increase dimension, turn idle nut counterclockwise; to decrease turn clockwise.

  • Page 94

    Model 500/600 2-15. FILTERING SYSTEM (Continued) Installation 1. Attach the filter rinse hose with its quick disconnect female fitting to the other half male fitting inside the door, next to the filter valve handle. 2. To do this slide back the spring ring on the female end of the quick disconnect fitting and let it snap into place over the other half male fitting. 3. With a quick tug on the hose, insure the quick disconnect is locked into position. Step 1 Filter Valve Description The filter valve is a 3/8 inch two-way stainless steel ball valve. If this valve should develop leaks the entire valve must be replaced. To avoid electrical shock or property damage, move the power switch to “OFF” and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 95

    Model 500/600 2-15. FILTERING SYSTEM (Continued) Filter Pump Repair The two most common causes for a fryer’s inability to pump shortening is that the pump is clogged with breading or solid shortening has cooled and solidified in the lines and pump. To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 96

    Model 500/600 2-15. FILTERING SYSTEM (Continued) Pump Removal 1. If the pump needs to be replaced, loosen one inch nuts from the outflow and inflow lines. Then remove the two bolts holding the pump to the motor with a 1/2 inch wrench. 2. The shaft seal should remain on motor shaft, or if leaking, could be replaced at this time.

  • Page 97

    Model 500/600 2-15. FILTERING SYSTEM Pump Removal (Continued) (Continued) 4. To replace the pump and motor assembly, insure the main power has been removed from the fryer. To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle.

  • Page 98: Gas Conversion

    Refer to the Technical Manual illustrated parts breakdown for kit identification. Conversion must be accomplished by an authorized Henny Penny dealer or service representative, or personal injury could result. Service Hints On natural gas installation, the gas pressure regulator on the automatic gas control valve is factory set at 3.5 inch water column.

  • Page 99

    Model 500/600 2-53...

  • Page 100

    Model 500/600 2-54...

  • Page 101

    Model 500/600 2-55...

  • Page 102

    Model 500/600 2-56...

  • Page 103

    Model 500/600 2-57...

  • Page 104

    Model 500/600 2-58...

  • Page 105: Wiring Diagrams

    Model 500/600 Wiring Diagram Legend ABBREVIATION DEFINITION CONTROL CIRCUIT BREAKER DRAIN DRAIN SWITCH FUSE GROUND HEAT HIGH LIMIT HEAT & SAFETY LINE 1 LINE 2 LINE 3 MOTOR PRESSURE PROBE RELAY SAFETY TIMER THERMOSTAT TRANSFORMER TWO COMPONENTS TOGETHER EXTENSION OF THE SAME SIGNAL...

  • Page 106

    Any claim must be presented to either Henny Penny or the distributor from whom the appliance was purchased. No allowance will be granted for repairs made by anyone else without Henny Penny’s written consent. If damage occurs during shipping, notify the sender at once so that a claim may be filed.

  • Page 107: Section 3. Parts Information

    As with all contacts to your distributor, include the model number and serial number from the nameplate on your unit. Use only genuine Henny Penny parts in your fryer. Using a part 3-2. GENUINE PARTS of lesser quality or substitute design may result in fryer damage or personal injury.

  • Page 108: Subassemblies

    Model 500/600 3. Find the item number in the corresponding parts list, which shows the Henny Penny part number, a description of the part, any model or usage limitations, and the quantity of parts used on that illustration. (SAMPLE) In some cases, items in the parts list can be purchased in groups 3-5.

  • Page 109: Prices

    Commonly replaced items are stocked by your distributor and are- 3-8. DELIVERY shipped when your order is received. Other parts are ordered, by your distributor, from Henny Penny Corporation. Normally, these are sent to your distributor within 3 working days. All replacement parts (except lamps and fuses) are warranted 3-9. WARRANTY for 90 days against manufacturing defects and workmanship. If...

  • Page 110: Index Of Parts List Illustrations

    Model 500/600 3-11. INDEX OF PARTS LIST ILLUSTRATIONS Title Fig. No. Page No. CONTROL SHROUD and COMPONENTS ..........3-17 3-38 (Electric Model) Single Phase CONTROL SHROUD and COMPONENTS ..........3-16 3-36 (Three Phase Electric Model) CONTROL PANEL ..................COUNTERTOP INSULATION ASSEMBLY (Gas Model) ......

  • Page 111

    Model 500/600 3-11. INDEX OF PARTS LIST ILLUSTRATIONS (continued) Title Fig. No. Page No. FRY BASKET ....................3-22 FRYPOT and GAS BURNER ASSEMBLY (Gas Model) ......3-14 3-32 GAS CONTROL VALVE ................3-13 3-30 HEATING ELEMENT and HIGH LIMIT ASSEMBLY (Electric Model) ..

  • Page 112

    DESCRIPTION ASSY √ 67543RB CONTROL PANEL COMPLETE - Bent Panel 500 - SN: KB020JJ & Below/600 - SN: KA020JJ & Below √ 67544RB CONTROL PANEL COMPLETE - Flat Panel 500 - SN: KB021JJ to HB013JB/600 - KA021JJ to GA085JB √...

  • Page 113

    Model 500/600 Figure 3-2. Lid Assembly FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY LID ASSEMBLY 16170 LID ASSEMBLY ..............16169 COVER ASSEMBLY ............. 16155 COVER, Lid ............. SC01-083 SCREW, Lid Cover ........... 16133 HOOK, Cover Retaining........... SC06-027 SCREW, Retaining Hook ..........

  • Page 114

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-2 Cont’d. 16119 LINER, Inner Lid ............√ 13 16120 GASKET, Reversible, Inner Lid Liner......√ 14 16199 KIT, Latch Spring .............. 33480 SPRING ............... 16198 SPACER ............... 16197 PIN, Latch ..............

  • Page 115

    Model 500/600 NOTE: Turn safety relief valve towards rear of fryer. Figure 3-3. Deadweight Valve Assembly...

  • Page 116

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY DEADWEIGHT VALVE ASSEMBLY 16924 VALVE ASSEMBLY, Deadweight ........56305 BODY, Deadweight Valve ..........16912 DECAL, DEADWEIGHT VALVE ......... FP01-127 1/2 x 1/2 90 Degree Street L..........√ 5 59742 VALVE ASSEMBLY, Relief ...........

  • Page 117

    Model 500/600 Figure 3-4. Exhaust Stack Assembly 3-11...

  • Page 118

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY EXHAUST STACK ASSEMBLY 68086 PAN, Condensation Drain ............. 64274 PAN, Condensation Drain - Short (CFA-SN: JB095JA to HB013JB) ................. 16817 FITTING, Teflon Sleeve ............16809 NUT, Fitting ................16804 UMBRELLA GROMMET ...........

  • Page 119

    Model 500/600 Exhaust Stack Assembly KB020JJ & Condensation Line Assy 18502 Below KA020JJ & Condensation Line Assy 16838 Below Dead Wt. Tube 16854 KB021JJ to Condensation Line Assy 14320 BB016JA Condensate Box Top 64013 Dead Wt. Tube 59221 DW To Steam Box Hose...

  • Page 120

    Model 500/600 Figure 3-5. Solenoid Valve Assembly 3-14 1005...

  • Page 121

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY SOLENOID VALVE ASSEMBLY (Gas and Electric Models) 17121 VALVE, Solenoid, 120 Volt, 60 Hz ........18724 VALVE, Solenoid, 208-240 Volt, 50 Hz ......18721 VALVE, Solenoid, 208/240 Volt, 60 Hz ......

  • Page 122

    Model 500/600 Figure 3-6. Drain Valve Assembly (Gas Model) 3-16...

  • Page 123

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY DRAIN VALVE ASSEMBLY (Gas Model) 17261 BODY, Drain Valve (June 1998 and above) ....17210 COVER, Microswitch ..........55152 ASSY, Drain Valve and Coupling (May 1998 and below) √ 3 18227 MICROSWITCH .............

  • Page 124

    Model 500/600 Figure 3-7. Drain Valve Assembly (Electric Model) 3-18...

  • Page 125

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY DRAIN VALVE ASSEMBLY (Electric Model) 18921 TOP ASSEMBLY, Pot and Counter-SN: KB020JJ & Below 65025 TOP ASSEMBLY, Pot and Counter-KB021JJ & Above ..18816 NIPPLE, Pipe ..............16239 ELBOW ................

  • Page 126

    Model 500/600 Figure 3-8. Fan and High Temperature Limit Control (Gas Model) 3-20...

  • Page 127

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY FAN AND HIGH TEMPERATURE LIMIT CONTROL (Gas Model) √ 1 16738 CONTROL, High Temperature Limit ........SC02-018 SCREW, Thread Forming #8 ............ NS02-001 NUT, #10-32 Hex Keps ............17216 BRACKET ASSY, High Limit Thermostat ......

  • Page 128

    Model 500/600 Figure 3-9. Fry Basket 3-22...

  • Page 129

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY FRY BASKET (Gas and Electric Models) 17801 BASKET, Without Legs, Gas Model Only ......64058 BASKET, 3 Layer - Gas Model Only ........ 19507 BASKET, Expanded Metal - Electric Model Only .....

  • Page 130

    Model 500/600 Figure 3-10. Countertop Insulation Assembly (Gas Model) 3-24...

  • Page 131

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-10 COUNTERTOP INSULATION ASSEMBLY ....(Gas Model) 14698 KIT, Complete Set - SN: KA020JJ & Above......16518 INSULATION, Complete Set-SN: 36886 to KA020JJ ..(Includes Part Nos. 16505,17605,16872, MS01-180, Bulk Cerefelt Insulation For Around Thermocouple, Pot Fittings, and Glue.)

  • Page 132

    Model 500/600 Figure 3-11. Firebox and Flue Assembly (Gas Model) 3-26...

  • Page 133

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-11 FIREBOX AND FLUE ASSEMBLY ........(Gas Model) 59728 STACK, Flue Exhaust - SN: KA021JJ & Above ....54865 STACK, Flue Exhaust - SN: KA020JJ & Below ....59223 CABINET ASSEMBLY, Firebox - SN: KA021JJ & Above 29679 CABINET ASSEMBLY, Firebox - SN: KA020JJ &...

  • Page 134

    Model 500/600 Figure 3-12. Firebox Insulation Assembly (Gas Model) 3-28...

  • Page 135

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-12 FIREBOX INSULATION ASSEMBLY ......(Gas Model) 16505 INSULATION, Firebox - Complete Set ........ Cerefelt, Inside Firebox 63111 INSULATION, Side Panel , Cerefelt ......16502 INSULATION, Back Panel, Cerefelt ......16503 INSULATION, Bottom Panel, Cerefelt ......

  • Page 136

    Model 500/600 Style 1 Style 2 Style 3 Style 4 Figure 3-13. Gas Control Valve 3-30...

  • Page 137

    Model 500/600 FIGURE UNITS & ITEM PART DESCRIPTION ASSY 3-13 GAS CONTROL VALVE √ 1 ------- VALVE, Gas Control ........-- See Table 1 Below √ 2 16254 OPERATOR, Gas Control Valve, 120 Volt, Natural ...... √ 2 16386 OPERATOR, Gas Control Valve, 120 Volt, Propane .....

  • Page 138

    Model 500/600 Figure 3-14. Frypot and Gas Burner Assembly 3-32...

  • Page 139

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-14 FRYPOT AND GAS BURNER ASSEMBLY 16889 TOP ASSEMBLY, Pot and Counter (SN: KA020JJ & below) ... 65007 TOP ASSEMBLY, Pot and Counter (SN: KA021JJ & above) ... 18816 NIPPLE, Pipe S.S ...............

  • Page 140

    Model 500/600 Figure 3-15. Heating Element and High Limit Assembly (Electric Model) 3-34...

  • Page 141

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-15 HEATING ELEMENT AND HIGH LIMIT ASSEMBLY, (Electric Models) √ 1 18233-1 ELEMENT COMPLETE, Heating ........208 Volts, 4500 Watts √ 1 18233-2 ELEMENT COMPLETE, Heating ........230 Volts, 4500 Watts √...

  • Page 142

    Model 500/600 Figure 3-16. Control Shroud and Components (Three Phase Electric Model) 3-36...

  • Page 143

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-16 CONTROL SHROUD AND COMPONENTS (Three Phase Electric Model) 18514 SHROUD, Three Phase (KB020JJ & below) ....... 59233 SHROUD, Three Phase (KB021JJ to HB013JB) ......65864 SHROUD, Three Phase (HB014JB & above) .......

  • Page 144

    Model 500/600 Figure 3-17. Control Shroud and Components (Single Phase Electric Model) 3-38...

  • Page 145

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-17 CONTROL SHROUD AND COMPONENTS, (Electric Model) Single Phase √ 1 29510 CONTACTOR, Mercury-24 VAC (Before SN: AA0909048) ... √ 1 65073 CONTACTOR, EM-24VAC (SN: AA0909048 & Above) ..√ 2 29509 CONTACTOR - 24 Volt ............

  • Page 146

    Model 500/600 Figure 3-18. Frame and Cabinet Assembly 3-40...

  • Page 147

    Model 500/600 FIGURE UNITS & ITEM PART DESCRIPTION NUMBER ASSY 3-18 FRAME AND CABINET ASSEMBLY FRAME ASSEMBLY-See chart on next page ... COVER, Back Shroud-See chart on next page ..SC03-005 SCREW, Panels and Bracket, Sheet Metal ....SHROUD ASSEMBLY-See chart on next page ..59730 INSULATION, Side Panel, (Gas only) ......

  • Page 148

    Model 500/600 Frame and Cabinet Assembly Description Item No. KB020JJ & Front Panel 17602 Below Right Side Panel 17606 Left Side Panel 17604 KA020JJ & Front Panel 17602 Below Back Shroud Cover 17346 Shroud Assy 18740 Right Side Panel 17606 Left Side Panel...

  • Page 149

    Model 500/600 Figure 3-19. Filter Drain Pan and Filter Screen Assembly 3-43...

  • Page 150

    CARBON PAD, Filter Envelope (30 per carton) ....√ 24263 CARBON, Filter Envelope (30 per carton) ......03553 ASSY, Crumb Catcher-Model 500 (SN: HB013JB & below) 32882 ASSY, Crumb Catcher-Model 500 (SN: HB014JB & above) 03554 ASSY, Crumb Catcher-Model 600 (SN: GA085JB & below) 65127 ASSY, Crumb Catcher-Model 600 (SN: GA086JB &...

  • Page 151

    Model 500/600 Standard Filter Pan & Cover Assys. SERIAL NUMBER DESCRIPTION MODEL 500 MODEL 600 KB020JJ & Below Pan Cover 18915 ---- 19206 ---- Pan Dolly 03387 ---- KA020JJ & Below Pan Cover ---- 17512 ---- 17506 Pan Dolly ----...

  • Page 152

    Model 500/600 Figure 3-20. Lower Filter Plumbing Components 3-46...

  • Page 153

    Model 500/600 FIGURE UNITS & ITEM PART DESCRIPTION NUMBER ASSY 3-20 LOWER FILTER PLUMBING COMPONENTS (Gas and Electric Models) 67589 MOTOR AND PUMP, Filter ..........67583 MOTOR Only - 1/2 Horse Power ......√ 17437 PUMP Only ............. 17476 SEAL KIT, Pump ............

  • Page 154

    Model 500/600 Lower Filter Plumbing Components KB020JJ & Standpipe Assy 19102 Below Standpipe Tube 19101 16812 Pump Return Tube Assy (includes 16808 & 16809) 64331 Pump Return Tube (use if pan has cover) KA020JJ & Standpipe Assy 17433 Below Standpipe Tube...

  • Page 155

    Model 500/600 Figure 3-21. Filter Motor and Pump 3-49...

  • Page 156

    Model 500/600 FIGURE UNITS & ITEM PART DESCRIPTION NUMBER ASSY 3-21 FILTER MOTOR AND PUMP √ 1 67583 MOTOR, 1/2 HP - 50/60 Hz ..........√ 2 17476 SEAL KIT ................17437 PUMP ASSEMBLY ............. √ 4 SC01-132 SCREW, Pump Cover ............

  • Page 157

    Model 500/600 Figure 3-22. Upper Filter Plumbing Components 3-51...

  • Page 158

    FP02-001 NIPPLE, Close ..............17306 TEE, Pipe ................. FP01-015 PLUG, Pipe ..............03001 HOSE ASSY, Filter Rinse Optional (models 500) ... 03002 HOSE ASSY, Filter Rinse Optional (models 600) ... FP02-007 NIPPLE, Pipe ............. 17319 ELBOW, Pipe ............. NIPPLE, Rinse Hose Pipe-See chart next page ..

  • Page 159

    Model 500/600 Pump to Valve Tube Item No. KB020JJ & Pump to Valve Tube 18904 Below Rinse Hose Pipe Nipple 17320 Filter Valve & Rinse Hose Brkt 18419 KA020JJ & Pump to Valve Tube 17329 Below Rinse Hose Pipe Nipple 17320 Filter Valve & Rinse Hose Brkt 17224 KB021JJ to...

  • Page 160

    Model 500/600 International Only Electric Models Only Figure 3-23. Electric Conduit Assembly 3-54...

  • Page 161

    Model 500/600 FIGURE UNITS &ITEM PART NUMBER DESCRIPTION ASSY 3-23 ELECTRIC CONDUIT ASSEMBLY 18527 CONDUIT, Flexible ............18105 BUSHING, Anti Short ............18111 CONNECTOR, Conduit ............ FP01-018 COUPLING, Pipe .............. 18113 CONNECTOR, Conduit, 90 ..........° 59218 TUBE, Conduit - Solenoid ..........

  • Page 162

    Model 500/600 FIGURE UNITS & ITEM PART NUMBER DESCRIPTION ASSY 3-24 ELECTRONIC IGNITION ASSEMBLY (July 10, 2006 and after) √ 1 60292 SENSOR-FLAME, Pilot ..........√ 2 67227 ELECTRODE, Spark/Sense ........... √ 3 77839 IGNITION MODULE ............ √ Recommended Parts *not shown...

  • Page 163: Appendix A. Annual Preventive Maintenance

    Model 500/600 APPENDIX A. ANNUAL PREVENTIVE MAINTENANCE This appendix contains the checklist and associated procedures to accomplish the annual preventive maintenace. April 2017...

  • Page 164

    Drain oil to drain pan. Ensure no drain obstructions. Heat System Tighten heating element spreader bars and high limit bracket – 500 only Inspect temperature probe, verify it is not bent or damaged. Check the insertion depth of the probe with a gauge – adjust...

  • Page 165

    4-Head Annual Inspection Checklist Check amp draw of heating elements are consistent and when added up, match the amp draw listed on the data plate (500 only). Check that manifold pressure matches the data plate and gas type of the fryer (600 only)

  • Page 166

    Plumbing elbows  High limit  Drain switch  Splice connectors Copyright © 2016 Henny Penny Corporation. All rights reserved. Henny Penny and the Henny Penny logo are registered trademarks of Henny Penny Corporation in the United States and other countries.

  • Page 167

    2. Use a flashlight and inspection mirror to inspect the welds of the fry pot and drain stem weld indicated in figure 1 (PFG-600). For a PFE-500, use a flashlight to inspect the corner welds, drain stem and the pot to countertop welds. If oil accumulation can be seen from a weld, take the fryer out of service until the fry pot is replaced.

  • Page 168

    Inspection 2 Rev. A Inspect Casters, and Frame Objective  Inspect that the fryer sits level, casters are mechanically sound to hold the weight of the fryer and the tube steel frame is not cracked or bent. If the fryer is sitting out of level, inspect the condition of the floor.

  • Page 169

    Inspection 3 Rev A Power Cord Replace any power cord with torn or damaged sheathing, any exposed wire, or any fraying. Replace the plug if there are any signs of damage, loose wires showing, burnt connections. Guidelines from the manual are listed below. Fire Risk and Electrical Shock Possible.

  • Page 170

    Inspection 3 Rev A HO7RN type. To install the power cord, follow these procedures: 1. Remove the right side panel of the unit. 2. Install the cord, with a strain relief, to the junction box. 3. Attach the wires to the terminal block according to the wiring diagram on the side panel.

  • Page 171

    Inspection 3 Rev A • It is recommended that a 30 mA rated protective device such as a residual current circuit breaker (RCCB), or ground fault circuit interrupter (GFCI), be used on the fryer circuit. (FOR EQUIPMENT WITH CE MARK ONLY!) To prevent electric shock hazard this appliance must be bonded to other appliances or touchable metal surfaces in close proximity to this appliance with an equipotential...

  • Page 172

    Inspection 4 Rev. A Gas Hose and Connection Replace any gas connection that has a damaged hose, torn or damaged sheathing, or damaged fittings or quick disconnects that no longer function properly. Replace any damaged fittings or quick disconnects using appropriate pipe thread sealant that conforms to local code.

  • Page 173

    Inspection 4 Rev. A gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.45kPa) (34.47mbar) (continued to next page) The fryer must be located with provision for venting into adequate exhaust hood or ventilation system. This is essential to permit efficient removal of the flue gases and frying odors.

  • Page 174

    Inspection 4 Rev. A connections of the flexible gas line and cable restraint. The cable restraint limits the distance the fryer can be pulled from the wall. For cleaning and servicing the fryer, the cable must be unsnapped from the unit and the flexible gas line disconnected.

  • Page 175

    Inspection 4 Rev. A 1219 US 35 West P.O. Box 60 Eaton, OH 45320 (937)456-8400 Fax (937)456-8402 www.hennypenny.com...

  • Page 176

    Inspection 5 Rev. C Flue Inspection (model 600 only) Objective Ensure the transition from the flue to the fire box is clean with no holes from corrosion. 1. Remove the left and right side panels from the fryer (figure 1). Figure 1 2.

  • Page 177

    Inspection 5 Rev. C Figure 4 Once removed, Inspect the flue and transition assembly (figure 5). Clean out any debris or obstruction found in the flue assembly and inspect the integrity of the transition. If excessive corrosion casing holes to form in the transition are found, this step of the inspection does not pass until the flue assembly is replaced.

  • Page 178

    Inspection 6 Rev. A Condensation Box Objective  Inspect that the condensation box and condensation drain line are clean, and free from debris. Use a flexible wire brush to remove debris from the condensation drain line. Cleaning Procedure (refer to figure 1) 1.

  • Page 179

    Inspection 7 Inspection 30 Rev. A Solenoid and Deadweight Plumbing Objective  Inspect that the plumbing from the dead weight valve and the pressure solenoid are clean, and free from debris. During the lid locking safety inspection if pressure exceeded 14psi, this would indicate blockage in either the dead weight assembly or in the dead weight plumbing.

  • Page 180

    Inspection 7 Inspection 30 Rev. A Solenoid Plumbing Cleaning 1. Inspect and clean the plumbing from the outlet in the fry pot to the pressure solenoid (figure 3.) 2. Clean from the solenoid to the condensation box. (see instructions for removal and cleaning of the condensation box) Figure 3.

  • Page 181

    Inspection 8 Rev A...

  • Page 182

    Inspection 8 Rev A...

  • Page 183

    Inspection 9 Rev A 3-12. FILTER PUMP PROBLEM PREVENTION 3-13. whenever it becomes clogged with crumbs. Proceed as follows: CHANGING THE FILTER Move the main power switch to the OFF position. ENVELOPE Remove and empty the condensation drain pan. the frypot. If available, a drain pan may have casters under it, This union could be hot! Use protective cloth or glove, or severe burns could result.

  • Page 184

    Inspection 9 Rev A 3-13. CHANGING THE FILTER ENVELOPE Unthread the suction standpipe from the screen assembly. Step 7 Remove the crumb catcher and clean thoroughly with soap and water. Rinse thoroughly with hot water. Step 8 Rinse thoroughly with hot water. Step 9...

  • Page 185

    Inspection 9 Rev A 3-13. CHANGING THE FILTER ENVELOPE (CONT.) Fold the corners in and then double fold the open end. Step 12 Screw on the suction standpipe assembly. and slide pan back into place beneath the fryer. Slide the condensation drain pan back into place. The fryer is now ready to operate.

  • Page 186

    Inspection 10 Rev A 3-10. cycles. Discard the shortening as soon as it shows signs of foaming. FILTERING OF Clean the frypot as follows each time the shortening is changed or SHORTENING Turn the main power switch to the OFF position. Remove and clean the fry basket in soap and water.

  • Page 187

    Inspection 10 Rev A When all of the shortening has drained, scrape or brush the sides and the bottom of the frypot. 3-10. FILTERING OF Rinse the frypot as follows: SHORTENING (CONT.) Close the drain valve. Lower lid and hold closed. Move the main power switch to the PUMP position.

  • Page 188

    Inspection 10 Rev A While holding the wooden handle, make sure the hose nozzle is pointed down into the bottom of the frypot. Pull the lid down 3-10. FILTERING OF switch to the PUMP position. Hold nozzle carefully to avoid SHORTENING (CONT.) excessive splashing.

  • Page 189

    Inspection 10 Rev A When the pump is pumping air only, the shortening in the frypot 3-10. FILTERING OF SHORTENING (CONT.) When bubbling occurs, immediately close shortening, therefore increasing shortening life. Check the level of the shortening if necessary, until it reaches the level indicator line on the rear wall of the frypot, or the top level indicator line on model 500s.

  • Page 190

    Inspection 10 Rev A Figure 3-22. Filter Drain Pan and Filter Screen Assembly...

  • Page 191

    Inspection 12 Rev. A Spreader Bar and High Limit Bracket Tightening 500 only Objective  The five heating element spreader bars and the high limit bracket loosen through normal heating and cooling of the oil. This heating and cooling of the oil causes the fry vat surfaces to expand and contract.

  • Page 192

    1. Fastron probes are set to a fixed depth into the frypot. For probes on SMS controls inspect that the depth is set correctly (500 electric units 5/8” and 600 gas units 7/8”). You can use either a probe gauge or a ruler to set the depth (figure 2.)

  • Page 193

    Inspection 14 Rev. A Cleaning Burner Jets (600 only) Objective  Remove breading, dust and obstructions from burner Jets. Partially obstructed burners lower the BTU / KW output of the fryer which can affect cook times, product quality, and doneness. Figure 1.

  • Page 194

    Inspection 15 Rev. A Inspect and Clean Pilot Assembly (600 Only) Objective  Remove breading, dust and debris from pilot assembly to prevent flame sense issues due to plugged pilot orifices, or a plugged pilot venturri. It is best to perform this procedure when cleaning the burner jet (see burner cleaning instructions).

  • Page 195

    Inspection 16 Rev. B PFE-500 Oil Migration Inspection Disconnect power to the fryer Lower the control board. Inspect the area behind the control board for oil that has seeped through any of the fittings (Figure 2). Figure 1. Electro-Mechanical Contactor...

  • Page 196

    Ensure the bulb is not dented, the capillary tube is not severed and the bracket matches figure 1. (PFE-500) or figure 2. (PFG-600). If the capillary tube or bulb is damaged, take the fryer out of service until it is replaced.

  • Page 197

    Inspection 18 Inspections 33 & 34 Rev. A Inspect for Plumbing Leaks in the Filtration System Objective and Inspection  To identify if any leaks exist with the filtration system during filtration and then also during cooking. Also to ensure all of the components of the drain pan are present. Tip! A good time to inspect the filtration during cooking would be during the lid lock engagement / disengagement test by watching for drain valve leaks or oil return leaks to the drain pan.

  • Page 198

    Inspection 18 Inspections 33 & 34 Rev. A Test Procedure for plumbing leaks during cooking 1. Before test, disconnect the dairy unit where the drain pan connects to the oil return line. Caution! This connection could be hot and require PPE to remove.

  • Page 199

    Inspection 19 Rev. A Measuring Amp Draw – 500 only Objective  Ensure that the amp draw of the fryer equals the amp draw listed on the data label.  Why is this important? If amp draw is less than what is on the data label, this would be an indication that one of the phases that comes into the fryer may be missing, there may be an issue with one of the contactors, or there may be an issue in one of the heating elements.

  • Page 200

    Inspection 20 Rev A The gas pressure regulator on the gas control valve is 2-8 Gas Pressure Regulator Setting factory set as follows: Natural: 3.5 inches water column (0.87 kPa) Propane: 10.0 inches water column (2.49 kPa) The gas pressure regulator has been set by Henny Penny and is not to be adjusted by the user.

  • Page 201

    Inspection 21 Rev. A 1. AT THE END OF EACH DAY’S USAGE Deadweight Cleaning and Inspection OF THE FRYER, THE DEADWEIGHT VALVE MUST BE CLEANED. The fryer must be OFF and the pressure released. Open the lid and then remove the deadweight valve cap and deadweight.

  • Page 202

    Inspection 22 Rev. C PFE-500 and PFG-600 Latch, Catch and Latch Spring Inspection Objective To make sure the latch, catch and latch spring are properly installed and are within tolerances for safe operation. Catch Latch Latch Spring Figure 1. Catch Inspection 1.

  • Page 203

    Inspection 22 Rev. C Latch Inspection 3. Separate the lid and the cross arm as shown in figure 5. Figure 5. 4. Slide the “go” side of the gauge over the entire width of the latch. The latch should fit in this groove as shown in figure 6.

  • Page 204

    Inspection 22 Rev. C Latch Spring Inspection Make sure the latch spring and all of its components (latch spring, latch pin, spacers, and C-clip retainer) are not broken, not missing and installed correctly. If any components are broken, damaged, missing or installed incorrectly, this fryer would need to be taken out of service until which time the components can be replaced and installed correctly.

  • Page 205

    Inspection 23 Inspection 24 Rev. A Cross Arm Component Lubrication Objective Reduce wear on the spindle, thrust ball, ball seat, hinge spring, and locking pin. 1. Separate the lid and cross arm. 2. Use spindle lube (#12124) to lubricate the threads of the spindle and the thrust ball as indicated in figure 1.

  • Page 206

    Inspection 25 Rev. B Cross Arm Component Safety Inspection 1. Separate the lid and cross arm. 2. Inspect the cross arm as indicated in figure 1. Cracks on the bottom surface of the cross arm are acceptable, but anything rounding the corners as shown in figure 2, coming up the sides, or found on top would fail inspection.

  • Page 207

    Inspection 25 Rev. B 5. Inspect the hinge pin to ensure it is not missing, damaged or broken. Make sure that the retaining clips are securely in place on each side of the pin (figure 4). If any of these situations are true, take the fryer out of service until the components are replaced.

  • Page 208

    Inspection 26 Rev A...

  • Page 209

    Inspection 26 Rev A...

  • Page 210

    Inspection 26 Rev A...

  • Page 211

    Inspection 27 Rev A...

  • Page 212

    Inspection 27 Rev A...

  • Page 213

    Inspection 28 Rev A...

  • Page 214

    Inspection 29 Rev A...

  • Page 215

    Inspection 29 Rev A...

  • Page 216

    Inspection 29 Rev A...

  • Page 217

    Inspection 29 Rev A...

  • Page 218

    Inspection 29 Rev A...

  • Page 219

    Inspection 31 Inspection 32 Rev. A 4-Head Locking Pin Test Procedure Objective Ensure the lid locking pin engages the locking collar of the spindle when the pressure in the fry pot reaches 2psi and greater and also to ensure the lid locking pin remains engaged as pressure releases at 2psi.

  • Page 220

    Inspection 31 Inspection 32 Rev. A 5. Insert the existing pressure gauge into the elbow of the pressure test fixture (figure 5.) Figure 5 6. Adjust the limit stop so that the red ball reaches the 7:00 position when closing and locking down the lid.

  • Page 221

    Inspection 31 Inspection 32 Rev. A 10. If pressure during the cook cycle exceeds 14 psi, this does not fail the test as long as the locking pin engagement and disengagement steps pass. However, after the test, the deadweight and all related plumbing would need to be thoroughly cleaned or replaced.

  • Page 224

    Henny Penny Corporation P.O.Box 60 Eaton,OH 45320 1-937-456-8400 1-937-456-8402 Fax Toll free in USA 1-800-417-8417 1-800-417-8434 Fax *FM06-003-B www.hennypenny.com Henny Penny Corp., Eaton, Ohio 45320, Revised 04-01-17...
