AMI Codes-II
Installation
3.9.
3.9.1
3.10
A-96.250.571 / 050517

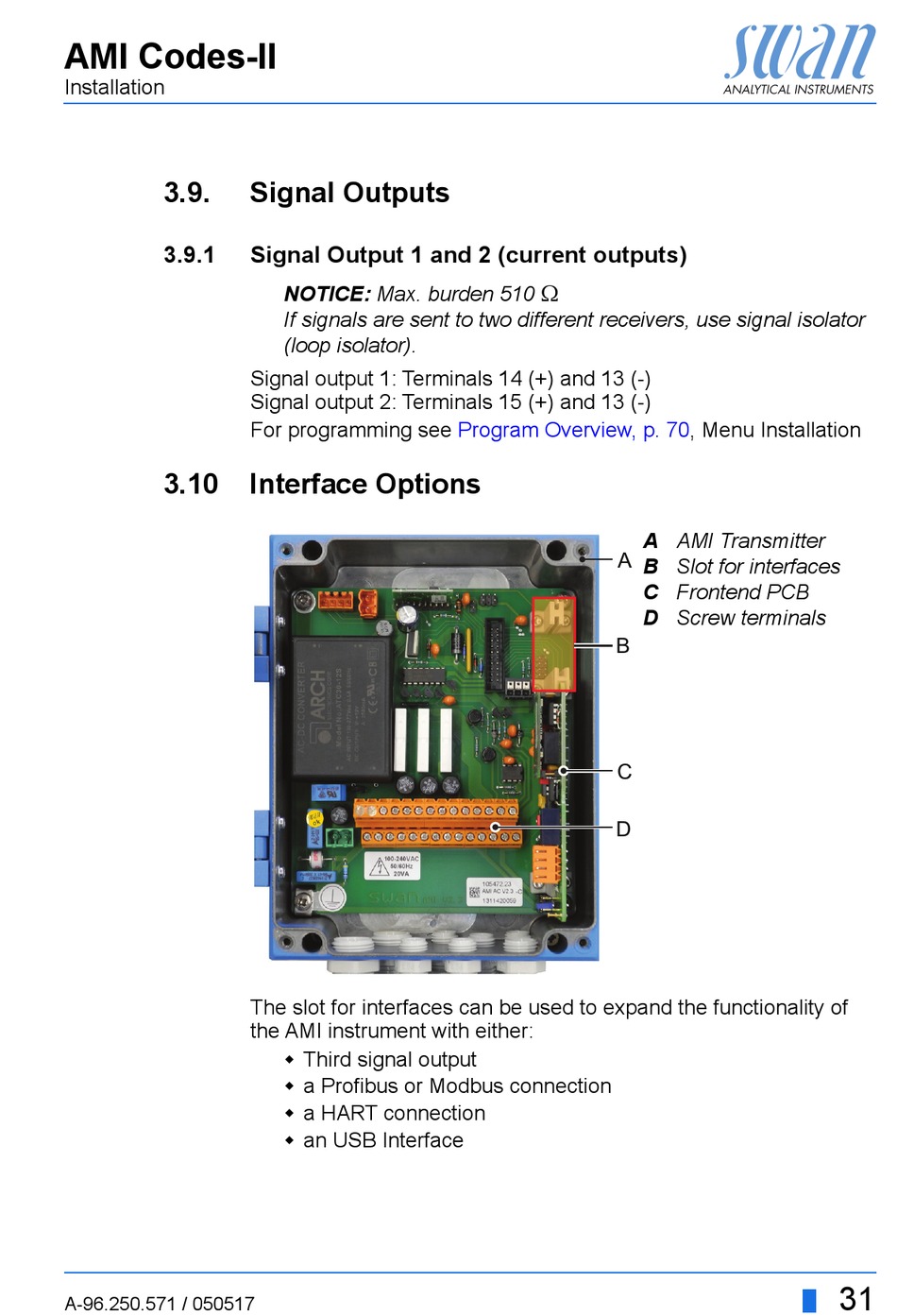

Signal Outputs
Signal Output 1 and 2 (current outputs)
NOTICE: Max. burden 510
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see
Interface Options
The slot for interfaces can be used to expand the functionality of
the AMI instrument with either:
Third signal output
a Profibus or Modbus connection
a HART connection
an USB Interface
Program Overview, p.
A
B
C
D
70, Menu Installation
A
AMI Transmitter
B
Slot for interfaces
C
Frontend PCB
D
Screw terminals
31
