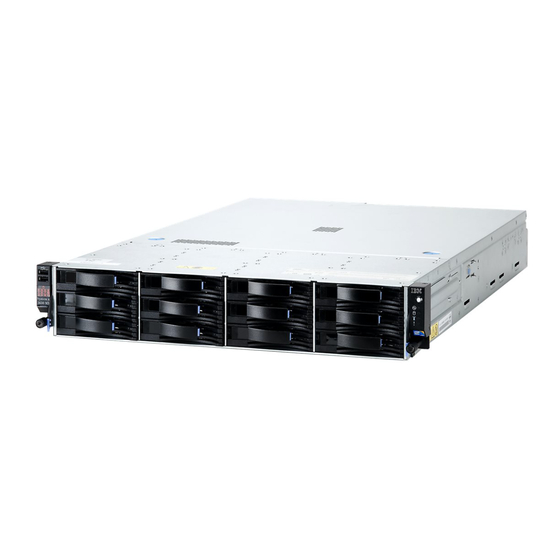

Lenovo System x3630 M4
Installation and Service Guide
Machine Type: 7158

Advertisement

Table of Contents
loading

Related Manuals for Lenovo System x3630 M4

Summary of Contents for Lenovo System x3630 M4

  • Page 1 Lenovo System x3630 M4 Installation and Service Guide Machine Type: 7158...
  • Page 2 Documentation CD. Fifth Edition (September 2016) © Copyright Lenovo 2015, 2016. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.

  • Page 3: Table Of Contents

    M4 Type 7158 server ..1 optional rear hard disk drive cage ..The Lenovo Documentation CD ..Installing a system fan ..
  • Page 4 Chapter 5. Parts listing, Lenovo DSA memory isolation test results ..System x3630 M4 Type 7158 ..Test results for the DSA memory isolation Replaceable server components..
  • Page 5 Index....1027 Federal Communications Commission (FCC) statement ....1020 © Copyright Lenovo 2015, 2016...
  • Page 6 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 7: Safety

    Vor der Installation dieses Produkts die Sicherheitshinweise lesen. Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza. Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet. Antes de instalar este produto, leia as Informações sobre Segurança. © Copyright Lenovo 2015, 2016...

  • Page 8: Safety Statements

    Be sure to read all caution and danger statements in this documentation before you perform the procedures. Read any additional safety information that comes with your system or optional device before you install the device. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 9 Do not: • Throw or immerse into water • Heat to more than 100°C (212°F) • Repair or disassemble Dispose of the battery as required by local ordinances or regulations. © Copyright Lenovo 2015, 2016...
  • Page 10 Statement 4 CAUTION: Use safe practices when lifting. ≥ 18 kg (39.7 lb) ≥ 32 kg (70.5 lb) ≥ 55 kg (121.2 lb) viii Lenovo System x3630 M4 Installation and Service Guide...
  • Page 11 Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician. © Copyright Lenovo 2015, 2016...
  • Page 12 Refer to the information that is provided with your device for electrical specifications. Statement 15 CAUTION: Make sure that the rack is secured properly to avoid tipping when the server unit is extended. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 13 Statement 27 CAUTION: Hazardous moving parts are nearby. Statement 35: > 240VA CAUTION: Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in splattered metal, burns, or both. © Copyright Lenovo 2015, 2016...
  • Page 14 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 15: Chapter 1. The Lenovo System X3630 M4 Type 7158 Server

    Partners must also complete the steps in “Instructions for Business Partners” on page 27. The Lenovo System x3630 M4 Type 7158 is a 2-U-high rack model, two-socket server for virtualization, database, and computational intensive computing. It is the next generation enterprise server based on Intel's Romley-EN technology.
  • Page 16 Drive bay 1 panel Drive bay 2 Drive bay 3 Optional optical drive Drive bay 4 Drive bay 5 Video USB 1 USB 2 connector connector connector Drive bay 6 Drive bay 7 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 17 If firmware and documentation updates are available, you can download them from the Lenovo website. The server might have features that are not described in the documentation that comes with the server, and the documentation might be updated occasionally to include information about those features, or technical updates might be available to provide additional information that is not included in the server documentation.

  • Page 18: The Lenovo Documentation Cd

    You can scan the QR code using a QR code reader and scanner with a mobile device and get quick access to the Lenovo Service Information website. The Lenovo Service Information website provides additional information for parts installation and replacement videos, and error codes for server support.

  • Page 19: Using The Documentation Browser

    • Warranty Information:This document is in printed format and comes with the server. It contains warranty terms and a pointer to the Lenovo Statement of Limited Warranty on the Lenovo website. • Important Notices:This document is in printed format and comes with the server. It contains information about the safety, environmental, and electronic emission notices for your Lenovo product.

  • Page 20: Notices And Statements In This Document

    • Environmental Notices and User Guide:This document is in PDF format on the Lenovo Documentation CD. It contains translated environmental notices. • Lenovo License Agreement for Machine Code:This document is in PDF on the Lenovo Documentation CD. It provides translated versions of the Lenovo License Agreement for Machine Code for your product.
  • Page 21 • ServeRAID M1100 Series Zero PCIe3.0 Express x16 slot, x8 • One serial port Cache/RAID 5 Upgrade for Lenovo link speed and one full-height • One video port on rear of server System x Chapter 1 The Lenovo System x3630 M4 Type 7158 server...
  • Page 22 • Design to ASHRAE Class A3, – Overall: 748.8 mm (29.5 in.) output vary depending on the ambient of 35°C to 40°C, with • Width: number and type of optional relaxed support: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 23 Verification and Testing Report • http://www.plugloadsolutions.com/psu_reports/IBM_7001676-XXXX_550W_SO-458_Report.pdf • http://www.plugloadsolutions.com/psu_reports/IBM_7001605-XXXX_750W_SO-258_Report.pdf • http://www.plugloadsolutions.com/psu_reports/SO-299_IBM_DPS-750AB-1_750W_Report.pdf • http://www.plugloadsolutions.com/psu_reports/IBM_7001606-XXXX_900W_SO-273_Report.pdf • http://www.plugloadsolutions.com/psu_reports/IBM_DPS-900CB%20A_900W_SO-440_Report.pdf Maximum power (watts): See Power supplies. Idle state power (watts): Sleep mode power (watts): Not applicable for servers. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...

  • Page 24: What Your Server Offers

    • Integrated Management Module II The integrated management module II (IMM2) is the second generation of the IMM. The IMM2 is the common management controller for Lenovo System x hardware. The IMM2 consolidates multiple management functions in a single chip on the server system board.
  • Page 25 The diagnostic programs create a merged log that includes events from all collected logs. The information is collected into a file that you can send to Lenovo service and support. Additionally, you can view the information locally through a generated text report file. You can also copy the log to a removable media and view the log from a web browser.
  • Page 26 LEDs” on page 131. • Mobile access to Lenovo Service Information website The server provides a QR code on the system service label, which is on the cover of the server, that you can scan using a QR code reader and scanner with a mobile device to get quick access to the Lenovo Service Information website.

  • Page 27: Reliability, Availability, And Serviceability

    • Upgradeable POST, UEFI, diagnostics, service processor microcode, and read-only memory (ROM) resident code, locally or over the LAN • Vital product data (VPD) on microprocessors, system board, power supplies, and SAS (hot-swap-drive) backplane Chapter 1 The Lenovo System x3630 M4 Type 7158 server...

  • Page 28: Systems Director

    Systems Director is a platform-management foundation that streamlines the way you manage physical and virtual systems in a heterogeneous environment. By using industry standards, Systems Director supports multiple operating systems and virtualization technologies in Lenovo and non-Lenovo x86 platforms. Through a single user interface, Systems Director provides consistent views for viewing managed systems, determining how these systems relate to one other, and identifying their statuses, helping to correlate technical resources with business needs.

  • Page 29: Front View

    Tape drive Drive bay 4 Drive bay 5 Video USB 1 USB 2 connector connector connector Drive bay 6 Drive bay 7 8 simple-swap hard-disk drive configuration with optical drive: Chapter 1 The Lenovo System x3630 M4 Type 7158 server...
  • Page 30 • Hard disk drive activity LED (front panel): When this LED is flashing, it indicates that the drive is in use. This function is reserved for simple-swap models. For existing models, please see the hot-swap hard Lenovo System x3630 M4 Installation and Service Guide...

  • Page 31: Operator Information Panel

    – Flashing slowly (once per second): The server is turned off and is ready to be turned on. You can press the power-control button to turn on the server. – Lit: The server is turned on. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...

  • Page 32: Light Path Diagnostics Panel

    “Light path diagnostics” on page 127 and “Light path diagnostics LEDs” on page 131. The following illustration shows the LEDs and controls on the light path diagnostics panel. Power-control button/ power-on LED System locator System-error Ethernet activity Check log LED Reset button LEDs Lenovo System x3630 M4 Installation and Service Guide...
  • Page 33 • Reset button: Press this button to reset the server and run the power-on self-test (POST). You might have to use a pen or the end of a straightened paper clip to press the button. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...

  • Page 34: Rear View

    (Optional, (Optional, feature on demand) feature on demand) Illustration when two additional rear hot-swap hard disk drive is installed in server. The PCI riser card assembly for this server configuration is 1U. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 35 Note: The IMM2 network must operate at 100 Mbps full duplex. The IMM2 network connection does not support Gigabit Ethernet. However, in shared mode the production Ethernet network still operates at Gigabit speeds. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...
  • Page 36 IMM network Production Ethernet Production Ethernet Production Ethernet Shared - Production interface port shared Gb Ethernet and IMM2 (please see note) Note: The IMM network is limited to 100 Mbps full duplex. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 37 DC power LED is lit, it indicates that the power supply is supplying adequate DC power to the system. During typical operation, both the AC and DC power LEDs are lit. For any other combination of LEDs, see “Power-supply LEDs” on page 24. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...
  • Page 38 This section shows the power-supply LEDs on the server. The following illustration shows the power-supply LEDs on the rear of the server. AC LED (green) DC LED (green) Power supply error LED (yellow) Lenovo System x3630 M4 Installation and Service Guide...

  • Page 39: Server Power Features

    You can turn on the server and start the operating system by pressing the power-control button. Chapter 1 The Lenovo System x3630 M4 Type 7158 server...
  • Page 40 4 seconds to turn off the server. • The IMM2 can turn off the server as an automatic response to a critical system failure. • You can turn off the server through a request from the IMM2. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 41: Chapter 2. Installing Optional Devices

    2. Shut down and restart the server multiple times to ensure that the server is correctly configured and functions correctly with the newly installed devices. 3. Save the DSA log as a file and send it to Lenovo. For information about transferring data and logs, see “How to send DSA data” on page 1014.

  • Page 42: Sending Dsa Data To Lenovo

    Support information for Business Partners is available at http://www.ibm.com/partnerworld. Sending DSA data to Lenovo You can send DSA data to Lenovo with standard upload, standard upload with the system serial number, secure upload, and secure upload with the system serial number.
  • Page 43 Adapter Top cover 2U PCI riser-card assembly 1 2U PCI riser-card assembly 2 Air baffle 1U PCI riser-card assembly 1 1U PCI riser-card Heat sink assembly 2 Microprocessor DIMM 3.5-inch simple-swap backplate with 4 hard disk drives 3.5-inch simple-swap backplate System board with 8 hard disk drives 3.5-inch SAS/SATA...
  • Page 44 2 (optional) connector 2A connector 3A Microprocessor 1 Microprocessor 2 power connector power connector System-board DIMM connectors The following illustration shows the DIMM connectors on the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 45 DIMM 7 DIMM 9 DIMM 11 DIMM 12 DIMM 8 DIMM 10 DIMM 1 DIMM 3 DIMM 5 DIMM 2 DIMM 4 DIMM 6 System-board external connectors The following illustration shows the external input/output connectors on the system board. Ethernet 4 Serial (Optional, feature on demand) connector...
  • Page 46 36, “Handling static-sensitive devices” on page 38, and “Turning off the server” on page 26. 2. Any system-board switch or jumper blocks that are not shown in the illustrations in this document are reserved. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 47 System-board LEDs The following illustration shows the light-emitting diodes (LEDs) on the system board. System error LED Locator LED Light path button Light path LED RTMM heart beat LED Battery error LED IMM heart beat LED Standby power LED PCI riser 2 missing LED System board error LED DIMM error...
  • Page 48 Type 1 PCI riser card riser-card assembly Slot 1, PCIe3 x16 (16, 8, 4, 1) Type 2 PCI riser card Slot 3, PCIe3 x16 (16, 8, 4, 1) riser-card assembly Slot 5, PCIe3 x8 (4, 1) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 49 Type 3 PCI riser card riser-card assembly Slot 1, PCIe3 x16 (8, 4, 1) Slot 2, PCIe3 x16 (8, 4, 1) Type 4 PCI riser card riser-card assembly Slot 1, PCIe3 x16 (8, 4, 1) Slot 2, PCIe3 x16 (8, 4, 1) Type 5 PCI riser card riser-card assembly...

  • Page 50: Installation Guidelines

    Slot 3, PCIe3 x8 (8, 4, 1) Installation guidelines Use the installation guidelines to install the Lenovo System x3630 M4 Type 7158. Attention: • Static electricity that is released to internal server components when the server is powered-on might cause the system to halt, which might result in the loss of data.

  • Page 51: System Reliability Guidelines

    For additional information about tools for updating, managing, and deploying firmware, see the ToolsCenter for System x and BladeCenter at https://support.lenovo.com/us/en/ documents/LNVO-CENTER. • Before you install optional hardware, make sure that the server is working correctly. Start the server, and...
  • Page 52 • Handle the device carefully, holding it by its edges or its frame. • Do not touch solder joints, pins, or exposed circuitry. • Do not leave the device where others can handle and damage it. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 53: Removing The Server Top Cover

    • While the device is still in its static-protective package, have the device be in contact to an unpainted metal surface on the outside of the server for at least 2 seconds. This drains static electricity from the package and from your body. •...

  • Page 54: Rotating The Optional Hot-Swap Rear Hard Disk Drive Cage Up

    Slowly rotate the rear hard disk drive cage outwards until it stops Step 6. Shift the switch on the rear hard disk drive cage to the lock position to keep the hard disk drive cage fixed Lenovo System x3630 M4 Installation and Service Guide...

  • Page 55: Removing A Pci Riser-Card Assembly

    Release latch If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 87. Removing a PCI riser-card assembly Use this information to remove a PCI riser-card assembly from the server. To remove the PCI riser-card assembly, complete the following steps: Step 1.
  • Page 56 2U PCI riser-card assembly 1 (full height, half length, or low profile adapters) Alignment pin 2U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pin For 1U riser cards: Lenovo System x3630 M4 Installation and Service Guide...

  • Page 57: Removing The Air Baffle

    1U PCI riser-card assembly 1 (full height, half length, or low profile adapters) 1U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pins If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 87.

  • Page 58: Removing A Hot-Swap Hard Disk Drive

    • To make sure that there is adequate system cooling, do not operate the server for more than 2 minutes without either a drive or a filler panel installed in each bay. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 59: Removing A Simple-Swap Hard Disk Drive

    Driver-tray assembly Drive handle To remove a hot-swap hard disk drive, complete the following steps: Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36. Step 2. Press the release latch on the side of the drive front. Step 3.

  • Page 60: Removing An Adapter From The Pci Riser-Card Assembly

    • For 2U PCI riser-card assembly 1: 1. Rotate the retention latch to the open position. 2. Carefully grasp the adapter by its top edge or upper corners, and pull the adapter from the PCI riser-card assembly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 61 2U riser-card assembly Adapter Release latch • For 1U PCI riser-card assembly 1: 1. Rotate the retention latch to the open position. 2. Carefully grasp the adapter by its top edge or upper corners, and pull the adapter from the PCI riser-card assembly.

  • Page 62: Removing A Serveraid Adapter From The Pci Riser-Card Assembly

    Pull the release pin to unlock the retention latch; then rotate the retention latch to the open position. Step 7. Carefully grasp the ServeRAID adapter by the edge and pull it out of PCI riser-card assembly 2. • For 2U riser card: Lenovo System x3630 M4 Installation and Service Guide...

  • Page 63: Installing A Hot-Swap Hard Disk Drive

    Use this information to a hot-swap hard disk drive into the server. The following notes describe the type of hard disk drives that the server supports and other information that you must consider when you install a drive. For a list of supported drives, see http://www.lenovo.com/ serverproven/ •...
  • Page 64 Complete the additional steps in “Instructions for Business Partners” on page 27. If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 87. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 65: Installing A Simple-Swap Hard Disk Drive

    Installing a simple-swap hard disk drive Use this information to install a simple-swap hard disk drive into the server. To install a simple-swap hard disk drive, complete the following steps: Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36.
  • Page 66 (see “Removing a PCI riser-card assembly” on page 41, “Removing an adapter from the PCI riser-card assembly” on page 46 and “Removing a ServeRAID adapter from the PCI riser-card assembly” on page 48.) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 67 Step 6. Install the removed adapters and/or ServeRAID adapter into the relevant 1U PCI riser-card assembly (see “Installing an adapter on the PCI riser-card assembly” on page 57 and “Installing a ServeRAID adapter on the PCI riser-card assembly” on page 61). Step 7.
  • Page 68 Step 16. Find the rear hard disk drive detect pin of the hot-swap backplane signal (I C) cable located near the system fan cage; then, connect with the rear hard disk drive detect pin of the LED signal cable from the option package. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 69 LED signal cable (from option package) Hot-swap backplane Cable tie signal cable (I C cable) Rear hard disk drive detect pin Step 17. Connect the other end of the SATA signal and power cables to the power paddle card and hot-swap hard disk drive backplane in the server.

  • Page 70: Installing The System Fan In The Optional Hot-Swap Rear Hard Disk Drive Cage

    Orient the fan so that the fan cable points to the front of the server. Step 5. Lower the fan into the fan slot in the server and ensure that is it seated correctly. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 71: Installing An Adapter On The Pci Riser-Card Assembly

    Fan 4 Fan 5 Hard disk drive cage Step 6. Connect the system fan cable to the connector on the system board. Note: Remember to insert the excess cabling into the cable clip, as shown in the following illustration. Fan 5 power connector Fan 4 power connector...
  • Page 72 • To confirm that server supports the adapter that you are installing, see http://www.lenovo.com/ serverproven/. • Locate the documentation that comes with the adapter and follow those instructions in addition to the instructions in this section. • Do not set the maximum digital video adapter resolution above 1600 x 1200 at 75 Hz for an LCD monitor.
  • Page 73 2U riser-card assembly Adapter Expansion-slot cover Release latch • For 1U PCI riser-card assembly 1: 1. Rotate the retention latch to the open position. Insert the adapter into the PCI riser-card assembly, aligning the edge connector on the adapter with the connector on the PCI riser-card assembly.
  • Page 74 See the ServeRAID-M Software User Guide at https://www-947.ibm.com/support/entry/portal/docdisplay?lndocid=migr-5086126 for instructions. If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 87. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 75: Installing A Serveraid Adapter On The Pci Riser-Card Assembly

    Note: If possible, back up or record your RAID configuration information before replacing the adapter. See the documentation for your RAID adapter for information and instructions. Documentation for ServeRAID adapters can be downloaded from http://www.lenovo.com/support. Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36.
  • Page 76 2. When you restart the server, you are given the opportunity to import the existing RAID configuration to the new ServeRAID adapter. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 77: Installing A Serveraid Adapter Battery Or Flash Power Module In The Remote Battery Tray

    Installing a ServeRAID adapter battery or flash power module in the remote battery tray Use this information to install a ServeRAID adapter battery or flash power module in the remote battery tray. The Intelligent Battery Backup Unit (iBBU) is an optional battery for the ServeRAID adapter. It is referred to as the battery throughout this section.

  • Page 78: Installing The Hot-Swap Backplane In The Optional Rear Hard Disk Drive Cage

    Disconnect all power cords; then, disconnect all external cables from the server. Step 3. Remove the server top cover (see “Removing the server top cover” on page 39). Step 4. Connect the LED signal, SATA signal and power cables to the backplane. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 79 LED signal SATA 0 connector connector SATA 1 connector Power connector Step 5. Align the backplane with the slot on the optional rear hard disk drive cage. Step 6. Lower the backplane into the optional rear hard disk drive cage. Make sure the three alignment pins securely engages the three holes on the hard disk drive cage.

  • Page 80: Installing A System Fan

    3. Lower the fan into the fan slot in the server and ensure that is it seated correctly. 4. Connect the system fan cable to the connector on the system board. 5. Insert the system fan cable into the cable retainer clip. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 81: Memory Module Installation

    The following notes describe the types of dual inline memory modules (DIMMs) that the server supports and other information that you must consider when you install DIMMs. • Confirm that the server supports the DIMM that you are installing, see http://www.lenovo.com/ serverproven/.
  • Page 82 • The server comes with a minimum of one DIMM installed in slot 1. When you install additional DIMMs, install them in the order shown in the information in the following tables to optimize system performance. • The server supports independent mode, rank sparing mode, and mirroring mode. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 83: Dimm Installation Sequence

    DIMM installation sequence When you install additional DIMMs, install them in the order shown in the following table to optimize system performance. DIMM 7 DIMM 9 DIMM 11 DIMM 12 DIMM 8 DIMM 10 DIMM 1 DIMM 3 DIMM 5 DIMM 2 DIMM 4 DIMM 6...

  • Page 84: Memory Mirroring

    • The following table lists the DIMM installation sequence for rank sparing mode when one or two microprocessors is installed in the server: The following table shows the installation sequence for installing DIMMs for each microprocessor in memory online-spare mode: Lenovo System x3630 M4 Installation and Service Guide...

  • Page 85: Installing A Dimm

    Table 9. DIMM population sequence (rank sparing mode) Number of installed microprocessors DIMM connector population sequence 1, 2 3, 4 5, 6 1, 2 7, 8 3, 4 9, 10 5, 6 11, 12 Installing a DIMM Use this information to install a DIMM. Note: The odd-numbered DIMM connectors are white-colored, while the even-numbered DIMM connectors are black-colored.

  • Page 86: Installing An Additional Microprocessor And Heat Sink

    Scalable up to eight cores with an integrated memory controller, quick-path interconnect and shared last cache. See http://www.lenovo.com/ serverproven/ for a list of supported microprocessors. • If you are installing microprocessor Intel E5-1403, E5-1407 or Intel E5-1410, attach the microprocessor information label on the front of the server as the following illustration shows.
  • Page 87 2. Under Product support, click System x. 3. Under Popular links, click Software and device drivers. 4. Click System x3630 M4 to display the matrix of downloadable files for the server. • (Optional) Obtain an SMP-capable operating system. For a list of supported operating systems and optional devices, see http://www.lenovo.com/ serverproven/.
  • Page 88 Microprocessor installation tool (microprocessor inside) Alignment pins Twist the handle on the microprocessor tool counterclockwise to insert the microprocessor into the socket. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 89 Touching the thermal grease will contaminate it. If the thermal grease is contaminated, call Lenovo service and support to request a replacement thermal grease kit. For information about installing the replacement thermal grease, see “Thermal grease”...

  • Page 90: Thermal Grease

    • The thermal grease on the heat sink and microprocessor is not contaminated. • Additional thermal grease is not added to the existing thermal grease on the heat sink and microprocessor. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 91: Installing A Hot-Swap Ac Power Supply

    The following items describe the type of power supply that the server supports and other information that you must consider when you install a power supply: • To confirm that the server supports the power supply that you are installing, see http://www.lenovo.com/ serverproven/.
  • Page 92 There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician. Attention: During normal operation, each power-supply bay must contain either a power supply or power-supply filler for proper cooling. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 93 To replace a hot-swap ac power supply, complete the following steps. Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36. Step 2. Touch the static-protective package that contains the hot-swap power supply to any unpainted metal surface on the server;...

  • Page 94: Installing A Hot-Swap Dc Power Supply

    • Power supply 1 is the default/primary power supply. If power supply 1 fails, you must replace the power supply with the same wattage immediately. • You can order an optional power supply for redundancy. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 95 • These power supplies are designed for parallel operation. In the event of a power-supply failure, the redundant power supply continues to power the system. The server supports a maximum of two power supplies. • It is the customer's responsibility to supply the necessary power cable. To reduce the risk of electric shock or energy hazards: –...
  • Page 96 I/O modules does not turn off electrical current to the product. The product also might have more than one power cord. To remove all electrical current from the product, make sure that all power cords are disconnected from the power source. Statement 34 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 97 -48 volt dc power supply, and make the connections to and disconnections from the -48 volt dc power source. Lenovo service technicians are not certified or authorized to install or remove the -48 volt power cable. The customer is responsible for ensuring that only trained service personnel install or remove the -48 volt power cable.
  • Page 98 The minimum nominal thread diameter of a pillar or stud type of terminal must be 4 mm; for a screw type of terminal the diameter must be 5.0 mm. Step 9. Turn on the circuit breaker for the dc power source to which the new power supply is connected. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 99: Installing A Usb Embedded Hypervisor Flash Device

    Step 10. Make sure that the green power LEDs on the power supply are lit, indicating that the power supply is operating correctly. Step 11. If you are replacing a power supply with one of a different wattage in the server, apply the new power information label provided over the existing power information label on the server.
  • Page 100 Locate the embedded hypervisor USB flash device connector on the system board as shown in the following illustration: Step 7. Slide the lockbar toward the riser-card assembly to the locked position until it is seated firmly. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 101: Completing The Installation

    USB embedded hypervisor flash device Lockbar Step 8. Align the USB flash device with the connector on the system board and push it into the connector until it is firmly seated. Step 9. Slide the lockbar toward the riser-card assembly to the locked position until it is seated firmly. If you have other devices to install or remove, do so now.

  • Page 102: Installing The Air Baffle

    Attention: For proper cooling and airflow, replace the air baffle before you turn on the server. Operating the server with the air baffle removed might damage server components. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 103 Air baffle If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 87. Installing a PCI riser-card assembly Use this information to install a PCI riser-card assembly. To install the PCI riser-card assembly, complete the following steps: Step 1.
  • Page 104 2U PCI riser-card assembly 1 (full height, half length, or low profile adapters) Alignment pin 2U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pin For 1U riser card assemblies: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 105 1U PCI riser-card assembly 1 (full height, half length, or low profile adapters) 1U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pins Step 5. Press down on the blue touch points on the PCI riser-card assembly to install the assembly in the server.

  • Page 106: Installing The Server Top Cover

    If all the tabs do not engage the chassis correctly, it will be hard to remove the cover later. Step 3. Slide the cover forward toward the front of the server until the cover is completely closed. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 107: Updating The Server Configuration

    Thumbscrew Cover Step 4. Tighten the thumbscrews on the rear of the cover to secure the cover to the chassis. Step 5. Install the server into the rack enclosure and tighten the two front thumbscrews to secure the server in the rack. Attention: Two or more people are required to install the system in a rack cabinet.
  • Page 108 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 109: Chapter 3. Configuration Information And Instructions

    UpdateXpress System Pack or UpdateXpress image. The firmware for the server is periodically updated and is available for download on the Lenovo website. To check for the latest level of firmware, such as the UEFI firmware, vital product data (VPD) code, device drivers, and integrated management module (IMM) firmware, go to http://www.ibm.com/support/ fixcentral.

  • Page 110: Configuring Uefi Compatible Devices

    The USB embedded hypervisor flash device installs in the USB connector on the system board. For more information about using the embedded hypervisor, see “Using the embedded hypervisor” on page 107. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 111: Using The Serverguide Setup And Installation Cd

    • Remote presence capability and blue-screen capture The remote presence and blue-screen capture features are integrated functions of the Integrated Management Module II (IMM2). The remote presence feature provides the following functions: – Remotely viewing video with graphics resolutions up to 1600 x 1200 at 75 Hz, regardless of the system state –...

  • Page 112: Using The Setup Utility

    Use the Unified Extensible Firmware Interface (UEFI) Setup Utility program to perform the following tasks: • View configuration information • View and change assignments for devices and I/O ports • Set the date and time • Set and change passwords Lenovo System x3630 M4 Installation and Service Guide...

  • Page 113: Starting The Setup Utility

    Use the Setup utility main menu to view and configure server configuration data and settings. The following choices are on the Setup utility main menu for the UEFI. Depending on the version of the Lenovo System x Server Firmware (server firmware), some menu choices might differ slightly from these descriptions.
  • Page 114 – Memory Speed Select the desired memory speed. Maximum performance mode maximizes performance. Balanced mode offers a balance between performance and power. Minimal power mode maximizes power savings. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 115 – Memory Power Management Select this choice to enable or disable power management on memory. If you choose Disabled, it will provide maximum performance but minimum power savings. If you choose Automatic, it is suitable for most applications. – Proc Performance States Select this choice to enable or disable processor performance states.
  • Page 116 Select this option to view the status of the controllers in the system as reported by their corresponding drivers. • Date and Time Select this choice to set the date and time in the server, in 24-hour format (hour:minute:second). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 117 This choice is on the full Setup utility menu only. • Start Options Select this choice to view or change the start options, including the startup sequence, keyboard NumLock state, PXE boot option, and PCI device boot priority. Changes in the startup options take effect when you start the server.
  • Page 118 See the safety information that begins in “Safety” on page v. Do not change settings or move jumpers on any system-board switch or jumper blocks that are not shown in this document. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 119: Using The Boot Manager Program

    Clearing CMOS data does not affect the administrator password. Administrator password If an administrator password is set, you must type the administrator password for access to the full Setup utility menu. You can use any combination of 6 to 20 printable ASCII characters for the password. Attention: If you set an administrator password and then forget it, there is no way to change, override, or remove it.
  • Page 120 • Command-line interface (IPMI Shell) The command-line interface provides direct access to server management functions through the IPMI 2.0 protocol. Use the command-line interface to issue commands to control the server power, view Lenovo System x3630 M4 Installation and Service Guide...

  • Page 121: Using The Embedded Hypervisor

    system information, and identify the server. You can also save one or more commands as a text file and run the file as a script. • Serial over LAN Establish a Serial over LAN (SOL) connection to manage servers from a remote location. You can remotely view and change the UEFI settings, restart the server, identify the server, and perform other management functions.

  • Page 122: Using The Remote Presence And Blue-Screen Capture Features

    For more information on Features on Demand (FoD), including instructions for automating the activation and installation of the activation key by using ToolsCenter or Lenovo Director, see the Lenovo System x Features on Demand User's Guide at https://fod.lenovo.com/lkms under the Help section.

  • Page 123: Enabling The Intel Gigabit Ethernet Utility Program

    Note: IPv6 address will not immediately show on host address when we change the values and have to exit and re-visit the driver to get the actual value. Step 1. Turn on the server. Note: Approximately 1 to 3 minutes after the server is connected to ac power, the power-control button becomes active.

  • Page 124: Configuring Raid Arrays

    Features on Demand (FoD), including instructions for automating the activation and installation of the activation key by using ToolsCenter or Lenovo Director, see the Lenovo System x Features on Demand User's Guide at https://fod.lenovo.com/lkms under the Help section.
  • Page 125 3. For further details on creating a software RAID array of hard disk drives, please see the ServeRAID C105 documentation at http://www-947.ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5089068. 4. When the ServeRAID adapter is removed, software RAID will not be supported. This system does not support downgrade software RAID function from hardware RAID configuration. Starting the LSI Configuration Utility program Use these instructions to start the LSI Configuration Utility program.

  • Page 126: Advanced Settings Utility Program

    For more information on Features on Demand (FoD), including instructions for automating the activation and installation of the activation key by using ToolsCenter or Systems Director, see the Features on Demand User's Guide at https://fod.lenovo.com/lkms under the Help section.

  • Page 127: Using Lenovo Xclarity Administrator

    To manage systems based on the network topology that is implemented in your environment, there are a number of different ways to connect manageable systems to the network and to set up the Lenovo XClarity Administrator. If you plan to use Lenovo XClarity Administrator to manage the server, you must check for the latest applicable Lenovo XClarity Administrator updates.

  • Page 128: Updating The Universal Unique Identifier (Uuid)

    ASU and the required files to the same directory. In addition to the application executable (asu or asu64), the following files are required: • For Windows based operating systems: – ibm_rndis_server_os.inf Lenovo System x3630 M4 Installation and Service Guide...
  • Page 129 Note: Changes are made periodically to the website. The actual procedure might vary slightly from what is described in this document. 1. Go to http://www.lenovo.com/support. 2. Click on the Downloads tab at the top of the panel. 3. Under ToolsCenter, select View ToolsCenter downloads.

  • Page 130: Updating The Dmi/Smbios Data

    Click on the Downloads tab at the top of the panel. c. Under ToolsCenter, select View ToolsCenter downloads. d. Select Advanced Settings Utility (ASU). e. Scroll down and click on the link and download the ASU version for your operating system. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 131 • Bootable media containing ASU (LAN or KCS, depending upon the bootable media) Note: Lenovo provides a method for building a bootable media. You can create a bootable media using the Bootable Media Creator (BoMC) application from the Tools Center Web site. In addition, the Windows and Linux based tool kits are also available to build a bootable media.
  • Page 132 <imm_external_ip> [user <imm_user_id>][password <imm_password>] Where: imm_external_ip The external IMM LAN IP address. There is no default value. This parameter is required. imm_user_id The IMM account (1 of 12 accounts). The default value is USERID. imm_password Lenovo System x3630 M4 Installation and Service Guide...
  • Page 133 –host <imm_ip> • Bootable media: You can also build a bootable media using the applications available through the Tools Center Web site at https://support.lenovo.com/us/en/ documents/LNVO-CENTER. From the ToolsCenter, page, scroll down for the available tools. 5. Restart the server. Chapter 3...
  • Page 134 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 135: Chapter 4. Troubleshooting

    The documentation that comes with your operating system and software also contains troubleshooting information. Diagnosing a problem Before you contact Lenovo or an approved warranty service provider, follow these procedures in the order in which they are presented to diagnose a problem with your server. Step 1.
  • Page 136 Make sure that all installed hardware and software are supported. See http://www.lenovo.com/ serverproven/ to verify that the server supports the installed operating system, optional devices, and software levels. If any hardware or software component is not supported, uninstall it to determine whether it is causing the problem. You...

  • Page 137: Undocumented Problems

    If you have completed the diagnostic procedure and the problem remains, the problem might not have been previously identified by Lenovo. After you have verified that all code is at the latest level, all hardware and software configurations are valid, and no light path diagnostics LEDs or log entries indicate a hardware component failure, contact Lenovo or an approved warranty service provider for assistance.

  • Page 138: Checkout Procedure

    To find service bulletins that are available for the Lenovo System x3630 M4 server, go to http://www.lenovo.com/support and search for Type 7158, and retain. Checkout procedure The checkout procedure is the sequence of tasks that you should follow to diagnose a problem in the server.

  • Page 139: Diagnostic Tools

    Complete the following steps: Check the power supply LEDs (see “Power-supply LEDs” on page 24). Turn off the server and all external devices. Check all internal and external devices for compatibility at http://www.lenovo.com/ serverproven/. Check all cables and power cords.
  • Page 140 IPMI event log), the integrated management module (IMM) chassis-event log (as the ASM event log), and the operating-system event logs. You can send the DSA log as a file to Lenovo service (when requested by service) or view the information as a text file or HTML file.

  • Page 141: Light Path Diagnostics

    rich set of diagnostic tests of the major components of the server. DSA Preboot collects the following information about the server: – Drive health information – Event logs for ServeRAID controllers and service processors – Installed hardware, including PCI and USB information –...
  • Page 142 LED error LED error LED LED name Description Error LEDs When an error LED is lit, it indicates that the associated component has failed. RTMM heartbeat LED Power-on and power-off sequencing. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 143 LED name Description IMM 2 heartbeat LED Indicates the status of the boot process of the IMM2. When the server is connected to power this LED flashes quickly to indicate that the IMM2 code is loading. When the loading is complete, the LED stops flashing briefly and then flashes slowly to indicate that the IMM2 if fully operational and you can press the power-control button to start the server.
  • Page 144 • Reset button: Press this button to reset the server and run the power-on self-test (POST). You might have to use a pen or the end of a straightened paper clip to press the button. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 145: Light Path Diagnostics Leds

    Light path diagnostics LEDs The following table describes the LEDs on the light path diagnostics panel and suggested actions to correct the detected problems. For additional information, see “Server controls, LEDs, and power” on page 14 and the “System-board LEDs” on page 33 for the location of the system board LEDs. Note: Check the IMM system-event log or system event log for additional information before replacing a FRU.
  • Page 146 Make sure that the DIMM configuration is supported (see “Memory module installation” on page 67 for DIMM requirements and installation sequence information). b. Replace the DIMMs with a supported configuration. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 147 2. (Trained technician only) Replace the failing microprocessor (see “Removing a microprocessor and heat sink” on page 305 and “Replacing a microprocessor and heat sink” on page 309). 3. For more information, go to http://www.lenovo.com/support. Chapter 4 Troubleshooting...
  • Page 148 • Failed firmware update • Failed system board 3. Check the system-event log for information about the error. 4. Replace any failed or missing replacement components, such as the battery or PCI riser-card assembly. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 149: Event Logs

    Replace the hard disk drive. b. Replace the hard disk drive backplane. 6. If the problem remains, go to http://www.lenovo.com/support. Event logs Error codes and messages are displayed in POST event log, system-event log, integrated management module (IMM2) event log, and DSA event log.

  • Page 150: Viewing Event Logs Without Restarting The Server

    The following table describes the methods that you can use to view the event logs, depending on the condition of the server. The first three conditions generally do not require that you restart the server. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 151: Clearing The Error Logs

    • Run DSA Portable to view the diagnostic event log (requires IPMI driver) or create an output file that you can send to Lenovo service and support (using ftp or local copy). • Use IPMItool to view the system-event log (requires IPMI driver).

  • Page 152: Uefi/Post

    Notes: 1. In a multi-node environment, each server has a unique DSA interface. You can view server-specific information, such as event logs, from these unique DSA interfaces. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 153: Dsa Editions

    If you are unable to restart the server or if you need comprehensive diagnostics, use DSA Preboot. The Lenovo System x3630 M4 server comes with DSA Preboot diagnostics code on the integrated USB flash memory. Utilities are available to reset and update the diagnostics code on the integrated USB flash device, if the diagnostic partition becomes damaged and does not start the DSA Preboot diagnostic programs.

  • Page 154: Call Home (Automated Service Request)

    Call home (automated service request) Lenovo provides tools that can automatically collect and send data or call Lenovo Support when an error is detected. These tools can help Lenovo service speed up the process of diagnosing problems. The following sections provide information about the call home tools.

  • Page 155: Service Advisor

    Lenovo Service for problem determination. It also includes the call home feature that automatically calls Lenovo Service when a problem occurs. The Service Advisor feature is integrated into the Integrated Management Module (IMM). You will need to setup and configure the Service Advisor feature before you can use it.

  • Page 156: Cd/Dvd Drive Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 157: General Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.
  • Page 158 • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 159: Intermittent Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 160: Keyboard, Mouse, Or Pointing-Device Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 161: Memory Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 162: Microprocessor Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.
  • Page 163 • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 164: Network Connection Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 165: Optional-Device Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 166: Power Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 167: Serial-Device Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 168: Serverguide Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 169: Universal Serial Bus (Usb) Port Problems

    • Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. • See Chapter 5 “Parts listing, Lenovo System x3630 M4 Type 7158” on page 161 to check if a component is a consumable, structural, or FRU part.

  • Page 170: Solving Undetermined Problems

    Remove or disconnect the following devices, one at a time, until you find the failure. Turn on the server and reconfigure it each time. • Any external devices. • Surge-suppressor device (on the server). • Printer, mouse, and non-Lenovo devices. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 171: Problem Determination Tips

    Because of the variety of hardware and software combinations that can encounter, use the following information to assist you in problem determination. If possible, have this information available when requesting assistance from Lenovo. The model number and serial number can be found on the front of the server. Depending on your server model, their respective locations can be found either in the following two illustrations.

  • Page 172: Recovering The Server Firmware

    • Diagnostic program type and version level • Setup utility settings • Operating-system control-file setup See Appendix D “Getting help and technical assistance” on page 1013 for information about calling Lenovo for service. Recovering the server firmware Use this information to recover the server firmware.
  • Page 173 In-band manual recovery method To recover the server firmware and restore the server operation to the primary bank, complete the following steps: Step 1. Turn off the server, and disconnect all power cords and external cables. Step 2. Remove the server cover. See “Removing the server top cover” on page 320 for more information. Step 3.

  • Page 174: Automated Boot Recovery (Abr)

    4. At the firmware splash screen, press F3 when prompted to restore to the primary bank. The server boots from the primary bank. Out-of-band method: See the IMM2 documentation. For more information about UEFI-compliant firmware, go to http://www.lenovo.com/support. Automated boot recovery (ABR) Use this information for Automated boot recovery (ABR).

  • Page 175: Chapter 5. Parts Listing, Lenovo System X3630 M4 Type 7158

    Tier 1 CRU at your request, you will be charged for the installation. – Tier 2 customer replaceable unit (CRU): You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
  • Page 176 The following table lists the part numbers for the server components. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 177 Intel Xeon Microprocessor E5-2450L v2 ten core 1.7 GHz 25MB Cache 46W4289 1600 MHz 60W Intel Pentium Microprocessor 1403 v2 two core 2.6 GHz 5MB Cache 46W4290 1333 MHz 80W Chapter 5 Parts listing, Lenovo System x3630 M4 Type 7158...
  • Page 178 Power supply, 900 Watt, ac 94Y8118 Power supply, 900 Watt, ac 94Y8120 Power distribution board, lower 94Y8263 Power distribution board, upper 69Y5790 Battery, ServeRAID 81Y4491 Tape drive 40K6449 DVD-ROM drive 44W3254 DVD-RW drive 44W3256 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 179 Riser-card assembly, PCIe, 2x16 + 1x8 00D8631 00Y7544 Riser-card assembly, PCIe, 2x16 + 1x8 (for use with Intel Xeon Processor E5-2600 V2 series) 00D8632 Riser-card assembly, PCIe, 1x16 + 1x8 Chapter 5 Parts listing, Lenovo System x3630 M4 Type 7158...
  • Page 180 Cable, HDD power (Y cable) 00D8668 00D9030 Cable, rear HDD SATA signal Cable, operator information panel, front 81Y7292 81Y7342 Cable, operator information panel, side Cable, front USB 81Y7294 81Y7296 Cable, front VGA Lenovo System x3630 M4 Installation and Service Guide...
  • Page 181 Cable, 9Gbps external mini-SAS, SFF-8644 to SFF-8088, 4 m Cable, 10Gbps external mini-SAS, SFF-8644 to SFF-8088, 6 m 00YE307 6Gb performance optimized HBA 46C8937 6Gb SAS HBA 46C8935 99Y3868 DAT72 5.25" 36GB USB drive Chapter 5 Parts listing, Lenovo System x3630 M4 Type 7158...

  • Page 182: Consumable And Structural Parts

    Endeavor Basic 10Gb BE3-R Adapter Consumable and structural parts Consumable and structural parts are not covered by the Lenovo Statement of Limited Warranty. You can place an order on the structural parts from the Lenovo retail store. The following structural parts are available for purchase from the retail store.

  • Page 183: Power Cords

    For units intended to be operated at 115 volts: Use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a parallel blade, grounding-type attachment plug rated 15 amperes, 125 volts. Chapter 5 Parts listing, Lenovo System x3630 M4 Type 7158...
  • Page 184 Islands, Canada, Cayman Islands, Colombia, Costa Rica, Cuba, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Jamaica, Mexico, Micronesia (Federal States of), Netherlands Antilles, Nicaragua, Panama, Peru, Philippines, Saudi Arabia, Thailand, Taiwan, United States of America, Venezuela Lenovo System x3630 M4 Installation and Service Guide...
  • Page 185 Micronesia (Federal States of), Netherlands Antilles, Nicaragua, Panama, Peru, Philippines, Saudi Arabia, Thailand, Taiwan, United States of America, Venezuela 39M5219 Korea (Democratic People's Republic of), Korea (Republic of) 39M5199 Japan 39M5226 India 39M5240 Brazil Chapter 5 Parts listing, Lenovo System x3630 M4 Type 7158...
  • Page 186 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 187: Chapter 6. Removing And Replacing Components

    Tier 1 CRU at your request, you will be charged for the installation. • Tier 2 customer replaceable unit: You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
  • Page 188 Signal cables Hot-swap backplane power cables The following illustration shows the hardware ServeRAID cabling information for eight 3.5-inch hot-swap drive backplane assemblies: Hot-swap backplane configuration cable Signal cables Hot-swap backplane power cables Lenovo System x3630 M4 Installation and Service Guide...
  • Page 189 The following illustration shows the software ServeRAID cabling information for eight 3.5-inch simple-swap drive backplate assemblies: SAS/SATA 1 SAS/SATA 0 Signal cables Simple-swap backplate power cable The following illustration shows the software ServeRAID cabling information for four 3.5-inch simple-swap drive backplate assemblies: Chapter 6 Removing and replacing components...
  • Page 190 SAS/SATA 0 Signal cable Simple-swap backplate power cable The following illustrations show the cabling information for the optional CD/DVD SATA drive: CD/DVD drive power cable CD/DVD drive cable Lenovo System x3630 M4 Installation and Service Guide...

  • Page 191: Removing And Replacing Server Components

    This section provides information for removing and replacing components in the server. Removing and replacing Tier 1 CRUs Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request, you will be charged for the installation.
  • Page 192 Step 3. Remove the filler panel from the front of the server. Step 4. Orient the drive as shown in the illustration. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 193 Driver-tray assembly Drive handle Filler panel Step 5. Make sure that the tray handle is open. Step 6. Align the drive assembly with the guide rails in the bay. Step 7. Gently push the drive assembly into the bay until the drive stops. Step 8.
  • Page 194 Gently push the drive assembly into the drive bay until the drive clicks into place. Filler panel Step 5. Reinstall the filler panel that you removed Step 6. Turn on the peripheral devices and the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 195 Rotating the optional hot-swap rear hard disk drive cage up Use this information to rotate the optional hot-swap rear hard disk drive cage up. To rotate the optional hot-swap hard disk drive cage up, complete the following steps. Step 1. Read the safety information that begins in “Safety”...
  • Page 196 Disconnect all power cords; then, disconnect all external cables as necessary to replace the device). Step 3. Remove the server top cover (see “Removing the server top cover” on page 320). Step 4. Open the blue latches on the chassis. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 197 Release latch Step 5. Rotate the rear hard disk drive cage outwards . Then, carefully pull the rear hard disk drive cage out of the chassis. Step 6. If you are instructed to return the rear hard disk drive cage, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
  • Page 198 Step 10. Align the two moveable levers of the rear hard disk drive cage with the two chassis support brackets. Slide the cage into the chassis support brackets until it firmly sits into place . Then, rotate the cage inward until it firmly sits into place Lenovo System x3630 M4 Installation and Service Guide...
  • Page 199 Release latch Step 11. Close the latches on the chassis. Step 12. Remove the power cable that currently connects the hot-swap hard disk drive backplane in the server to the power-paddle card. Power cable Cable tie Chapter 6 Removing and replacing components...
  • Page 200 Step 17. Connect the other end of the SATA signal and power cables to the power paddle card and hot-swap hard disk drive backplane in the server. Make sure the labels of both connectors are matched. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 201 Power cable SATA signal cable 0 Cable tie SATA signal cable 1 SATA 1 SATA 0 Note: Make sure the cables are routed in the proper locations without blocking the airflow. It is recommended to press all the cables downwards to make the cable routing easier. Secure the cables with any cable retention clips.
  • Page 202 Note: The system fans in the optional hot-swap rear hard disk drive cage are used for system boards that support Intel Xeon Processor E5-2600 V2 series. To install the replacement system fan in the optional hot-swap rear hard disk drive cage, complete the following steps. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 203 Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36. Step 2. See “System-board internal connectors” on page 30 for the locations of the fan cable connectors. Step 3. Touch the static-protective package that contains the new fan to any unpainted metal surface on the server.
  • Page 204 • For 1U PCI riser-card assembly 1: 1. Rotate the retention latch to the open position. 2. Carefully grasp the adapter by its top edge or upper corners, and pull the adapter from the PCI riser-card assembly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 205 Release latch Adapter 1U riser-card assembly Adapter • For 2U PCI riser-card assembly 2: 1. To remove a adapter, lower the retention latch down to the open position. 2. Carefully grasp the adapter by its top edge or upper corners, and pull it from the PCI riser-card assembly.
  • Page 206 Make sure that the adapter snaps into the riser-card assembly securely. 2. Rotate the retention latch to the close position. Make sure the retention latch engages the adapter securely; then, push in the release pin to lock the retention latch in place. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 207 Step 5. Install the PCI riser-card assembly in the server (see “Replacing a PCI riser-card assembly” on page 237). Step 6. Perform any configuration tasks that are required for the adapter. Step 7. Install the cover (see “Replacing the server top cover” on page 321). Step 8.
  • Page 208 1 cable Step 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew Step 8. Carefully pull the media cage out of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 209 Media cage Step 9. Locate the CD/DVD drive within the media cage. Step 10. Locate the cable connector latch at the back of the CD/DVD drive. Step 11. Slide the cable connector latch downward (you can see an arrow that points downwards) leftward to the unlock position ;...
  • Page 210 Cable connector latch Step 5. Carefully push the media cage back into the server. Media cage Step 6. Tighten the thumbscrew to secure the media cage onto the server. Thumbscrew Lenovo System x3630 M4 Installation and Service Guide...
  • Page 211 Step 7. Reconnect the USB, video, CD/DVD and operator information cables to the system board. Remember to insert the cables into the relevant cable clips and cable tie. Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable...
  • Page 212 Remove the air baffle (see “Removing the air baffle” on page 322). Step 6. Disconnect the USB, video, CD/DVD and front operator information panel cables from the system board. Please remember the relevant cable routing. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 213 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Step 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew Step 8.
  • Page 214 Locate the USB, video and front operator information panel cables of the media cage. Step 7. Disconnect the USB, video and front operator information panel cables from the system board. Please remember the relevant cable routing. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 215 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Step 8. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew Step 9.
  • Page 216 Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following. Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 217 Class 1 Laser Product Laser Klasse 1 Laser Klass 1 Luokan 1 Laserlaite Appareil A Laser de Classe 1 Step 12. Touch the static-protective package that contains the new optical drive to any unpainted metal surface on the server; then, remove the optical drive from the package and place it on a static-protective surface.
  • Page 218 Remember to insert the cables into the relevant cable clips and cable tie. Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 219 Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Step 19. Install the air baffle (see “Replacing the air baffle” on page 323). Step 20. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). Step 21.
  • Page 220 1 cable Step 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew Step 8. Carefully pull the media cage out of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 221 Media cage Step 9. Remove the front USB and video connector assembly from the media cage (see “Removing the front USB and video connector assembly inside media cage” on page 260). Step 10. Remove the operator information panel from the media cage (see “Removing the operator information panel”...
  • Page 222 Tighten the thumbscrew to secure the media cage onto the server. Thumbscrew Step 6. Reconnect the USB, video, CD/DVD and operator information cables to the system board. Remember to insert the cables into the relevant cable clips and cable tie. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 223 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Chapter 6 Removing and replacing components...

  • Page 224: Removing A System Fan

    4. Grasp the top of the fan with your index finger and thumb and slowly lift the fan out of the server. Step 8. Removing Fan 2A or Fan 3A 1. Disconnect the system fan cable from the connector on the fan board. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 225: Replacing A System Fan

    2. Pull the system fan cable out of the cable retainer clip. 3. Grasp the top of the fan with your index finger and thumb and lift the fan out of the server. Step 9. If you are instructed to return the fan, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.

  • Page 226: Removing A Memory Module

    Carefully flip open the retaining clip on each end of the DIMM connector and lift the DIMM from the connector. Attention: To avoid breaking the retaining clips or damaging the DIMM connectors, open and close the clips gently. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 227: Replacing A Memory Module

    • See “Memory module installation” on page 67 for notes and information that you must consider when you install DIMMs. • Confirm that the server supports the DIMM that you are installing, see http://www.lenovo.com/ serverproven/. The following illustration shows the location of the DIMM connectors on the system board.
  • Page 228 Step 13. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices and the server. Step 14. Go to the Setup utility and make sure all the installed DIMMs are present and enabled. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 229 Removing a ServeRAID adapter from the PCI riser-card assembly Use this information to remove a ServeRAID adapter from the PCI riser-card assembly. To remove a ServeRAID adapter from the PCI riser-card assembly, complete the following steps: Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36.
  • Page 230 Align the ServeRAID adapter so that the keys align correctly with the connector on PCI riser-card assembly 2. Step 8. Insert the ServeRAID adapter into the connector on the riser-card until it is firmly seated. For 2U riser card: Release 2U riser-card assembly ServeRAID adapter Lenovo System x3630 M4 Installation and Service Guide...
  • Page 231 For 1U riser card: Release pin 1U riser-card assembly ServeRAID adapter Attention: Incomplete insertion might cause damage to the server or the adapter. Step 9. Connect any required cables to the ServeRAID adapter. Attention: • When you route cables, do not block any connectors or the ventilated space around any of the fans.
  • Page 232 If the battery comes with a battery carrier, ensure that battery carrier posts align with the rings on the battery mounting slot so that the battery carrier is secure in the slot. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 233 2. Push the battery retention clip back to its vertical position until it snaps into place, thereby securing the battery. Battery Battery holder Step 4. Connect the remote battery cable to the remote battery cable connector to the ServeRAID adapter. Route the remote battery cable in the server as shown in the following illustration.

  • Page 234: Removing A Usb Embedded Hypervisor Flash Device

    181). Step 5. Remove PCI riser-card assembly 1 (see “Removing a PCI riser-card assembly” on page 235). Step 6. Locate the USB embedded hypervisor flash device connector on the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 235 Step 7. Slide the lockbar on the flash device connector to the unlocked position and pull the USB flash device out of the connector. USB embedded hypervisor flash device Lockbar Step 8. If you are instructed to return the hypervisor memory key, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.

  • Page 236: Replacing A Usb Embedded Hypervisor Flash Device

    Align the USB flash device with the connector on the system board and push it into the connector until it is firmly seated. Step 8. Slide the lockbar toward the riser-card assembly to the locked position until it is seated firmly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 237 USB embedded hypervisor flash device Lockbar Step 9. Install PCI riser-card assembly 1 (see “Replacing a PCI riser-card assembly” on page 237). Step 10. If you have the optional hot-swap rear hard disk drive cage installed, rotate it down (see “Rotating the optional hot-swap rear hard disk drive cage down”...
  • Page 238 Step 4. Press and hold the orange release tab to the left. Grasp the handle and pull the power supply out of the server. Hot-swap power supply 2 Hot-swap power supply 1 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 239 The following items describe the type of power supply that the server supports and other information that you must consider when you install a power supply: • To confirm that the server supports the power supply that you are installing, see http://www.lenovo.com/ serverproven/.
  • Page 240 Connect the power cord for the new power supply to the power-cord connector on the power supply. Step 6. Route the power cord through the cable retainer clip so that it does not accidentally become disconnected. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 241 Power cables Cable retainer clip Step 7. Connect the power cord to a properly grounded electrical outlet. Step 8. Make sure that the ac power LED and the dc power LED on the power supply are lit, indicating that the power supply is operating correctly. Step 9.
  • Page 242 • Connect and disconnect cables as described in the following table when you install, move, or open covers on this product or attached devices. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 243 To Connect: To Disconnect: 1. Turn OFF all power sources and equipment that is to 1. Turn OFF all power sources and equipment that is to be attached to this product. be attached to this product. 2. Attach signal cables to the product. •...
  • Page 244 • Before you install an additional power supply or replace a power supply with one of a different wattage, you may use the Power Configurator utility to determine current Lenovo System x3630 M4 Installation and Service Guide...
  • Page 245 system power consumption. For more information and to download the utility, go to http://www-03.ibm.com/systems/bladecenter/resources/powerconfig.html. • The server comes with one hot-swap 12-volt output power supply that connects to power supply bay 1. The input voltage is -48 V dc or -60 V dc auto-sensing. •...
  • Page 246 I/O modules does not turn off electrical current to the product. The product also might have more than one power cord. To remove all electrical current from the product, make sure that all power cords are disconnected from the power source. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 247 -48 volt dc power supply, and make the connections to and disconnections from the -48 volt dc power source. Lenovo service technicians are not certified or authorized to install or remove the -48 volt power cable. The customer is responsible for ensuring that only trained service personnel install or remove the -48 volt power cable.
  • Page 248 The minimum nominal thread diameter of a pillar or stud type of terminal must be 4 mm; for a screw type of terminal the diameter must be 5.0 mm. Step 9. Turn on the circuit breaker for the dc power source to which the new power supply is connected. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 249 Step 10. Make sure that the green power LEDs on the power supply are lit, indicating that the power supply is operating correctly. Step 11. If you are replacing a power supply with one of a different wattage in the server, apply the new power information label provided over the existing power information label on the server.
  • Page 250 For 2U riser cards: 2U PCI riser-card assembly 1 (full height, half length, or low profile adapters) Alignment pin 2U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pin For 1U riser cards: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 251 1U PCI riser-card assembly 1 (full height, half length, or low profile adapters) 1U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pins Step 7. Remove the adapter, if necessary, from the PCI riser-card assembly. Step 8. If you are instructed to return the PCI riser-card assembly, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
  • Page 252 For 2U riser card assemblies: 2U PCI riser-card assembly 1 (full height, half length, or low profile adapters) Alignment pin 2U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pin For 1U riser card assemblies: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 253 1U PCI riser-card assembly 1 (full height, half length, or low profile adapters) 1U PCI riser-card assembly 2 (1 internal RAID adapter) Alignment pins Step 5. If you have the optional hot-swap rear hard disk drive cage installed, rotate it down (see “Rotating the optional hot-swap rear hard disk drive cage down”...
  • Page 254 Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 255 Thumbscrew 8. Carefully pull the media cage out of the server. Media cage 9. Disconnect the cable to the operator information panel. Chapter 6 Removing and replacing components...
  • Page 256 5. Remove the PCI riser-card assembly (see “Removing a PCI riser-card assembly” on page 235). 6. Remove the air baffle (see “Removing the air baffle” on page 322). 7. Disconnect the operator information panel cable from the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 257 Operator information panel cables Front operator information panel 1 cable 8. Remove the screws from the cable arm cover; then, slide the cable arm cover towards the rear of the server and set it aside. Screw Cable arm cover 9. Remove the screws that secure the operator information panel to the side of the server. Chapter 6 Removing and replacing components...
  • Page 258 1. Locate the connector on the operator information panel in the media cage. 2. Connect the cable to the operator information panel. Operator information panel cable 3. Carefully push the media cage back into the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 259 Media cage 4. Tighten the thumbscrew to secure the media cage onto the server. Thumbscrew 5. Reconnect the USB, video, CD/DVD and operator information cables to the system board. Remember to insert the cables into the relevant cable clips and cable tie. Chapter 6 Removing and replacing components...
  • Page 260 CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Lenovo System x3630 M4 Installation and Service Guide...
  • Page 261 6. Install the air baffle (see “Replacing the air baffle” on page 323). 7. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). 8. Install the server top cover (see “Replacing the server top cover” on page 321). 9.
  • Page 262 6. Disconnect the USB, video, CD/DVD and operator information cables from the system board. Please remember the relevant cable routing, as you will need to reconnect them to the system board when installing the operator information panel. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 263 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew 8.
  • Page 264 Media cage 9. Disconnect the cable to the operator information panel. Operator information panel cable 10. Push the rear of the operator information panel to the front of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 265 Operator information panel 11. From the front of the server, carefully pull the operator information panel out of the server. 12. If you are instructed to return the operator information panel, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. To remove the operator information panel that is on the side of the server, complete the following steps: 1.
  • Page 266 3. From the front of the server, slide the operator information panel into the server until it stops. Operator information panel 4. Reconnect the cable to the operator information panel. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 267 Operator information panel cable 5. Carefully push the media cage back into the server. Media cage 6. Tighten the thumbscrew to secure the media cage onto the server. Chapter 6 Removing and replacing components...
  • Page 268 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 269 Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips 8. Install the air baffle (see “Replacing the air baffle” on page 323). 9. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). 10.

  • Page 270: Removing The System Battery

    The following notes describe information that you must consider when replacing the battery: • Lenovo has designed this product with your safety in mind. The lithium battery must be handled correctly to avoid possible danger. If you replace the battery, you must adhere to the following instructions.
  • Page 271 recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of. Do not: –...

  • Page 272: Replacing The System Battery

    • To order replacement batteries, call 1-800-426-7378 within the United States, and 1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada, call your Lenovo marketing representative or authorized reseller. • After you replace the system-board battery, you must reconfigure the server and reset the system date and time.
  • Page 273 Step 1. Follow any special handling and installation instructions that come with the replacement battery. Step 2. Insert the new battery: Position the battery so that the positive (+) symbol is facing you. Place the battery into its socket, and press the battery press the battery toward the housing until it clicks into place.
  • Page 274 Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Step 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 275 Thumbscrew Step 8. Carefully pull the media cage out of the server. Media cage Step 9. Locate the blue release tab on the rear of the USB and video connector assembly; then, while you press down on the tab, carefully pull the assembly outward. Chapter 6 Removing and replacing components...
  • Page 276 277) and the front video connector (see “Replacing the front video connector” on page 284) to the front USB and video connector assembly. Step 3. Slide the front USB and video connector assembly into the media cage until it clicks into place. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 277 Media cage Front USB connector board Alignment pins Video cable Front USB and Video connector assembly Step 4. Carefully push the media cage back into the server. Media cage Step 5. Tighten the thumbscrew to secure the media cage onto the server. Chapter 6 Removing and replacing components...
  • Page 278 Remember to insert the cables into the relevant cable clips and cable tie. Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 279 Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Step 7. Install the air baffle (see “Replacing the air baffle” on page 323). Step 8. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). Step 9.
  • Page 280 Front operator information panel 1 cable 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew 8. Carefully pull the media cage out of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 281 Media cage 9. Locate the blue release tab on the rear of the USB and video connector assembly; then, while you press down on the tab, carefully pull the assembly outward. Front USB connector Media cage board Blue release tab Video cable Front USB and Video connector assembly...
  • Page 282 8. Remove the screws from the cable arm cover; then, slide the cable arm cover towards the rear of the server and set it aside. Screw Cable arm cover 9. Remove the screws from the front USB connector assembly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 283 Front USB connector cable Screw Front USB connector assembly 10. Disconnect the cable to the front USB connector assembly. 11. If you are instructed to return the front USB connector assembly cable, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the front USB connector assembly cable Use this information to replace the front USB connector assembly cable.
  • Page 284 Video cable Front USB and Video connector assembly 4. Carefully push the media cage back into the server. Media cage 5. Tighten the thumbscrew to secure the media cage onto the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 285 Thumbscrew 6. Reconnect the USB, video, CD/DVD and operator information cables to the system board. Remember to insert the cables into the relevant cable clips and cable tie. Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable...
  • Page 286 2. Connect the front USB connector assembly cable to the system board and route the internal cabling as shown in the following illustration. Remember to insert the cables into the relevant cable clips. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 287 Front USB cable Front USB cable Front USB connector assembly 3. Reconnect the cable to the front USB connector assembly. Front USB connector cable Screw Front USB connector assembly 4. Install the screws to secure the front USB connector assembly to the side of the server. 5.

  • Page 288: Removing The Front Usb Connector Assembly

    Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable 8. Loosen the single thumbscrew that is used to secure the media cage onto the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 289 Thumbscrew 9. Carefully pull the media cage out of the server. Media cage 10. Locate the blue release tab on the rear of the USB and video connector assembly; then, while you press down on the tab, carefully pull the assembly outward. Chapter 6 Removing and replacing components...
  • Page 290 Disconnect all power cords; then, disconnect all external cables as necessary to replace the device. 3. Remove the screws from the cable arm cover; then, slide the cable arm cover towards the rear of the server and set it aside. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 291: Replacing The Front Usb Connector Assembly

    Screw Cable arm cover 4. Remove the screws that secure the front USB connector assembly to the side of the server. 5. Disconnect the cable to the front USB connector assembly. Front USB connector cable Screw Front USB connector assembly 6.
  • Page 292 6. Slide the front USB and video connector assembly into the media cage until it clicks into place. Media cage Front USB connector board Alignment pins Video cable Front USB and Video connector assembly 7. Carefully push the media cage back into the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 293 Media cage 8. Tighten the thumbscrew to secure the media cage onto the server. Thumbscrew 9. Reconnect the USB, video, CD/DVD and operator information cables to the system board. Remember to insert the cables into the relevant cable clips and cable tie. Chapter 6 Removing and replacing components...
  • Page 294 CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Lenovo System x3630 M4 Installation and Service Guide...

  • Page 295: Removing The Front Video Connector

    10. Install the air baffle (see “Replacing the air baffle” on page 323). 11. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). 12. Install the server top cover (see “Replacing the server top cover” on page 321). 13.
  • Page 296 1 cable Step 7. Loosen the single thumbscrew that is used to secure the media cage onto the server. Thumbscrew Step 8. Carefully pull the media cage out of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 297 Media cage Step 9. Locate the blue release tab on the rear of the USB and video connector assembly; then, while you press down on the tab, carefully pull the assembly outward. Front USB connector Media cage board Blue release tab Video cable Front USB and Video connector assembly...

  • Page 298: Replacing The Front Video Connector

    Install the two screws to secure the video connector to the front USB and video connector assembly. Video cable Step 4. Slide the front USB and video connector assembly into the media cage until it clicks into place. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 299 Media cage Front USB connector board Alignment pins Video cable Front USB and Video connector assembly Step 5. Carefully push the media cage back into the server. Media cage Step 6. Tighten the thumbscrew to secure the media cage onto the server. Chapter 6 Removing and replacing components...
  • Page 300 Remember to insert the cables into the relevant cable clips and cable tie. Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 301 Cable clips Cable clip Cable tie Cable clip Cable clip Cable clips Step 8. Install the air baffle (see “Replacing the air baffle” on page 323). Step 9. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly” on page 237). Step 10.
  • Page 302 Step 8. Remove the screws that secure the upper power supply card to the chassis. Step 9. Lift the upper power supply card out of the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 303 Upper power supply paddle card Lower power supply paddle card Step 10. If you are instructed to return the upper power supply card, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the upper power supply card in the power-supply paddle card assembly Use this information to replace the upper power supply card in the power-supply paddle card assembly.
  • Page 304 Remove the power supply out of the server to disconnect it from the power-supply paddle card assembly. Step 8. Remove the screws that secure the safety cover (240VA cover) to the chassis and remove the safety cover. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 305 Safety cover Step 9. After removing the safety cover, you can see the upper power supply card and lower power-supply paddle card. Upper power supply paddle card Lower power supply paddle card Step 10. Make note of where the cables between the upper power supply card and lower power-supply card are connected;...
  • Page 306 You might need to tilt the lower power-supply paddle card a little bit to make the installation easier. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 307 Lower power supply paddle card Step 4. Reconnect the cables between the upper power supply card and lower power-supply paddle card. Step 5. Align the screw holes on the safety cover (240VA cover) with the screw holes on the chassis; then install the screws to secure the safety cover.
  • Page 308 1. Based on the server configuration, the hot-swap hard disk drive backplane may appear as either of the following. 2. You can refer to the internal cable routing section “Internal cable routing” on page 173 for further details. For eight 3.5-inch hot-swap drive backplane: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 309 Cable clips For twelve 3.5-inch hot-swap drive backplane: Cable clips Step 6. Press the release latches and rotate out the top of the backplane; then, slightly lift the backplane out of the server by pulling outwards and lifting it up. Note: Based on the server configuration, the hot-swap hard disk drive backplane may appear as either of the following.
  • Page 310 Make note of where the power cable and signal cables are attached to the backplane; then, disconnect them. Note: Based on the server configuration, the hot-swap hard disk drive backplane may appear as either of the following.For eight 3.5-inch hot-swap drive backplane: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 311 For twelve 3.5-inch hot-swap drive backplane: Step 8. Remove the backplane out of the server. Step 9. If you are instructed to return the backplane, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the hot-swap hard disk drive backplane Use this information replace the hot-swap hard disk drive backplane.
  • Page 312 3. Based on the server configuration, the hot-swap hard disk drive backplane may appear as either of the following. For eight 3.5-inch hot-swap drive backplane: For twelve 3.5-inch hot-swap drive backplane: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 313 Step 3. Align the backplane with the slot on the chassis Step 4. Lower the backplane into the server. Leave the backplane an angle of elevation so the backplane connectors will not get damaged. Make sure the locating plates securely engages the bottom of the backplane.
  • Page 314 Insert the cabling into the two cable clips and fasten the cable clips. Step 9. Reinstall the drives or filler panels. Step 10. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices and the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 315 Removing the simple-swap hard disk drive backplate Use this information to remove the simple-swap hard disk drive backplate. To remove the simple-swap hard disk drive backplate, complete the following steps: Step 1. Read the safety information that begins in “Safety” on page v and “Installation guidelines” on page 36.
  • Page 316 Press the release latches; then, rotate the top of the backplate toward the front of the server until it locks into place. Note: Make sure the backplate is engaged into place by the locating plates and that it is securely installed in the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 317 Locating Plate Step 5. Reconnect the power cable and signal cables that you removed. Note: You can refer to the internal cable routing section “Internal cable routing” on page 173 for further details. Step 6. Install the server top cover (see “Replacing the server top cover” on page 321). Step 7.
  • Page 318 Note: Make sure that Port 1 is connected to Port 1 for both backplanes. Likewise, Port 0 is connected to Port 0 for both backplanes. LED signal SATA 0 connector connector SATA 1 connector Power connector Lenovo System x3630 M4 Installation and Service Guide...

  • Page 319: Removing And Replacing Tier 2 Crus

    Removing and replacing Tier 2 CRUs You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server. The illustrations in this document might differ slightly from your hardware.
  • Page 320 Note: Removing the heat sink from the microprocessor destroys the even distribution of the thermal grease and requires replacing the thermal grease. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 321 Front USB Front Video cable cable CD/DVD drive power cable Front operator information panel 2 cable CD/DVD drive cable Front operator information panel 1 cable Step 11. Lift the heat sink out of the server. If the heat sink sticks to the microprocessor, slightly twist the heat sink back and forth to break the seal.
  • Page 322 Step 16. Carefully lift the microprocessor straight up and out of the socket, and place it on a static-protective surface. Remove the microprocessor from the installation tool by twisting the handle counterclockwise. Microprocessor Lenovo System x3630 M4 Installation and Service Guide...

  • Page 323: Replacing A Microprocessor And Heat Sink

    Step 17. If you are instructed to return the microprocessor, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Do not return the microprocessor installation tool. Replacing a microprocessor and heat sink Use this information to replace a microprocessor and heat sink Attention: When you handle static-sensitive devices, take precautions to avoid damage from static electricity.
  • Page 324 Note: The microprocessor fits only one way on the socket. Microprocessor installation tool (microprocessor inside) Alignment pins 2. Twist the handle on the microprocessor tool counterclockwise to insert the microprocessor into the socket. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 325 Attention: • Do not press the microprocessor into the socket. • Do not touch exposed pins of the microprocessor socket. The pins on the socket are fragile. Any damage to the pins may require replacing the system board. • Make sure that the microprocessor is oriented and aligned correctly in the socket before you try to close the microprocessor retainer.
  • Page 326 Step 11. Install the server top cover (see “Replacing the server top cover” on page 321). Step 12. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices and the server. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 327: Removing The System Board

    Thermal grease The thermal grease must be replaced whenever the heat sink has been removed from the top of the microprocessor and is going to be reused or when debris is found in the grease. Use this information to replace damaged or contaminated thermal grease on the microprocessor and heat sink. When you are installing the heat sink on the same microprocessor that is was removed from, make sure that the following requirements are met: •...
  • Page 328 ToolsCenter or Systems Director, see the Features on Demand User's Guide at https://fod.lenovo.com/lkms under the Help section. 2. When you replace the system board, you must either update the server with the latest firmware or restore the pre-existing firmware from a diskette or CD image.
  • Page 329 Step 10. Remove the system battery (see “Removing the system battery” on page 256). Step 11. Remove the USB embedded hypervisor flash device (see “Removing a USB embedded hypervisor flash device” on page 220). Step 12. Disconnect all cables from the system board. Make a list of each cable as you disconnect it; you can then use this as a checklist when you install the new system board (see “Internal cable routing”...

  • Page 330: Replacing The System Board

    Attention: Make sure to place the socket covers for the microprocessor sockets on the system board before returning the system board. Replacing the system board Use this information to replace the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 331 ToolsCenter or Systems Director, see the Features on Demand User's Guide at https://fod.lenovo.com/lkms under the Help section. 2. When you reassemble the components in the server, be sure to route all cables carefully so that they are not exposed to excessive pressure and that they do not get pinched when you reinstall the system board (see “Internal cable routing”...
  • Page 332 Attention: Make sure each standoff is completely aligned and fitted into the respective holes. Standoffs System board Standoff Step 5. Install the screws to secure the system board to the chassis. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 333 Step 6. Install the USB embedded hypervisor flash device (see “Replacing a USB embedded hypervisor flash device” on page 222). Step 7. Install the system battery (see “Replacing the system battery” on page 258). Step 8. Install the DIMMs (see “Replacing a memory module” on page 213). Step 9.

  • Page 334: Removing And Replacing Consumable And Structural Parts

    This section provides information for removing and replacing consumable and structural parts in the server. Replacement of consumable parts and structural parts is your responsibility. If Lenovo installs a consumable part or structural part at your request, you will be charged for the installation.

  • Page 335: Replacing The Server Top Cover

    Step 4. Loosen the two thumbscrews that secure the cover to the chassis. Step 5. Press on the two blue grip points and slide the cover toward the rear; then, lift the cover off the server. Set the cover aside. Thumbscrew Cover Step 6.
  • Page 336 Attention: For proper cooling and airflow, reinstall the air baffle, making sure all cables are out of the way, before you turn on the server. Operating the server with the air baffle removed might damage server components. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 337: Replacing The Air Baffle

    Air baffle Step 7. If you are instructed to return the air baffle, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the air baffle Use this information to replace the air baffle. To install the air baffle, complete the following steps.
  • Page 338 Remove the server top cover (see “Removing the server top cover” on page 320). Step 4. Remove the screws that secure the safety cover to the chassis and remove the safety cover. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 339 Safety cover Step 5. If you are instructed to return the air baffle, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the paddle card safety cover (240VA cover) Use this information to replace the paddle card safety cover (240VA cover) To install the paddle card safety cover, complete the following steps.
  • Page 340 Step 4. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices and the server. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 341: Appendix A. Integrated Management Module Ii (Imm2) Error Messages

    The prefix of the message ID and the sequence number that is used by the CIM message registry. SNMP Trap ID The SNMP trap ID that is found in the SNMP alert management information base (MIB). © Copyright Lenovo 2015, 2016...

  • Page 342: Imm Events That Automatically Notify Support

    Automatically contact Service If this field is set to Yes, and you have enabled Electronic Service Agent (ESA), Lenovo Support will be notified automatically if the event is generated. While you wait for Lenovo Support to call, you can perform the recommended actions for the event.
  • Page 343 Table 15. Events that automatically notify Support (continued) Automatically Event ID Message String Notify Support 806f010c-2003ffff Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 3) 806f010c-2004ffff Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 4) 806f010c-2005ffff Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].
  • Page 344 (Drive 26) 806f010d-041bffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 27) 806f011b-0701ffff The connector [PhysicalConnectorElementName] has encountered a configuration error. (Front USB) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 345 Table 15. Events that automatically notify Support (continued) Automatically Event ID Message String Notify Support 806f0207-0301ffff [ProcessorElementName] has Failed with FRB1/BIST condition. (CPU 1) 806f0207-0302ffff [ProcessorElementName] has Failed with FRB1/BIST condition. (CPU 2) 806f0207-2584ffff [ProcessorElementName] has Failed with FRB1/BIST condition. (All CPUs) 806f020d-0400ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName].
  • Page 346 Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 7) 806f050c-2008ffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 8) 806f050c-2009ffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 347 Table 15. Events that automatically notify Support (continued) Automatically Event ID Message String Notify Support 806f050c-200affff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 10) 806f050c-200bffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 11) 806f050c-200cffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].

  • Page 348: List Of Imm Events

    • 40000001-00000000 : Management Controller [arg1] Network Initialization Complete. This message is for the use case where a Management Controller network has completed initialization. May also be shown as 4000000100000000 or 0x4000000100000000 Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 349 Alert Category System - IMM Network event SNMP Trap ID CIM Information Prefix: IMM ID: 0001 User Response Information only; no action is required. • 40000002-00000000 : Certificate Authority [arg1] has detected a [arg2] Certificate Error. This message is for the use case when there is an error with an SSL Server, SSL Client, or SSL Trusted CA Certificate.
  • Page 350 This message is for the use case where a user modifies the Ethernet Port MTU setting. May also be shown as 4000000500000000 or 0x4000000500000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3630 M4 Installation and Service Guide...
  • Page 351 SNMP Trap ID CIM Information Prefix: IMM ID: 0005 User Response Information only; no action is required. • 40000006-00000000 : Ethernet locally administered MAC address modified from [arg1] to [arg2] by user [arg3]. This message is for the use case where a user modifies the Ethernet Port MAC address setting. May also be shown as 4000000600000000 or 0x4000000600000000 Severity Info...
  • Page 352 This message is for the use case where user modifies the IP address of a Management Controller. May also be shown as 4000000900000000 or 0x4000000900000000 Severity Info Serviceable Automatically notify support Alert Category System - IMM Network event SNMP Trap ID CIM Information Prefix: IMM ID: 0009 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 353 User Response Information only; no action is required. • 4000000a-00000000 : IP subnet mask of network interface modified from [arg1] to [arg2] by user [arg3]. This message is for the use case where a user modifies the IP subnet mask of a Management Controller. May also be shown as 4000000a00000000 or 0x4000000a00000000 Severity Info...
  • Page 354 May also be shown as 4000000d00000000 or 0x4000000d00000000 Severity Warning Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0013 User Response Complete the following steps until the problem is solved: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 355 1. Make sure that the IMM network cable is connected. 2. Make sure that there is a DHCP server on the network that can assign an IP address to the IMM. • 4000000e-00000000 : Remote Login Successful. Login ID: [arg1] from [arg2] at IP address [arg3]. This message is for the use case where a user successfully logs in to a Management Controller.
  • Page 356 This message is for the use case where a user has failed to log in to a Management Controller from the Legacy CLI. May also be shown as 4000001100000000 or 0x4000001100000000 Severity Warning Serviceable Automatically notify support Alert Category System - Remote Login SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 357 CIM Information Prefix: IMM ID: 0017 User Response Complete the following steps until the problem is solved: 1. Make sure that the correct login ID and password are being used. 2. Have the system administrator reset the login ID or password. •...
  • Page 358 This message is for the use case where a Management Controller reset is initiated by a user. May also be shown as 4000001500000000 or 0x4000001500000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3630 M4 Installation and Service Guide...
  • Page 359 SNMP Trap ID CIM Information Prefix: IMM ID: 0021 User Response Information only; no action is required. • 40000016-00000000 : ENET[[arg1]] DHCP-HSTN=[arg2], DN=[arg3], IP@=[arg4], SN=[arg5], GW@=[arg6], DNS1@=[arg7] . This message is for the use case where a Management Controller IP address and configuration has been assigned by the DHCP server.
  • Page 360 This message is for the use case where a Management Controller ethernet interface is now active. May also be shown as 4000001900000000 or 0x4000001900000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 361 CIM Information Prefix: IMM ID: 0025 User Response Information only; no action is required. • 4000001a-00000000 : DHCP setting changed to [arg1] by user [arg2]. This message is for the use case where a user changes the DHCP setting. May also be shown as 4000001a00000000 or 0x4000001a00000000 Severity Info Serviceable...
  • Page 362 This message is for the use case where an operating system error has occurred and the screen capture failed. May also be shown as 4000001d00000000 or 0x4000001d00000000 Severity Error Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 363 Alert Category System - other SNMP Trap ID CIM Information Prefix: IMM ID: 0029 User Response Complete the following steps until the problem is solved: 1. Reconfigure the watchdog timer to a higher value. 2. Make sure that the IMM Ethernet over USB interface is enabled. 3.
  • Page 364 May also be shown as 4000002000000000 or 0x4000002000000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0032 User Response Information only; no action is required. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 365 • 40000021-00000000 : Management Controller [arg1] clock has been set from NTP server [arg2]. This message is for the use case where a Management Controller clock has been set from the Network Time Protocol server. May also be shown as 4000002100000000 or 0x4000002100000000 Severity Info Serviceable...
  • Page 366 IP address due to a failure. May also be shown as 4000002400000000 or 0x4000002400000000 Severity Info Serviceable Automatically notify support Alert Category System - other SNMP Trap ID CIM Information Prefix: IMM ID: 0036 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 367 User Response Information only; no action is required. • 40000025-00000000 : The [arg1] on system [arg2] is 75% full. This message is for the use case where a Management Controller Event Log on a system is 75% full. May also be shown as 4000002500000000 or 0x4000002500000000 Severity Info Serviceable...
  • Page 368 This message is for the use case where a user has generated a Test Alert. May also be shown as 4000002800000000 or 0x4000002800000000 Severity Info Serviceable Automatically notify support Alert Category System - other SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 369 CIM Information Prefix: IMM ID: 0040 User Response Information only; no action is required. • 40000029-00000000 : Security: Userid: [arg1] had [arg2] login failures from an SSH client at IP address [arg3]. This message is for the use case where a user has failed to log in to a Management Controller from SSH. May also be shown as 4000002900000000 or 0x4000002900000000 Severity Info...
  • Page 370 • 4000002c-00000000 : Domain Source changed to [arg1] by user [arg2]. Domain source changed by user May also be shown as 4000002c00000000 or 0x4000002c00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 371 CIM Information Prefix: IMM ID: 0044 User Response Information only; no action is required. • 4000002d-00000000 : DDNS setting changed to [arg1] by user [arg2]. DDNS setting changed by user May also be shown as 4000002d00000000 or 0x4000002d00000000 Severity Info Serviceable Automatically notify support Alert Category...
  • Page 372 May also be shown as 4000003000000000 or 0x4000003000000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0048 User Response Information only; no action is required. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 373 • 40000031-00000000 : IPv6 static IP configuration enabled by user [arg1]. IPv6 static address assignment method is enabled by user May also be shown as 4000003100000000 or 0x4000003100000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0049 User Response...
  • Page 374 User Response Information only; no action is required. • 40000035-00000000 : IPv6 DHCP disabled by user [arg1]. IPv6 DHCP assignment method is disabled by user May also be shown as 4000003500000000 or 0x4000003500000000 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 375 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0053 User Response Information only; no action is required. • 40000036-00000000 : IPv6 stateless auto-configuration disabled by user [arg1]. IPv6 statless auto-assignment method is disabled by user May also be shown as 4000003600000000 or 0x4000003600000000 Severity Info...
  • Page 376 Prefix: IMM ID: 0056 User Response Information only; no action is required. • 40000039-00000000 : ENET[[arg1]] DHCPv6-HSTN=[arg2], DN=[arg3], IP@=[arg4], Pref=[arg5]. IPv6 DHCP-assigned address is active May also be shown as 4000003900000000 or 0x4000003900000000 Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 377 Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0057 User Response Information only; no action is required. • 4000003a-00000000 : IPv6 static address of network interface modified from [arg1] to [arg2] by user [arg3]. A user modifies the IPv6 static address of a Management Controller May also be shown as 4000003a00000000 or 0x4000003a00000000 Severity...
  • Page 378 4. Disable the watchdog. 5. Check the integrity of the installed operating system. • 4000003d-00000000 : Telnet port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the telnet port number Lenovo System x3630 M4 Installation and Service Guide...
  • Page 379 May also be shown as 4000003d00000000 or 0x4000003d00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0061 User Response Information only; no action is required. • 4000003e-00000000 : SSH port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the SSH port number May also be shown as 4000003e00000000 or 0x4000003e00000000 Severity...
  • Page 380 • 40000041-00000000 : CIM/XML HTTP port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the CIM HTTP port number May also be shown as 4000004100000000 or 0x4000004100000000 Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 381 Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0065 User Response Information only; no action is required. • 40000042-00000000 : CIM/XML HTTPS port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the CIM HTTPS port number May also be shown as 4000004200000000 or 0x4000004200000000 Severity Info...
  • Page 382 • 40000045-00000000 : Syslog port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the Syslog receiver port number May also be shown as 4000004500000000 or 0x4000004500000000 Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 383 Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0069 User Response Information only; no action is required. • 40000046-00000000 : Remote Presence port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the Remote Presence port number May also be shown as 4000004600000000 or 0x4000004600000000 Severity Info...
  • Page 384 40000049-00000000 : SNMP [arg1] enabled by user [arg2] . A user enabled SNMPv1 or SNMPv3 or Traps May also be shown as 4000004900000000 or 0x4000004900000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 385 CIM Information Prefix: IMM ID: 0073 User Response Information only; no action is required. • 4000004a-00000000 : SNMP [arg1] disabled by user [arg2] . A user disabled SNMPv1 or SNMPv3 or Traps May also be shown as 4000004a00000000 or 0x4000004a00000000 Severity Info Serviceable...
  • Page 386 A user configured an LDAP Miscellaneous setting May also be shown as 4000004d00000000 or 0x4000004d00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0077 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 387 User Response Information only; no action is required. • 4000004e-00000000 : Serial Redirection set by user [arg1]: Mode=[arg2], BaudRate=[arg3], StopBits=[arg4], Parity=[arg5], SessionTerminateSequence=[arg6]. A user configured the Serial Port mode May also be shown as 4000004e00000000 or 0x4000004e00000000 Severity Info Serviceable Automatically notify support Alert Category none...
  • Page 388 May also be shown as 4000005100000000 or 0x4000005100000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0081 User Response Information only; no action is required. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 389 • 40000052-00000000 : Server [arg1] scheduled for [arg2] at [arg3] by user [arg4]. A user configured a Server Power action at a specific time May also be shown as 4000005200000000 or 0x4000005200000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information...
  • Page 390 SNMP Trap ID CIM Information Prefix: IMM ID: 0085 User Response Information only; no action is required. • 40000056-00000000 : SMTP Server set by user [arg1] to [arg2]:[arg3]. A user configured the SMTP server Lenovo System x3630 M4 Installation and Service Guide...
  • Page 391 May also be shown as 4000005600000000 or 0x4000005600000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0086 User Response Information only; no action is required. • 40000057-00000000 : Telnet [arg1] by user [arg2]. A user enables or disables Telnet services May also be shown as 4000005700000000 or 0x4000005700000000 Severity...
  • Page 392 Information only; no action is required. • 4000005a-00000000 : LAN over USB Port Forwarding set by user [arg1]: ExternalPort=[arg2], USB-LAN port=[arg3]. A user configured USB-LAN port forwarding May also be shown as 4000005a00000000 or 0x4000005a00000000 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 393 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0090 User Response Information only; no action is required. • 4000005b-00000000 : Secure Web services (HTTPS) [arg1] by user [arg2]. A user enables or disables Secure web services May also be shown as 4000005b00000000 or 0x4000005b00000000 Severity Info...
  • Page 394 Information only; no action is required. • 4000005e-00000000 : SSH [arg1] by user [arg2]. A user enables or disables SSH services May also be shown as 4000005e00000000 or 0x4000005e00000000 Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 395 Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0094 User Response Information only; no action is required. • 4000005f-00000000 : Server timeouts set by user [arg1]: EnableOSWatchdog=[arg2], OSWatchdogTimout=[arg3], EnableLoaderWatchdog=[arg4], LoaderTimeout=[arg5]. A user configures Server Timeouts May also be shown as 4000005f00000000 or 0x4000005f00000000 Severity Info...
  • Page 396 40000062-00000000 : Global Login General Settings set by user [arg1]: AuthenticationMethod=[arg2], LockoutPeriod=[arg3], SessionTimeout=[arg4]. A user changes the Global Login General Settings May also be shown as 4000006200000000 or 0x4000006200000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3630 M4 Installation and Service Guide...
  • Page 397 SNMP Trap ID CIM Information Prefix: IMM ID: 0098 User Response Information only; no action is required. • 40000063-00000000 : Global Login Account Security set by user [arg1]: PasswordRequired=[arg2], PasswordExpirationPeriod=[arg3], MinimumPasswordReuseCycle=[arg4], MinimumPasswordLength=[arg5], MinimumPasswordChangeInterval=[arg6], MaxmumLoginFailures=[arg7], LockoutAfterMaxFailures=[arg8], MinimumDifferentCharacters=[arg9], DefaultIDExpired=[arg10], ChangePasswordFirstAccess=[arg11]. A user changes the Global Login Account Security Settings to Legacy May also be shown as 4000006300000000 or 0x4000006300000000 Severity Info...
  • Page 398 Information only; no action is required. • 40000066-00000000 : User [arg1] password modified. A user account was changed May also be shown as 4000006600000000 or 0x4000006600000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3630 M4 Installation and Service Guide...
  • Page 399 SNMP Trap ID CIM Information Prefix: IMM ID: 0102 User Response Information only; no action is required. • 40000067-00000000 : User [arg1] role set to [arg2]. A user account role assigned May also be shown as 4000006700000000 or 0x4000006700000000 Severity Info Serviceable Automatically notify support...
  • Page 400 User locally defined an SSH Client key May also be shown as 4000006a00000000 or 0x4000006a00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0106 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 401 User Response Information only; no action is required. • 4000006b-00000000 : SSH Client key imported for user [arg1] from [arg2]. User imported an SSH Client key May also be shown as 4000006b00000000 or 0x4000006b00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID...
  • Page 402 May also be shown as 4000006e00000000 or 0x4000006e00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0110 User Response Information only; no action is required. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 403 • 4000006f-00000000 : Alert Recipient Number [arg1] updated: Name=[arg2], DeliveryMethod=[arg3], Address=[arg4], IncludeLog=[arg5], Enabled=[arg6], EnabledAlerts=[arg7], AllowedFilters=[arg8]. A user adds or updates an Alert Recipient May also be shown as 4000006f00000000 or 0x4000006f00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0111...
  • Page 404 Information only; no action is required. • 40000073-00000000 : The maximum power cap value changed from [arg1] watts to [arg2] watts. Maximum Power Cap value changed May also be shown as 4000007300000000 or 0x4000007300000000 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 405 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0115 User Response Information only; no action is required. • 40000074-00000000 : The soft minimum power cap value changed from [arg1] watts to [arg2] watts. Soft Minimum Power Cap value changed May also be shown as 4000007400000000 or 0x4000007400000000 Severity...
  • Page 406 Information only; no action is required. • 40000077-00000000 : Power capping was activated by user [arg1]. Power capping activated by user May also be shown as 4000007700000000 or 0x4000007700000000 Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 407 Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0119 User Response Information only; no action is required. • 40000078-00000000 : Power capping was deactivated by user [arg1]. Power capping deactivated by user May also be shown as 4000007800000000 or 0x4000007800000000 Severity Info Serviceable...
  • Page 408 • 4000007b-00000000 : Dynamic Power Savings mode has been turned on by user [arg1]. Dynamic Power Savings mode turned on by user May also be shown as 4000007b00000000 or 0x4000007b00000000 Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 409 none SNMP Trap ID CIM Information Prefix: IMM ID: 0123 User Response Information only; no action is required. • 4000007c-00000000 : Dynamic Power Savings mode has been turned off by user [arg1]. Dynamic Power Savings mode turned off by user May also be shown as 4000007c00000000 or 0x4000007c00000000 Severity Info...
  • Page 410 4000007f-00000000 : Power cap throttling occurred. Power cap throttling occurrred May also be shown as 4000007f00000000 or 0x4000007f00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 411 Prefix: IMM ID: 0127 User Response Information only; no action is required. • 40000080-00000000 : Remote Control session started by user [arg1] in [arg2] mode. Remote Control session started May also be shown as 4000008000000000 or 0x4000008000000000 Severity Info Serviceable Automatically notify support Alert Category none...
  • Page 412 May also be shown as 4000008300000000 or 0x4000008300000000 Severity Info Serviceable Automatically notify support Alert Category Warning - Power SNMP Trap ID CIM Information Prefix: IMM ID: 0131 User Response Information only; no action is required. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 413 • 40000084-00000000 : IMM firmware mismatch between nodes [arg1] and [arg2]. Please attempt to flash the IMM firmware to the same level on all nodes. A mismatch of IMM firmware has been detected between nodes May also be shown as 4000008400000000 or 0x4000008400000000 Severity Error Serviceable...
  • Page 414 SNMP Trap ID CIM Information Prefix: IMM ID: 0135 User Response IBM Support will address the problem. • 40000088-00000000 : Management Controller [arg1]: Configuration restoration from a file by user [arg2] completed. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 415 This message is for the use case where a user restores a Management Controller configuration from a file and it completes. May also be shown as 4000008800000000 or 0x4000008800000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0136 User Response...
  • Page 416 This message is for the use case where an IP address for the Storage Management has changed May also be shown as 4000008b00000000 or 0x4000008b00000000 Severity Info Serviceable Automatically notify support Alert Category System - IMM Network event SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 417 CIM Information Prefix: IMM ID: 0139 User Response Information only; no action is required. • 80010002-0701ffff : Numeric sensor [NumericSensorElementName] going low (lower non-critical) has asserted. (CMOS Battery) This message is for the use case when an implementation has detected a Lower Non-critical sensor going low has asserted.
  • Page 418 (Fan 1Ab Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has asserted. May also be shown as 800102041d02ffff or 0x800102041d02ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 419 Severity Error Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0480 User Response 1. Reseat the failing fan n, which is indicated by a lit LED near the fan connector on the system board.
  • Page 420 This message is for the use case when an implementation has detected a Lower Critical sensor going low has asserted. May also be shown as 800102041d05ffff or 0x800102041d05ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 421 Prefix: PLAT ID: 0480 User Response 1. Reseat the failing fan n, which is indicated by a lit LED near the fan connector on the system board. 2. Replace the failing fan. (n = fan number) • 80010204-1d06ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has asserted.
  • Page 422 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 423 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010701-0704ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has asserted. (RAID Amb Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted.
  • Page 424 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 425 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010701-1402ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has asserted. (CPU2 VR Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted.
  • Page 426 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 427 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010901-0702ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has asserted. (FHHL Amb Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted.
  • Page 428 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 429 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010901-0c01ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has asserted. (Ambient Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted.
  • Page 430 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 431 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010901-2c01ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has asserted. (Mezz Card Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted.
  • Page 432 If the specified sensor is Planar 12V, complete the following steps until the problem is solved: 1. Check power supply n LED. 2. Remove the failing power supply. 3. (Trained technician only) Replace the system board. (n = power supply number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 433 • 80010b01-0702ffff : Numeric sensor [NumericSensorElementName] going high (upper non-recoverable) has asserted. (FHHL Amb Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b010702ffff or 0x80010b010702ffff Severity Error Serviceable...
  • Page 434 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 435 • 80010b01-0c01ffff : Numeric sensor [NumericSensorElementName] going high (upper non-recoverable) has asserted. (Ambient Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b010c01ffff or 0x80010b010c01ffff Severity Error Serviceable...
  • Page 436 2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 437 • 80010b01-2c01ffff : Numeric sensor [NumericSensorElementName] going high (upper non-recoverable) has asserted. (Mezz Card Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b012c01ffff or 0x80010b012c01ffff Severity Error Serviceable...
  • Page 438 • 80030012-2301ffff : Sensor [SensorElementName] has deasserted. (OS RealTime Mod) This message is for the use case when an implementation has detected a Sensor has deasserted. May also be shown as 800300122301ffff or 0x800300122301ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 439 Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0509 User Response No action; information only. • 80030108-0a01ffff : Sensor [SensorElementName] has asserted. (PS Heavy Load) This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 800301080a01ffff or 0x800301080a01ffff Severity Info...
  • Page 440 User Response Complete the following step to solve PCI I/O resource errors: 1. Go to F1 Setup 2. System Settings 3. Device and I/O ports 4. PCI 64 bit Resource and choose enable. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 441 • 80070114-2201ffff : Sensor [SensorElementName] has transitioned from normal to non-critical state. (TPM Phy Pres Set) This message is for the use case when an implementation has detected a Sensor transitioned to non-critical from normal. May also be shown as 800701142201ffff or 0x800701142201ffff Severity Warning Serviceable...
  • Page 442 2. Check the ambient temperature. You must be operating within the specifications (see Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n is installed correctly. 4. (Trained technician only) Replace microprocessor n. (n = microprocessor number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 443 • 80070202-0701ffff : Sensor [SensorElementName] has transitioned to critical from a less severe state. (SysBrd Vol Fault) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702020701ffff or 0x800702020701ffff Severity Error Serviceable...
  • Page 444 2. Use the IBM Power Configurator utility to ensure current system power consumption is under limitation. For more information and to download the utility, go to http://www-03.ibm.com/systems/bladecenter/resources/powerconfig.html. 3. Replace power supply n. (n = power supply number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 445 • 8007020f-2582ffff : Sensor [SensorElementName] has transitioned to critical from a less severe state. (No PCI I/O Space) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 8007020f2582ffff or 0x8007020f2582ffff Severity Error Serviceable...
  • Page 446 (CPU 1 QPILinkErr) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 8007021b0301ffff or 0x8007021b0301ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 447 Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0522 User Response 1. Check for a server firmware update. 2. Make sure that the installed microprocessors are compatible. 3. Make sure the microprocessor 2 expansion board is installed correctly (see Installing the microprocessor 2 expansion board).
  • Page 448 (CPU 2 OverTemp) This message is for the use case when an implementation has detected a Sensor transitioned to non-recoverable from less severe. May also be shown as 800703010302ffff or 0x800703010302ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 449 Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0524 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
  • Page 450 For more information and to download the utility, go to http://www-03.ibm.com/systems/bladecenter/resources/powerconfig.html. 2. Follow actions in "Power Problems and Solving Power Problems". If the specified sensor is PS n 12V OV Fault, complete the following steps until the problem is solved: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 451 1. Check power supply n LED. 2. Remove the failing power supply. 3. (Trained technician only) Replace the system board. (n = power supply number) If the specified sensor is PS n 12V UV Fault, complete the following steps until the problem is solved: 1.
  • Page 452 • 800b0008-1301ffff : Redundancy [RedundancySetElementName] has been restored. (Power Unit) This message is for the use case when an implementation has detected Redundancy was Restored. May also be shown as 800b00081301ffff or 0x800b00081301ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 453 Serviceable Automatically notify support Alert Category Warning - Redundant Power Supply SNMP Trap ID CIM Information Prefix: PLAT ID: 0561 User Response No action; information only. • 800b0108-1301ffff : Redundancy Lost for [RedundancySetElementName] has asserted. (Power Unit) This message is for the use case when Redundancy Lost has asserted. May also be shown as 800b01081301ffff or 0x800b01081301ffff Severity Error...
  • Page 454 1. Make sure that the connectors on fan n are not damaged. 2. Make sure that the fan n connectors on the system board are not damaged. 3. Make sure that the fans are correctly installed. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 455 4. Reseat the fans. 5. Replace the fans. (n = fan number) • 800b010a-1e83ffff : Redundancy Lost for [RedundancySetElementName] has asserted. (Cooling Zone 3) This message is for the use case when Redundancy Lost has asserted. May also be shown as 800b010a1e83ffff or 0x800b010a1e83ffff Severity Error Serviceable...
  • Page 456 Redundant for [RedundancySetElementName] has asserted. (Backup Memory) This message is for the use case when a Redundancy Set has transitioned from Redundancy Degraded or Fully Redundant to Non-redundant:Sufficient. May also be shown as 800b030c2581ffff or 0x800b030c2581ffff Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 457 Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0806 User Response 1. Check the system-event log for DIMM failure events (uncorrectable or PFA) and correct the failures. 2. Re-enable mirroring in the Setup utility. •...
  • Page 458 Resources. May also be shown as 800b050a1e82ffff or 0x800b050a1e82ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0810 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 459 1. Make sure that the connectors on fan n are not damaged. 2. Make sure that the fan n connectors on the system board are not damaged. 3. Make sure that the fans are correctly installed. 4. Reseat the fans. 5.
  • Page 460 2. Run the DSA program. 3. Reseat the adapter. 4. Replace the adapter. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 461 5. (Trained technician only) Replace microprocessor n. (n = microprocessor number) 6. (Trained technician only) Replace the system board. • 806f0007-0302ffff : [ProcessorElementName] has Failed with IERR. (CPU 2) This message is for the use case when an implementation has detected a Processor Failed - IERR Condition.
  • Page 462 • 806f0009-1301ffff : [PowerSupplyElementName] has been turned off. (Host Power) This message is for the use case when an implementation has detected a Power Unit that has been Disabled. May also be shown as 806f00091301ffff or 0x806f00091301ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 463 Automatically notify support Alert Category System - Power Off SNMP Trap ID CIM Information Prefix: PLAT ID: 0106 User Response No action; information only. • 806f000d-0400ffff : The Drive [StorageVolumeElementName] has been added. (Drive 0) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0400ffff or 0x806f000d0400ffff Severity Info...
  • Page 464 This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0403ffff or 0x806f000d0403ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 465 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0404ffff : The Drive [StorageVolumeElementName] has been added. (Drive 4) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0404ffff or 0x806f000d0404ffff Severity Info...
  • Page 466 This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0407ffff or 0x806f000d0407ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 467 Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0408ffff : The Drive [StorageVolumeElementName] has been added. (Drive 8) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0408ffff or 0x806f000d0408ffff Severity Info Serviceable...
  • Page 468 May also be shown as 806f000d040bffff or 0x806f000d040bffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 469 • 806f000d-040cffff : The Drive [StorageVolumeElementName] has been added. (Drive 12) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d040cffff or 0x806f000d040cffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID...
  • Page 470 • 806f000d-0410ffff : The Drive [StorageVolumeElementName] has been added. (Drive 16) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0410ffff or 0x806f000d0410ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 471 Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0411ffff : The Drive [StorageVolumeElementName] has been added. (Drive 17) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0411ffff or 0x806f000d0411ffff Severity Info...
  • Page 472 • 806f000d-0414ffff : The Drive [StorageVolumeElementName] has been added. (Drive 20) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0414ffff or 0x806f000d0414ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 473 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0415ffff : The Drive [StorageVolumeElementName] has been added. (Drive 21) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0415ffff or 0x806f000d0415ffff Severity Info...
  • Page 474 This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0418ffff or 0x806f000d0418ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 475 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0419ffff : The Drive [StorageVolumeElementName] has been added. (Drive 25) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0419ffff or 0x806f000d0419ffff Severity Info...
  • Page 476 This message is for the use case when an implementation has detected that memory was detected in the system. May also be shown as 806f000f220101ff or 0x806f000f220101ff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 477 CIM Information Prefix: PLAT ID: 0794 User Response This is a UEFI detected event. The UEFI diagnostic code for this event can be found in the logged IMM message text. Please refer to the UEFI diagnostic code in the "UEFI diagnostic code" section of the Info Center for the appropriate user response.
  • Page 478 (ABR Status) This message is for the use case when an implementation has detected that System Firmware Error Unrecoverable Keyboard failure has occurred. May also be shown as 806f000f220107ff or 0x806f000f220107ff Severity Error Lenovo System x3630 M4 Installation and Service Guide...
  • Page 479 Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0764 User Response This is a UEFI detected event. The UEFI diagnostic code for this event can be found in the logged IMM message text. Please refer to the UEFI diagnostic code in the "UEFI diagnostic code" section of the Info Center for the appropriate user response.
  • Page 480 This message is for the use case when an implementation has detected a CPU voltage mismatch with the socket voltage. May also be shown as 806f000f22010cff or 0x806f000f22010cff Severity Error Serviceable Automatically notify support Alert Category Critical - CPU SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 481 CIM Information Prefix: PLAT ID: 0050 User Response This is a UEFI detected event. The UEFI diagnostic code for this event can be found in the logged IMM message text. Please refer to the UEFI diagnostic code in the "UEFI diagnostic code" section of the Info Center for the appropriate user response.
  • Page 482 4. Replace the affected adapters. 5. Replace the riser card. 6. (Trained service technicians only) Replace the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 483 • 806f0021-2582ffff : Fault in slot [PhysicalConnectorSystemElementName] on system [ComputerSystemElementName]. (All PCI Error) This message is for the use case when an implementation has detected a Fault in a slot. May also be shown as 806f00212582ffff or 0x806f00212582ffff Severity Error Serviceable Automatically notify support Alert Category...
  • Page 484 If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 485 4. Replace the affected adapters. 5. Replace the riser card. 6. (Trained service technicians only) Replace the system board. • 806f0023-2101ffff : Watchdog Timer expired for [WatchdogElementName]. (IPMI Watchdog) This message is for the use case when an implementation has detected a Watchdog Timer Expired. May also be shown as 806f00232101ffff or 0x806f00232101ffff Severity Info...
  • Page 486 • 806f0107-0302ffff : An Over-Temperature Condition has been detected on [ProcessorElementName]. (CPU 2) This message is for the use case when an implementation has detected an Over-Temperature Condition Detected for Processor. May also be shown as 806f01070302ffff or 0x806f01070302ffff Severity Error Lenovo System x3630 M4 Installation and Service Guide...
  • Page 487 Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0036 User Response 1. Make sure that the fans are operating. There are no obstructions to the airflow (front and rear of the server), the air baffles are in place and correctly installed, and the server cover is installed and completely closed.
  • Page 488 May also be shown as 806f01091301ffff or 0x806f01091301ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0108 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 489 No action; information only. • 806f010c-2001ffff : Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected a Memory uncorrectable error. May also be shown as 806f010c2001ffff or 0x806f010c2001ffff Severity Error Serviceable...
  • Page 490 This message is for the use case when an implementation has detected a Memory uncorrectable error. May also be shown as 806f010c2003ffff or 0x806f010c2003ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 491 Prefix: PLAT ID: 0138 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error.
  • Page 492 If a damage is found, replace the system board. 7. (Trained technician only) Replace the affected microprocessor. • 806f010c-2006ffff : Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 6) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 493 This message is for the use case when an implementation has detected a Memory uncorrectable error. May also be shown as 806f010c2006ffff or 0x806f010c2006ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0138 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power...
  • Page 494 Prefix: PLAT ID: 0138 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 495 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error. 2. Manually re-enable all affected DIMMs. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
  • Page 496 806f010c-200bffff : Uncorrectable error detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected a Memory uncorrectable error. May also be shown as 806f010c200bffff or 0x806f010c200bffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 497 Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0138 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 498 10 seconds before restarting the server. 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error. 2. Manually re-enable all affected DIMMs. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 499 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor. 4. If the problem follows the DIMM, replace the failing DIMM. 5. (Trained technician only) If the problem occurs on the same DIMM connector, check the DIMM connector.
  • Page 500 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane Lenovo System x3630 M4 Installation and Service Guide...
  • Page 501 3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) •...
  • Page 502 3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 503 • 806f010d-0406ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 6) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0406ffff or 0x806f010d0406ffff Severity Error Serviceable...
  • Page 504 • 806f010d-0409ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 9) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0409ffff or 0x806f010d0409ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 505 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
  • Page 506 (Drive 12) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d040cffff or 0x806f010d040cffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 507 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
  • Page 508 This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d040fffff or 0x806f010d040fffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 509 CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3.
  • Page 510 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 511 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3. Replace the following components one at a time, in the order shown, restarting the server each time: a.
  • Page 512 3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 513 • 806f010d-0416ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 22) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0416ffff or 0x806f010d0416ffff Severity Error Serviceable...
  • Page 514 • 806f010d-0419ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 25) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0419ffff or 0x806f010d0419ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 515 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
  • Page 516 • 806f010f-2201ffff : The System [ComputerSystemElementName] encountered a firmware hang. (Firmware Error) This message is for the use case when an implementation has detected a System Firmware Hang. May also be shown as 806f010f2201ffff or 0x806f010f2201ffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 517 Automatically notify support Alert Category System - Boot failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0186 User Response 1. Make sure the server meets the minimum configuration to start (see Power-supply LEDs). 2. Update the server firmware on the primary page. Important: Some cluster solutions require specific code levels or coordinated code updates.
  • Page 518 If the specified sensor is PwrPaddle cable, complete the following steps until problem is solved: 1. Reseat the power paddle cable on the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 519 2. Replace the power paddle cable. 3. (Trained technician only) Replace the supercap n. (n = supercap number) 4. (Trained technician only) Replace the system board. Front Video : • 806f0123-2101ffff : Reboot of system [ComputerSystemElementName] initiated by [WatchdogElementName]. (IPMI Watchdog) This message is for the use case when an implementation has detected a Reboot by a Watchdog occurred.
  • Page 520 This message is for the use case when an implementation has detected a Managed Element is Absent. May also be shown as 806f01250c01ffff or 0x806f01250c01ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0392 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 521 Please ensure the PCI riser 1 has been installed correctly. • 806f0125-2c01ffff : [ManagedElementName] detected as absent. (Mezz Card) This message is for the use case when an implementation has detected a Managed Element is Absent. May also be shown as 806f01252c01ffff or 0x806f01252c01ffff Severity Info Serviceable...
  • Page 522 4. Replace the adapter. 5. (Trained technician only) Replace microprocessor n. (n = microprocessor number) 6. (Trained technician only) Replace the system board. • 806f0207-2584ffff : [ProcessorElementName] has Failed with FRB1/BIST condition. (All CPUs) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 523 This message is for the use case when an implementation has detected a Processor Failed - FRB1/BIST condition. May also be shown as 806f02072584ffff or 0x806f02072584ffff Severity Error Serviceable Automatically notify support Alert Category Critical - CPU SNMP Trap ID CIM Information Prefix: PLAT ID: 0044 User Response...
  • Page 524 Hard disk drive. b. Cable from the system board to the backplane. c. Hard disk drive backplane. (n = hard disk drive number) • 806f020d-0402ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 2) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 525 This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0402ffff or 0x806f020d0402ffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response...
  • Page 526 806f020d-0405ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 5) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0405ffff or 0x806f020d0405ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 527 Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane.
  • Page 528 [ComputerSystemElementName]. (Drive 8) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0408ffff or 0x806f020d0408ffff Severity Warning Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 529 Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane.
  • Page 530 This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d040bffff or 0x806f020d040bffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 531 CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane. 3. Replace the following components one at a time, in the order shown, restarting the server each time: a.
  • Page 532 Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 533 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane. 3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive. b. Cable from the system board to the backplane. c. Hard disk drive backplane.
  • Page 534 3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive. b. Cable from the system board to the backplane. c. Hard disk drive backplane. (n = hard disk drive number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 535 • 806f020d-0412ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 18) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0412ffff or 0x806f020d0412ffff Severity Warning Serviceable Automatically notify support Alert Category...
  • Page 536 806f020d-0415ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 21) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0415ffff or 0x806f020d0415ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 537 Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane.
  • Page 538 806f020d-0418ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 24) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0418ffff or 0x806f020d0418ffff Severity Warning Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 539 Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane.
  • Page 540 This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d041bffff or 0x806f020d041bffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 541 CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive b. Cable from the system board to the backplane. 3. Replace the following components one at a time, in the order shown, restarting the server each time: a.
  • Page 542 806f030c-2001ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected a Memory Scrub failure. May also be shown as 806f030c2001ffff or 0x806f030c2001ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 543 Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0136 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 544 10 seconds before restarting the server. 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error. 2. Manually re-enable all affected DIMMs. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 545 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor. 4. If the problem follows the DIMM, replace the failing DIMM. 5. (Trained technician only) If the problem occurs on the same DIMM connector, check the DIMM connector.
  • Page 546 806f030c-2006ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 6) This message is for the use case when an implementation has detected a Memory Scrub failure. May also be shown as 806f030c2006ffff or 0x806f030c2006ffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 547 Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0136 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 548 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor. 4. If the problem follows the DIMM, replace the failing DIMM. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 549 5. (Trained technician only) If the problem occurs on the same DIMM connector, check the DIMM connector. If the connector contains any foreign material or is damaged, replace the system board. 6. (Trained technician only) Remove the affected microprocessor and check the microprocessor socket pins for any damaged pins.
  • Page 550 [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected a Memory Scrub failure. May also be shown as 806f030c200bffff or 0x806f030c200bffff Severity Error Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 551 Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0136 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 552 4. If the problem follows the DIMM, replace the failing DIMM. 5. (Trained technician only) If the problem occurs on the same DIMM connector, check the DIMM connector. If the connector contains any foreign material or is damaged, replace the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 553 6. (Trained technician only) Remove the affected microprocessor and check the microprocessor socket pins for any damaged pins. If a damage is found, replace the system board. 7. (Trained technician only) Replace the affected microprocessor. One of the DIMMs : •...
  • Page 554 806f040c-2002ffff : [PhysicalMemoryElementName] Disabled on Subsystem [MemoryElementName]. (DIMM 2) This message is for the use case when an implementation has detected that Memory has been Disabled. May also be shown as 806f040c2002ffff or 0x806f040c2002ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 555 Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0131 User Response 1. Make sure the DIMM is installed correctly. 2. If the DIMM was disabled because of a memory fault (memory uncorrectable error or memory logging limit reached), follow the suggested actions for that error event and restart the server.
  • Page 556 [MemoryElementName]. (DIMM 5) This message is for the use case when an implementation has detected that Memory has been Disabled. May also be shown as 806f040c2005ffff or 0x806f040c2005ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 557 Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0131 User Response 1. Make sure the DIMM is installed correctly. 2. If the DIMM was disabled because of a memory fault (memory uncorrectable error or memory logging limit reached), follow the suggested actions for that error event and restart the server.
  • Page 558 This message is for the use case when an implementation has detected that Memory has been Disabled. May also be shown as 806f040c2008ffff or 0x806f040c2008ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 559 CIM Information Prefix: PLAT ID: 0131 User Response 1. Make sure the DIMM is installed correctly. 2. If the DIMM was disabled because of a memory fault (memory uncorrectable error or memory logging limit reached), follow the suggested actions for that error event and restart the server. 3.
  • Page 560 May also be shown as 806f040c200bffff or 0x806f040c200bffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0131 User Response 1. Make sure the DIMM is installed correctly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 561 2. If the DIMM was disabled because of a memory fault (memory uncorrectable error or memory logging limit reached), follow the suggested actions for that error event and restart the server. 3. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory event.
  • Page 562 If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. 4. Remove both adapters. 5. Replace the PCIe adapters. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 563 6. Replace the riser card. • 806f0507-0301ffff : [ProcessorElementName] has a Configuration Mismatch. (CPU 1) This message is for the use case when an implementation has detected a Processor Configuration Mismatch has occurred. May also be shown as 806f05070301ffff or 0x806f05070301ffff Severity Error Serviceable...
  • Page 564 3. Make sure that the installed microprocessors are compatible with each other. 4. (Trained technician only) Reseat microprocessor n. 5. (Trained technician only) Replace microprocessor n. (n = microprocessor number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 565 • 806f050c-2001ffff : Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Reached. May also be shown as 806f050c2001ffff or 0x806f050c2001ffff Severity Warning Serviceable...
  • Page 566 This message is for the use case when an implementation has detected that the Memory Logging Limit has been Reached. May also be shown as 806f050c2003ffff or 0x806f050c2003ffff Severity Warning Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0144 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 567 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error.
  • Page 568 Subsystem [MemoryElementName]. (DIMM 6) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Reached. May also be shown as 806f050c2006ffff or 0x806f050c2006ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 569 Severity Warning Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0144 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 570 1. Check the IBM support website for an applicable retain tip or firmware update that applies to this memory error. 2. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 571 3. If the error still occurs on the same DIMM, replace the affected DIMM. 4. (Trained technician only) If the problem occurs on the same DIMM connector, check the DIMM connector. If the connector contains any foreign material or is damaged, replace the system board.
  • Page 572 This message is for the use case when an implementation has detected that the Memory Logging Limit has been Reached. May also be shown as 806f050c200bffff or 0x806f050c200bffff Severity Warning Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 573 Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0144 User Response Note: Each time you install or remove a DIMM, you must disconnect the server from the power source; then, wait 10 seconds before restarting the server. 1.
  • Page 574 5. (Trained technician only) Remove the affected microprocessor and check the microprocessor socket pins for any damaged pins. If a damage is found, replace the system board. 6. (Trained technician only) Replace the affected microprocessor. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 575 • 806f050d-0400ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 0) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0400ffff or 0x806f050d0400ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID...
  • Page 576 • 806f050d-0403ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 3) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0403ffff or 0x806f050d0403ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 577 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
  • Page 578 • 806f050d-0406ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 6) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0406ffff or 0x806f050d0406ffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 579 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
  • Page 580 This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0409ffff or 0x806f050d0409ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 581 CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4.
  • Page 582 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 583 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5. Replace the RAID adapter. 6. Replace the hard disk drive that is indicated by a lit status LED. • 806f050d-040dffff : Array [ComputerSystemElementName] is in critical condition. (Drive 13) This message is for the use case when an implementation has detected that an Array is Critical.
  • Page 584 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5. Replace the RAID adapter. 6. Replace the hard disk drive that is indicated by a lit status LED. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 585 • 806f050d-0410ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 16) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0410ffff or 0x806f050d0410ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID...
  • Page 586 • 806f050d-0413ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 19) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0413ffff or 0x806f050d0413ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 587 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
  • Page 588 • 806f050d-0416ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 22) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0416ffff or 0x806f050d0416ffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 589 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
  • Page 590 This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0419ffff or 0x806f050d0419ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 591 CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4.
  • Page 592 May also be shown as 806f05132582ffff or 0x806f05132582ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0234 User Response 1. Check the PCI LED. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 593 2. Reseat the affected adapters and riser card. 3. Update the server firmware (UEFI and IMM) and adapter firmware. Important: Some cluster solutions require specific code levels or coordinated code updates. If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code.
  • Page 594 (CPU 2) This message is for the use case when an SM BIOS Uncorrectable CPU complex error has asserted. May also be shown as 806f06070302ffff or 0x806f06070302ffff Severity Error Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 595 Alert Category Critical - CPU SNMP Trap ID CIM Information Prefix: PLAT ID: 0816 User Response 1. Update the latest level of system firmware and device drivers are installed for all adapters and standard devices, such as UEFI, IMM Ethernet,and SAS. Important: Some cluster solutions require specific code levels or coordinated code updates.
  • Page 596 This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0400ffff or 0x806f060d0400ffff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 597 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
  • Page 598 Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 599 3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-0404ffff : Array [ComputerSystemElementName] has failed. (Drive 4) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0404ffff or 0x806f060d0404ffff Severity Error...
  • Page 600 • 806f060d-0407ffff : Array [ComputerSystemElementName] has failed. (Drive 7) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0407ffff or 0x806f060d0407ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 601 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
  • Page 602 This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d040affff or 0x806f060d040affff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 603 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
  • Page 604 Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 605 3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-040effff : Array [ComputerSystemElementName] has failed. (Drive 14) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d040effff or 0x806f060d040effff Severity Error...
  • Page 606 • 806f060d-0411ffff : Array [ComputerSystemElementName] has failed. (Drive 17) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0411ffff or 0x806f060d0411ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 607 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
  • Page 608 This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0414ffff or 0x806f060d0414ffff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 609 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
  • Page 610 Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 611 3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-0418ffff : Array [ComputerSystemElementName] has failed. (Drive 24) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0418ffff or 0x806f060d0418ffff Severity Error...
  • Page 612 • 806f060d-041bffff : Array [ComputerSystemElementName] has failed. (Drive 27) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d041bffff or 0x806f060d041bffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 613 Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
  • Page 614 May also be shown as 806f070c2003ffff or 0x806f070c2003ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 615 Make sure that DIMMs are installed and following the memory population chart in the system publication. • 806f070c-2004ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 4) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected.
  • Page 616 This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c2007ffff or 0x806f070c2007ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory Lenovo System x3630 M4 Installation and Service Guide...
  • Page 617 SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed and following the memory population chart in the system publication. • 806f070c-2008ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 8) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected.
  • Page 618 [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c200bffff or 0x806f070c200bffff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 619 Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed and following the memory population chart in the system publication. • 806f070c-200cffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].
  • Page 620 806f070d-0401ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 1) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0401ffff or 0x806f070d0401ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 621 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0402ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 2) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 622 806f070d-0405ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 5) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0405ffff or 0x806f070d0405ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 623 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0406ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 6) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 624 806f070d-0409ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 9) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0409ffff or 0x806f070d0409ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 625 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-040affff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 10) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 626 806f070d-040dffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 13) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d040dffff or 0x806f070d040dffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 627 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-040effff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 14) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 628 806f070d-0411ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 17) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0411ffff or 0x806f070d0411ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 629 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0412ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 18) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 630 806f070d-0415ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 21) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0415ffff or 0x806f070d0415ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 631 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0416ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 22) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 632 806f070d-0419ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 25) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0419ffff or 0x806f070d0419ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 633 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-041affff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive 26) This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
  • Page 634 • 806f0807-0301ffff : [ProcessorElementName] has been Disabled. (CPU 1) This message is for the use case when an implementation has detected a Processor has been Disabled. May also be shown as 806f08070301ffff or 0x806f08070301ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 635 Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0061 User Response No action; information only. • 806f0807-0302ffff : [ProcessorElementName] has been Disabled. (CPU 2) This message is for the use case when an implementation has detected a Processor has been Disabled. May also be shown as 806f08070302ffff or 0x806f08070302ffff Severity Info...
  • Page 636 5. Make sure that the installed DIMMs are supported and configured correctly. 6. (Trained technician only) Replace the system board. • 806f0813-2582ffff : A Uncorrectable Bus Error has occurred on system [ComputerSystemElementName]. (PCIs) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 637 This message is for the use case when an implementation has detected a Bus Uncorrectable Error. May also be shown as 806f08132582ffff or 0x806f08132582ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0240 User Response 1.
  • Page 638 806f090c-2001ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 1) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2001ffff or 0x806f090c2001ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 639 Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f090c-2002ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled.
  • Page 640 Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 641 • 806f090c-2005ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 5) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2005ffff or 0x806f090c2005ffff Severity Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
  • Page 642 This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2008ffff or 0x806f090c2008ffff Severity Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 643 CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f090c-2009ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 9) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2009ffff or 0x806f090c2009ffff Severity Warning...
  • Page 644 806f090c-200cffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 12) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c200cffff or 0x806f090c200cffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 645 Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f0a07-0301ffff : [ProcessorElementName] is operating in a Degraded State. (CPU 1) This message is for the use case when an implementation has detected a Processor is running in the Degraded state.
  • Page 646 This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2001ffff or 0x806f0a0c2001ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature Lenovo System x3630 M4 Installation and Service Guide...
  • Page 647 SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
  • Page 648 This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2004ffff or 0x806f0a0c2004ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 649 CIM Information Prefix: PLAT ID: 0146 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
  • Page 650 Memory that has been Detected. May also be shown as 806f0a0c2007ffff or 0x806f0a0c2007ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 651 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed. 2. Make sure that ambient temperature is within the specifications. 3.
  • Page 652 Memory that has been Detected. May also be shown as 806f0a0c200affff or 0x806f0a0c200affff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 653 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed. 2. Make sure that ambient temperature is within the specifications. 3.
  • Page 654 SNMP Trap ID CIM Information Prefix: PLAT ID: 0244 User Response 1. (Trained technician only)Reseat the microprocessor, and then restart the server. 2. (Trained technician only)Replace microprocessor n. (n = microprocessor number) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 655 • 806f0a13-0302ffff : A Fatal Bus Error has occurred on system [ComputerSystemElementName]. (CPU 2 PECI) This message is for the use case when an implementation has detected a Bus Fatal Error. May also be shown as 806f0a130302ffff or 0x806f0a130302ffff Severity Error Serviceable Automatically notify support...
  • Page 656 This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102041d01ffff or 0x810102041d01ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 657 Prefix: PLAT ID: 0481 User Response No action; information only. • 81010204-1d02ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has deasserted. (Fan 1Ab Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted.
  • Page 658 This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102041d05ffff or 0x810102041d05ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 659 CIM Information Prefix: PLAT ID: 0481 User Response No action; information only. • 81010204-1d06ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has deasserted. (Fan 3Ab Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted.
  • Page 660 This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107010704ffff or 0x810107010704ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 661 Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010701-0c01ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has deasserted. (Ambient Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted.
  • Page 662 This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107012c01ffff or 0x810107012c01ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 663 Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010701-2d01ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has deasserted. (PCH Temperature) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted.
  • Page 664 (RAID Amb Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109010704ffff or 0x810109010704ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 665 Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0495 User Response No action; information only. • 81010901-0c01ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (Ambient Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted.
  • Page 666 (Mezz Card Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109012c01ffff or 0x810109012c01ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 667 Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0495 User Response No action; information only. • 81010901-2d01ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (PCH Temperature) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted.
  • Page 668 (LowProfile Amb) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b010703ffff or 0x81010b010703ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 669 Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 User Response No action; information only. • 81010b01-0704ffff : Numeric sensor [NumericSensorElementName] going high (upper non-recoverable) has deasserted. (RAID Amb Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted.
  • Page 670 (CPU2 VR Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b011402ffff or 0x81010b011402ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 671 Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 User Response No action; information only. • 81010b01-2c01ffff : Numeric sensor [NumericSensorElementName] going high (upper non-recoverable) has deasserted. (Mezz Card Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted.
  • Page 672 • 81030012-2301ffff : Sensor [SensorElementName] has asserted. (OS RealTime Mod) This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 810300122301ffff or 0x810300122301ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 673 Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0508 User Response No action; information only. • 81030108-0a01ffff : Sensor [SensorElementName] has deasserted. (PS Heavy Load) This message is for the use case when an implementation has detected a Sensor has deasserted. May also be shown as 810301080a01ffff or 0x810301080a01ffff Severity Info...
  • Page 674 (CPU 1 OverTemp) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702010301ffff or 0x810702010301ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 675 Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 81070201-0302ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (CPU 2 OverTemp) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
  • Page 676 (PS 2 Fan Fault) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702080a02ffff or 0x810702080a02ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 677 Severity Info Serviceable Automatically notify support Alert Category Critical - Power SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. PS 2 Therm Fault : • 8107020f-2582ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical.
  • Page 678 (CPU 1 QPILinkErr) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 8107021b0301ffff or 0x8107021b0301ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 679 Severity Info Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 8107021b-0302ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (CPU 2 QPILinkErr) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
  • Page 680 (PS1 12V OC Fault) This message is for the use case when an implementation has detected that the Sensor transition to non-recoverable has deasserted. May also be shown as 810706080a01ffff or 0x810706080a01ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 681 Severity Info Serviceable Automatically notify support Alert Category Critical - Power SNMP Trap ID CIM Information Prefix: PLAT ID: 0531 User Response No action; information only. PS1 12V OV Fault : PS1 12V UV Fault : PS1 12Vaux Fault : •...
  • Page 682 • 810b010a-1e83ffff : Redundancy Lost for [RedundancySetElementName] has deasserted. (Cooling Zone 3) This message is for the use case when Redundacy Lost has deasserted. May also be shown as 810b010a1e83ffff or 0x810b010a1e83ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 683 Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0803 User Response No action; information only. • 810b010c-2581ffff : Redundancy Lost for [RedundancySetElementName] has deasserted. (Backup Memory) This message is for the use case when Redundacy Lost has deasserted. May also be shown as 810b010c2581ffff or 0x810b010c2581ffff Severity Info...
  • Page 684 810b0508-0a01ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has deasserted. (Power Resource) This message is for the use case when a Redundancy Set has transitioned from Non-redundant:Insufficient Resources. May also be shown as 810b05080a01ffff or 0x810b05080a01ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 685 Severity Info Serviceable Automatically notify support Alert Category Critical - Redundant Power Supply SNMP Trap ID CIM Information Prefix: PLAT ID: 0811 User Response No action; information only. • 810b050a-1e81ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has deasserted. (Cooling Zone 1) This message is for the use case when a Redundancy Set has transitioned from Non-redundant:Insufficient Resources.
  • Page 686 810b050c-2581ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has deasserted. (Backup Memory) This message is for the use case when a Redundancy Set has transitioned from Non-redundant:Insufficient Resources. May also be shown as 810b050c2581ffff or 0x810b050c2581ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 687 Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0811 User Response No action; information only. • 816f0007-0301ffff : [ProcessorElementName] has Recovered from IERR. (CPU 1) This message is for the use case when an implementation has detected a Processor Recovered - IERR Condition.
  • Page 688 816f0008-0a02ffff : [PowerSupplyElementName] has been removed from container [PhysicalPackageElementName]. (Power Supply 2) This message is for the use case when an implementation has detected a Power Supply has been removed. May also be shown as 816f00080a02ffff or 0x816f00080a02ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 689 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0085 User Response No action; information only. • 816f0009-1301ffff : [PowerSupplyElementName] has been turned on. (Host Power) This message is for the use case when an implementation has detected a Power Unit that has been Enabled.
  • Page 690 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 691 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level. 3. Check the SAS cable. 4. Replace the hard disk drive. • 816f000d-0402ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName].
  • Page 692 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level. 3. Check the SAS cable. 4. Replace the hard disk drive. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 693 • 816f000d-0405ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 5) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0405ffff or 0x816f000d0405ffff Severity Error Serviceable Automatically notify support...
  • Page 694 4. Replace the hard disk drive. • 816f000d-0408ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 8) This message is for the use case when an implementation has detected a Drive has been Removed. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 695 May also be shown as 816f000d0408ffff or 0x816f000d0408ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive.
  • Page 696 816f000d-040bffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 11) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d040bffff or 0x816f000d040bffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 697 Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive.
  • Page 698 816f000d-040effff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 14) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d040effff or 0x816f000d040effff Severity Error Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 699 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2.
  • Page 700 This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0411ffff or 0x816f000d0411ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 701 CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level.
  • Page 702 May also be shown as 816f000d0414ffff or 0x816f000d0414ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response Lenovo System x3630 M4 Installation and Service Guide...
  • Page 703 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level. 3. Check the SAS cable. 4.
  • Page 704 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 705 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level. 3. Check the SAS cable. 4. Replace the hard disk drive. • 816f000d-0418ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName].
  • Page 706 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Make sure that the disk firmware and RAID controller and backplane firmware are at the latest level. 3. Check the SAS cable. 4. Replace the hard disk drive. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 707 • 816f000d-041bffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 27) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d041bffff or 0x816f000d041bffff Severity Error Serviceable Automatically notify support...
  • Page 708 This message is for the use case when an implementation has detected a Fault condition in a slot has been removed. May also be shown as 816f00212201ffff or 0x816f00212201ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Other Lenovo System x3630 M4 Installation and Service Guide...
  • Page 709 SNMP Trap ID CIM Information Prefix: PLAT ID: 0331 User Response No action; information only. • 816f0021-2582ffff : Fault condition removed on slot [PhysicalConnectorElementName] on system [ComputerSystemElementName]. (All PCI Error) This message is for the use case when an implementation has detected a Fault condition in a slot has been removed.
  • Page 710 [ComputerSystemElementName]. (TPM Cmd Failures) This message is for the use case when an implementation has detected a Sensor returned from degraded/unavailable/failure. May also be shown as 816f00282101ffff or 0x816f00282101ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 711 Alert Category Warning - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0399 User Response No action; information only. • 816f0107-0301ffff : An Over-Temperature Condition has been removed on [ProcessorElementName]. (CPU 1) This message is for the use case when an implementation has detected a Over-Temperature Condition has been Removed for Processor.
  • Page 712 This message is for the use case when an implementation has detected a Power Supply return to normal operational status. May also be shown as 816f01080a02ffff or 0x816f01080a02ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 713 Alert Category Critical - Power SNMP Trap ID CIM Information Prefix: PLAT ID: 0087 User Response No action; information only. • 816f010c-2001ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
  • Page 714 Subsystem [MemoryElementName]. (DIMM 4) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2004ffff or 0x816f010c2004ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 715 Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-2005ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 5) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
  • Page 716 • 816f010c-2008ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 8) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2008ffff or 0x816f010c2008ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 717 Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-2009ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
  • Page 718 • 816f010c-200cffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 12) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c200cffff or 0x816f010c200cffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 719 Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-2581ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (All DIMMS) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
  • Page 720 • 816f010d-0402ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 2) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0402ffff or 0x816f010d0402ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 721 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0403ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 3) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0403ffff or 0x816f010d0403ffff Severity Info...
  • Page 722 This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0406ffff or 0x816f010d0406ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 723 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0407ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 7) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0407ffff or 0x816f010d0407ffff Severity Info...
  • Page 724 This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d040affff or 0x816f010d040affff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 725 Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-040bffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 11) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d040bffff or 0x816f010d040bffff Severity Info Serviceable...
  • Page 726 May also be shown as 816f010d040effff or 0x816f010d040effff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 727 • 816f010d-040fffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 15) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d040fffff or 0x816f010d040fffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID...
  • Page 728 • 816f010d-0413ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 19) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0413ffff or 0x816f010d0413ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 729 Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0414ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 20) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0414ffff or 0x816f010d0414ffff Severity Info...
  • Page 730 • 816f010d-0417ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 23) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0417ffff or 0x816f010d0417ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 731 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0418ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 24) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0418ffff or 0x816f010d0418ffff Severity Info...
  • Page 732 This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d041bffff or 0x816f010d041bffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 733 Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010f-2201ffff : The System [ComputerSystemElementName] has recovered from a firmware hang. (Firmware Error) This message is for the use case when an implementation has recovered from a System Firmware Hang. May also be shown as 816f010f2201ffff or 0x816f010f2201ffff Severity Info...
  • Page 734 (Front USB) This message is for the use case when an implementation has detected an Interconnect Configuration was Repaired. May also be shown as 816f011b0701ffff or 0x816f011b0701ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 735 Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0267 User Response No action; information only. Front Video : • 816f0125-0b01ffff : [ManagedElementName] detected as present. (PCI Riser 1) This message is for the use case when an implementation has detected a Managed Element is now Present.
  • Page 736 This message is for the use case when an implementation has detected a Managed Element is now Present. May also be shown as 816f01252c01ffff or 0x816f01252c01ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3630 M4 Installation and Service Guide...
  • Page 737 SNMP Trap ID CIM Information Prefix: PLAT ID: 0390 User Response No action; information only. • 816f0207-0301ffff : [ProcessorElementName] has Recovered from FRB1/BIST condition. (CPU 1) This message is for the use case when an implementation has detected a Processor Recovered - FRB1/BIST condition.
  • Page 738 This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0400ffff or 0x816f020d0400ffff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 739 CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0401ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 1) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 740 This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0404ffff or 0x816f020d0404ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 741 System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0405ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 5) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 742 This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0408ffff or 0x816f020d0408ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 743 Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0409ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 9) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 744 [ComputerSystemElementName]. (Drive 12) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d040cffff or 0x816f020d040cffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 745 Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-040dffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 13) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 746 • 816f020d-0410ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 16) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0410ffff or 0x816f020d0410ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 747 Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0411ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 17) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 748 • 816f020d-0414ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 20) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0414ffff or 0x816f020d0414ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 749 Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0415ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 21) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 750 • 816f020d-0418ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 24) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0418ffff or 0x816f020d0418ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 751 Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0419ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 25) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
  • Page 752 Supply 1) This message is for the use case when an implementation has detected a Power Supply that has input that has returned to normal. May also be shown as 816f03080a01ffff or 0x816f03080a01ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 753 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0099 User Response No action; information only. • 816f0308-0a02ffff : [PowerSupplyElementName] has returned to a Normal Input State. (Power Supply 2) This message is for the use case when an implementation has detected a Power Supply that has input that has returned to normal.
  • Page 754 816f030c-2003ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has recovered. (DIMM 3) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2003ffff or 0x816f030c2003ffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 755 Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-2004ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has recovered. (DIMM 4) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2004ffff or 0x816f030c2004ffff Severity Info...
  • Page 756 [MemoryElementName]has recovered. (DIMM 7) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2007ffff or 0x816f030c2007ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 757 Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-2008ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has recovered. (DIMM 8) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2008ffff or 0x816f030c2008ffff Severity Info...
  • Page 758 [MemoryElementName]has recovered. (DIMM 11) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c200bffff or 0x816f030c200bffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 759 Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-200cffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has recovered. (DIMM 12) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c200cffff or 0x816f030c200cffff Severity Info...
  • Page 760 [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2001ffff or 0x816f040c2001ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 761 Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2002ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 2) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2002ffff or 0x816f040c2002ffff Severity Info...
  • Page 762 This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2005ffff or 0x816f040c2005ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3630 M4 Installation and Service Guide...
  • Page 763 SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2006ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 6) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2006ffff or 0x816f040c2006ffff Severity Info...
  • Page 764 This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2009ffff or 0x816f040c2009ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 765 CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-200affff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 10) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c200affff or 0x816f040c200affff Severity Info Serviceable...
  • Page 766 This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2581ffff or 0x816f040c2581ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 767 User Response No action; information only. One of the DIMMs : • 816f0413-2582ffff : A PCI PERR recovery has occurred on system [ComputerSystemElementName]. (PCIs) This message is for the use case when an implementation has detected a PCI PERR recovered. May also be shown as 816f04132582ffff or 0x816f04132582ffff Severity Info...
  • Page 768 This message is for the use case when an implementation has Recovered from a Processor Configuration Mismatch. May also be shown as 816f05072584ffff or 0x816f05072584ffff Severity Info Serviceable Automatically notify support Alert Category Critical - CPU SNMP Trap ID CIM Information Lenovo System x3630 M4 Installation and Service Guide...
  • Page 769 Prefix: PLAT ID: 0063 User Response No action; information only. One of The CPUs : • 816f050c-2001ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
  • Page 770 This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c2004ffff or 0x816f050c2004ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 771 CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2005ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 5) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
  • Page 772 This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c2008ffff or 0x816f050c2008ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 773 Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2009ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
  • Page 774 This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c200cffff or 0x816f050c200cffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 775 Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2581ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (All DIMMS) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
  • Page 776 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0402ffff or 0x816f050d0402ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 777 Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0403ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 3) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
  • Page 778 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0406ffff or 0x816f050d0406ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3630 M4 Installation and Service Guide...
  • Page 779 SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0407ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 7) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
  • Page 780 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d040affff or 0x816f050d040affff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 781 CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-040bffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 11) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d040bffff or 0x816f050d040bffff Severity Info...
  • Page 782 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d040effff or 0x816f050d040effff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 783 User Response No action; information only. • 816f050d-040fffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 15) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d040fffff or 0x816f050d040fffff Severity Info Serviceable...
  • Page 784 May also be shown as 816f050d0412ffff or 0x816f050d0412ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 785 • 816f050d-0413ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 19) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0413ffff or 0x816f050d0413ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID...
  • Page 786 Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0417ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 23) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 787 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0417ffff or 0x816f050d0417ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response...
  • Page 788 Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-041bffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 27) Lenovo System x3630 M4 Installation and Service Guide...
  • Page 789 This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d041bffff or 0x816f050d041bffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response...
  • Page 790 No action; information only. One of The CPUs : • 816f0608-1301ffff : [PowerSupplyElementName] Configuration is OK. (PS Configuration) This message is for the use case when an implementation when a Power Supply configuration is OK. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 791 May also be shown as 816f06081301ffff or 0x816f06081301ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Power SNMP Trap ID CIM Information Prefix: PLAT ID: 0105 User Response No action; information only. • 816f060d-0400ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 0) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 792 • 816f060d-0403ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 3) This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d0403ffff or 0x816f060d0403ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 793 Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-0404ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 4) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 794 • 816f060d-0407ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 7) This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d0407ffff or 0x816f060d0407ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 795 Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-0408ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 8) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 796 • 816f060d-040bffff : Array in system [ComputerSystemElementName] has been restored. (Drive 11) This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d040bffff or 0x816f060d040bffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 797 Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-040cffff : Array in system [ComputerSystemElementName] has been restored. (Drive 12) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 798 This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d040fffff or 0x816f060d040fffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 799 Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-0410ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 16) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 800 This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d0413ffff or 0x816f060d0413ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3630 M4 Installation and Service Guide...
  • Page 801 SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-0414ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 20) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 802 This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d0417ffff or 0x816f060d0417ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 803 CIM Information Prefix: PLAT ID: 0177 User Response No action; information only. • 816f060d-0418ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 24) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
  • Page 804 This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d041bffff or 0x816f060d041bffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 Lenovo System x3630 M4 Installation and Service Guide...
  • Page 805 User Response No action; information only. • 816f070c-2001ffff : Configuration error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has deasserted. (DIMM 1) This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted. May also be shown as 816f070c2001ffff or 0x816f070c2001ffff Severity Info Serviceable...
  • Page 806 This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted. May also be shown as 816f070c2004ffff or 0x816f070c2004ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID Lenovo System x3630 M4 Installation and Service Guide...
  • Page 807 CIM Information Prefix: PLAT ID: 0127 User Response No action; information only. • 816f070c-2005ffff : Configuration error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has deasserted. (DIMM 5) This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted.
  • Page 808 This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted. May also be shown as 816f070c2008ffff or 0x816f070c2008ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory Lenovo System x3630 M4 Installation and Service Guide...
  • Page 809 SNMP Trap ID CIM Information Prefix: PLAT ID: 0127 User Response No action; information only. • 816f070c-2009ffff : Configuration error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has deasserted. (DIMM 9) This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted.
  • Page 810 This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted. May also be shown as 816f070c200cffff or 0x816f070c200cffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 811 Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0127 User Response No action; information only. • 816f070c-2581ffff : Configuration error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]has deasserted. (All DIMMS) This message is for the use case when an implementation has detected a Memory DIMM configuration error has deasserted.
  • Page 812 816f070d-0402ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 2) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d0402ffff or 0x816f070d0402ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 813 Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-0403ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 3) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 814 816f070d-0406ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 6) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d0406ffff or 0x816f070d0406ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 815 Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-0407ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 7) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 816 816f070d-040affff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 10) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d040affff or 0x816f070d040affff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 817 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-040bffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 11) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 818 816f070d-040effff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 14) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d040effff or 0x816f070d040effff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 819 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-040fffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 15) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 820 816f070d-0412ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 18) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d0412ffff or 0x816f070d0412ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 821 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-0413ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 19) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 822 816f070d-0416ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 22) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d0416ffff or 0x816f070d0416ffff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 823 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-0417ffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 23) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 824 816f070d-041affff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 26) This message is for the use case when an implementation has detected that an Array Rebuild has Completed. May also be shown as 816f070d041affff or 0x816f070d041affff Lenovo System x3630 M4 Installation and Service Guide...
  • Page 825 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0179 User Response No action; information only. • 816f070d-041bffff : Rebuild completed for Array in system [ComputerSystemElementName]. (Drive 27) This message is for the use case when an implementation has detected that an Array Rebuild has Completed.
  • Page 826 • 816f0807-2584ffff : [ProcessorElementName] has been Enabled. (All CPUs) This message is for the use case when an implementation has detected a Processor has been Enabled. May also be shown as 816f08072584ffff or 0x816f08072584ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 827 Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0060 User Response No action; information only. One of The CPUs : • 816f0813-2581ffff : System [ComputerSystemElementName]has recovered from an Uncorrectable Bus Error. (DIMMs) This message is for the use case when an implementation has detected a that a system has recovered from a Bus Uncorrectable Error.
  • Page 828 • 816f090c-2001ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] is no longer Throttled. (DIMM 1) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c2001ffff or 0x816f090c2001ffff Severity Info Lenovo System x3630 M4 Installation and Service Guide...
  • Page 829 Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0143 User Response No action; information only. • 816f090c-2002ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] is no longer Throttled. (DIMM 2) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c2002ffff or 0x816f090c2002ffff Severity Info...
  • Page 830 Throttled. (DIMM 5) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c2005ffff or 0x816f090c2005ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 831 Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0143 User Response No action; information only. • 816f090c-2006ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] is no longer Throttled. (DIMM 6) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c2006ffff or 0x816f090c2006ffff Severity Info...
  • Page 832 Throttled. (DIMM 9) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c2009ffff or 0x816f090c2009ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 833 Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0143 User Response No action; information only. • 816f090c-200affff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] is no longer Throttled. (DIMM 10) This message is for the use case when an implementation has detected Memory is no longer Throttled. May also be shown as 816f090c200affff or 0x816f090c200affff Severity Info...
  • Page 834 This message is for the use case when an implementation has detected a Processor is no longer running in the Degraded state. May also be shown as 816f0a070301ffff or 0x816f0a070301ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3630 M4 Installation and Service Guide...
  • Page 835 Warning - CPU SNMP Trap ID CIM Information Prefix: PLAT ID: 0039 User Response No action; information only. • 816f0a07-0302ffff : The Processor [ProcessorElementName] is no longer operating in a Degraded State. (CPU 2) This message is for the use case when an implementation has detected a Processor is no longer running in the Degraded state.
  • Page 836 This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed. May also be shown as 816f0a0c2003ffff or 0x816f0a0c2003ffff Severity Info Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 837 Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0147 User Response No action; information only. • 816f0a0c-2004ffff : An Over-Temperature Condition has been removed on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 4) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed.
  • Page 838 This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed. May also be shown as 816f0a0c2007ffff or 0x816f0a0c2007ffff Severity Info Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 839 Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0147 User Response No action; information only. • 816f0a0c-2008ffff : An Over-Temperature Condition has been removed on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 8) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed.
  • Page 840 [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed. May also be shown as 816f0a0c200bffff or 0x816f0a0c200bffff Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 841 Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0147 User Response No action; information only. • 816f0a0c-200cffff : An Over-Temperature Condition has been removed on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 12) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Removed.
  • Page 842 SNMP Trap ID CIM Information Prefix: PLAT ID: 0245 User Response 1. (Trained technician only) Replace microprocessor n (see Removing a microprocessor and heat sink and Replacing a microprocessor and heat sink). Lenovo System x3630 M4 Installation and Service Guide...
  • Page 843 2. If the problem persists and there is no other CPU with the same error indication, replace the system board. 3. (Trained technician only) Replace the system board (see Removing the system board and Replacing the system board). (n = microprocessor number) Appendix A.
  • Page 844 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 845: Appendix B. Uefi/Post Diagnostic Codes

    Perform the steps in the order shown until the problem is solved. After you perform all of the actions that are described in this field, if you cannot solve the problem, contact Lenovo Support. The following is the list of the UEFI/POST error codes and suggested actions to correct the detected problems.
  • Page 846 3. (Trained Service technician only) Replace Processor. Inspect Processor socket and replace the system board first if socket is damaged. • I.18007 [I.18007] A power segment mismatch has been detected for one or more processor packages. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 847 Explanation: Processors have mismatched Power Segments Severity Error User Response Complete the following steps: 1. Processors installed do not have the same power requirements 2. Ensure that all Processors have matching power requirements (such as 65, 95, or 130 Watts) 3.
  • Page 848 3. (Trained Service technician only) Replace the system board. • I.1800D [I.1800D] A cache associativity mismatch has been detected for one or more processor packages. Explanation: Processors have one or more cache levels with mismatched associativity Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 849 Error User Response Complete the following steps: 1. Verify that matching Processors are installed in the correct Processor sockets according to the service information for this product. 2. Check IBM support site for an applicable service bulletin or firmware update that applies to this Processor error.
  • Page 850 Gen1/Gen2 settings can be configured via F1 Setup -> System Settings -> Devices and I/O Ports -> PCIe Gen1/Gen2/Gen3 Speed Selection, or the ASU Utility. 4. Replace adapter. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 851 • I.3048005 [I.3048005] UEFI has booted from the backup flash bank. Explanation: Booting Backup UEFI Image Severity Info User Response Complete the following steps: 1. Refer to service information for this product section on UEFI Recovery to return system to primary bank.
  • Page 852 • I.580A5 [I.580A5] Mirror Fail-over complete. DIMM number % has failed over to to the mirrored copy. Explanation: DIMM Mirror Fail-over Detected Severity Info User Response Complete the following steps: 1. Check the system-event log for uncorrected DIMM failures and replace those DIMMs. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 853 • I.580A6 [I.580A6] Memory spare copy has completed successfully. Explanation: Spare Copy Complete Severity Info User Response Complete the following steps: 1. Check system log for related DIMM failures and replace those DIMMs. • S.1100B [S.1100B] CATERR(IERR) has asserted on processor %. Explanation: Processor CATERR(IERR) has asserted Severity Error...
  • Page 854 1. Check IBM support site for an applicable service bulletin or firmware update that applies to this error. 2. Reflash UEFI image. 3. (Trained service technician only) Replace the system board. • S.3028002 [S.3028002] Boot permission timeout detected. Explanation: Boot Permission Negotiation Timeout Lenovo System x3630 M4 Installation and Service Guide...
  • Page 855 Severity Error User Response Complete the following steps: 1. Check IMM logs for communication errors and resolve. 2. Reseat system 3. If problem persists escalate to the next level of support • S.3030007 [S.3030007] A firmware fault has been detected in the UEFI image. Explanation: Internal UEFI Firmware Fault Detected, System halted Severity Error...
  • Page 856 Complete the following steps: 1. Check IBM support site for an applicable service bulletin or firmware update that applies to this error. 2. Reflash UEFI image. 3. (Trained service technician only) Replace the system board. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 857 • S.3108007 [S.3108007 ] The default system settings have been restored. Explanation: System Configuration Restored to Defaults Severity Error User Response Complete the following steps: 1. Check IBM support site for an applicable service bulletin or firmware update that applies to this error.
  • Page 858 4. Reflash UEFI firmware. 5. Replace DIMM 6. (Trained Service technician only) Replace Processor. • S.51009 [S.51009] No system memory has been detected. Explanation: No Memory Detected Severity Error User Response Complete the following steps: Lenovo System x3630 M4 Installation and Service Guide...
  • Page 859 1. Make sure that one or more DIMMs are installed in the server. 2. If no memory fault is recorded in the logs and no DIMM connector error LEDs are lit, verify that all DIMM connectors are enabled using the Setup utility or the Advanced Settings Utility (ASU). 3.
  • Page 860 User Response Complete the following steps: 1. If the Processor or firmware was just updated, check IBM support site for an applicable service bulletin or firmware update that applies to this Processor error. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 861 2. (Trained service technician only) If there are multiple Processor’s, swap Processor’s to move affected Processor to another Processor socket and retry. If problem follows the affected Processor, or this is a single Processor system, replace the Processor. Inspect Processor socket on each Processor removal and replace system board first if damaged or mis-aligned pins are found.
  • Page 862 2. If problem persists, switch to backup UEFI or reflash current UEFI image. 3. (Trained Service Technician Only) Replace system board. • W.305800D [W.305800D] DRIVER HEALTH PROTOCOL: Disconnect Controller Failed. Requires 'Reboot'. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 863 Explanation: DRIVER HEALTH PROTOCOL: Disconnect Controller Failed. Requires 'Reboot' Severity Warning User Response Complete the following steps: 1. Reboot the system to reconnect the controller. 2. If problem persists, switch to backup UEFI or reflash current UEFI image. 3. (Trained Service Technician Only) Replace system board. •...
  • Page 864 3. If the event persists, continue booting system and reflash UEFI image. 4. (Trained service technician only) Replace the system board. • W.381800D [W.381800D] TPM physical presence is in asserted state Explanation: TPM physical presence is in asserted state Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 865 User Response Complete the following steps: 1. Complete any administrative tasks requiring the TPM physical presence switch to be in the "ON" position.. 2. Restore the physical presence switch to the "OFF" position and reboot the system. 3. (Trained service technician only) Replace the system board. •...
  • Page 866 1. If a DIMM connector error LED is lit, resolve the failure. 2. Make sure that the DIMM connectors are correctly populated for mirroring mode, according to the service information for this product. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 867 • W.580A2 [W.580A2] Invalid memory configuration for Sparing Mode. Please correct memory configuration. Explanation: Unsupported DIMM Population for Spare Mode Severity Error User Response Complete the following steps: 1. Make sure that the DIMM connectors are correctly populated for sparing mode, according to the service information for this product.
  • Page 868 Lenovo System x3630 M4 Installation and Service Guide...

  • Page 869: Appendix C. Dsa Diagnostic Test Results

    Latest level of BMC/IMM • 405-001-000 : BRCM:TestMIIRegisters Test Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM © Copyright Lenovo 2015, 2016...
  • Page 870 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-004-000 : BRCM:TestInterrupt Test Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 871 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-005-000 : BRCM:TestLoopbackMAC Test Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA –...
  • Page 872 405-801-000 : BRCM:TestMIIRegisters Test Aborted The MII register test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 873 The EEPROM test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-803-000 : BRCM:TestInternalMemory Test Aborted The internal memory test was canceled.
  • Page 874 Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-807-000 : BRCM:TestLEDs Test Aborted Verification of status LEDs was canceled. Recoverable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 875 Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-900-000 : BRCM:TestControlRegisters Test Failed A failure was detected while testing internal MAC registers Recoverable Severity Error...
  • Page 876 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 405-903-000 : BRCM:TestInternalMemory Test Failed A failure was detected while testing internal memory. Recoverable Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 877 2. Rerun the test. 3. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 878 3. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...

  • Page 879: Dsa Brocade Test Results

    2. Rerun the test. 3. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM DSA Brocade test results The following messages can result when you run the Brocade test.
  • Page 880 Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 218-003-000 : Brocade:PCILoopbackTest Passed The test passed. Recoverable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 881 Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 218-004-000 : Brocade:ExternalEthLoopbackTest Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links –...
  • Page 882 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 218-801-000 : Brocade:ExternalLoopbackTest Aborted The test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 883 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 218-802-000 : Brocade:SerdesLoopbackTest Aborted The test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA –...
  • Page 884 • 218-806-000 : Brocade:InternalLoopbackTest Aborted The test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 885 2. Verify whether the firmware is at proper level. 3. Rerun the test. 4. If the problem remains, contact your IBM technical-support representative. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 886 User Response Complete the following steps: 1. Rerun the test. 2. Verify whether the firmware is at proper level. 3. Rerun the test. 4. If the problem remains, contact your IBM technical-support representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 887 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 218-904-000 : Brocade:ExternalEthLoopbackTest Failed A failure was detected during the Loopback test. Recoverable Severity Error Serviceable Automatically notify support User Response Complete the following steps: 1.

  • Page 888: Dsa Checkpoint Panel Test Results

    Test results for the DSA checkpoint panel test The following messages can result when you run the DSA checkpoint panel test. • 180-000-000 : Check-point Panel Test Passed Check-point Panel Test Passed. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 889 Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 180-801-000 : Check-point Panel Test Aborted Check-point Panel Test Aborted. BMC is unable to verify that the operator information panel cable is connected.

  • Page 890: Dsa Cpu Stress Test Results

    The following messages can result when you run the DSA CPU stress test. • 089-000-000 : CPU Stress Test Passed CPU Stress Test Passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA Lenovo System x3630 M4 Installation and Service Guide...
  • Page 891 6. If the system has stopped responding, turn off and restart the system and then run the test again. 7. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 892 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 089-804-000 : CPU Stress Test Aborted CPU Stress Test Aborted. User pressed Ctrl-C. Recoverable Severity Warning Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...

  • Page 893: Dsa Emulex Adapter Test Results

    Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 089-901-000 : CPU Stress Test Failed CPU Stress Test Failed. Recoverable Severity Error Serviceable Automatically notify support User Response Complete the following steps: 1.
  • Page 894 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 516-002-000 : ELXUCNA: ELXUCNA: NIC LED(Beacon)Test Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links Lenovo System x3630 M4 Installation and Service Guide...
  • Page 895 – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 516-800-000 : ELXUCNA: NIC MAC LoopBackTest Aborted Loopback testing at the MAC layer was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links –...
  • Page 896 – Latest level of BMC/IMM • 516-901-000 : ELXUCNA: NIC PHY LoopBackTest Failed A failure was detected during the loopback test at the physical layer. Recoverable Severity Error Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...

  • Page 897: Dsa Exa Port Ping Test Results

    2. Rerun the test. 3. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 898 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 401-802-000 : EXA Port Ping Test Aborted EXA Port Ping Test Aborted. Port connections may not be correct. Recoverable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 899 2. Make sure that the scalability cable connections are as per specification. 3. Make sure that DSA and BIOS/uEFI are at the latest level. 4. If the problem remains, contact your technical-service representative. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...

  • Page 900: Dsa Hard Drive Test Results

    Complete the following steps: 1. Check cable connections. 2. Rerun the test. 3. Verify that Hard drive supports self test and self test logging. 4. If the problem remains, contact your technical-support representative. Related links Lenovo System x3630 M4 Installation and Service Guide...

  • Page 901: Dsa Intel Network Test Results

    – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 217-900-000 : HDD Test Failed HDD Test Failed. The hard drive self-test detected a failure. Recoverable Severity Error Serviceable Automatically notify support User Response Complete the following steps: 1.
  • Page 902 The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 406-003-000 : IANet:Interrupts Test Passed Lenovo System x3630 M4 Installation and Service Guide...
  • Page 903 The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 406-004-000 : IANet:Loopback Test Passed The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links –...
  • Page 904 Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 406-803-000 : IANet:Interrupts Test Aborted Interrupt test was canceled. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 905 Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 406-804-000 : IANet:Loopback Test Aborted Loopback test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links –...
  • Page 906 Complete the following steps: 1. Check component firmware level and upgrade if necessary. The installed firmware level can be found in the DSA Diagnostic Event Log within the Firmware/VPD section for this component. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 907 2. Rerun the test. 3. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...

  • Page 908: Dsa Lsi Hard Drive Test Results

    The test passed. Recoverable Severity Event Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 407-800-000 : LSIESG:DiskDefaultDiagnostic Test Aborted Lenovo System x3630 M4 Installation and Service Guide...

  • Page 909: Dsa Mellanox Adapter Test Results

    The test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 407-900-000 : LSIESG:DiskDefaultDiagnostic Test Failed The hard drive self-test detected a failure.

  • Page 910: Test Results For The Dsa Mellanox Adapter Test

    Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 408-800-000 : MLNX:MLNX_DiagnosticTestEthernetPort Test Aborted Port Test was canceled. Recoverable Severity Warning Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 911 Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 408-801-000 : MLNX:MLNX_DiagnosticTestIBPort Test Aborted Port Test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website –...

  • Page 912: Dsa Memory Isolation Test Results

    Test results for the DSA memory isolation test The following messages can result when you run the DSA memory isolation test. • 201-000-000 : Standalone Memory Test Passed Quick/Full Memory Test All CPUs Passed. Recoverable Severity Event Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 913 Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-000-001 : Standalone Memory Test Passed Quick/Full Memory Test CPU 1 Passed. Recoverable Severity Event Serviceable Automatically notify support Related links –...
  • Page 914 Unable to Locate SMBIOS key "_SM_". Recoverable Severity Warning Serviceable Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 915 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 916 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-812-000 : Standalone Memory Test Aborted Memory test is not supported for this system. Recoverable Severity Lenovo System x3630 M4 Installation and Service Guide...
  • Page 917 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 918 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 919 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 920 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 921 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 922 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-814-003 : Standalone Memory Test Aborted Chipset Error: Can not disable Scubbing feature for CPU. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 923 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 924 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 925 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 926 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 927 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 928 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-818-002 : Standalone Memory Test Aborted Unable to Locate SMBIOS key "_SM_". Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 929 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 930 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 931 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 932 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 933 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 934 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-821-001 : Standalone Memory Test Aborted Variable range MTRR registers are larger than fixed range MTRR registers. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 935 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 936 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 937 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 938 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 939 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 940 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-826-000 : Standalone Memory Test Aborted BIOS: Memory Controller has been disabled. Go to Setup and Enable Memory Controller. Recoverable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 941 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 942 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA Lenovo System x3630 M4 Installation and Service Guide...
  • Page 943 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 944 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 945 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 946 Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-844-003 : Standalone Memory Test Aborted Chipset Error: Problem in masking MSR machine check control MASK registers. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 947 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 948 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 949 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 950 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 951 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 952 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-860-002 : Standalone Memory Test Aborted No OEM0 type 1 found. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 953 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 954 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 955 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 956 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 957 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 958 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-863-001 : Standalone Memory Test Aborted No IBMERROR key in OEM1 structure. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 959 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 960 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 961 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 962 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 963 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 964 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-866-000 : Standalone Memory Test Aborted EFI-SAL Invalid parameter from GetMemoryMap function. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 965 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 966 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 967 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 968 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 969 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 970 Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-868-003 : Standalone Memory Test Aborted EFI/SAL: Buffer allocated in GetMemoryMap too small. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 971 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 972 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 973 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 974 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 975 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 976 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-871-002 : Standalone Memory Test Aborted Data Mis-compare encountered. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 977 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 978 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 979 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 980 Automatically notify support User Response Complete the following steps: 1. Perform the actions mentioned one at a time and try the test after each action. 2. If the problem remains, contact your technical-service representative. Lenovo System x3630 M4 Installation and Service Guide...
  • Page 981 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 982 Latest level of DSA – Latest level of BMC/IMM • 201-885-001 : Standalone Memory Test Aborted Processor does not support MTRR register manipulation. Can not write to memory without cache. Recoverable Severity Warning Lenovo System x3630 M4 Installation and Service Guide...
  • Page 983 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 984 Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 985 3. Turn off the system and disconnect it from power. Wait for 45 seconds. Reseat DIMM(s). Reconnect it to power. 4. Make sure that DSA and BIOS/uEFI are at the latest level. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...
  • Page 986 201-899-000 : Standalone Memory Test Aborted Memory Diagnostics Test Aborted by user. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM Lenovo System x3630 M4 Installation and Service Guide...
  • Page 987 Memory Diagnostics Test Aborted by user. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-899-002 : Standalone Memory Test Aborted Memory Diagnostics Test Aborted by user.
  • Page 988 – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 201-901-001 : Standalone Memory Test Failed Memory Diagnostics Test Failed. Recoverable Severity Error Serviceable Automatically notify support Lenovo System x3630 M4 Installation and Service Guide...
  • Page 989 6. Make sure that all DIMMs are enabled in the Configuration/Setup Utility program. 7. If failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...

  • Page 990: Dsa Memory Stress Test Results

    Test results for the DSA memory stress test The following messages can result when you run the DSA memory stress test. • 202-000-000 : MemStr Test Passed Test Passed. Recoverable Severity Event Lenovo System x3630 M4 Installation and Service Guide...
  • Page 991 Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 202-801-000 : MemStr Test Aborted Internal program error. Recoverable Severity Warning Serviceable Automatically notify support User Response Complete the following steps: 1.
  • Page 992 2. Make sure that the DSA Diagnostic code is at the latest level. 3. Turn off the system and disconnect it from power. 4. Reseat the memory cards and DIMMs. 5. Reconnect the system to power and turn the system on. Lenovo System x3630 M4 Installation and Service Guide...

  • Page 993: Dsa Nvidia Gpu Test Results

    7. Execute the standard DSA memory diagnostics to validate all memory. 8. If the failure remains, refer to "Troubleshooting by symptom" in the system "Installation and Service Guide" for the next corrective action. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...

  • Page 994: Test Results For The Dsa Nvidia Gpu Test

    Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 409-004-000 : Nvidia::DiagnosticServiceProvider::Query Test Passed Nvidia GPU Query test passed. Recoverable Severity Event Serviceable Lenovo System x3630 M4 Installation and Service Guide...
  • Page 995 Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 409-005-000 : Nvidia::DiagnosticServiceProvider::Matrix Test Passed Nvidia GPU Matrix test passed. Recoverable Severity Event Serviceable Automatically notify support Related links –...
  • Page 996 Latest level of BMC/IMM • 409-804-000 : Nvidia::DiagnosticServiceProvider::Query Test Aborted Nvidia GPU Query test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA Lenovo System x3630 M4 Installation and Service Guide...
  • Page 997 Nvidia GPU Matrix test was canceled. Recoverable Severity Warning Serviceable Automatically notify support Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 409-806-000 : Nvidia::DiagnosticServiceProvider::Binomial Test Aborted Nvidia GPU Binomial test was canceled. Recoverable...
  • Page 998 5. If the problem remains, contact your IBM technical-support representative. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM • 409-904-000 : Nvidia::DiagnosticServiceProvider::Query Test Failed Lenovo System x3630 M4 Installation and Service Guide...
  • Page 999 4. Rerun the diagnostics, using the same GPU, on system that is known to be working. A variety of system issues can cause diagnostic failure. 5. If the problem remains, contact your IBM technical-support representative. Related links – Lenovo Support website – Latest level of DSA – Latest level of BMC/IMM •...

  • Page 1000: Dsa Optical Drive Test Results

    Test results for the DSA optical drive test The following messages can result when you run the DSA optical drive test. • 215-000-000 : Optical Drive Test Passed Optical Drive Test Passed. Recoverable Lenovo System x3630 M4 Installation and Service Guide...
