System x3650 M4 (E5-2600 v2)

Product Guide

The System x3650 M4 server provides outstanding performance for your business-critical applications. Its
energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is
easy to service and manage. With more computing power per watt and the latest Intel Xeon processors,
you can reduce costs while maintaining speed and availability.
Suggested use: database, virtualization, enterprise applications, collaboration/email, streaming media,
web, HPC, Microsoft RemoteFX, and cloud applications.

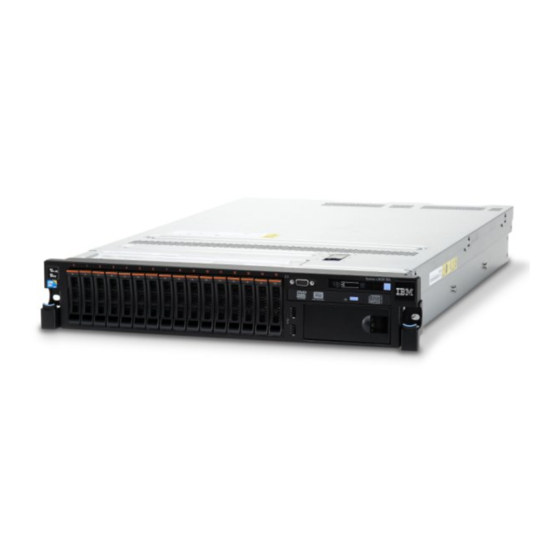

Figure 1 shows the System x3650 M4.
Figure 1. The System x3650 M4
Did you know?
The x3650 M4 offers a flexible, scalable design and simple upgrade path to 16 hard-disk drives (HDDs) or
solid-state drives (SSDs) plus optical and tape drives at the same time, with up to six PCIe Gen 3 slots and
up to 768 GB of memory. This flexible onboard Ethernet solution provides four standard embedded Gigabit
Ethernet ports and two optional embedded 10 Gb Ethernet ports without occupying PCIe slots.
Comprehensive systems management tools with the next-generation Integrated Management Module II
(IMM2) make it easy to deploy, integrate, service, and manage.
Check for Updates
System x3650 M4 (E5-2600 v2)
1

Advertisement

Table of Contents
loading

Related Manuals for Lenovo System x3650 M4

Summary of Contents for Lenovo System x3650 M4

  • Page 1: Product Guide

    System x3650 M4 (E5-2600 v2) Product Guide The System x3650 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

  • Page 2: Key Features

    With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This integration helps to dramatically reduce I/O latency and increase overall system performance. Support for NVIDIA Quadro graphics processing units (GPUs) to maximize computing power System x3650 M4 (E5-2600 v2)
  • Page 3 Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system. System x3650 M4 (E5-2600 v2)

  • Page 4: Components And Connectors

    IBM Systems Director Active Energy Manager™ provides advanced data center power notification and management to help achieve lower heat output and reduced cooling needs. Components and connectors Figure 2 shows the front of the server. Figure 2. Front view of the System x3650 M4 System x3650 M4 (E5-2600 v2)
  • Page 5 Figure 3 shows the rear of the server. Figure 3. Rear view of the System x3650 M4 Figure 4 shows the locations of key components inside the server. Figure 4. Inside view of the System x3650 M4 System x3650 M4 (E5-2600 v2)

  • Page 6: Standard Specifications

    Network Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet interfaces ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot). System x3650 M4 (E5-2600 v2)

  • Page 7: Components Specification

    Limited warranty Three-year customer-replaceable unit and on-site limited warranty with 9x5 next business day (NBD). Service and Optional service upgrades are available through Lenovo Services: Four-hour or two-hour support response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for System x hardware and some third-party applications.

  • Page 8: Standard Models

    * x in the Model number represents a country-specific letter (for example, the EMEA Model number is 7915A3G, and the US Model number is 7915A3U). Ask a Lenovo representative for specifics. † Processor detail: Processor quantity and model, cores, core speed, L3 cache, memory speed, TDP.

  • Page 9: Express Models

    HS / 2 7915K3G 1x E5-2609 v2 4C 2.5GHz 1x 8GB M5110e 8x 2.5" Open bay 3 / 6 Optional 1x 550W 10MB 1333MHz 80W 1600MHz§ 512MB (f) HS / 16 HS / 2 System x3650 M4 (E5-2600 v2)

  • Page 10: Processor Options

    1600 MHz to match the rated speed of the installed DIMM. Actual memory speed maximums depend on several factors, as described in "Memory options". * Includes USB Memory Key for VMWare ESXi 5.5. Processor options System x3650 M4 (E5-2600 v2)

  • Page 11: Memory Options

    System x memory automatically assumes the System x system warranty, and Lenovo provides service and support worldwide. The System x3650 M4 supports DDR3 memory. The server supports up to 12 DIMMs when one processor is installed and up to 24 DIMMs when two processors are installed. Each processor has four memory channels, and there are three DIMMs per channel.
  • Page 12 1333 MHz 1600 MHz 1866 MHz 3 DIMMs per channel 800 MHz 1066 MHz 1066 MHz 800 MHz 1066 MHz 1066 MHz * The maximum quantity that is supported is shown for two processors installed. System x3650 M4 (E5-2600 v2)
  • Page 13 DIMMs must be installed per populated channel (the DIMMs do not need being identical). In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs installed. System x3650 M4 (E5-2600 v2)

  • Page 14: Feature Description

    1333MHz LP HyperCloud DIMM Internal storage The System x3650 M4 server supports 1.8-inch solid-state drives (SSDs), 2.5-inch SSDs and HDDs, and 3.5-inch HDDs. The server supports the following configurations: 1. 16x 2.5-inch hot-swap drive bays, either with or without a SAS expander 2.
  • Page 15 For models with eight 2.5-inch hot-swap bays, adds eight more bays for a total of 16 2.5-inch hot-swap HDD bays. Does not include a SAS expander. Requires a second RAID adapter for the second set of eight drives. Includes internal cables. System x3650 M4 (E5-2600 v2)
  • Page 16 Includes two backplanes (one of these comes with a SAS expander card that is mounted on it). Includes two SAS HD internal cables. Includes power and signal internal cables. Requires either one M5210 or one N2215. System x3650 M4 (E5-2600 v2)
  • Page 17 32x 1.8-inch drives (CTO x3650 M4 Hot-Swap 16/32 HDD Assembly Kit, feature A39X 4x adapters only) x3650 M4 16 Plus 16 1.8" SSD Assembly Option Kit, part 00D9492, feature A39Y Hot-swap drives - 12 Gb System x3650 M4 (E5-2600 v2)
  • Page 18 M4 2.5" Simple Swap Kit, feature A3A0 (CTO only) Onboard drives (CTO only) Tape drive option Add an internal tape x3650 M4 Tape Enablement Kit, part 69Y5320, feature A1L6 None drive to any of the above System x3650 M4 (E5-2600 v2)

  • Page 19: Controllers For Internal Storage

    * The ServeRAID M5100 Series Battery Kit (81Y4508) is only supported with ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade (81Y4484). † This FoD upgarde requires one of the cache memory upgrades. ** Cannot be installed if an internal tape drive is installed System x3650 M4 (E5-2600 v2)
  • Page 20 Supports 512 MB battery-backed cache or 512 MB, 1 GB, or 2 GB flash-backed cache Up to 6 Gbps throughput per port PCIe 3.0 x8 host interface Based on the LSI SAS2208 6 Gbps ROC controller System x3650 M4 (E5-2600 v2)
  • Page 21 Up to 12 Gbps throughput per port PCIe 3.0 x8 host interface Based on the LSI SAS3008 12 Gbps controller For more information, see the list of Lenovo Press Product Guides in the RAID adapters category: https://lenovopress.com/servers/options/raid?rt=product-guide System x3650 M4 (E5-2600 v2)

  • Page 22: Internal Drive Options

    00AD085 A48T 1.2TB 10K 6Gbps SAS 2.5'' G2HS SED 2.5-inch hot-swap SSDs - Enterprise 6 Gbps SAS 49Y6129 A3EW 200GB SAS 2.5" MLC HS Enterprise SSD 49Y6134 A3EY 400GB SAS 2.5" MLC HS Enterprise SSD System x3650 M4 (E5-2600 v2)
  • Page 23 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 49Y6002 A3W9 4TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 00FN143 A5VH 4TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN173 A5VM 6TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD System x3650 M4 (E5-2600 v2)

  • Page 24: Internal Backup Units

    00D2788 A2VG RDX Internal USB 3.0 Dock with 1TB Cartridge For more information, see the list of lenovo Press Product Guides in the Backup units category: https://lenovopress.com/storage/tape?rt=product-guide Optical drives The server supports the optical drive options listed in the following table.

  • Page 25: I/O Expansion Options

    M4 PCIe Riser Card 2 (1 x16 for GPU + 1 x8 FH/HL Slots) * For CTO orders, the first feature code is for the first riser slot and the second feature code is for the second riser slot. System x3650 M4 (E5-2600 v2)

  • Page 26: Network Adapters

    A499* x3650 M4 Thermal Solution Kit * For CTO orders, feature code A3ZE, IBM System x3650 M4 Fan Assembling Kit will be substituted Network adapters The x3650 M4 supports four integrated Gigabit Ethernet ports. Optionally, two 10 Gb Ethernet ports can be added by installing one of the dual-port 10 Gb Ethernet mezzanine cards listed in the following table.
  • Page 27 QLogic 8200 VFA FCoE/iSCSI License (FoD) (FoD license for 90Y4600 -- one for each adapter) 47C9952 A47H Solarflare SFN5162F MR Dual Port 10GbE SFP+ Adapter 47C9977 A522 Solarflare SFN7122F 2x10GbE SFP+ Flareon Ultra Gigabit Ethernet System x3650 M4 (E5-2600 v2)

  • Page 28: Storage Host Bus Adapters

    # Maximum quantity is achieved with two processors installed. With one processor, the maximum quantity is half of the listed value (this does not apply to mezzanine cards). For more information, see the list of Lenovo Press Product Guides in the Networking adapters category: https://lenovopress.com/servers/options/ethernet?rt=product-guide Storage host bus adapters The following table lists storage HBAs available for the x3650 M4 server.

  • Page 29: Pcie Ssd Adapters

    For more information, see the list of Lenovo PressProduct Guides in the Host bus adapters category: https://lenovopress.com/servers/options/hba?rt=product-guide PCIe SSD adapters The server supports the High IOPS SSD adapters listed in the following table. Table 18. SSD adapters Part number Feature code...

  • Page 30: Power Supplies

    An AC power supply ships standard with one 2.8 m C13 - C14 power cord. General power supply rules are as follows: Minimum of 1 and maximum of 2 power supplies per system If 2 installed, power supplies must be identical System x3650 M4 (E5-2600 v2)
  • Page 31 Maximum 1 Quadro K5000 or any supported quantity of Quadro K2000, K600 All other GPUs not supported Processors up to 115W supported Maximum 16 DIMMs No Quad rank RDIMMs, LRDIMM or HCDIMM Maximum 2 PCIe adapters (including mezzanine cards, excluding GPUs) Maximum 8 drives System x3650 M4 (E5-2600 v2)

  • Page 32: Integrated Virtualization

    The following table lists the virtualization options. Table 21. Virtualization options Part number Feature Description Maximum code supported 41Y8298 A2G0 Blank USB Memory Key for VMware ESXi Downloads 41Y8382 A4WZ USB Memory Key for VMware ESXi 5.1 Update 1 Systems management System x3650 M4 (E5-2600 v2)
  • Page 33 Table 23. Light path diagnostics options Part number Feature code Description Maximum Models supported where used None* A1LF System x Lightpath Kit 00Y7676 A2U6 System x Advanced Lightpath Kit All models * CTO only System x3650 M4 (E5-2600 v2)

  • Page 34: Operating Systems

    Shipment: -40 °C to +60 °C (-40 °F to 140 °F) Humidity: Server on: 8% to 85%, maximum dew point 24 °C, maximum rate of change 5 °C/hr Server off: 8% to 85%, maximum dew point 27 °C System x3650 M4 (E5-2600 v2)

  • Page 35: Warranty Options

    6.4 bels (idle) Warranty options The System x3650 M4 has a three-year warranty with 24x7 standard call center support and 9x5 Next Business Day onsite coverage. Also available are Lenovo Services warranty maintenance upgrades and post-warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.
  • Page 36 Lenovo server. In the unlikely event of a hard drive failure, you retain possession of your hard drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands.

  • Page 37: Regulatory Compliance

    RTS can reduce problem resolution time, decreasing the cost to address technical problems and increasing uptime. Offerings are available for Windows, Linux, IBM Systems Director, VMware, Microsoft business applications, and Lenovo System x storage devices, and IBM OEM storage devices.

  • Page 38: External Disk Storage Expansion

    The x3650 M4 supports attachment to external storage expansion enclosures, such as the EXP2500 series, by using the ServeRAID M5120 SAS/SATA Controller. The x3650 M4 can also be attached to supported external storage systems, such as the Lenovo Storage S3200 (see the External disk storage systems section).
  • Page 39 PCIe x8 Gen 3 host interface Based on the LSI SAS2208 6 Gbps ROC controller Supports connectivity to the EXP2512 and EXP2524 storage expansion enclosures For more information, see the following Lenovo Press Product Guides: ServeRAID M5120 SAS/SATA Controller http://lenovopress.com/tips0858 ServeRAID M5225-2GB SAS/SATA Controller http://lenovopress.com/tips1258...

  • Page 40: Part Number Description

    600GB 10,000 rpm 6Gb SAS 2.5" HDD 00NC567 900GB 10,000 rpm 6Gb SAS 2.5" HDD 00NC569 1.2TB 10,000 rpm 6Gb SAS 2.5" HDD 2.5" SAS HS SSDs 00NC573 200GB 6Gb SAS 2.5" SSD 00NC575 400GB 6Gb SAS 2.5" SSD System x3650 M4 (E5-2600 v2)

  • Page 41: External Disk Storage Systems

    External disk storage systems The following table lists the external storage systems that are offered by Lenovo that can be used in x3650 M4 solutions. Table 30. External disk storage systems Part number Description Lenovo Storage S2200 64112B1 Lenovo Storage S2200 LFF Chassis SAS Single Controller, Rack Kit, 9x5NBD...

  • Page 42: External Backup Units

    External backup units The following table lists the external backup options that are offered by Lenovo that can be used in x3650 M4 solutions. Table 31. External backup options Part number Description External tape enclosures 61901UX IBM Multimedia Backup Enclosure...

  • Page 43: Top-Of-Rack Ethernet Switches

    Top-of-rack Ethernet switches The following table lists the top-of-rack Ethernet switches that are offered by Lenovo that can be used in x3650 M4 solutions. Table 32. Top-of-rack switches Part number Description 1 Gb Ethernet top-of-rack switches 7159BAX Lenovo RackSwitch G7028 (Rear to Front)

  • Page 44: Power Distribution Units

    Power distribution units The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in x3650 M4 solutions. Table 34. Power distribution units Part number Description 0U Basic PDUs 46M4122 0U 24 C13 16A 3 Phase PDU with IEC 309 P+N+Gnd line cord...

  • Page 45: Rack Cabinets

    For more information, see the list of Product Guides in the Power infrastructure category: http://lenovopress.com/systemx/power Rack cabinets The following table lists the rack cabinets that are offered by Lenovo that can be used in x3650 M4 solutions. Table 35. Rack cabinets...

  • Page 46: Rack Console Options

    Long KVM Conversion Option (4 Pack Long KCO) 46M5383 5341 Virtual Media Conversion Option Gen2 (VCO2) 46M5382 5340 Serial Conversion Option (SCO) For more information, see the list of Product Guides in the Rack cabinets and options category: http://lenovopress.com/systemx/rack System x3650 M4 (E5-2600 v2)

  • Page 47: Lenovo Financial Services

    For you, this dedication provides a high-quality, easy, and positive financing experience. For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com...
  • Page 48 Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.
  • Page 49 This document is available online at http://lenovopress.com/TIPS0850. Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. These and other Lenovo trademarked terms are marked on their first occurrence in this information with the appropriate symbol (®...
