Lenovo System x3650 M5 (E5-2600 v4)

Product Guide

With the powerful, versatile 2U rack server design, the dual-socket Lenovo System x3650 M5 (E5-2600 v4) server
(Machine Type 8871) can run even more workloads, 24 x 7, and gain faster business insights. Integrated with Intel
Xeon processor E5-2600 v4 product family and industry-leading two-socket storage capacity, the System x3650 M5
delivers exceptional performance. Flexible and scalable internal storage configurations include up to 28x 2.5-inch or
14x 3.5-inch drives with a wide selection of drive sizes and types.
Suggested uses: Database, cloud computing and virtualization, enterprise applications, collaboration/email,
business analytics and big data, virtual desktops, and Microsoft RemoteFX applications.

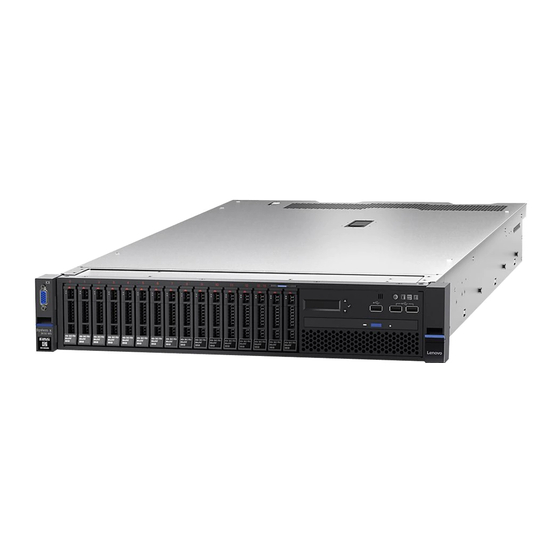

The following figure shows the System x3650 M5.
Figure 1. Lenovo System x3650 M5
Did you know?
The System x3650 M5 incorporates energy-smart features for minimized costs and efficient performance. Dual fan
zones support operation in up to 40°C environments. The 80 PLUS Titanium power supply units (PSUs) can deliver
96% efficiency at 50% load.
The System x3650 M5 has outstanding memory performance that is achieved by supporting two-RDIMMs-per-
channel configurations at speeds up to 12% faster than the Intel specification, while still maintaining world-class
reliability.
System x® servers achieved the highest reliability of any x86 servers; see ITIC 2015 - 2016 Global Server Hardware,
Server OS Reliability Report, July 2015:
http://www.lenovo.com/images/products/system-x/pdfs/white-papers/itic_2015_reliability_wp.pdf
The System x3650 M5 integrates leadership security and reliability. System x Trusted Platform Assurance, an
exclusive set of System x features and practices, establishes a solid security foundation for your workloads.
Enterprise-class data protection is provided with optional self-encrypting drives, and advanced diagnostic tools
facilitate reduced downtime and costs.
Check for Updates
Lenovo System x3650 M5 (E5-2600 v4)
1

Advertisement

Table of Contents
loading

Related Manuals for Lenovo System x3650 M5

Summary of Contents for Lenovo System x3650 M5

  • Page 1: Product Guide

    Lenovo System x3650 M5 (E5-2600 v4) Product Guide With the powerful, versatile 2U rack server design, the dual-socket Lenovo System x3650 M5 (E5-2600 v4) server (Machine Type 8871) can run even more workloads, 24 x 7, and gain faster business insights. Integrated with Intel Xeon processor E5-2600 v4 product family and industry-leading two-socket storage capacity, the System x3650 M5 delivers exceptional performance.

  • Page 2: Key Features

    Combining balanced performance and flexibility, the System x3650 M5 is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely.
  • Page 3 Manageability and security Powerful systems management features simplify local and remote management of the System x3650 M5 and deliver enterprise-class data protection: The server includes an Integrated Management Module II (IMM2.1) to monitor server availability and perform remote management.

  • Page 4: Components And Connectors

    Figure 3. Front view of the System x3650 M5: 16x 2.5-inch drive bays; Advanced OP Panel (optional) The following figure shows the front of the System x3650 M5 server with up to 16x 2.5-inch drive bays and the Light path LCD Panel (optional).
  • Page 5 The following figure shows the front of the System x3650 M5 server with up to 24x 2.5-inch drive bays. Figure 5. Front view of the System x3650 M5: 24x 2.5-inch drive bays The following figure shows the front of the System x3650 M5 server with 8x 3.5-inch drive bays.
  • Page 6 The following figure shows the rear of the System x3650 M5 server. Figure 8. Rear view of the System x3650 M5 The following figure shows the locations of key components inside the System x3650 M5 server. Figure 9. Internal view of the System x3650 M5...

  • Page 7: System Specifications

    Network Four integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719); optional Mezzanine LOM (ML2) interfaces slot for dual-port or quad-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors. Lenovo System x3650 M5 (E5-2600 v4)
  • Page 8 Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day. Service and Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 8- support hour fix time, 1-year or 2-year warranty extension, remote technical support for System x hardware and some System x third-party applications.

  • Page 9: Standard Models

    HS / 20 HS / 2 * x in the Model number represents a country-specific letter (for example, the EMEA model number is 8871A2G). Ask a Lenovo representative for specifics. ** Processor details: Processor quantity and model, cores, core speed, cache, memory speed, and thermal design power (TDP).

  • Page 10: Topseller Models

    Cable Management Arm (CMA) is not included; see Rack installation for ordering information. Power cables are not included; see Power supplies and cables for ordering information. TopSeller models The following table lists the TopSeller models of the System x3650 M5. Table 3. TopSeller models Drive...
  • Page 11 HS / 2 8871EQG 1x E5-2650 v4 12C 2.2GHz 1x 16GB M5210 8x 2.5" Open bay 4x GbE 3 / 9 Optional^ Optional^^ 1x 900W 30MB 2400MHz 105W HS / 20 HS / 2 Lenovo System x3650 M5 (E5-2600 v4)
  • Page 12 ‡ The maximum number of the drive bays (16) includes 12x 3.5" front bays, 2x 3.5" rear bays, and 2x 2.5" rear bays. The TopSeller models of the System x3650 M5 that are listed in Table 3 are shipped with the following items:...
  • Page 13 145 W For System x3650 M5 server models that come standard with one processor, the second processor can be ordered, if required (see the following table for ordering information). The second processor must be of the same model as the first processor.
  • Page 14 The System x3650 M5 server supports up to 12 DIMMs when one processor is installed and up to 24 DIMMs when two processors are installed. Each processor has four memory channels, and there are three DIMMs per channel.

  • Page 15: Internal Storage

    * Maximum memory capacity is achieved with two processors installed. With one processor, the maximum memory capacity is a half of what is shown. The following table lists memory options available for the System x3650 M5 server. Table 7. Memory options...
  • Page 16 Figure 10. Internal front drive configurations 8x 3.5-inch drive bay models of the System x3650 M5 have one optical disk drive (ODD) bay. For models with up to 16x 2.5-inch drive bays, the optional Standard or Advanced or Light path LCD OP Panel provides one optical drive bay and 3x USB 2.0 ports.
  • Page 17 The following table shows the internal storage options available for the System x3650 M5 server. Table 9. Internal storage options Part Feature Maximum Description number code supported Base drive kits (factory installed)* System x3650 M5 8x 2.5" HS HDD Assembly Kit (Single RAID)
  • Page 18 (rear) (2 drives) 1x x3650 M5 Rear 2x 2.5" HDD Kit (Independent RAID) (FC A5GH) Field upgrade for 2.5-inch and 3.5-inch HS drive models: 1x x3650 M5 Rear 2x 2.5" HDD Kit (PN 00FK658) Lenovo System x3650 M5 (E5-2600 v4)

  • Page 19: Configuration Notes

    For 12x 3.5-inch drive bay models, either 1x Rear 2x 3.5" HDD Kit (Independent RAID) or 1x Rear 2x 3.5" HDD Kit (Cascaded) can be used in the configuration, but not both. If the Cascaded Kit is used, 1x Rear 2x 2.5" HDD Kit (Independent RAID) also can be used in the configuration. Lenovo System x3650 M5 (E5-2600 v4)

  • Page 20: Controllers For Internal Storage

    * One FoD upgrade enable the feature on all ServeRAID M5200 Series adapters (M5210, M5225) installed in the server. ** Requires cache memory upgrade (47C8656, 47C8660, 47C8664, or 47C8668). *** One FoD upgrade enable the feature on all ServeRAID M1200 Series adapters (M1215) installed in the server. Lenovo System x3650 M5 (E5-2600 v4)
  • Page 21 For more information, see the list of Product Guides in the RAID adapters category: https://lenovopress.com/servers/options/raid The following table lists supported combinations of the storage controllers and drive types for the System x3650 M5 drive bay configurations. Table 13. Storage controllers, drive types, and internal drive bays...

  • Page 22: Drives For Internal Storage

    ** SEDs are supported with the RAID 5 FoD upgrade (47C8708) or any cache upgrade (47C8656, 47C8660, 47C8664, 47C8668). Drives for internal storage The following tables list drive options for the System x3650 M5. Table 14. Drive options for internal storage: 2.5-inch hot-swap drives...
  • Page 23 480GB SATA 2.5" MLC G3HS Enterprise Value SSD 00AJ405 A579 800GB SATA 2.5" MLC G3HS Enterprise Value SSD 00AJ410 A57A 2.5-inch hot-swap SSDs - Enterprise Value PCIe 3.0 x4* Intel P3600 400GB NVMe 2.5" G3HS Enterprise Value PCIe SSD 90Y3227 A5RW Lenovo System x3650 M5 (E5-2600 v4)
  • Page 24 960GB Enterprise Entry SATA HS 3.5" SSD 00YC420 AT8Y 3.5-inch hot-swap SSDs - Enterprise Value 6 Gbps SATA 120GB SATA 3.5" MLC HS Enterprise Value SSD 00AJ435 A57F 480GB SATA 3.5" MLC HS Enterprise Value SSD 00AJ445 A57H Lenovo System x3650 M5 (E5-2600 v4)

  • Page 25: Optical Drives

    Optical drives The System x3650 M5 server supports the optical drive options listed in the following table. Storage dense models with 12x 3.5-inch or up to 24x 2.5-inch drive bays on the front do not support internal optical drive; a supported external optical drive can be used instead.
  • Page 26 I/O expansion The System x3650 M5 server supports up to nine PCIe slots: one slot on the system planar that is dedicated for an internal storage controller, two regular PCIe slots on the system planar, and up to six PCIe slots with different riser cards installed into two riser sockets on the system planar (one riser socket supports installation of one riser card).
  • Page 27 The COM Port Bracket, part number 00KA161, is used for mounting the external serial port on the rear of the System x3650 M5. This option includes the bracket and the cable. The COM Port option is mounted in place of the PCIe slot 5, and the PCIe slot 5 cannot be used.

  • Page 28: Network Adapters

    Network adapters The System x3650 M5 supports four integrated Gigabit Ethernet ports. Optionally, the server supports ML2 adapters that are installed in the custom ML2 slot provided by the PCIe ML2 riser cards (part numbers 00KA504 and 00KA519). This slot supports adapters with either two 10 Gb ports or four Gigabit Ethernet ports and supports direct connectivity to the IMM2.1 service processor for out-of-band systems management.
  • Page 29 *** The maximum number of transceivers or cables that are supported per adapter equals the quantity of the adapter ports. All adapter ports must have the same type of transceiver or DAC cable selected. For more information, see the list of Product Guides in the Ethernet and InfiniBand adapter categories: https://lenovopress.com/servers/options/ethernet https://lenovopress.com/servers/options/infiniband Lenovo System x3650 M5 (E5-2600 v4)

  • Page 30: Sas Adapters For External Storage

    SSD Caching (CacheCade Pro 2.0) Optional (PN 47C8712) None None For more information about the ServeRAID M5225-2GB, see the Lenovo Press Product Guide: http://lenovopress.com/tips1258 For more information about SAS HBAs, see the list of Product Guides in the Host bus adapters category: https://lenovopress.com/servers/options/hba...

  • Page 31: Flash Storage Adapters

    For more information, see the list of Product Guides in the Host bus adapters category: https://lenovopress.com/servers/options/hba Flash storage adapters The System x3650 M5 server supports the flash storage adapters listed in the following table. Table 23. Flash storage adapters (LP = Low Profile PCIe adapter, FH = Full-High PCIe adapter) Part...

  • Page 32: Gpu Adapters

    The io3 Flash Adapters cannot be factory installed; they are supported as field-installable options only. The server cannot be shipped with these adapters installed. GPU adapters The System x3650 M5 server supports graphics processing units (GPUs) listed in the following table. Table 24. GPU adapters Part...

  • Page 33: Power Supplies And Cables

    Cooling The System x3650 M5 server supports up to six system fans that provide dual fan zones cooling with N+1 fan redundancy, and each system fan has one rotor. System x3650 M5 server models with one processor include four system fans, and server models with two processors include six system fans.
  • Page 34 The System x3650 M5 servers ship standard with or without a power cord (model dependent). A hot-swap power supply option ships standard with one 2.8m, 10A/100-250V, IEC 320-C13 to C14 rack power cable. Country-specific line cords and rack power cables can be ordered, if needed (see the following table).

  • Page 35: Integrated Virtualization

    Integrated virtualization The System x3650 M5 server supports VMware ESXi installed on a USB memory key or one or two SD cards in the SD Media Adapter. The USB memory key is installed in a USB socket inside the server. The SD Media Adapter is installed in a dedicated slot inside the server.

  • Page 36: Systems Management

    Lenovo XClarity Energy Manager Integrated Management Module 2.1 The System x3650 M5 server contains Integrated Management Module II (IMM2.1), which provides advanced service-processor control, monitoring, and an alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM2.1 lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem.
  • Page 37 ATE6); both Advanced Panel (feature code ATE6) and LCD Op Panel (feature code A4VH) must be selected. Lenovo ToolsCenter Lenovo offers the following ToolsCenter software tools that can help you set up, use, and maintain the server at no additional cost:...

  • Page 38: Lenovo Xclarity Administrator

    Lenovo XClarity is an optional software component for the System x3650 M5 that is licensed on a per managed server basis, that is, each managed server requires a license.
  • Page 39 Lenovo XClarity Energy Manager provides a stand-alone, web-based agent-less power management console that provides real time data and enables you to observe, plan and manage power and cooling for Lenovo System x and ThinkServer x86 servers. Using built-in intelligence, it identifies server power consumption trends and ideal power settings and performs cooling analysis so that you can define and optimize power-saving policies.

  • Page 40: Rack Installation

    Rack installation The following table lists the rack installation options that are available for the System x3650 M5 server. Table 33. Rack installation options Part Feature Maximum Description number code supported 4-post rail kits (distance between the front and rear mounting flanges; mounting hole types) System x Enterprise Slides Kit (617 mm - 812 mm;...

  • Page 41: Warranty

    6.4 bels (idle) Warranty The System x3650 M5 has a three-year warranty with 24x7 standard call center support and 9x5 Next Business Day onsite coverage. Also available are Lenovo Services warranty maintenance upgrades and post-warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

  • Page 42: Regulatory Compliance

    Lenovo’s Hard Drive Retention service is a multi-drive hard drive retention offering that ensures your data is always under your control, regardless of the number of hard drives that are installed in your Lenovo server. In the unlikely event of a hard drive failure, you retain possession of your hard drive while Lenovo replaces the failed drive part.

  • Page 43: External Drive Enclosures

    CISPR 22, Class A TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000) RoHS Directive External drive enclosures The following table lists the external drive enclosures that are offered by Lenovo that can be used with the System x3650 M5 for storage expansion. Table 35. External drive enclosures Description...
  • Page 44 External storage systems The following table lists the external storage systems that are offered by Lenovo that can be used with the System x3650 M5 in storage solutions. Table 36. External storage systems Description Part number Lenovo N Series Lenovo Storage N3310...

  • Page 45: External Backup Units

    External backup units The following table lists the external backup options that are offered by Lenovo that can be used with the System x3650 M5 in backup solutions. Table 37. External backup options Description Part number External RDX USB drives RDX External USB 3.0 Dock with 320GB Cartridge...

  • Page 46: Fibre Channel San Switches

    Fibre Channel SAN switches The following table lists the Fibre Channel SAN switches that are offered by Lenovo that can be used with the System x3650 M5 in FC SAN storage connectivity solutions. Table 39. Fibre Channel SAN switches...

  • Page 47: Kvm Switches And Consoles

    Rack cabinets The following table lists the rack cabinets that are offered by Lenovo that can be used in System x3650 M5 solutions. Table 40. Rack cabinets Description Part number 11U Rack Office Enablement Kit 201886X 25U S2 Standard Rack...

  • Page 48: Uninterruptible Power Supply Units

    39M2895 Virtual Media Conversion Option Gen2 (VCO2) 46M5383 Serial Conversion Option (SCO) 46M5382 For more information, see the list of Product Guides in the KVM Switches and Consoles category: http://lenovopress.com/servers/options/kvm Uninterruptible power supply units Lenovo System x3650 M5 (E5-2600 v4)

  • Page 49: Power Distribution Units

    Uninterruptible power supply units The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in System x3650 M5 solutions. Table 42. Uninterruptible power supply units Description Part number RT1.5kVA 2U Rack or Tower UPS (100-125VAC) 55941AX RT1.5kVA 2U Rack or Tower UPS (200-240VAC)

  • Page 50: Lenovo Financial Services

    DPI 30a Line Cord (NEMA L6-30P) 40K9614 DPI 60a Cord (IEC 309 2P+G) 40K9615 DPI Australian/NZ 3112 Line Cord 40K9617 For more information, see the list of Product Guides in the PDU category: https://lenovopress.com/servers/options/pdu Lenovo Financial Services Lenovo System x3650 M5 (E5-2600 v4)

  • Page 51: Related Publications And Links

    For you, this dedication provides a high-quality, easy, and positive financing experience. For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com...
  • Page 52 Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.
  • Page 53 Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at http://www.lenovo.com/legal/copytrade.html. The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo®...
