System x3630 M4 (E5-2400)
Product Guide
The System x3630 M4 server offers a cost-effective high-capacity storage solution with exceptional
energy-smart design, leadership virtualization, and powerful systems management. It supports up to two
eight-core Intel Xeon processors and high-density memory designs with twelve DDR3 DIMM slots. This 2U
server consolidates storage and server into one system, offers easy management, and saves floor space
and power consumption, costing less money than traditional enterprise offerings. Designed with
redundancy, flexible subsystems, and a wider range of configuration options, the x3630 M4 also offers an
innovative Feature on Demand (FoD) design for an easier upgrade path.
Suggested use: Collaboration/email applications, light databases, virtualization/cloud, virtual desktops,
web serving, and virtual storage.
The following figure shows the System x3630 M4.

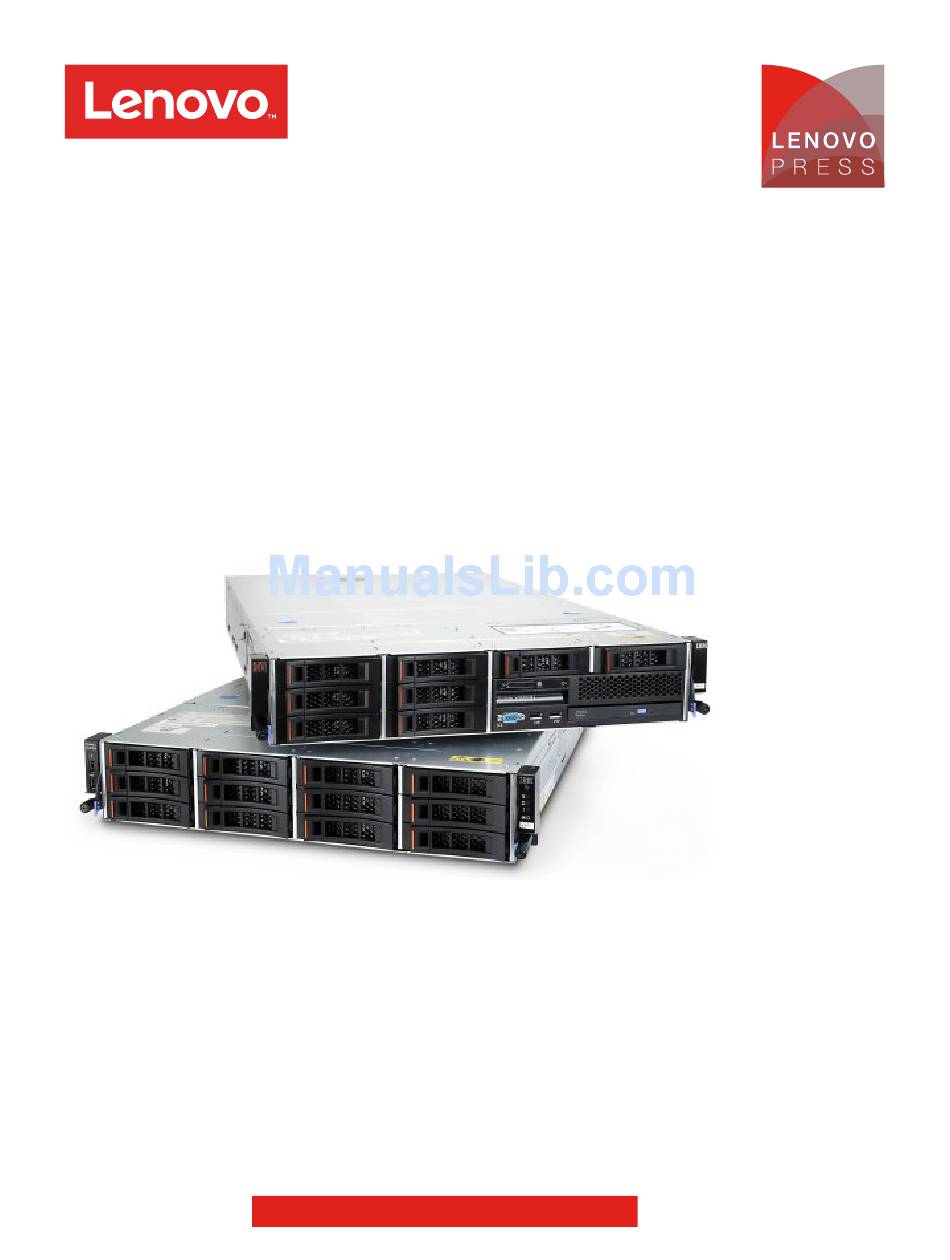

Figure 1. The System x3630 M4
Did you know?
The System x3630 M4 server is designed to provide exceptional value and flexibility to meet general
business or storage-intensive requirements with up to 56 TB of storage space in a dense 2U form factor
and 80 PLUS Platinum certified power supplies. The flexible onboard Ethernet solution provides two
standard integrated Gigabit Ethernet ports and two additional integrated Gigabit Ethernet ports with an
optional software FoD upgrade without needing to buy additional hardware. Comprehensive systems
management tools with the next-generation Integrated Management Module II (IMM2) make it easy to
deploy, integrate, service, and manage.
Click here to check for updates
System x3630 M4 (E5-2400)
1
Advertisement
Table of Contents
Related Manuals for Lenovo System x3630 M4
Summary of Contents for Lenovo System x3630 M4
-
Page 1: Product Guide
Figure 1. The System x3630 M4 Did you know? The System x3630 M4 server is designed to provide exceptional value and flexibility to meet general business or storage-intensive requirements with up to 56 TB of storage space in a dense 2U form factor and 80 PLUS Platinum certified power supplies. -
Page 2: Key Features
The light path diagnostics panel and optional individual light path LEDs quickly lead the technician to failed (or failing) components. This panel simplifies servicing, speeds up problem resolution, and helps improve system availability. System x3630 M4 (E5-2400) - Page 3 IBM Systems Director Active Energy Manager™ provides advanced data center power notification and management to help achieve lower heat output and reduced cooling needs. System x3630 M4 (E5-2400)
-
Page 4: Components And Connectors
The following figure shows the front of the server with eight 3.5-inch drive bays. Figure 2. Front view of the System x3630 M4 with eight drive bays The following figure shows the front of the server with twelve 3.5-inch drive bays. - Page 5 The following figure shows the rear of the server without the optional rear HDD cage upgrade. Figure 4. Rear view of the System x3630 M4 without the rear HDD cage The following shows the rear of the server with the optional rear HDD cage upgrade.
- Page 6 The following figure shows the locations of key components inside the server. Figure 6. Inside view of the System x3630 M4 System x3630 M4 (E5-2400)
-
Page 7: System Specifications
Up to two redundant hot-swap 550 W HE AC, 750 W HE AC, or 900 W HE AC power supplies (all AC power supplies are 80 PLUS Platinum certified), or up to two redundant hot-swap 750 W HE DC power supplies. Hot-swap parts Hard drives (hot-swap models), power supplies. System x3630 M4 (E5-2400) -
Page 8: Specification
Optional service upgrades (country-specific) are available through Lenovo Services offerings: support 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for Lenovo hardware and selected third-party (Microsoft, Linux, VMware) software. Dimensions Height: 86 mm (3.4 in.), width: 447 mm (17.6 in.), depth: 749 mm (29.5 in.) Weight Minimum configuration: 16.4 kg (36.2 lb), maximum: 28.2 kg (62.2 lb) -
Page 9: Standard Models
* x in the Model number represents a country-specific letter (for example, the EMEA model number is 7158A1G, and the US model number is 7158A1U). Ask your local Lenovo representative for specifics. † Processor detail: Processor quantity and model, number of cores, core speed, L3 cache, memory speed, TDP. -
Page 10: Express Models
# This model is available only in Russia/Commonwealth of Independent States (R/CIS). ‡ This model is not available in Russia/Commonwealth of Independent States (R/CIS). (f) The ServeRAID M5110 RAID controller in this model includes flash-backed cache. Processor options System x3630 M4 (E5-2400) -
Page 11: Part Number Description
System x memory specifications are integrated into the light path diagnostics for immediate system performance feedback and optimum system uptime. From a service and support standpoint, System x memory automatically assumes the System x server warranty, and Lenovo provides service and support worldwide. - Page 12 * Maximum quantity supported is shown for two processors installed. When one processor is installed, the maximum quantity supported is a half of what is shown. ** Rated speed is not supported. Memory DIMMs always operate at speeds lower than rated. System x3630 M4 (E5-2400)
- Page 13 1333MHz LP RDIMM processor) 90Y3109 A292 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 12 (6 per 1600MHz LP RDIMM processor) 49Y1399 A14E 8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 12 (6 per 1066MHz LP RDIMM processor) System x3630 M4 (E5-2400)
-
Page 14: Internal Storage
Standard models ship with four or eight 3.5-inch SATA simple-swap drive bays or eight 3.5-inch SAS/SATA hot-swap drive bays. Storage-rich models ship with twelve 3.5-inch SAS/SATA hot-swap drive bays, and they can also be upgraded to fourteen 3.5-inch hot-swap drive bay models with the optional rear HDD cage assembly. System x3630 M4 (E5-2400) -
Page 15: Feature Description
ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade C4x, C6x, D2x 81Y4487 A1J4 ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade F2x, F4x 81Y4559 A1WY ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade G2x, H2x, J2x 47C8670 A4G6 ServeRAID M5100 Series 2GB Flash/RAID 5 Upgrade System x3630 M4 (E5-2400) - Page 16 SAS HDD SATA HDD SATA SSD 6Gb Performance SAS HDD Optimized HBA SATA HDD N2115 SATA SSD * Requires an FoD upgrade for ServeRAID C105 that supports eight SATA HDDs (8-pack SATA Enabler, part number 90Y4349). System x3630 M4 (E5-2400)
- Page 17 Supports connections to SAS/SATA HDDs and SATA SSDs Optimized for SSD performance No RAID support Up to 6 Gbps throughput per port PCIe 2.0 x8 host interface Based on the LSI SAS2008 6 Gbps ROC controller System x3630 M4 (E5-2400)
-
Page 18: Internal Drive Options
No RAID support PCIe 3.0 x8 host interface Based on the LSI SAS2308 6 Gbps controller For more information, see the list of Lenovo Press Product Guides in the RAID adapters category: http://lenovopress.com/servers/options/raid Internal drive options The following table lists hard drive options for internal disk storage of the x3630 M4 server. -
Page 19: Internal Backup Units
Table 11. Internal tape drives Part Feature Description Maximum number code supported 90Y6370 A1ZM USB Tape Drive Cage assembling kit 46C5399 5711 DDS Generation 5 USB Tape Drive 39M5636 5395 DDS Generation 6 USB Tape Drive System x3630 M4 (E5-2400) -
Page 20: Optical Drives
Figure 5). See Figure 4 and Figure 5 for slot locations and numbering. Note: You cannot use 1U risers in models without the rear HDD cage. You cannot use 2U risers in models with the rear HDD cage assembly installed. System x3630 M4 (E5-2400) - Page 21 PCIe Riser Card 2 (1 x16 LP Slot + 1 x4 LP for Slotless RAID) (Riser kit for Slot 2 with Slotless RAID) * This riser card is installed in all standard models. It can also be used in CTO or special bid models. System x3630 M4 (E5-2400)
-
Page 22: Network Adapters
IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping, and packet filtering for up to 4096 VLAN tags IEEE 802.1q advanced packet filtering Mirroring rules Support for simple VEPA VF promiscuous modes System x3630 M4 (E5-2400) - Page 23 AS73 Intel X710 2x10GbE SFP+ Adapter 00D9690 A3PM Mellanox ConnectX-3 10 GbE Adapter 42C1800 5751 QLogic 10Gb CNA 90Y4600 A3MR QLogic 8200 Dual Port 10GbE SFP+ VFA 00Y5624 A3MT QLogic 8200 VFA FCoE/iSCSI License (FoD) 4‡ System x3630 M4 (E5-2400)
-
Page 24: Storage Host Bus Adapters
QLogic 8Gb FC Dual-port HBA 42D0501 3578 QLogic 8Gb FC Single-port HBA 46M0907 5982 6Gb SAS HBA 46C9010 A3MV N2125 SAS/SATA HBA For more information, see the list of Lenovo Press Product Guides in the Host bus adapters category: http://lenovopress.com/servers/options/hba System x3630 M4 (E5-2400) -
Page 25: Pcie Ssd Adapters
Note: The io3 Flash Adapters cannot be factory installed; they are supported as field-installable options only. The server cannot be shipped with these adapters installed. For more information, see the list of Lenovo Press Product Guides in the PCIe SSD Adapters category: http://lenovopress.com/servers/options/ssdadapter... -
Page 26: Integrated Virtualization
Optionally, the IMM2 also provides a virtual presence capability for remote server management capabilities. The IMM2 provides remote server management through industry-standard interfaces: Intelligent Platform Management Interface (IPMI) Version 2.0 Simple Network Management Protocol (SNMP) Version 3 Common Information Model (CIM) Web browser System x3630 M4 (E5-2400) - Page 27 1 and 3. Advanced functionality is optional, and contains a pop-out panel that adds light path level 2. Storage-rich x3630 M4 servers (servers with 12 or 14 drive bays) only support basic light path. System x3630 M4 (E5-2400)
- Page 28 Figure 8. Basic (level 1) light path for models with eight drive bays Figure 9. Basic (level 1) light path for storage-rich models The following figure shows the advanced (level 2) light path level. Figure 10. Advanced (level 2) light path for models with eight drive bays System x3630 M4 (E5-2400)
-
Page 29: Operating Systems
The x3630 M4 server has the following dimensions and weight (approximate): Height: 86 mm (3.4 in.) Width: 447 mm (17.6 in.) Depth: 749 mm (29.5 in.) Weight: Minimum configuration: 16.4 kg (36.2 lb). Maximum configuration: 28.2 kg (62.2 lb). Operating environment System x3630 M4 (E5-2400) -
Page 30: Warranty Options
The x3630 M4 has a three-year warranty with 24x7 standard call center support and 9x5 Next Business Day onsite coverage. Also available are Lenovo Services warranty maintenance upgrades and post- warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions. - Page 31 Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are available in every country. For more information about Lenovo warranty service upgrade offerings that are available in your country, visit the Lenovo Services website: https://www-304.ibm.com/sales/gss/download/spst/servicepac The following table explains warranty service definitions in more detail.
-
Page 32: Regulatory Compliance
Lenovo server. In the unlikely event of a hard drive failure, you retain possession of your hard drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands. - Page 33 70F0 / 70F1 Lenovo ThinkServer SA120 610012X EXP2512 Storage Enclosure 610024X EXP2524 Storage Enclosure Lenovo ThinkServer SA120 support For details about supported drives and cables for the Lenovo ThinkServer SA120, see the Lenovo Press Product Guide: http://lenovopress.com/tips1234 System x3630 M4 (E5-2400)
- Page 34 600GB 10,000 rpm 6Gb SAS 2.5" HDD 00NC567 900GB 10,000 rpm 6Gb SAS 2.5" HDD 00NC569 1.2TB 10,000 rpm 6Gb SAS 2.5" HDD 2.5" SAS HS SSDs 00NC573 200GB 6Gb SAS 2.5" SSD 00NC575 400GB 6Gb SAS 2.5" SSD System x3630 M4 (E5-2400)
-
Page 35: External Disk Storage Systems
External disk storage systems The following table lists the external storage systems that are offered by Lenovo that can be used in x3630 M4 solutions. Table 30. External disk storage systems Part number Description Lenovo Storage S2200 64112B1 Lenovo Storage S2200 LFF Chassis SAS Single Controller, Rack Kit, 9x5NBD... -
Page 36: External Backup Units
External backup units The following table lists the external backup options that are offered by Lenovo that can be used in x3630 M4 solutions. Table 31. External backup options Part number Description External tape enclosures 61901UX IBM Multimedia Backup Enclosure... -
Page 37: Top-Of-Rack Ethernet Switches
Top-of-rack Ethernet switches The following table lists the top-of-rack Ethernet switches that are offered by Lenovo that can be used in x3630 M4 solutions. Table 32. Top-of-rack switches Part number Description 1 Gb Ethernet top-of-rack switches 7159BAX Lenovo RackSwitch G7028 (Rear to Front) -
Page 38: Power Distribution Units
Power distribution units The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in x3630 M4 solutions. Table 34. Power distribution units Part number Description 0U Basic PDUs 46M4122 0U 24 C13 16A 3 Phase PDU with IEC 309 P+N+Gnd line cord... -
Page 39: Rack Cabinets
For more information, see the list of Product Guides in the Power Distribution Units category: http://lenovopress.com/servers/options/pdu Rack cabinets The following table lists the rack cabinets that are offered by Lenovo that can be used in x3630 M4 solutions. Table 35. Rack cabinets... -
Page 40: Rack Options
Lenovo Financial Services Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world. -
Page 41: Related Publications And Links
For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com Related publications and links For more information, see these resources: US Announcement Letter - System x3630 M4 (E5-2400): http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS112-095... - Page 42 Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment.
- Page 43 Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at http://www.lenovo.com/legal/copytrade.html. The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo®...
