Safety Switch - Kubota MX5100 Workshop Manual

MX5100, WSM

(3) Safety Switch

Safety Switch Continuity
1. Disconnect the connectors (3) from the PTO lever safety
switches (2).
2. Disconnect the connectors from the shuttle lever neutral switches
(5).
3. Connect the circuit tester to each safety switch's terminals.
4. Measure the resistance between terminals.
5. If any safety switch is defective, replace it.
When switch is
Resistance (Across PTO
pushed
lever safety switch
When switch is
terminals)
released
When switch is
Resistance (Across
pushed
shuttle lever neutral
When switch is
switch terminals)
released

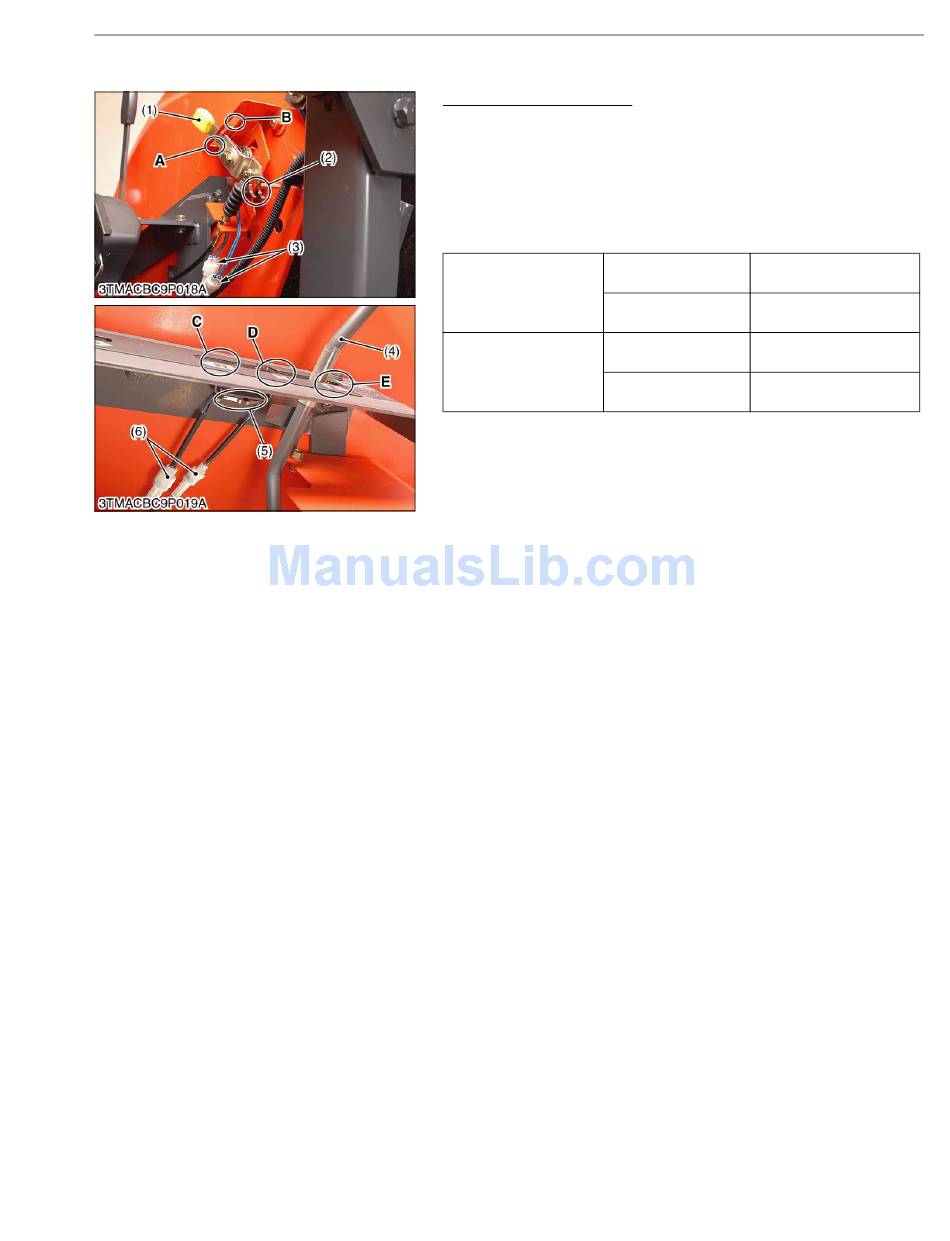

(1) PTO Lever
(2) PTO Lever Safety Switches
(3) Connector (for PTO Lever Safety
Switch)
(4) Synchro-Shuttle Shift Lever
(5) Shuttle Lever Neutral Switches
(6) Connector (for Shuttle Lever Neutral
Switch)
9-S11
ELECTRICAL SYSTEM
0 Ω
Infinity
0 Ω
Infinity
A : PTO Lever "ON" Position
B : PTO Lever "OFF" Position
C : Synchro-Shuttle Shift Lever
"Reverse" Position
D : Synchro-Shuttle Shift Lever
"Neutral" Position
E : Synchro-Shuttle Shift Lever
"Forward" Position
W1066307
