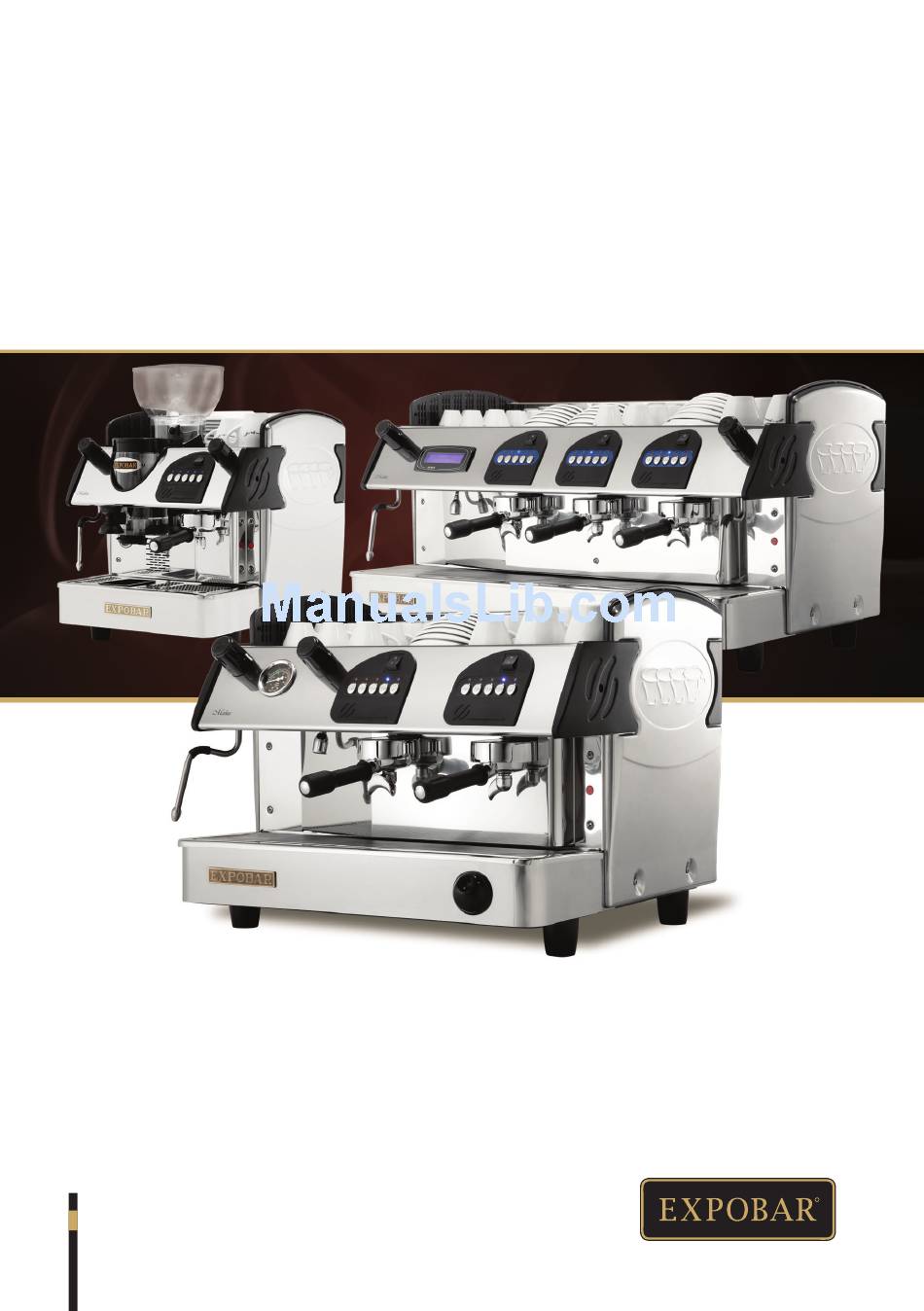

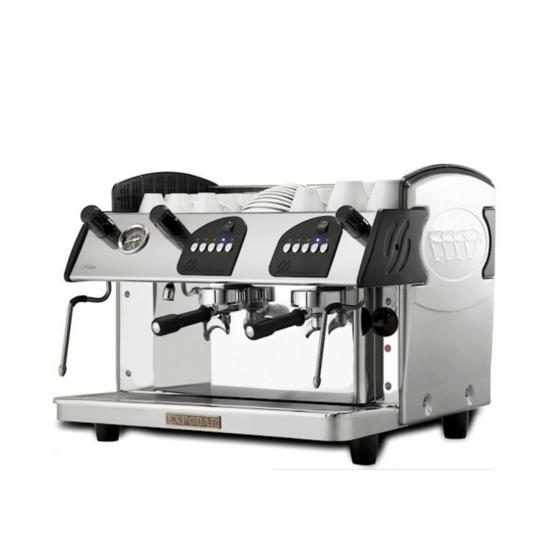

- Page 1 MARKUS USER MANUAL UM_EN Date: 150611 Original instruction...
-
Page 2: Table Of Contents
Hazard intensity levels .................................4 GENERAL ..................................5 Introduction ...................................5 General instructions ................................5 Warnings ....................................5 Precautions .....................................6 Intended use ...................................6 TECHNICAL SPECIFICATIONS ........................7 Markus MINI ..................................7 Accessories.....................................7 Markus 2GR ...................................8 Accesories ....................................8 Markus 2GR ...................................9 Accesories ....................................9 Markus 3GR 4GR ................................10 Accesories ....................................10 OVERVIEW OF COMPONENTS ........................11... - Page 3 CONTENT Markus OPERATION ................................21 Espresso brewing ................................21 Steaming and frothing milk ...............................22 Hot water dispensing .................................23 ESPRESSO MACHINE WITH BUILT-IN GRINDER ................24 Before using the coffee grinder ............................24 Dispensing a ground coffee dose ............................24 Adjusting the grinder coarseness ............................25 Adjusting the coffee ground dosage ..........................25 CLEANING AND MAINTENANCE ......................26 Coffee machine cleaning ..............................26 Daily cleaning ..................................26...
-
Page 4: Symbol Description
SYMBOL DESCRIPTION Markus Hazard intensity levels There are four different levels of notification intensity within this manual, as identified by the signal words DANGER, WARNING, IMPORTANT, and NOTE. The level of risk and importance of the notification is determined by the following definitions. Always observe the warnings to ensure safety and prevent potential injury and product damage. -
Page 5: General
GENERAL Markus Introduction Thank you for choosing a Markus espresso machine. We hope you enjoy it ! Read the user manual before using the machine. Keep this manual close to hand for future This manual contains important instructions on reference. If damaged or lost, request a copy intended and safe use of the coffee machine. -
Page 6: Precautions
GENERAL Markus In case of emergency, (e.g. the machine catches to three units of the same model. Do not place fire or becomes unusually hot or noisy), other heavier packages on top of the box. disconnect the power immediately and close The machine is likely to be exposed to the water inlet tap. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Markus Markus MINI Markus MINI SPECIFICATIONS 1GR control 1GR with grinder MINI 2GR control EAED-C32B-12AG EBED-C32B-12AG Machine model, Standard (220-240V 1N~ (220-240V 1N~ 50-60 Hz 2800W) 50-60 Hz 2800W) EaED-C32B-22AG EBED-C32B-22AG Machine model, Take Away 220-240V 1N~ 220-240V 1N~... -
Page 8: Markus 2Gr
TECHNICAL SPECIFICATIONS Markus Markus 2GR Markus 2GR SPECIFICATIONS Display Control Pulser 2GR Control 2GR EBEE-D41B-12AG EBEE-D32B-12AG EBEE-C41B-12AG Machine model, Standard 220-240V 1N~ 220-240V 1N~ 220-240V 1N~ 50-60 Hz 3350W 50-60 Hz 3350W 50-60 Hz 3350W EBEE-D41B-22AG EBEE-D32B-22AG EBEE-D41B-22AD Machine model, Take Away 220-240V 1N~ 220-240V 1N~ 220-240V 1N~... -
Page 9: Markus 2Gr
TECHNICAL SPECIFICATIONS Markus Markus 2GR Markus 2GR SPECIFICATIONS Control 2GR Display control with grinder 2GR 3 Boiler Machine model, Standard Machine model, Take Away Steam wand 2 units Hot water outlet 1 unit Temperature control Pressure switch PID regulation Temperature control by group Programmed via display Dispensing system for tall cups Optional... -
Page 10: Markus 3Gr 4Gr
TECHNICAL SPECIFICATIONS Markus Markus 3GR 4GR Markus 3GR 4GR SPECIFICATIONS Control/Pulser control control Display Display 3GR 4 boilers Machine model, Standard Machine model, Take Away Steam wand 2 units Hot water outlet 1 unit Temperature control Pressure switch PID regulation Pressure switch Temperature control by group Programmed via display... -
Page 11: Overview Of Components
OVERVIEW OF COMPONENTS Markus MINI Control 1GR & MINI Control 2GR Drink buttons Grinder hopper Grinder switch Water tap Steam tap Grinder Hot water outlet Main switch Element light Boiler manometer Steam wand Portafilter Brewing group Drink buttons Water tap Steam tap Hot water outlet Main switch... -
Page 12: Pulser 2 Gr, Control 2Gr & Control 2Gr 3 Boilers
OVERVIEW OF COMPONENTS Markus Pulser 2 GR, Control 2GR & Control 2GR 3 boilers Continuous brewing switch Drink buttons Grinder hopper Boiler manometer Steam tap Water tap Hot water outlet Grinder switch Grinder Element light Steam wand Portafilter Brewing group ON/OFF switch Drink buttons Thermostat... -
Page 13: Control 3Gr & Display Control 3Gr
OVERVIEW OF COMPONENTS Markus Control 3GR & Display Control 3GR Continuous Brewing group Steam tap Water tap brewing switch Boiler Drink buttons Portafilter Element light manometer Steam wand Hot water ON/OFF switch outlet Display Steam tap Steam tap Continuous Portafilter Hot water Element light brewing switch... -
Page 14: Dimension Sketch
DIMENSION SKETCH Markus Markus MINI Model D(Min) D(Max) Markus mini 1Gr 530 mm 460 mm 590 mm 74 mm 124 mm Markus mini 1GR 630 mm 460 mm 590 mm 74 mm 124 mm with grinder Markus mini 2Gr 530 mm... -
Page 15: Markus 2Gr
DIMENSION SKETCH Markus Markus 2GR Model D(Min) D(Max) Markus 2Gr 530 mm 680 mm 590 mm 74 mm 124 mm Markus 2Gr 630 mm 680 mm 590 mm 74 mm 124 mm with grinder Markus 2Gr 3 boilers 530 mm 680 mm 590 mm 74 mm... -
Page 16: Markus 3Gr & 4Gr
DIMENSION SKETCH Markus Markus 3GR & 4GR Model D(Min) D(Max) Markus 3Gr 530 mm 980 mm 590 mm 74 mm 124 mm Markus 3Gr 4 boilers 530 mm 980 mm 590 mm 74 mm 124 mm Markus 4Gr 530 mm 980 mm 590 mm 74 mm... -
Page 17: Transport
TRANSPORT Markus Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet. -
Page 18: Electrical Installation
INSTALLATION Markus Electrical installation The machine should only be connected to the power supply by qualified personnel. The following safety instructions should be obeyed at all times: Ensure that the electrical requirements stated on the TECHNICAL SPECIFICATIONS (pages 7 - 8) match the specifications of the power supply at the outlet. -
Page 19: Water Connection
INSTALLATION Markus Water connection Connecting the machine to the domestic water supply must be performed by a qualified person. Purge at least 20 liters of water from the domestic water supply before connecting the machine to it to flush out any debris that may be in the plumbing system that would otherwise accumulate inside the boilers. -
Page 20: The Portafilter Set
INSTALLATION Markus The portafilter set Lock-in spring (filter basket) Filter basket Placing portafilter spring Portafilter and filter basket for single espresso (7g) Portafilter & filter basket for double espresso (14g) Inserting the portafilter in the group Align the portafilter's two flanges with Insert the portafilter and rotate it counterclockwise the two slots in the group housing. -
Page 21: Operation
OPERATION Markus Espresso brewing Important: Always keep the portafilter inserted in the group to keep it warm. This is important to maintain an optimal temperature when the espresso is Unlock and remove the portafilter Fill the filter basket with dispensing. from the group head. -
Page 22: Steaming And Frothing Milk
OPERATION Markus Steaming and frothing milk Steaming Frothing Place the steam wand over the drip tray and Immerse the steam wand into the milk, open the steam lever for a few seconds to allow making sure the wand tip is submerged. condensed water to be ejected. -
Page 23: Hot Water Dispensing
OPERATION Markus Hot water dispensing Machines with manual water tap Place a jug (or similar) under the hot water outlet Open the hot water tap. Close the tap as soon as the machine has dispensed the desired amount of water. WARNING! Never expose hands and fingers directly under the water outlet during operation to avoid scalding or serious burns. -
Page 24: Espresso Machine With Built-In Grinder
ESPRESSO MACHINE WITH BUILT-IN GRINDER Markus Before using the coffee grinder PART NAME BEAN HOPPER LID BEAN HOPPER BEAN STOP GRINDING ADJUSTMENT DISK DOSAGE DEVICE LID DOSAGE DEVICE GRINDER ON/OFF SWITCH DOSAGE LEVER COFFEE TAMPER GROUND COFFEE OUTLET Check that the bean hopper (2) is correctly fitted in place. Lift up the bean hopper lid (1), fill the bean hopper (2) with coffee beans and close it again. -
Page 25: Adjusting The Grinder Coarseness
ESPRESSO MACHINE WITH BUILT-IN GRINDER Markus Adjusting the grinder coarseness For a finer grind: Hold down the grinder trigger while slowly rotating the adjuster to the right. When the desired grind is achieved release the trigger. For a courser grind: Hold down the grinder trigger while slowly rotating the adjuster to the left. -
Page 26: Cleaning And Maintenance
CLEANING AND MAINTENANCE Markus Coffee machine cleaning Important: To keep the machine looking and working like new, you should always follow the cleaning and care instructions provided in this manual. Always turn off the main power switch when cleaning the exterior of the machine. All external surfaces should be cleaned with a damp, lint-free cloth that will not scratch the machine. -
Page 27: Cleaning The Brewing Group And Portafilter
CLEANING AND MAINTENANCE Markus Cleaning the Brewing group and portafilter Unlock and remove the portafilter from the group head. Place the Blind gasket in the filter basket. Fill the filter basket with professional cleaning powder for espresso coffee machines. Lock the portafilter into the group head. Activate the auto-cleaning program: Turn off the machine. -
Page 28: Cleaning The Gasket And Shower Plate
CLEANING AND MAINTENANCE Markus Cleaning the gasket and shower plate Cleaning the gasket While making espresso, coffee grounds will naturally accumulate on the group’s sealing surface. Allowing an excessive amount of grounds to build up can prevent the portafilter from properly sealing to the group head. -
Page 29: Additional Handling Of The Machine
CLEANING AND MAINTENANCE Markus Additional handling of the machine Important: Do not place wet cups directly on the cup shelf. Allowing water to drip into the machine can cause mechanical and electrical damage. Always remove and insert the portafilters gently. Never use excessive force to try to close the portafilter. -
Page 30: Programming
PROGRAMMING Markus Buttons functions The following functions can be programmed and controlled from the digital display: Volume control of four different espresso drinks per brewing group. Timed hot water dispensing. Automatic boiler filling and level control. Automatic heating element shut-down in event of a low water condition. System supervision through messages, warning, and alarms. -
Page 31: Additional Button Functions
PROGRAMMING Markus Additional button functions To activate these functions, turn off the machine at the power switch then, while holding down the required button on the left-hand Drink buttons, turn the machine back on. 1 Short Espresso. Enable electronic pre-infusion. 1 Long Espresso. -
Page 32: Programming Using The Display
PROGRAMMING USING THE DISPLAY Markus Machine status Machines equipped with a display include the following additional functions: Automatic daily on/off timer (stand-by function). Clock settings (current time and date). Welcome message. Number of coffees/infusions dispensed. Digital boiler-temperature display and control. PID-technology boiler-temperature control. -
Page 33: Accessing The Second Menu Level
PROGRAMMING USING THE DISPLAY Markus Accessing the second menu level Doses setting With the machine on, press the Continuous Dispensing button Select within 30s the Left-hand drink buttons and hold it down (for over 8 seconds) until the dose-programming menu is displayed. All the drink buttons lights fig. -
Page 34: Auto On/Off
PROGRAMMING USING THE DISPLAY Markus Auto On/Off After accepting the changes made in the “set clock” menu, pressing the 2 Auto On/Off Short Espressos button accesses the coffee machine’s auto on/off hh.mm programming menu (see fig. 09). fig. 9 To change the auto on/off time, increase/decrease the values (hours) using the 1 short espresso and 1 Long Espresso buttons whilst the... -
Page 35: Multiboiler Temperature Control
MULTIBOILER TEMPERATURE CONTROL Markus Note: The instructions on this page apply to multiboiler machines only. For multiboiler machines the temperature of each group boiler can be programmed and adjusted individually via the digital temperature adjusting system. The temperature control is performed by a PID thermostat, which provides accurate and stable temperature management for the group. -
Page 36: Reset Temperature To Factory Default
MULTIBOILER TEMPERATURE CONTROL Markus Reset temperature to factory default If the thermostat’s operating program is lost, or if an abnormal group temperature setting appears, reset the system to the factory defaults. Follow the steps below: • Turn off the machine, press and hold down the button, then turn the machine on at the power switch. -
Page 37: Messages And Alarms
MESSAGES AND ALARMS Markus Flow meter Fault in flow meter X / Gr. X Flow fault detected in counter X Time-out alarm Check that the machine is receiving water. Boiler filling up Probe unconnect Temperature sensor fault Service the machine. To disable the alarm and reset the counter: Service 999999999... -
Page 38: Troubleshooting
TROUBLESHOOTING Markus The following checks can be carried out by users only after the machine has been turned off and disconnected from the power supply. For all other nonspecific machine faults, disconnect the machine from the power supply and immediately contact authorised and qualified service personnel. Problem Possible cause Solution... - Page 39 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
