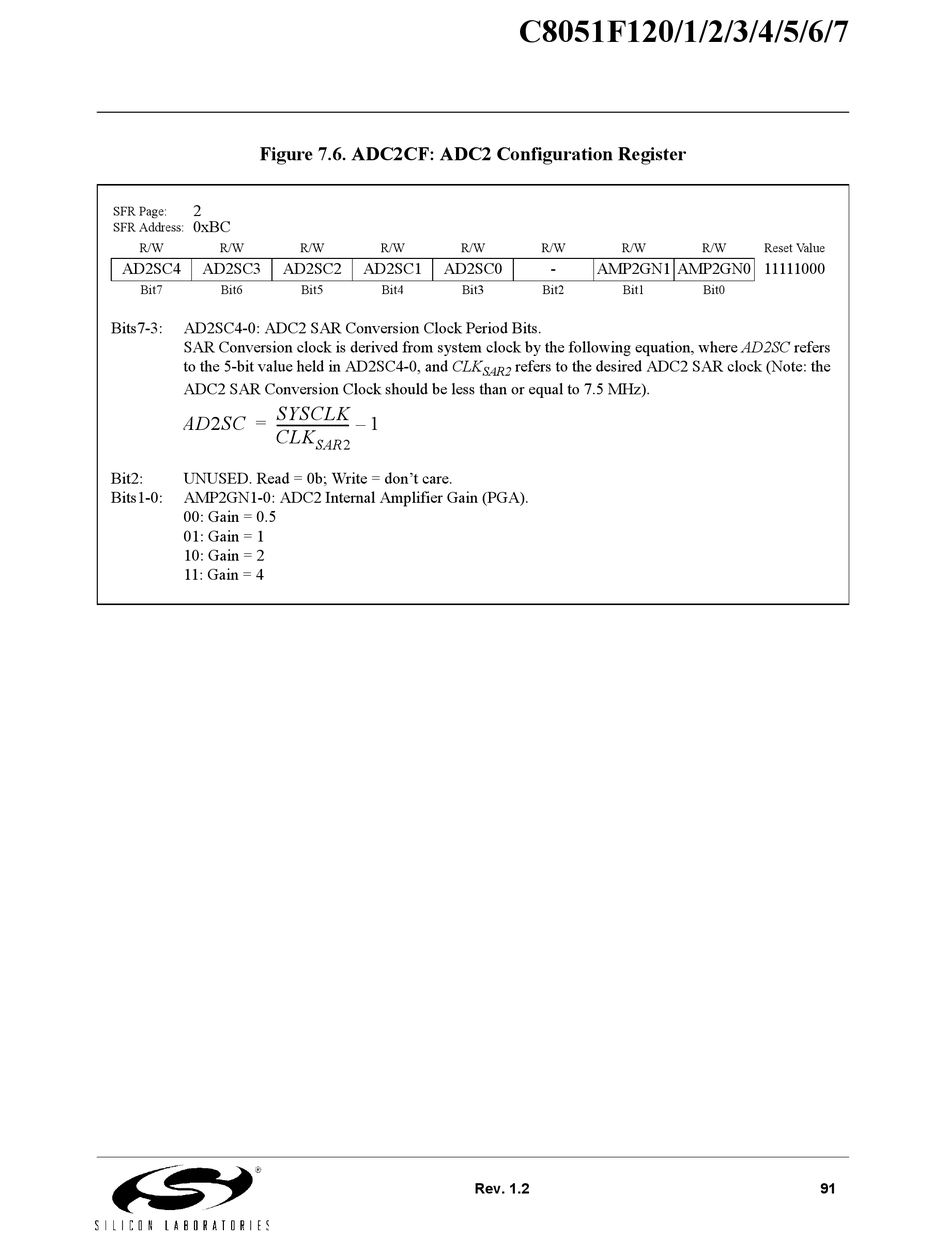

Figure 7.6. Adc2Cf: Adc2 Configuration Register - Silicon Laboratories C8051F120 Manual

Figure 7.6. ADC2CF: ADC2 Configuration Register

2
SFR Page:
0xBC
SFR Address:
R/W R/W
AD2SC4 AD2SC3 AD2SC2
Bit7 Bit6
Bits7-3: AD2SC4-0: ADC2 SAR Conversion Clock Period Bits.
SAR Conversion clock is derived from system clock by the following equation, where AD2SC refers
to the 5-bit value held in AD2SC4-0, and CLK
ADC2 SAR Conversion Clock should be less than or equal to 7.5 MHz).
SYSCLK
AD2SC = ---------------------- - 1
CLK
Bit2: UNUSED. Read = 0b; Write = don't care.
Bits1-0: AMP2GN1-0: ADC2 Internal Amplifier Gain (PGA).
00: Gain = 0.5
01: Gain = 1
10: Gain = 2
11: Gain = 4
R/W R/W R/W
AD2SC1 AD2SC0
Bit5 Bit4 Bit3
–
SAR2
Rev. 1.2
C8051F120/1/2/3/4/5/6/7
R/W R/W
- AMP2GN1 AMP2GN0 11111000
Bit2 Bit1
refers to the desired ADC2 SAR clock (Note: the
SAR2
R/W Reset Value
Bit0
91
