SMART I/O User's Manual
4.1.7 Pinouts

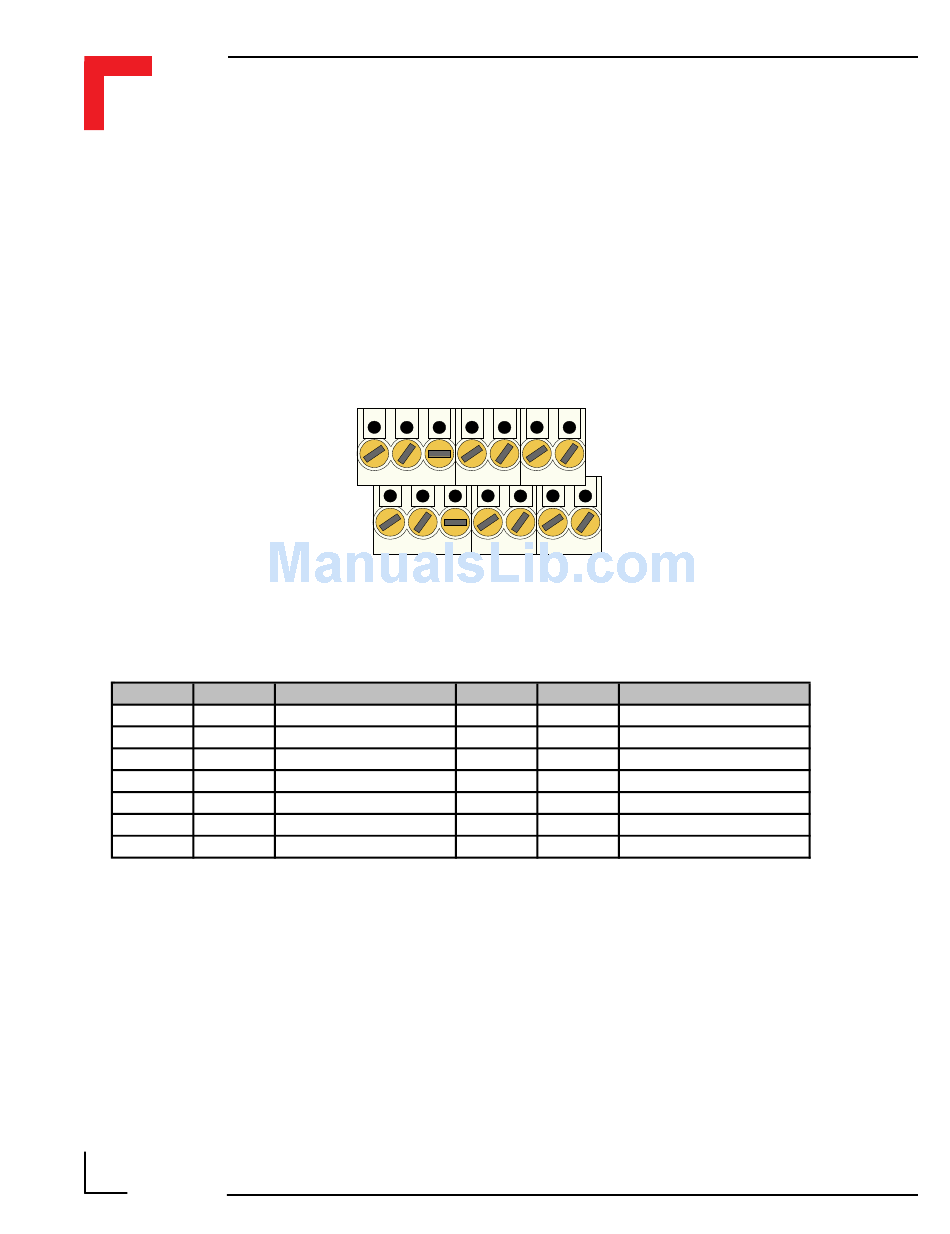

Screw Terminal Pinouts

The following shows the pinout/signal relationship for the SM-DIN1 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 G0EXT
3 IN0
5 IN1
7 G1EXT
9 IN2
11 IN3
13 G23EXT GND for channels 2&3
Page 4 - 10
Pin 1
Pin 2
Description
GND for channel 0
Input Channel 0
Input Channel 1
GND for channel 1
Input Channel 2
Input Channel 3
©1996 PEP Modular Computers GmbH
Chapter 4 Digital Modules
Pin 13
Pin 14
Pin Nr. Signal
2 G4EXT GND for channel 4
4 IN4 Input Channel 4
6 IN5 Input Channel 5
8 G5EXT GND for channel 5
10 IN6 Input Channel 6
12 IN7 Input Channel 7
14 G67EXT GND for channels 6&7
Description
March 12, 1996
