Figure 2.5.3.2 shows the TOUT block diagram. Here, the output is only
active when an interrupt on level 4 has been acknowledged by the I/O
controller or a previously set timer has decremented to 0. The driving stage
of the output consists of a Darlington connected transistor pair protected
from inductive loads by a clamp diode. This TOUT line can generate square-
wave pulses from 0.2ms to 178ms and can deliver 500mA continuously at
24V DC. The maximum frequency of TOUT is 5kHz.

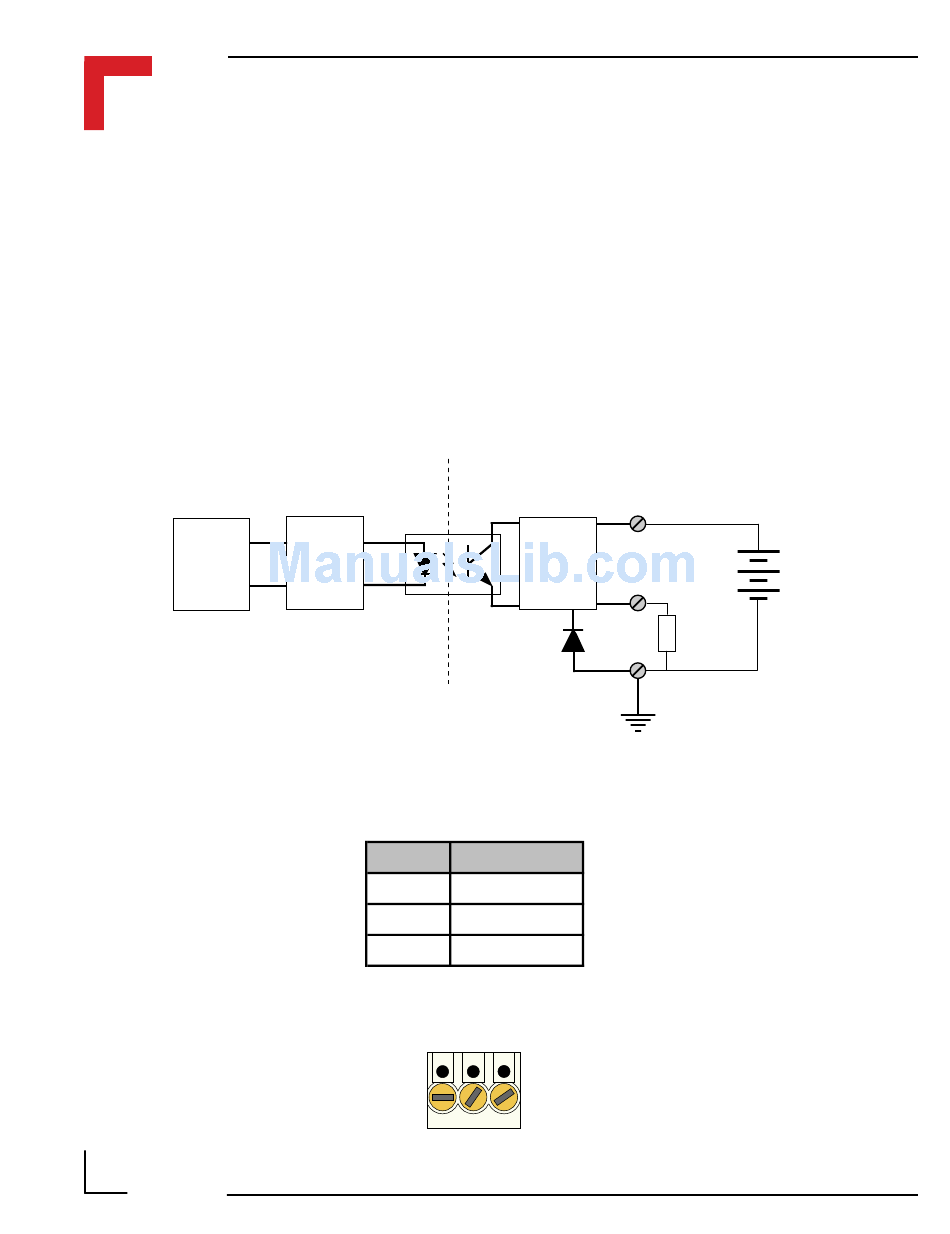

Figure 2.5.3.2: Timer I/O (TOUT) Schematic
Timer I/O
TOUT

2.5.4 Supply Screw Terminals (SCR2)

Page 2 - 14
Digital
Output
Pin Nr.
1 SHIELD
2 GND
3 +24V
Pin 1
©1996 PEP Modular Computers GmbH
Chapter 2 SMART-BASE
+Vcc (common)
1
Output
Stage
2
3
Gnd
Signal
Pin 3
Load
March 12, 1996
