5.4.6 Configuration
Although the SM-ADC1 has one solder jumper (J2) for EEPROM configura-
tion, the user should not interfere with it.
Jumper J4 likewise should not be interfered with as it is factory set at the
time of ordering and controls the unipolar/bipolar mode of ADC operation .
5.4.7 Pinouts

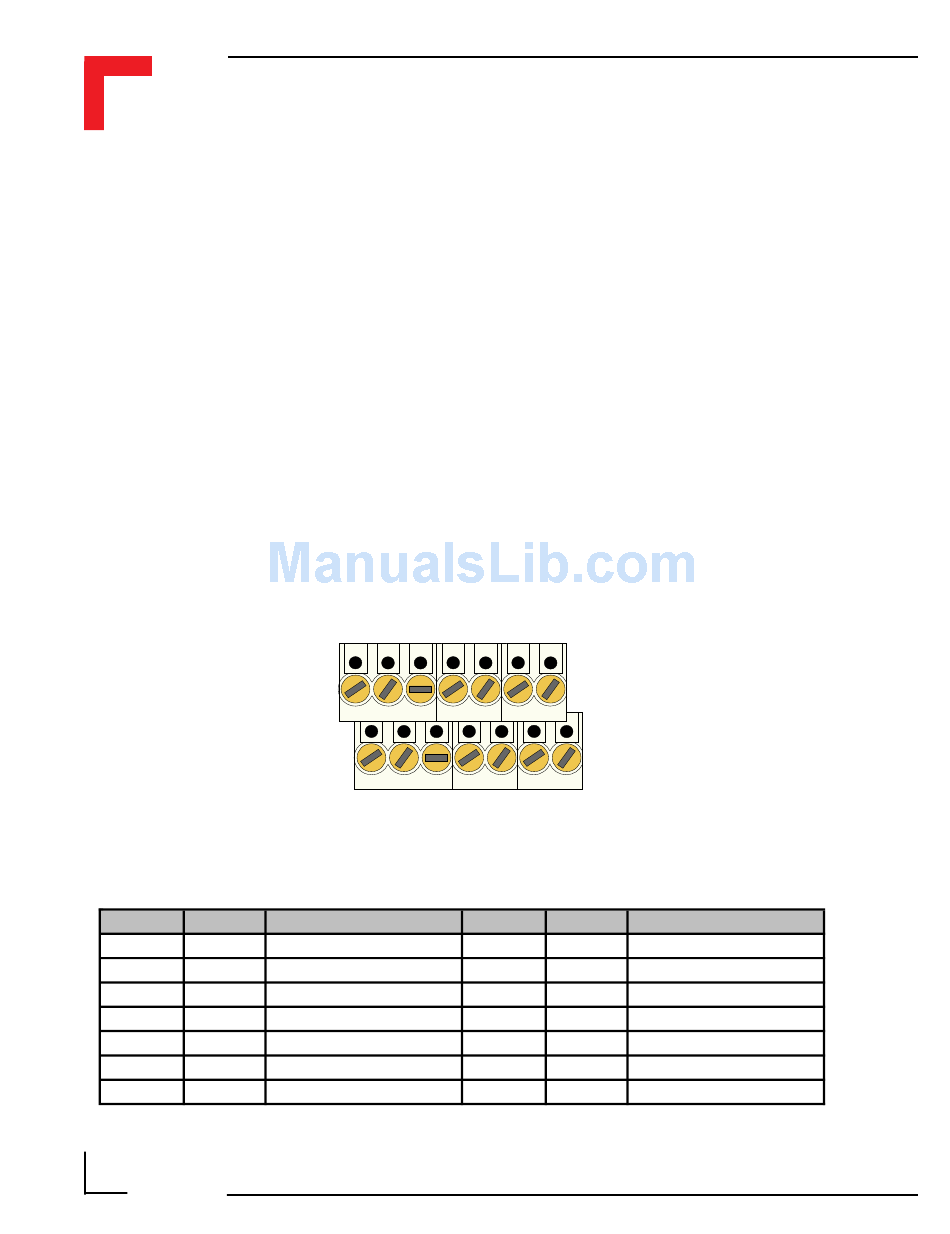

Screw Terminal Pinouts

The following shows the pinout/signal relationship for the SM-ADC1 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 IN0+
3 IN0-
5 AGND
7 IN1+
9 IN1-
11 IN2+
13 IN2-
Page 5 - 92
Pin 1
Pin 2
Description
Analog Input Ch. 0+
Analog Input Ch. 0-
Analog GND
Analog Input Ch. 1+
Analog Input Ch. 1-
Analog Input Ch. 2+
Analog Input Ch. 2-
©1996 PEP Modular Computers GmbH
Chapter 5 Analog Modules
Pin 13
Pin 14
Pin Nr. Signal
2 IN3+ Analog Input Ch. 3+
4 IN3- Analog Input Ch. 3-
6 AGND Analog GND
8 IN4+ Analog Input Ch. 4+
10 IN4- Analog Input Ch. 4-
12 IN5+ Analog Input Ch. 5+
14 IN5- Analog Input Ch. 5-
Description
October 01, 1996
