Chapter 5 Analog Modules
5.2.6 Configuration
Jumper J1 - EEPROM Protection
Jumper S e t t i n g s
5.2.7 Pinouts
Screw Terminal Pinouts

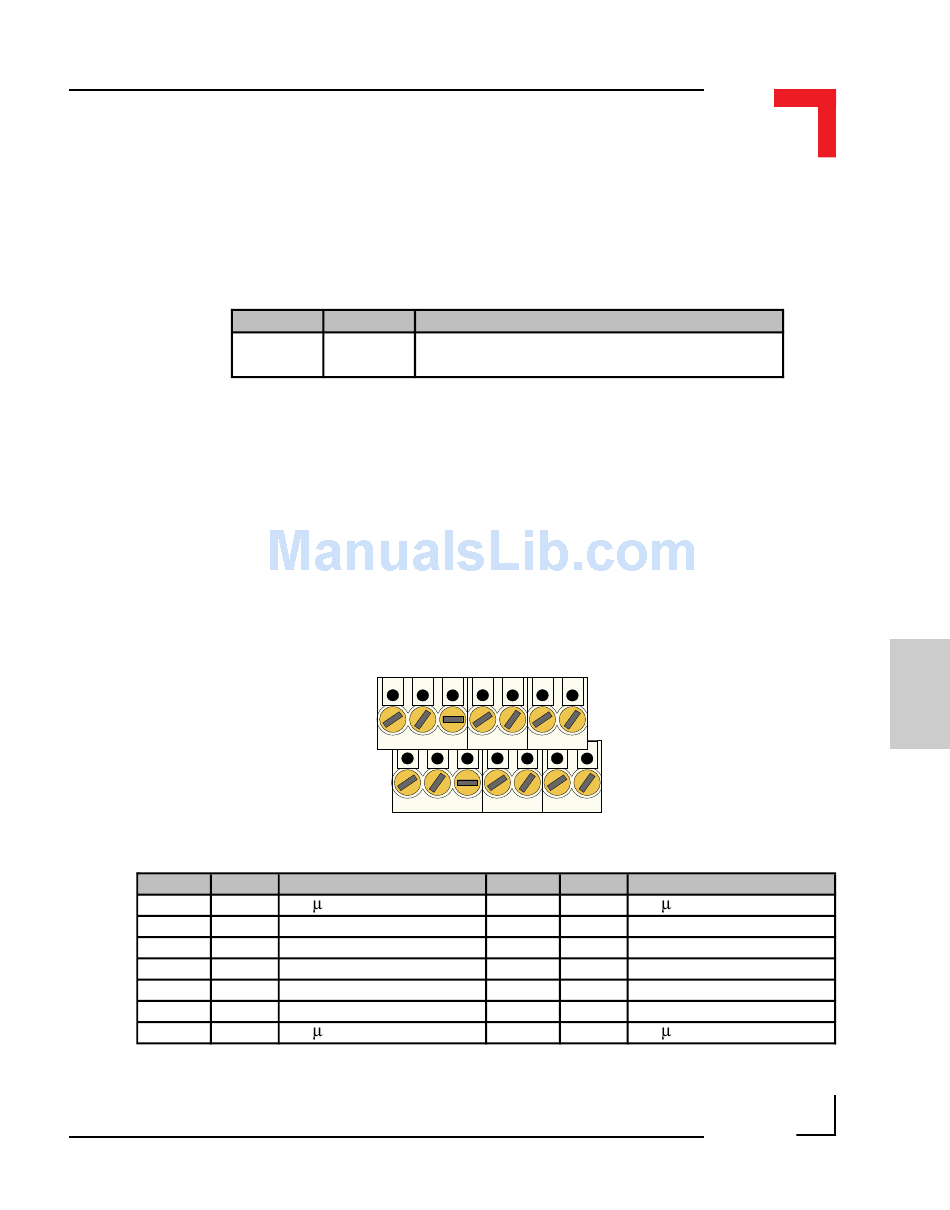

The following shows the pinout/signal relationship for the SM-PT100 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 Cur 0
3 In 0+
5 In 0 -
7 AGND
9 In 2+
11 In 2 -
13 Cur 2
March 12, 1996
J1 set EEPROM is not hardware write protected
open EEPROM is hardware write protected
Pin 1
Pin 2
Description
400 A source for sensor
Sense line 0 positive
Sense line 0 negative
GND between 2 sensors
Sense line 2 positive
Sense line 2 negative
400 A source for sensor
©1996 PEP Modular Computers GmbH
SMART I/O User's Manual
Description
Pin 13
Pin 14
Pin Nr. Signal
2 Cur 1 400 A source for sensor
4 In 1+ Sense line 1 positive
6 In 1 - Sense line 1 negative
8 AGND GND between 2 sensors
10 In 3+ Sense line 3 positive
12 In 3 - Sense line 3 negative
14 Cur 3 400 A source for sensor
Description
Page 5 - 33
