SMART I/O User's Manual

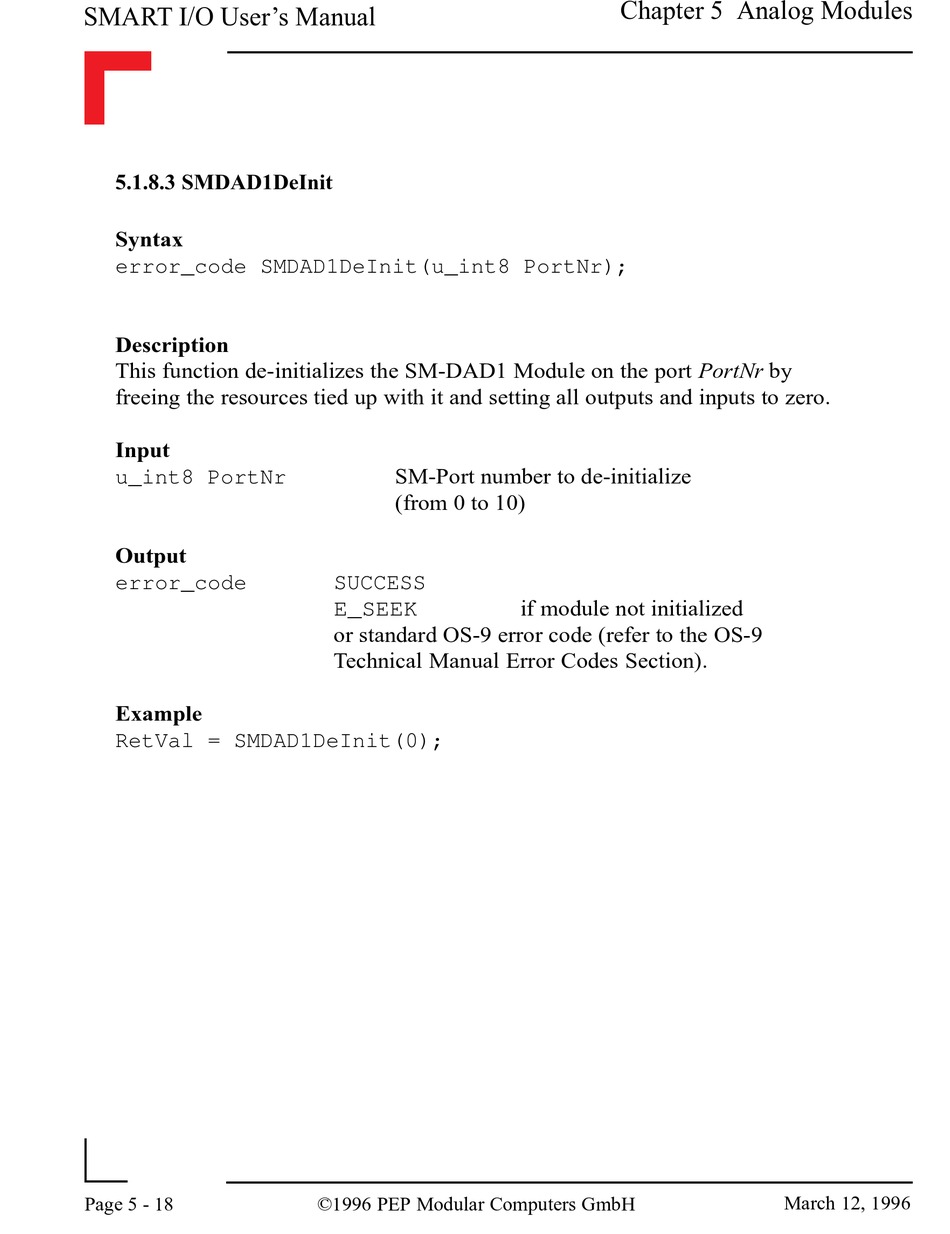

5.1.8.3 SMDAD1DeInit

Syntax
error_code SMDAD1DeInit(u_int8 PortNr);
Description
This function de-initializes the SM-DAD1 Module on the port PortNr by
freeing the resources tied up with it and setting all outputs and inputs to zero.
Input
u_int8 PortNr
Output
error_code
Example
RetVal = SMDAD1DeInit(0);
Page 5 - 18
SM-Port number to de-initialize
(from 0 to 10)
SUCCESS
E_SEEK
or standard OS-9 error code (refer to the OS-9
Technical Manual Error Codes Section).
©1996 PEP Modular Computers GmbH
Chapter 5 Analog Modules
if module not initialized
March 12, 1996
