SMART I/O User's Manual
5.5.6 Configuration
Although the SM-DAC1 has one solder jumper for EEPROM configuration,
the user should not interfere with it.
5.5.7 Pinouts

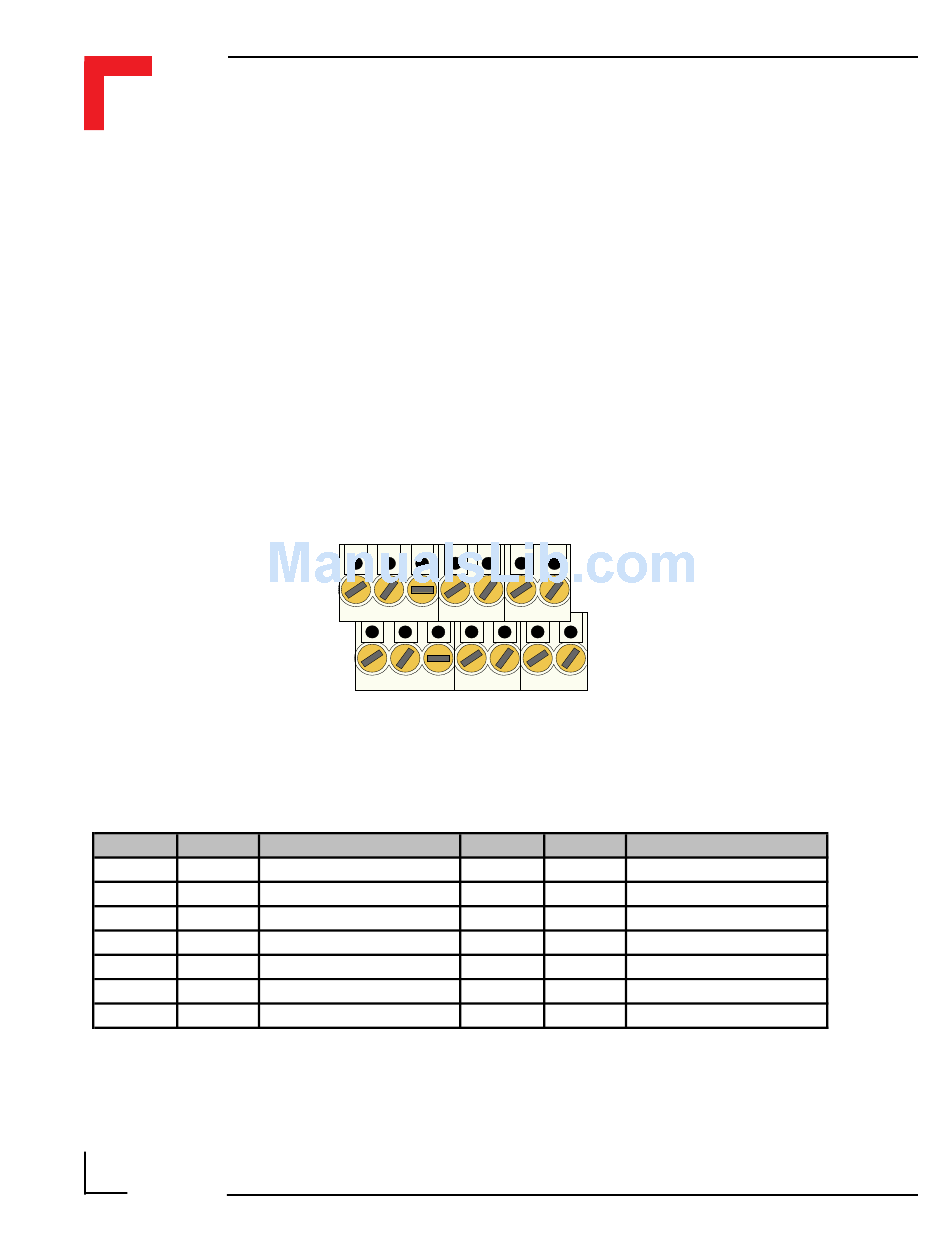

Screw Terminal Pinouts
The following shows the pinout/signal relationship for the SM-DAC1 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 OUT0
3 AGND
5 OUT1
7 AGND
9 OUT2
11 AGND
13 AGND
Page 5 - 110
Pin 1
Pin 2
Description
Analog Output Ch. 0
Analog GND
Analog Output Ch. 1
Analog GND
Analog Output Ch. 2
Analog GND
Analog GND
©1996 PEP Modular Computers GmbH
Chapter 5 Analog Modules
Pin 13
Pin 14
Pin Nr. Signal
2 OUT3 Analog Output Ch. 3
4 AGND Analog GND
6 OUT4 Analog Output Ch. 4
8 AGND Analog GND
10 OUT5 Analog Output Ch. 5
12 AGND Analog GND
14 AGND Analog GND
Description
