Chapter 6 Communications Modules
6.2.10 Configuration
Jumper J1 - EEPROM Protection
Jumper
J1
6.2.11 Pinouts

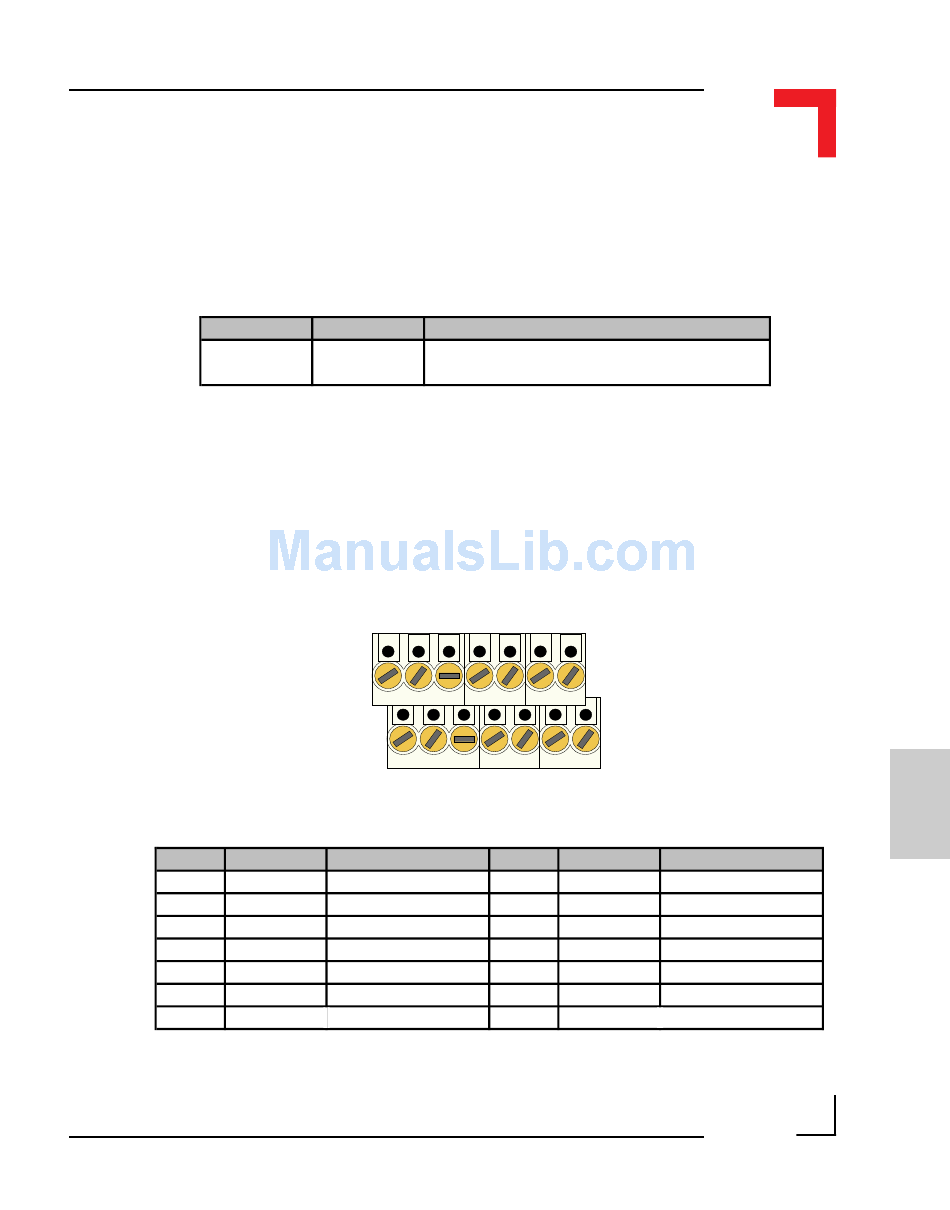

Screw Terminal Pinouts
The following shows the pinout/signal relationship for the SM-SSI when
connected to a particular screw terminal block.
Pin Nr. Signal
1 CLK+
3 DATA-
5 COM+
7 RESET-
9 EORC
11 EOR1
13
October 01, 1996
Settings
set EEPROM is not hardware write protected
open EEPROM is hardware write protected
Pin 1
Pin 2
Description Pin Nr. Signal
SSI Clock +
SSI Data -
Common +
Encoder Reset -
EOR Common
End-of-Range 1
Reserved
©1996 PEP Modular Computers GmbH
SMART I/O User's Manual
Description
Pin 13
Pin 14
Description
2 CLOCK- SSI Clock -
4 DATA+ SSI Data +
6 MATCH- Match -
8 DIR- Direction -
10 GND Ground
12 EOR2 End-of-Range 2
14 Reserved
6
Page 6 - 27
