SMART I/O User's Manual
5.3.6 Configuration
Jumper J1 - EEPROM Protection
Jumper S e t t i n g s
J1
5.3.7 Pinouts

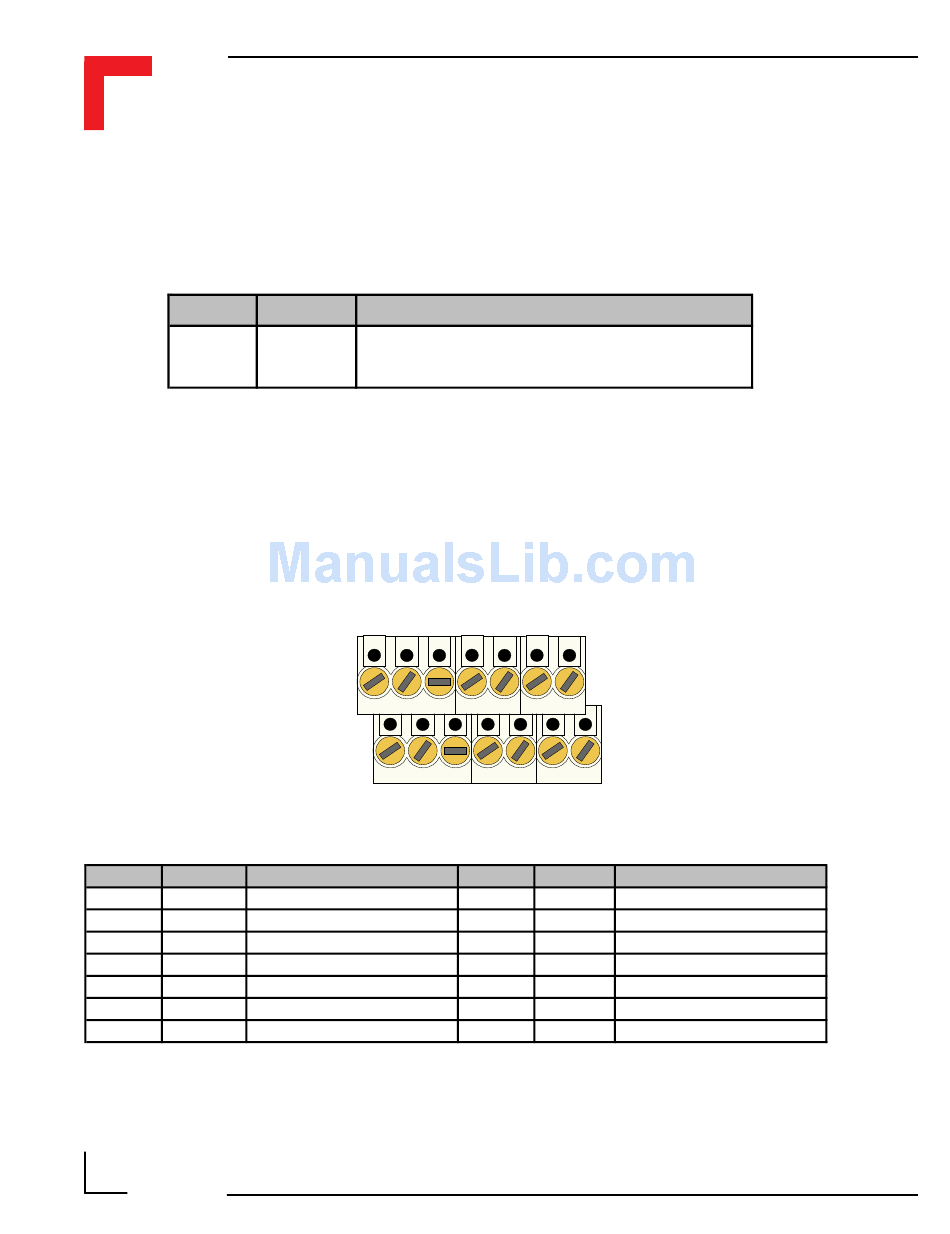

Screw Terminal Pinouts

The following shows the pinout/signal relationship for the SM-PT100 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 AGND Analog Shield
3 In 0+ Positive Sense Line (0)
5 In 0 - Negative Sense Line (0)
TMP + † PT100 Cold Jn. supply
7
9 In 2+ Positive Sense Line (2)
11 In 2 - Negative Sense Line (2)
13 AGND Analog Shield
† Cold Junction point PT100 connection
Page 5 - 62
set EEPROM is not hardware write protected
open EEPROM is hardware write protected
Pin 1
Pin 2
Description
©1996 PEP Modular Computers GmbH
Chapter 5 Analog Modules
Description
Pin 13
Pin 14
Pin Nr. Signal
2 AGND Analog Shield
4 In 1+ Positive Sense Line (1)
6 In 1 - Negative Sense Line (1)
TMP - † PT100 Cold Jn. supply
8
10 In 3+ Positive Sense Line (3)
12 In 3 - Negative Sense Line (3)
14 AGND Analog Shield
Description
March 12, 1996
