Chapter 5 Analog Modules

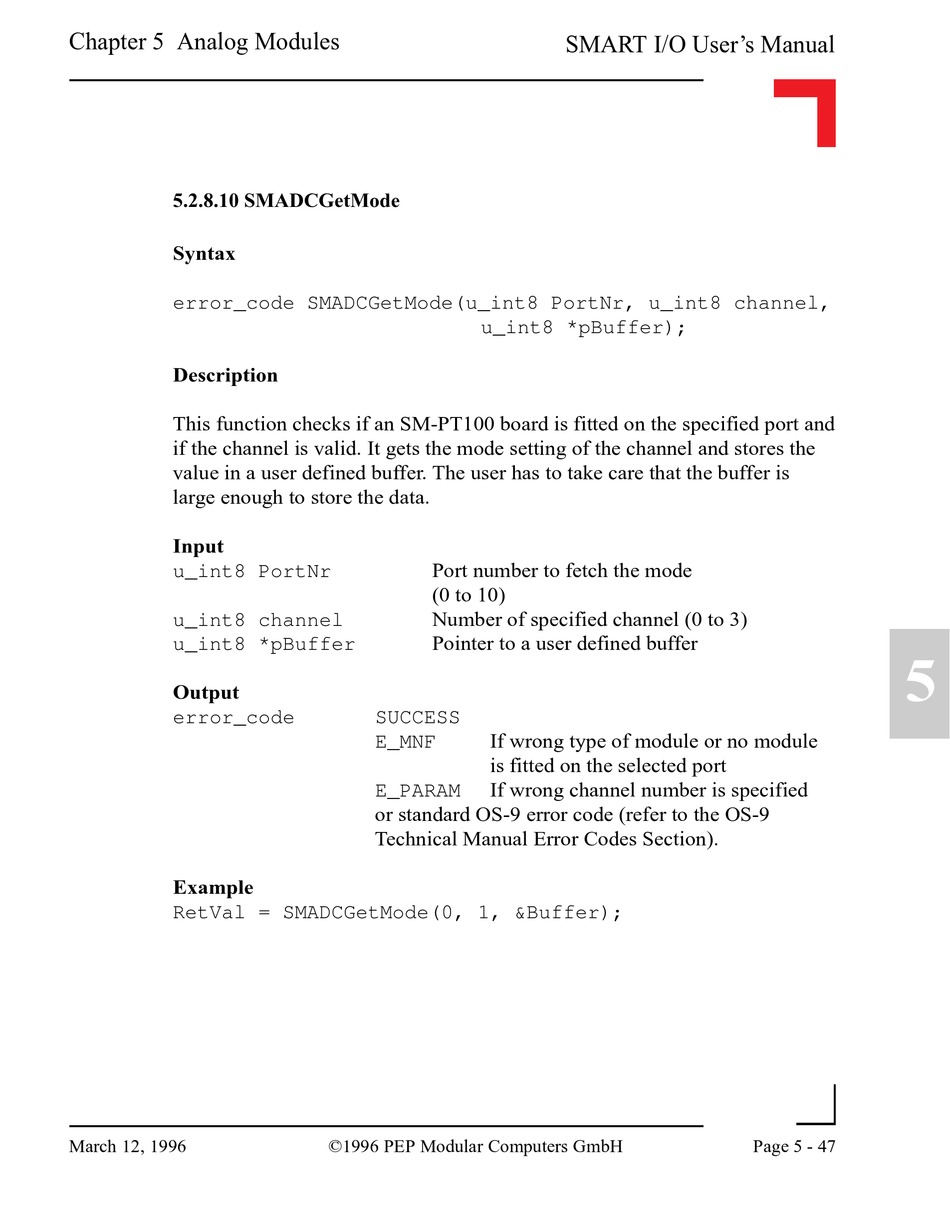

5.2.8.10 SMADCGetMode

Syntax
error_code SMADCGetMode(u_int8 PortNr, u_int8 channel,
Description
This function checks if an SM-PT100 board is fitted on the specified port and
if the channel is valid. It gets the mode setting of the channel and stores the
value in a user defined buffer. The user has to take care that the buffer is
large enough to store the data.
Input
u_int8 PortNr
u_int8 channel
u_int8 *pBuffer
Output
error_code
Example
RetVal = SMADCGetMode(0, 1, &Buffer);
March 12, 1996
u_int8 *pBuffer);
Port number to fetch the mode
(0 to 10)
Number of specified channel (0 to 3)
Pointer to a user defined buffer
SUCCESS
If wrong type of module or no module
E_MNF
is fitted on the selected port
If wrong channel number is specified
E_PARAM
or standard OS-9 error code (refer to the OS-9
Technical Manual Error Codes Section).
©1996 PEP Modular Computers GmbH
SMART I/O User's Manual
5
Page 5 - 47
