SMART I/O User's Manual

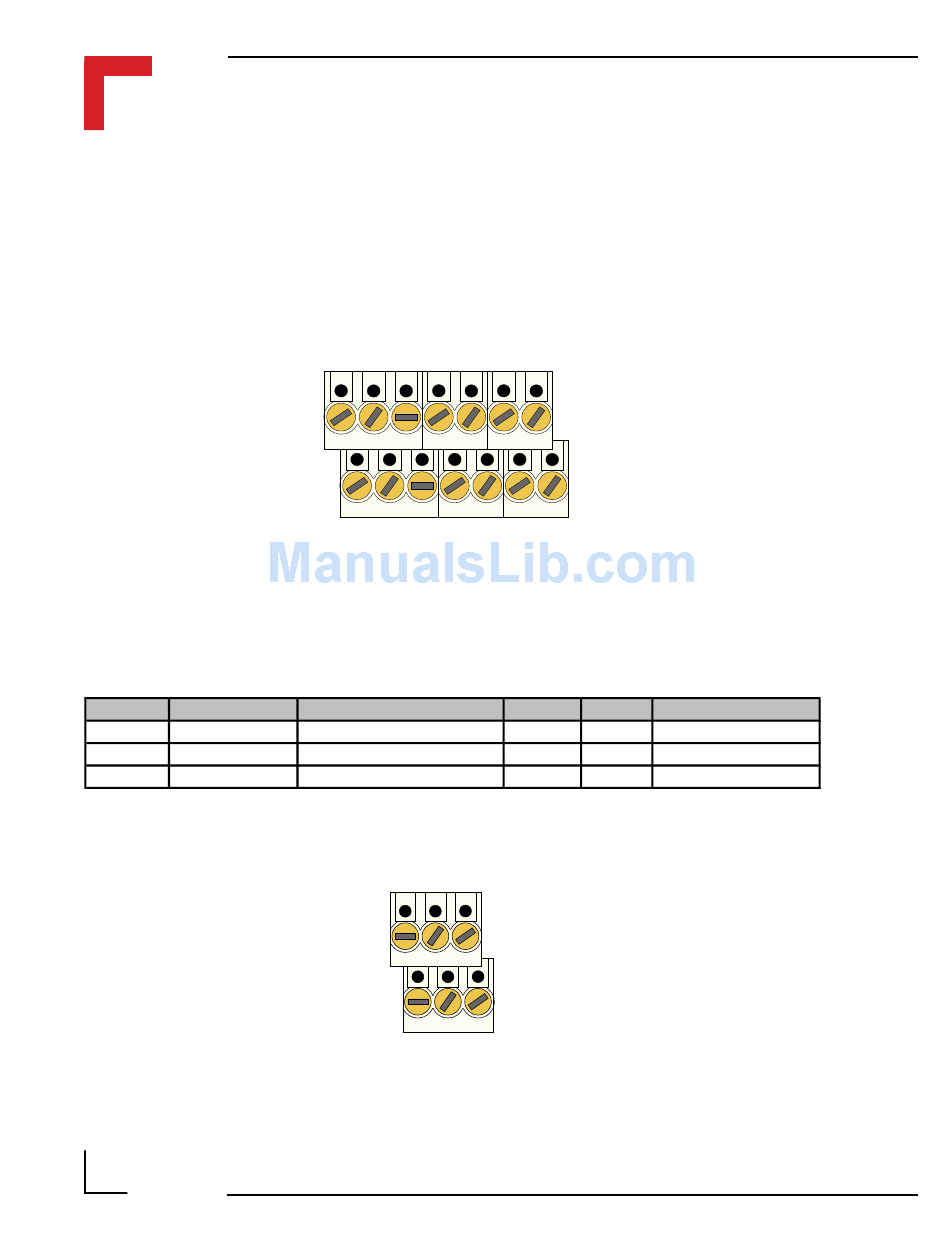

2.5.2 Screw Terminal Pinouts

The following shows the pinout for a screw terminal block suited for use
with SMART-Modules. The pinouts of these blocks depends on the SMART
Modules that are fitted.

2.5.3 Timer I/O Screw Terminal (SCR1)

Pin Nr. Signal
1 External VCC 5V VCC
3 External GND Ground for TIN, TOUT
5 External GND Ground for TGATE
Page 2 - 12
Pin 1
Pin 2
Description
Pin 1 Pin 5
Pin 2 Pin 6
©1996 PEP Modular Computers GmbH
Chapter 2 SMART-BASE
Pin 13
Pin 14
Pin Nr. Signal Description
2 TOUT Timer OUT
4 TIN Timer IN
6 GATE GATE Connection
March 12, 1996
