Chapter 5 Analog Modules

5.5.9 ISaGRAF Programming

5.5.9.1 The ISaGRAF Board Parameters

Information on board parameters may be found in the PEP online help and
ISaGRAF online help or user's manual.

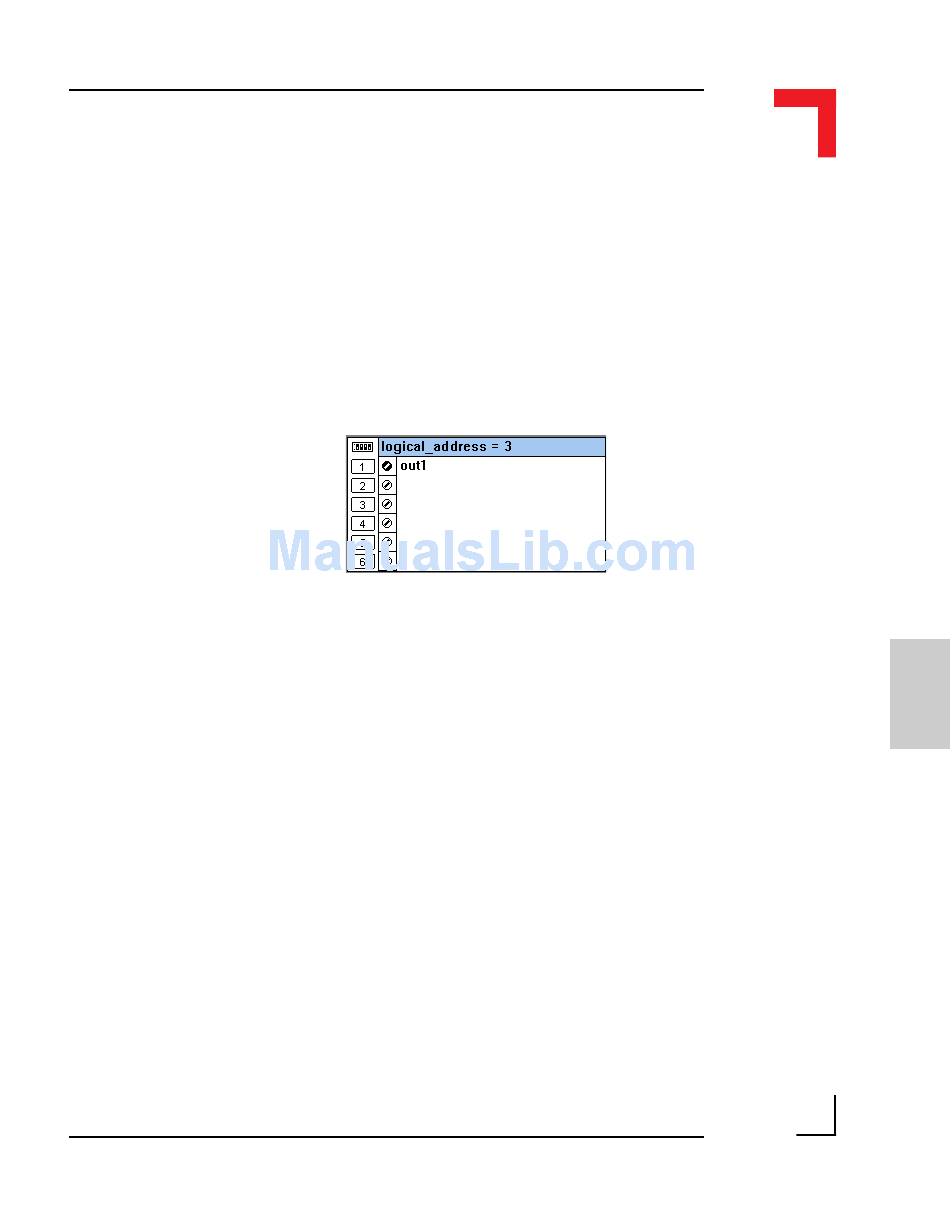

Figure 5.5.9.1.1 Typical Screen Section for the SM-DAC1 Module
Logical Address
One of the outputs of this module may be clearly seen together with the
logical address at which this particular board is residing. Remember, this
logical address is the same as the physical slot position! In the example
shown here, the board being addressed is in slot 3 i.e. the third of the
SMART-BASE slots. Up to 11 slots are catered for in the SMART I/O
concept; 3 on the SMART-BASE and 2 for each connected SMART-EXT
(up to a total of 4).
