Chapter 5 Analog Modules
5.1.7 Pinouts
Screw Terminal Pinouts

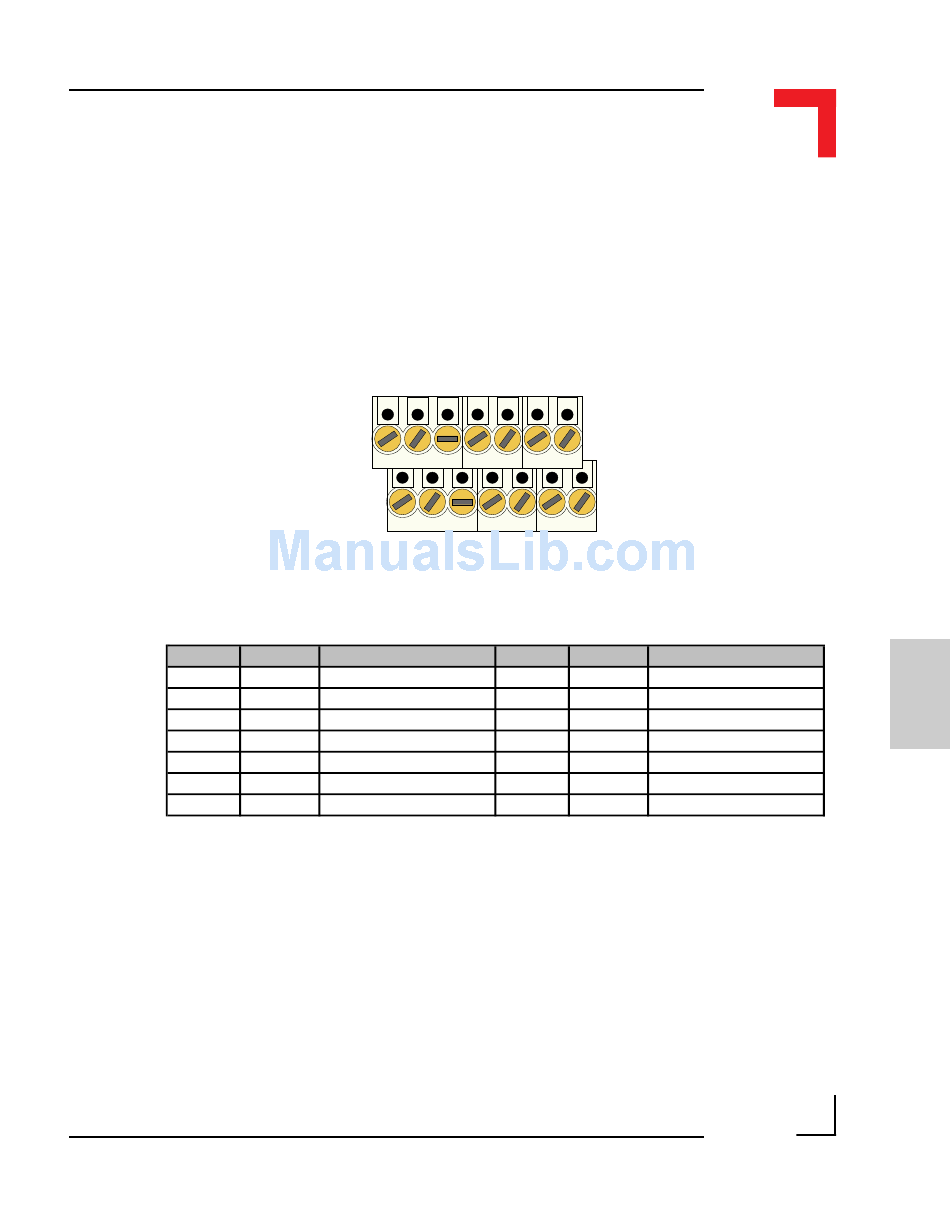

The following shows the pinout/signal relationship for the SM-DAD1 when
connected to a particular screw terminal block.
Pin Nr. Signal
1 IN0P (+) Analog Input Ch. 0+
3 IN0N (-)
5 AGND
7 IN1P (+) Analog Input Ch. 1+
9 IN1N (-)
11 VOUT0
13 AGND
March 12, 1996
Pin 1
Pin 2
Description Pin Nr. Signal
Analog Input Ch. 0-
Analog GND
Analog Input Ch. 1-
Analog Output Ch. 0
Analog GND
©1996 PEP Modular Computers GmbH
SMART I/O User's Manual
Pin 13
Pin 14
Description
2 IN2P (+) Analog Input Ch. 2+
4 IN2N (-) Analog Input Ch. 2-
6 AGND Analog GND
8 IN3P (+) Analog Input Ch. 3+
10 IN3N (-) Analog Input Ch. 3-
12 VOUT1 Analog Output Ch. 1
14 AGND Analog GND
